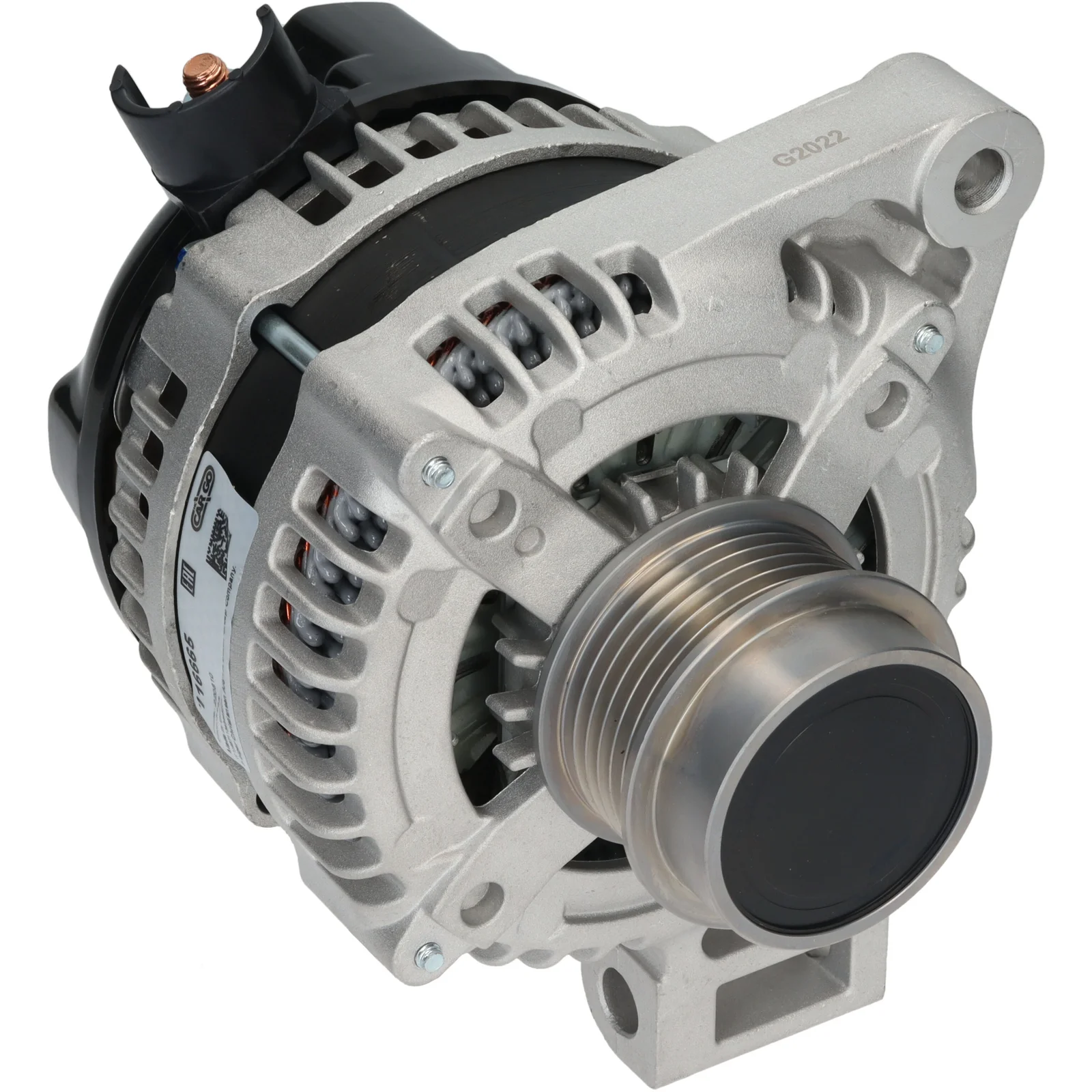

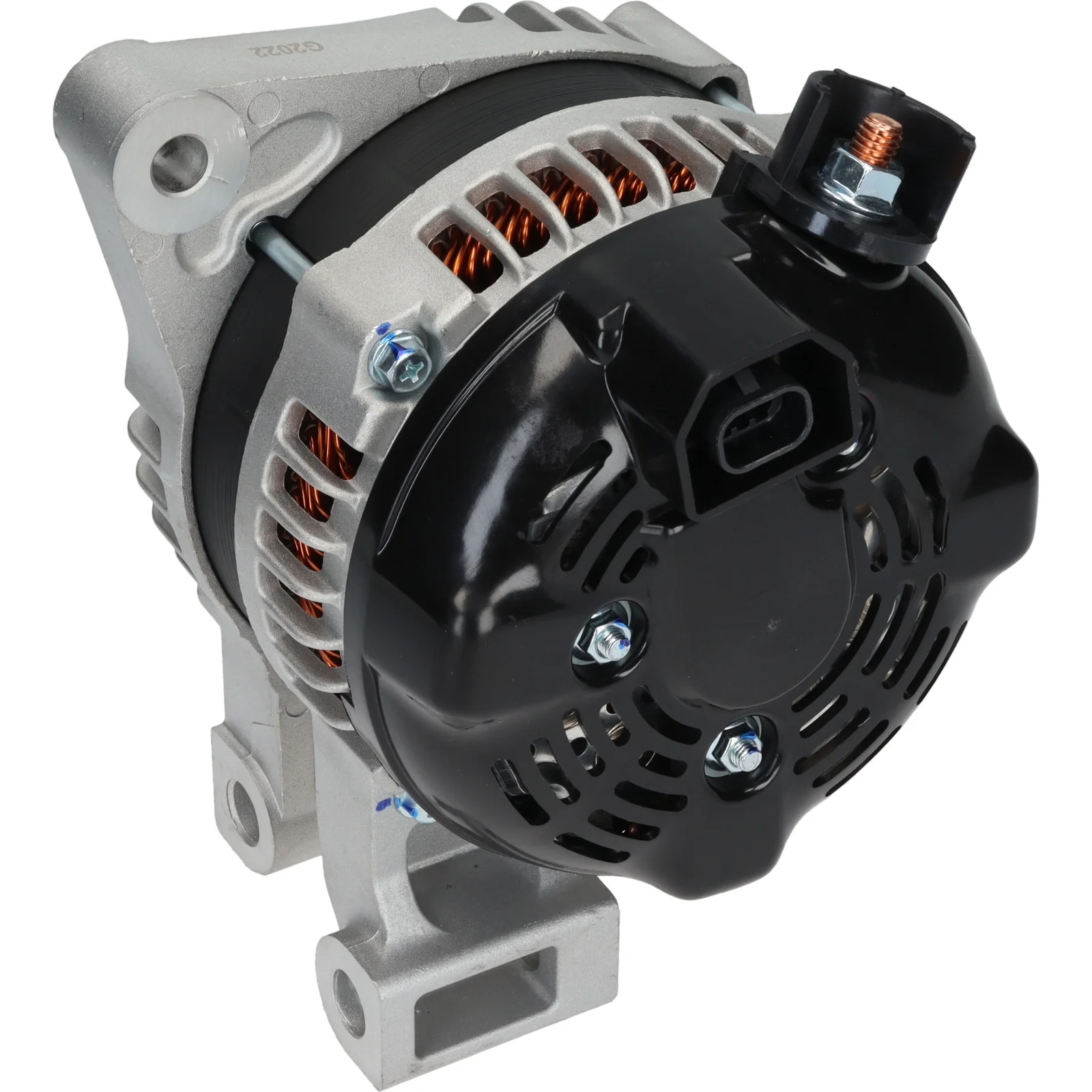

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116665

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 59.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 32.00
Width/holder arm: 50.00
Mount. bracket dist.: 59.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 91.00
Radius 2: 88.00
B+: M8
Position/B+ in min.: 4
Rotation: CW
Plug no.: PL180
Total length mm: 180.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 8
Plug no. PL180
Bracket hole 12.00
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 32.00
Radius 91.00
Radius 2 88.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 180.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    F032116665, 104210-2170, 104210-2172, 1204645, 13502584

  • Konkurrentreferens
    A6488S, CAL40502, DRA1237, LRA04136, 28-7745, 135.921.150, 228.312.1502, 40328, 440716, 555346RI, 12090903

  • Normaliserat artikelnummer
    a6488s, cal40502, dra1237, f032116665, lra04136, 40328, 287745, 440716, 555346ri, 1204645, 12090903, 13502584, 135921150, 1042102170, 1042102172, 2283121502

  • Passar modeller
    Cadillac Model: SRX Model series: SRX Model type: AWD Size of motor: 2.8 Brand of engine: LAU From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER Body: Estate From date: 01-07-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sportstour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER From date: 01-07-2009 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Model type: XWD Type of engine: V6 Size of motor: 2.8 Brand of engine: A28NER From date: 01-05-2010 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 32.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 59.00
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 91.00
    Radius 2: 88.00
    B+: M8
    Position/B+ in min.: 4
    Rotation: CW
    Plug no.: PL180
    Total length mm: 180.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 59.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 8
    Plug no. PL180
    Bracket hole 12.00
    Position/B+ in min. 4
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 32.00
    Radius 91.00
    Radius 2 88.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 50.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032116665, 104210-2170, 104210-2172, 1204645, 13502584

    • Konkurrentreferens
      A6488S, CAL40502, DRA1237, LRA04136, 28-7745, 135.921.150, 228.312.1502, 40328, 440716, 555346RI, 12090903

    • Normaliserat artikelnummer
      a6488s, cal40502, dra1237, f032116665, lra04136, 40328, 287745, 440716, 555346ri, 1204645, 12090903, 13502584, 135921150, 1042102170, 1042102172, 2283121502

    • Passar modeller
      Cadillac Model: SRX Model series: SRX Model type: AWD Size of motor: 2.8 Brand of engine: LAU From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER Body: Estate From date: 01-07-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sportstour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: V6 Turbo Size of motor: 2.8 Brand of engine: A28NER From date: 01-07-2009 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Model type: XWD Type of engine: V6 Size of motor: 2.8 Brand of engine: A28NER From date: 01-05-2010 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
