Artikelnr: F032116661

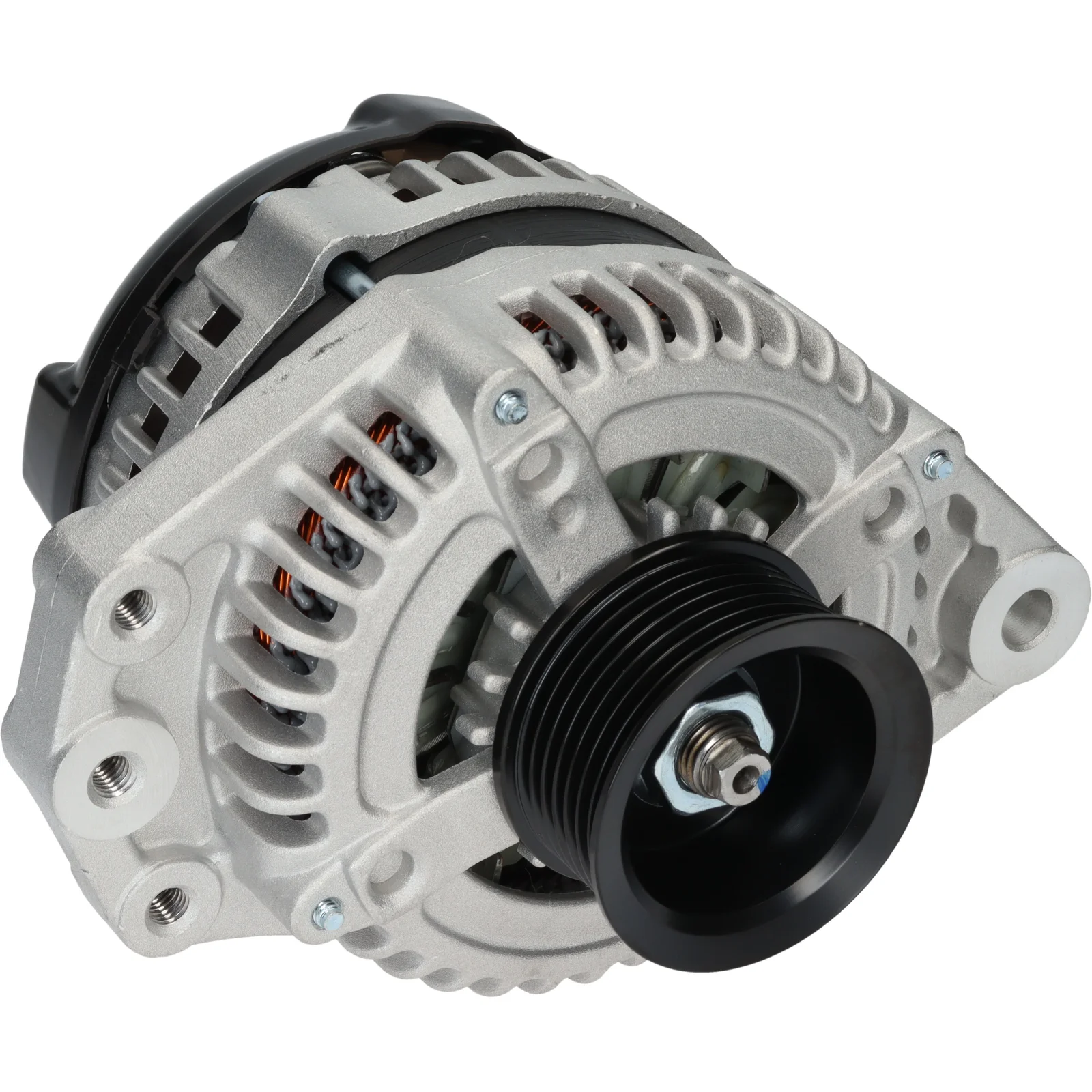

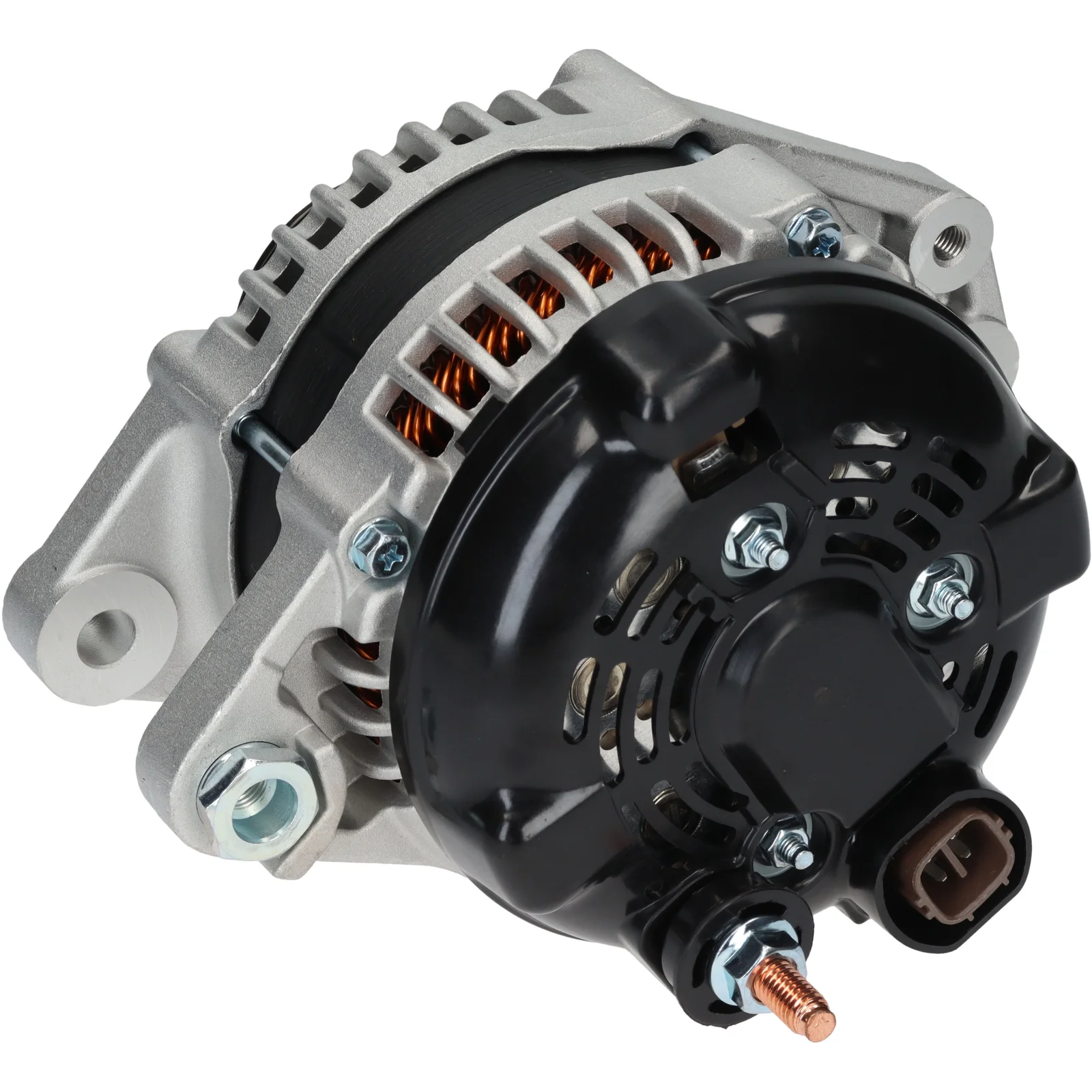

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 42.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 31.50
Width/holder arm: 16.00
Mount. bracket dist.: 42.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 2
Belt. adj. brackethole pos. 3: 58
Belt. adj. brackethole pos. 2: 54
Belt. adj. bracket hole 1: M8
Belt. adj. bracket hole 2: M8
Belt. adj. bracket hole 3: M8
Pulley dia.: 60.00
Grooves/pulley: 7
Radius: 87.00
Radius 2: 87.00
Radius 3: 86.00
Radius 4: 84.00
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Total length mm: 188.00
Pulley: SP
Fan: IF
Regulator type: IR

Specifikation

B+ M8
Mount. bracket dist. 42.00
Belt. adj. bracket hole 1 M8
Belt. adj. bracket hole 2 M8
Belt. adj. bracket hole 3 M8
Belt. adj. brackethole pos. 2
Belt. adj. brackethole pos. 2 54
Belt. adj. brackethole pos. 3 58
Plug no. PL60
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 60.00
Pulley dist. 31.50
Radius 87.00
D+ Size Plug
Radius 2 87.00
Radius 3 86.00
Radius 4 84.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 188.00 mm
Width/holder arm 16.00
Amp 100
  • OEM

    F032116661, 27060-33060, 104210-3740, 12317791334
  • Konkurrentreferens

    DRA0212, 28-4906, 215.166.1002
  • Normaliserat artikelnummer

    dra0212, f032116661, 284906, 1042103740, 2151661002, 2706033060, 12317791334
  • Passar modeller

    Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 31.50
    Width/holder arm: 16.00
    Mount. bracket dist.: 42.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 2
    Belt. adj. brackethole pos. 3: 58
    Belt. adj. brackethole pos. 2: 54
    Belt. adj. bracket hole 1: M8
    Belt. adj. bracket hole 2: M8
    Belt. adj. bracket hole 3: M8
    Pulley dia.: 60.00
    Grooves/pulley: 7
    Radius: 87.00
    Radius 2: 87.00
    Radius 3: 86.00
    Radius 4: 84.00
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Total length mm: 188.00
    Pulley: SP
    Fan: IF
    Regulator type: IR
  • Specifikation
    B+ M8
    Mount. bracket dist. 42.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. bracket hole 2 M8
    Belt. adj. bracket hole 3 M8
    Belt. adj. brackethole pos. 2
    Belt. adj. brackethole pos. 2 54
    Belt. adj. brackethole pos. 3 58
    Plug no. PL60
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 31.50
    Radius 87.00
    D+ Size Plug
    Radius 2 87.00
    Radius 3 86.00
    Radius 4 84.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 16.00
    Amp 100
  • Fordonsmatchning
    • OEM

      F032116661, 27060-33060, 104210-3740, 12317791334
    • Konkurrentreferens

      DRA0212, 28-4906, 215.166.1002
    • Normaliserat artikelnummer

      dra0212, f032116661, 284906, 1042103740, 2151661002, 2706033060, 12317791334
    • Passar modeller

      Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
