Artikelnr: F032116639

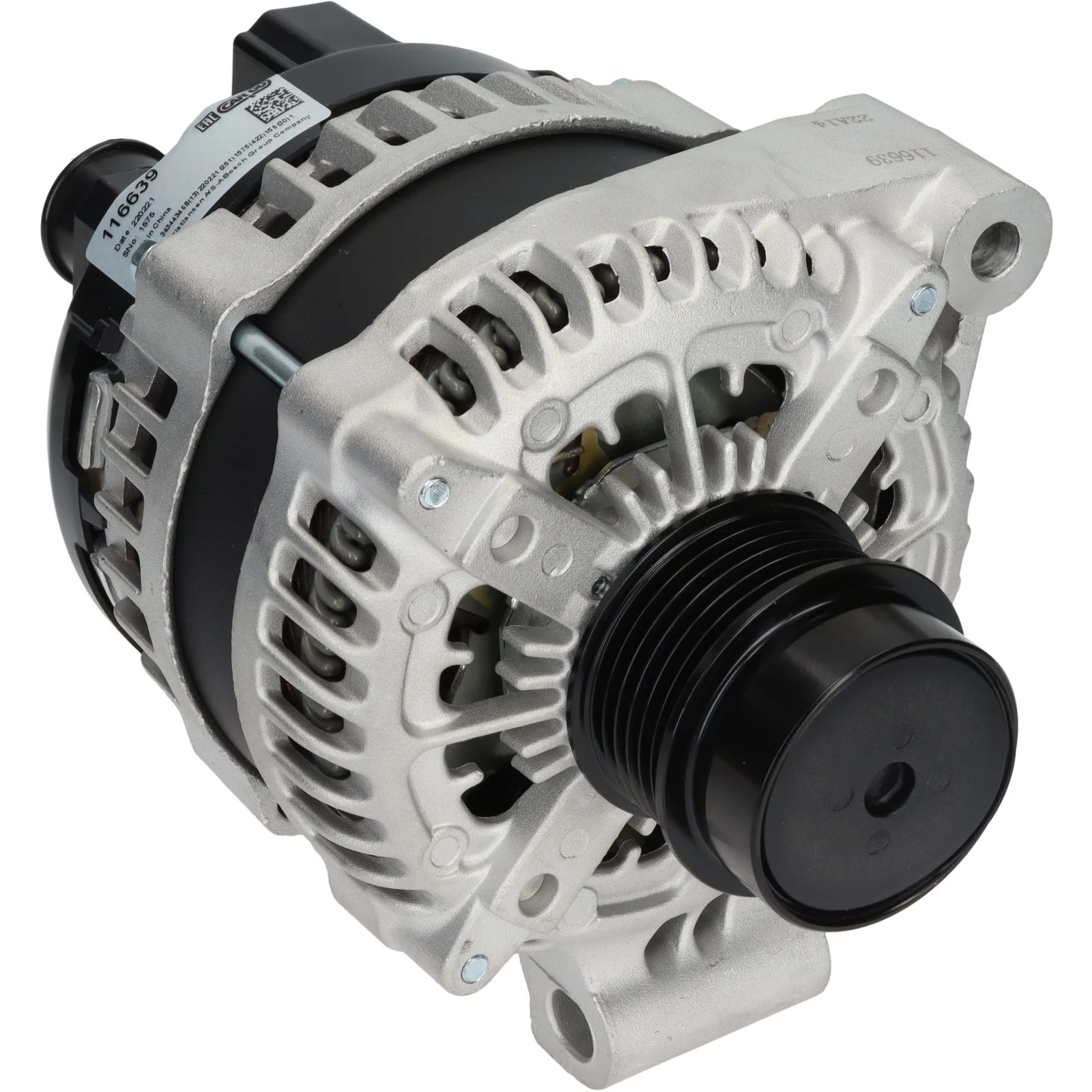

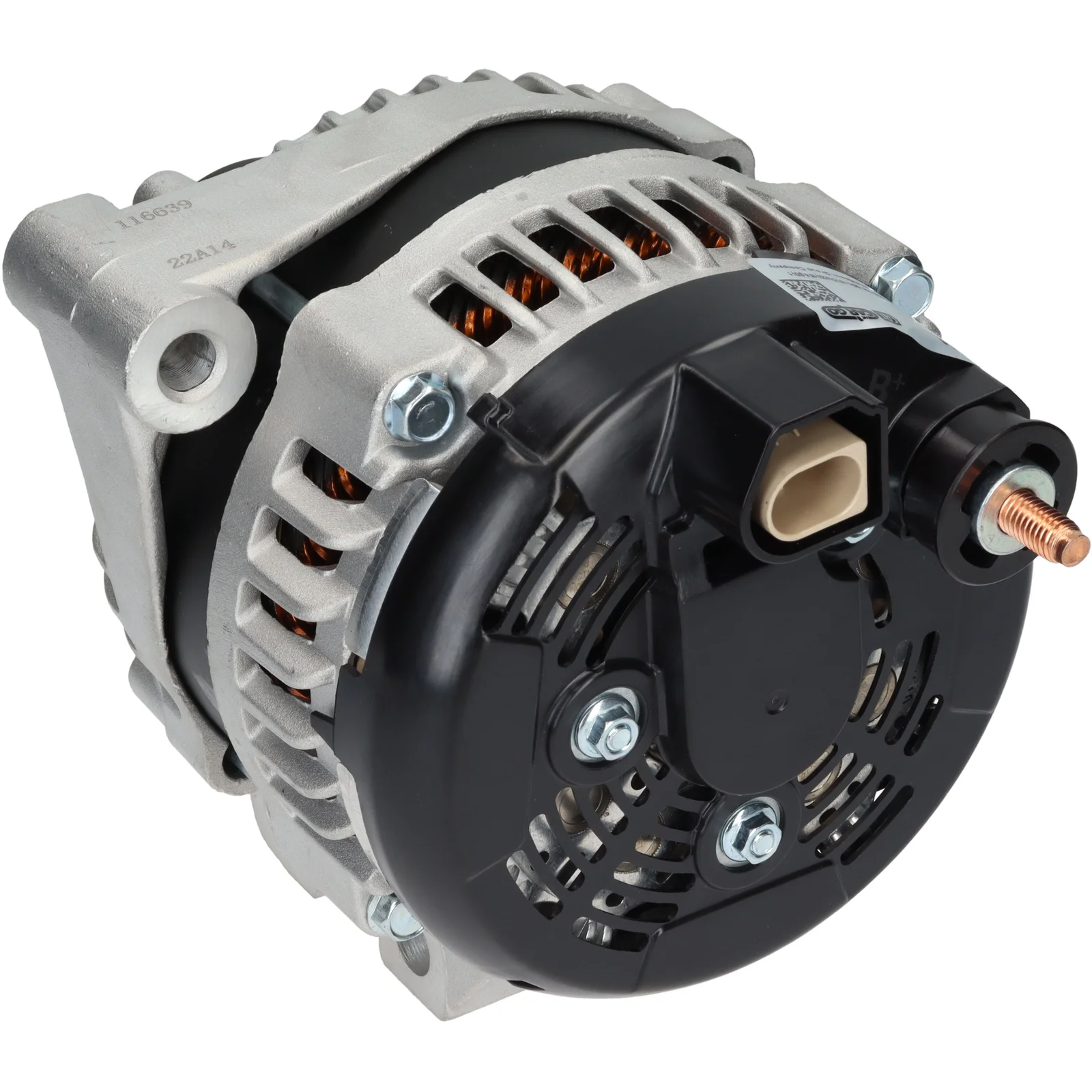

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 47.00

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 23.00
Width/holder arm: 50.00
Mount. bracket dist.: 47.00
Bracket hole: 11.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 82.50
Radius 2: 86.50
B+: M8
Position/B+ in min.: 8
Rotation: CW
Plug no.: PL174
Total length mm: 212.00
Terminal type: COM
ID Code: 28
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 10
Plug no. PL174
Bracket hole 11.50
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 57.50
Pulley dist. 23.00
Radius 82.50
Radius 2 86.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 28
Terminal type COM
Voltage 14
Total length 212.00 mm
Width/holder arm 50.00
Amp 180
  • OEM

    CPLA-10300BD, CPLA-10300BE, CPLA10300BD, CPLA10300BE, F032116639, LR034014, LR054993, LR076696, LR34014, LR54993, 104210-6480, 104210-6481, 104210-6482, 104210-6483
  • Konkurrentreferens

    A6406S, CAL40558, CAL40558AS, DAN1368, 28-7743, 455.540.180, 455.540.180.050, 55441RI, 444261, 554411RI, 12090794, 32118808
  • Normaliserat artikelnummer

    a6406s, cal40558, cal40558as, cpla10300bd, cpla10300be, dan1368, f032116639, lr034014, lr054993, lr076696, lr34014, lr54993, 55441ri, 287743, 444261, 554411ri, 12090794, 32118808, 455540180, 1042106480, 1042106481, 1042106482, 1042106483, 455540180050
  • Passar modeller

    Land Rover Model: Discovery Model series: Discovery Model type: Sdv6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2018 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: Td6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Model series: Range Model type: 4x4 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LG Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Model series: Range Model type: 4x4 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LG Body: SUV From date: 01-10-2013 Fuel: Gas Approved: Yes
    Land Rover Model: Range Model series: Range Model type: 4x4 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LW Body: SUV From date: 01-10-2013 Fuel: Gas Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Hybrid 4x4 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LG From date: 01-06-2015 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: SDV6 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT (TDV6) Type description: L405 Body: SUV Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: LW From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Model type: Hybrid 4x4 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LW From date: 01-06-2015 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Model type: Hybrid 4x4 Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LW From date: 01-12-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LW From date: 01-04-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Type of engine: TD Size of motor: 3.0 Brand of engine: 30DDTX Type description: LW From date: 01-04-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD Size of motor: 3.0 Brand of engine: 306DT Type description: LM From date: 01-08-2012 Fuel: Diesel Approved: Yes
