HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116632

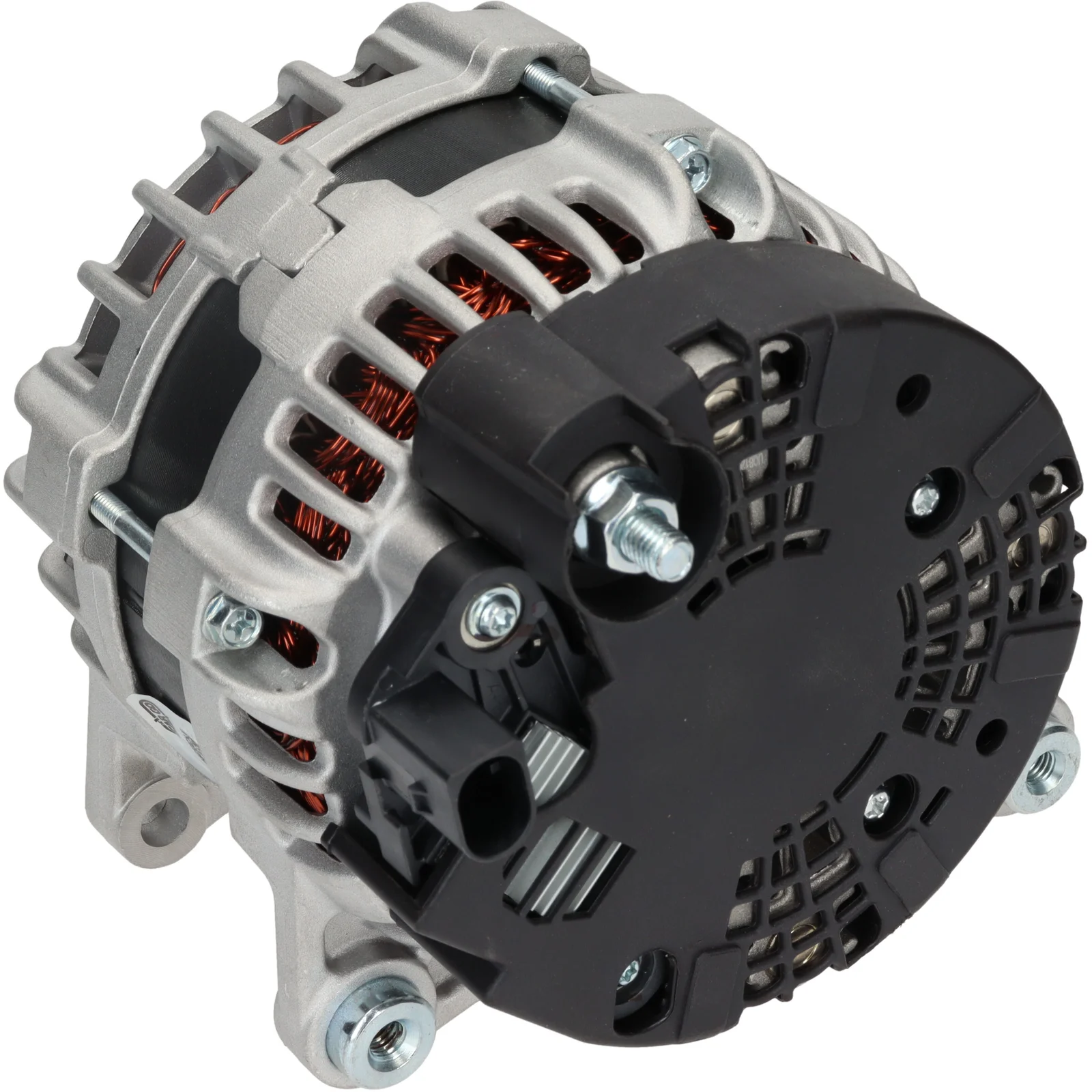

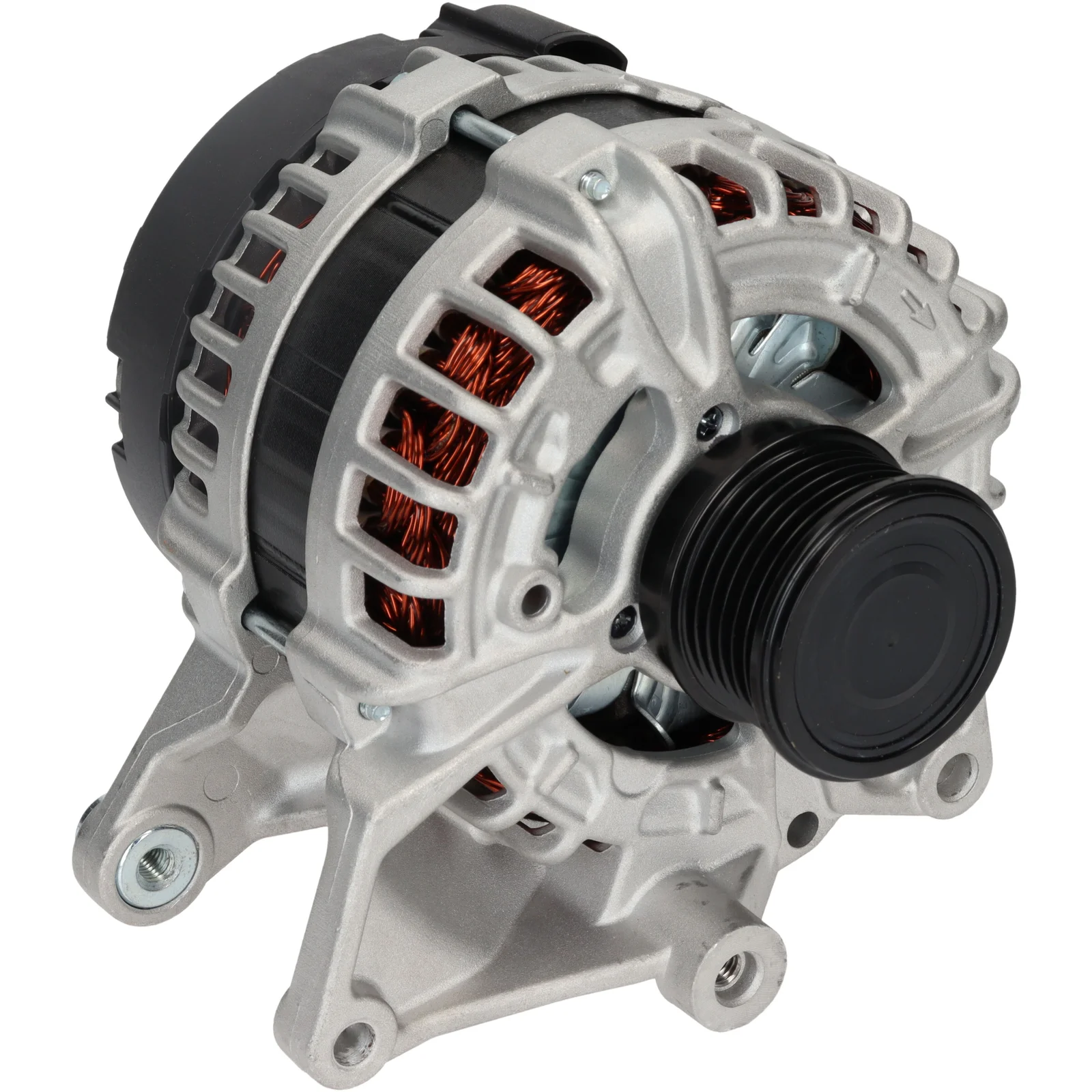

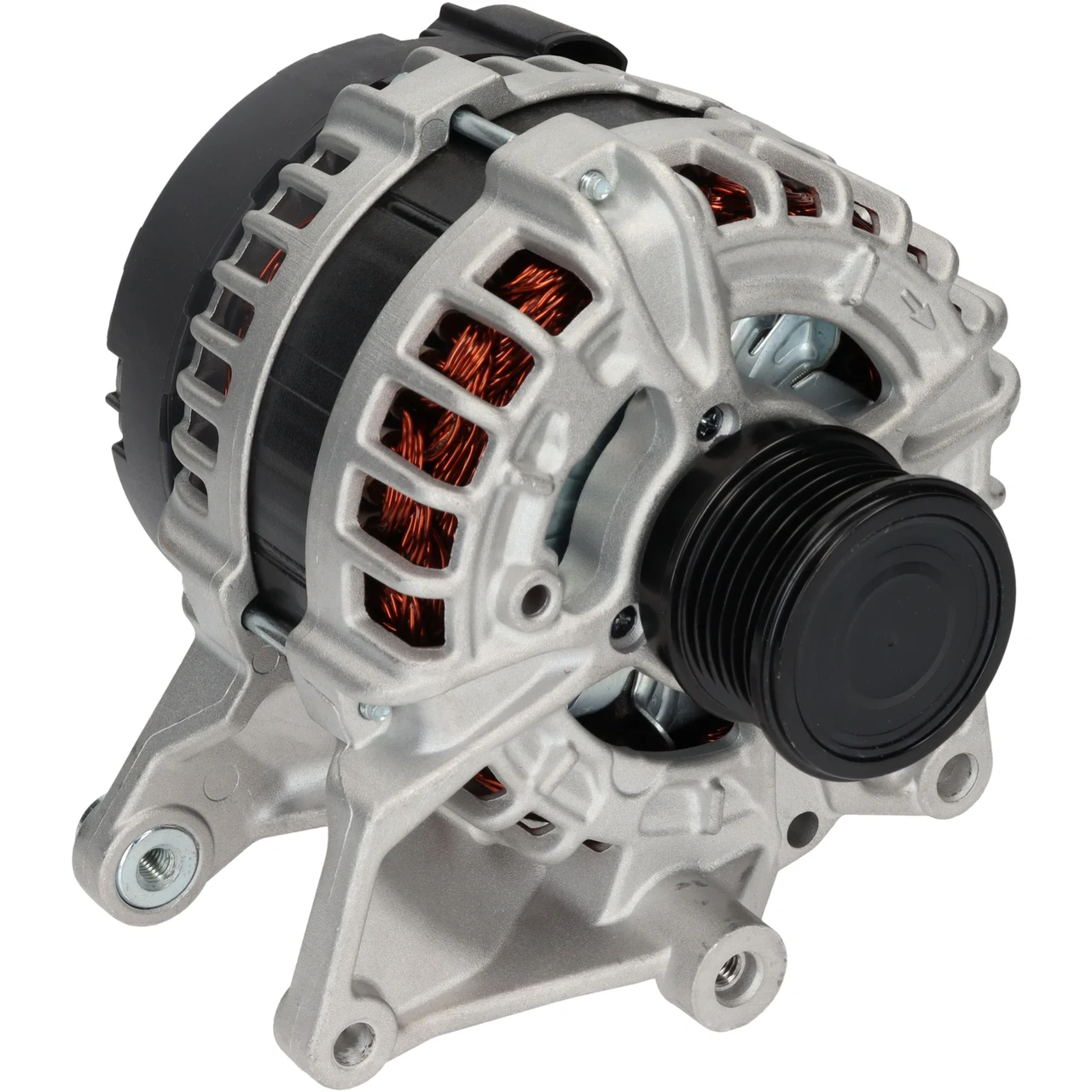

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 60.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 32.50
Width/holder arm: 14.00
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 52.50
Grooves/pulley: 6
Radius: 115.00
Radius 2: 86.50
B+: M8
Position/B+ in min.: 47
Rotation: CW
Plug no.: PL125
Total length mm: 191.00
Terminal type: COM
ID Code: 24
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 47
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 32.50
Radius 115.00
Radius 2 86.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 24
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    A0009061822, A0009062003, A00090620030080, A000906200380, F032116632, 23100-4HH3ACI, 23100-4HH3AEM, 0009061822, 0009062003, 0009065501, 0125711032, 0125711080, 000906200380, 00090620030080

  • Konkurrentreferens
    A0536S, CAL10008, DRA1383, DRA1389, 28-6950, 555.942.150, 440930, 443278, 554435RI, 12090534, 12090704, 32081730, 32711113, 0986081730, 0986081733

  • Normaliserat artikelnummer
    a0009061822, a0009062003, a00090620030080, a000906200380, a0536s, cal10008, dra1383, dra1389, f032116632, 231004hh3aci, 231004hh3aem, 286950, 440930, 443278, 554435ri, 0009061822, 0009062003, 0009065501, 12090534, 12090704, 32081730, 32711113, 0125711032, 0125711080, 555942150, 000906200380, 0986081730, 0986081733, 00090620030080

  • Passar modeller
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: C204 Body: Coupe From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: S204 Body: Estate From date: 01-02-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: W204 From date: 01-01-2008 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: A207 Body: Convertible From date: 01-03-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: C207 Body: Coupe From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: GLK 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: A207 Body: Convertible From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: C207 Body: Coupe From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: GLK 250 Model type: 4 Matic Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 250 Model series: GLK 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 32.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 52.50
    Grooves/pulley: 6
    Radius: 115.00
    Radius 2: 86.50
    B+: M8
    Position/B+ in min.: 47
    Rotation: CW
    Plug no.: PL125
    Total length mm: 191.00
    Terminal type: COM
    ID Code: 24
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 47
    Pulley SP/FW
    Pulley dia. 52.50
    Pulley dist. 32.50
    Radius 115.00
    Radius 2 86.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 24
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 14.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A0009061822, A0009062003, A00090620030080, A000906200380, F032116632, 23100-4HH3ACI, 23100-4HH3AEM, 0009061822, 0009062003, 0009065501, 0125711032, 0125711080, 000906200380, 00090620030080

    • Konkurrentreferens
      A0536S, CAL10008, DRA1383, DRA1389, 28-6950, 555.942.150, 440930, 443278, 554435RI, 12090534, 12090704, 32081730, 32711113, 0986081730, 0986081733

    • Normaliserat artikelnummer
      a0009061822, a0009062003, a00090620030080, a000906200380, a0536s, cal10008, dra1383, dra1389, f032116632, 231004hh3aci, 231004hh3aem, 286950, 440930, 443278, 554435ri, 0009061822, 0009062003, 0009065501, 12090534, 12090704, 32081730, 32711113, 0125711032, 0125711080, 555942150, 000906200380, 0986081730, 0986081733, 00090620030080

    • Passar modeller
      Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: C204 Body: Coupe From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: S204 Body: Estate From date: 01-02-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 180 Model series: C 180 Size of motor: 1.6 Brand of engine: M274.910 Type description: W204 From date: 01-01-2008 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: A207 Body: Convertible From date: 01-03-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: C207 Body: Coupe From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: GLK 200 Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: A207 Body: Convertible From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: E 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: C207 Body: Coupe From date: 01-06-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: GLK 250 Model type: 4 Matic Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 250 Model series: GLK 250 Size of motor: 2.0 Brand of engine: M274.920 Type description: X204 Body: SUV From date: 01-08-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
