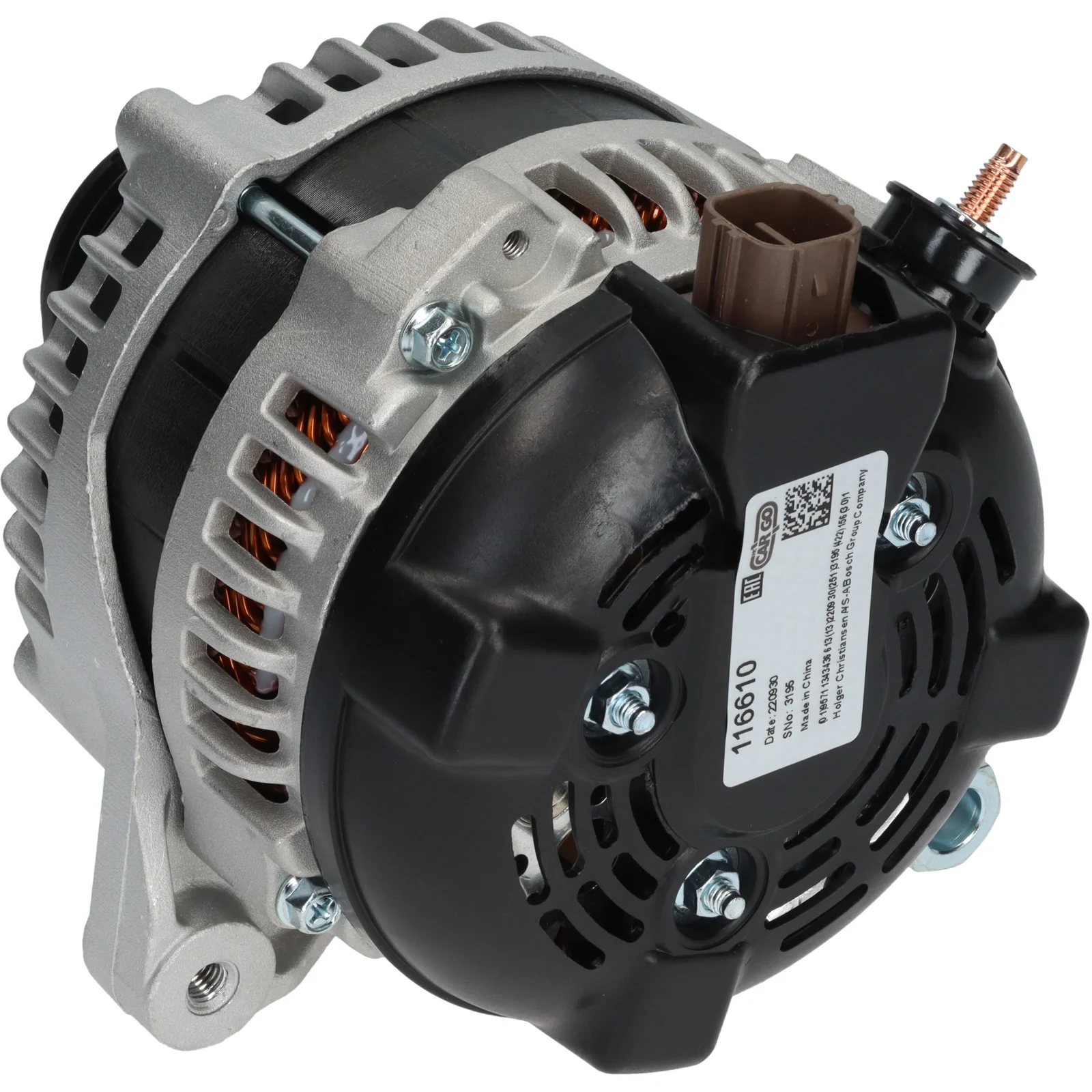

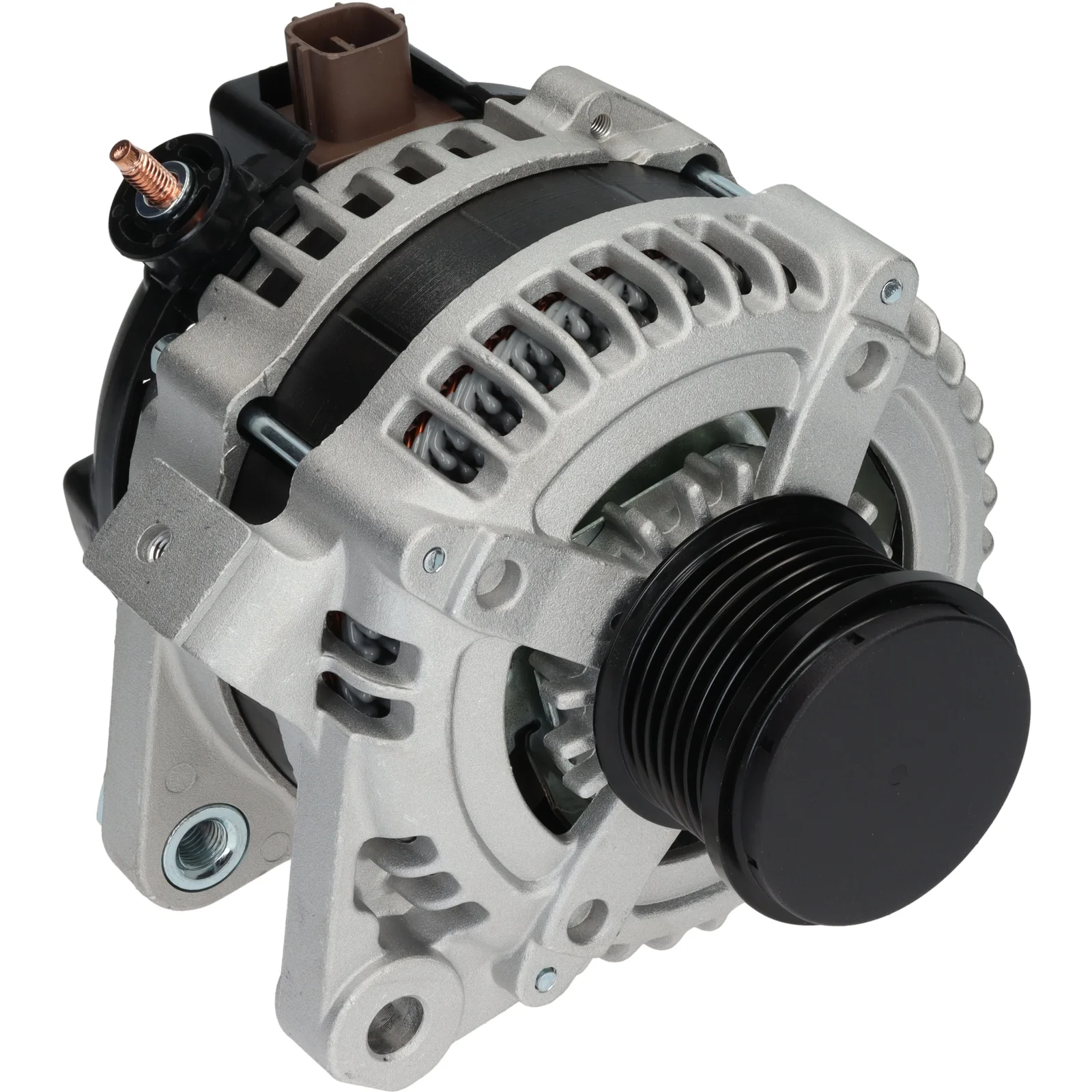

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116610

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 45.50

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 36.00
Width/holder arm: 18.00
Mount. bracket dist.: 45.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 14
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL146
Total length mm: 172.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 45.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 14
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 36.00
Radius 84.00
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 172.00 mm
Width/holder arm 18.00
Amp 100

  • OEM
    F032116610, 1986A01463, 27060-28300, 27060-28301, 27060-28311, 104210-4790, 104210-4791, 104210-4795

  • Konkurrentreferens
    A6316, CAL40381, LRA04217, 28-7826, 195.955.100, 553965RI, 12060896

  • Normaliserat artikelnummer
    a6316, cal40381, f032116610, lra04217, 1986a01463, 287826, 553965ri, 12060896, 195955100, 1042104790, 1042104791, 1042104795, 2706028300, 2706028301, 2706028311

  • Passar modeller
    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACA_, ACE_ From date: 01-11-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 36.00
    Width/holder arm: 18.00
    Mount. bracket dist.: 45.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 14
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL146
    Total length mm: 172.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 45.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 14
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 10
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 36.00
    Radius 84.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 18.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032116610, 1986A01463, 27060-28300, 27060-28301, 27060-28311, 104210-4790, 104210-4791, 104210-4795

    • Konkurrentreferens
      A6316, CAL40381, LRA04217, 28-7826, 195.955.100, 553965RI, 12060896

    • Normaliserat artikelnummer
      a6316, cal40381, f032116610, lra04217, 1986a01463, 287826, 553965ri, 12060896, 195955100, 1042104790, 1042104791, 1042104795, 2706028300, 2706028301, 2706028311

    • Passar modeller
      Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACA_, ACE_ From date: 01-11-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
