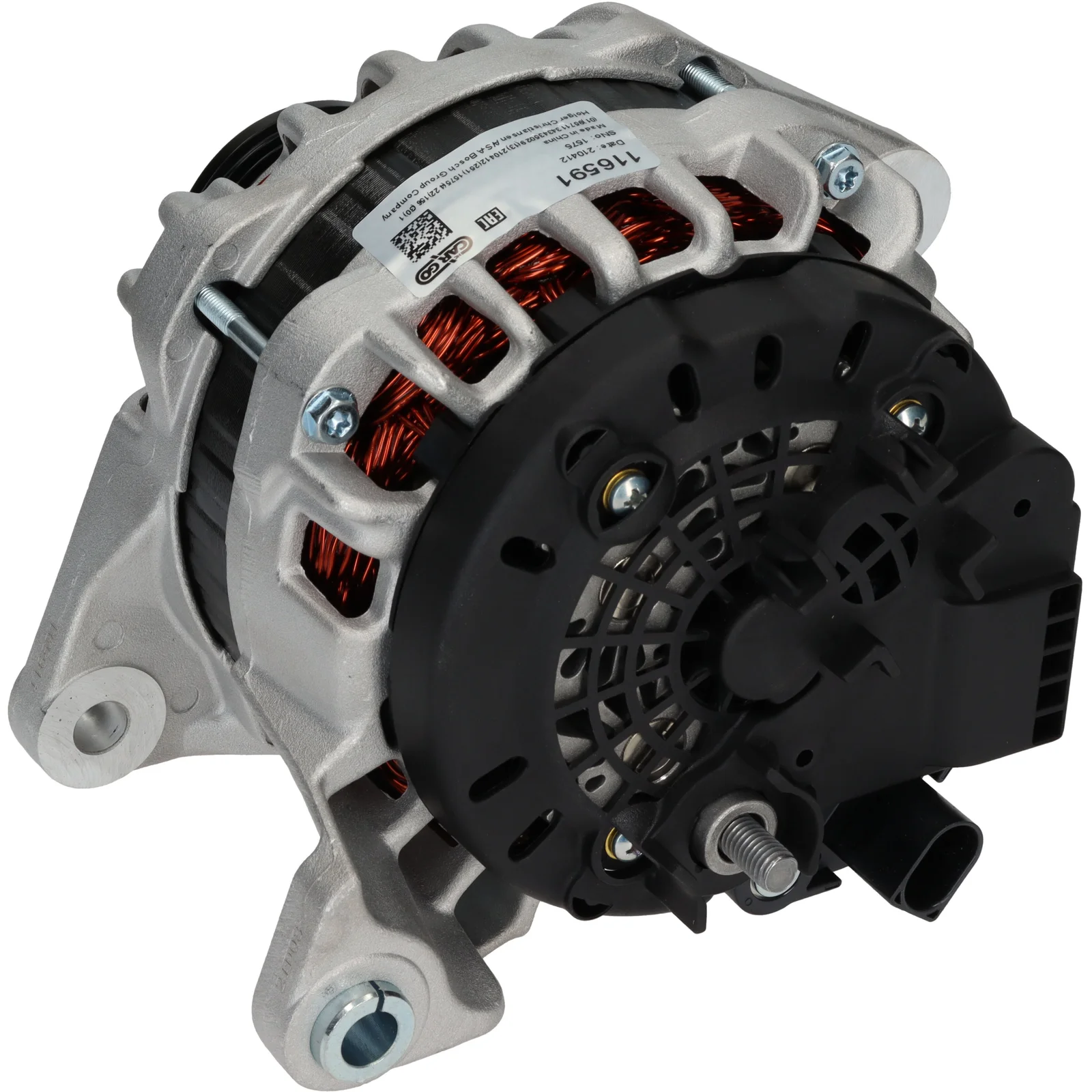

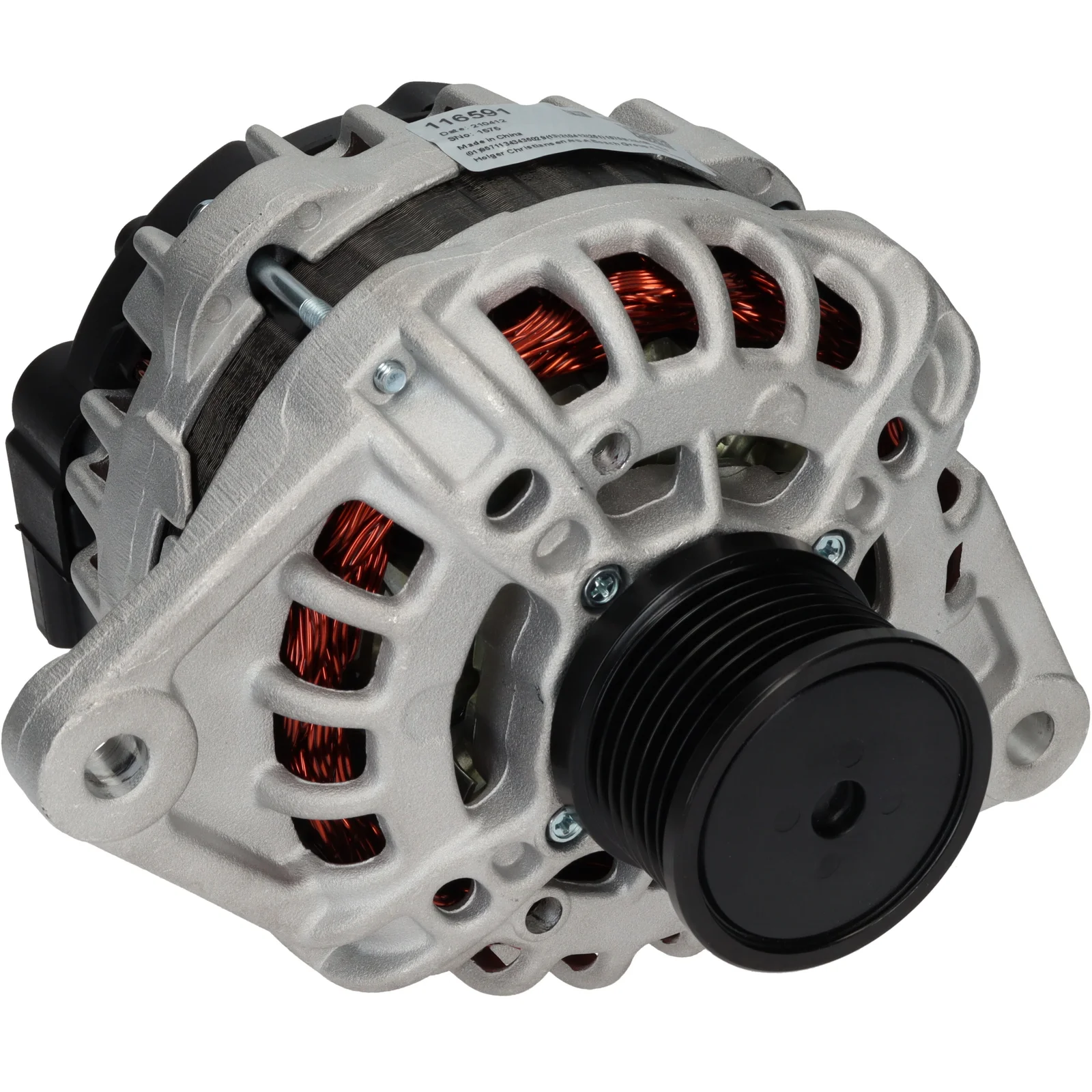

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116591

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Mount. bracket dist.: 83.50, Pulley dia.: 55.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 41.50
Width/holder arm: 14.00
Mount. bracket dist.: 83.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 56
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 94.00
Radius 2: 95.50
B+: M8
Position/B+ in min.: 22
Plug no.: PL174
Total length mm: 184.00
Terminal type: COM
ID Code: 24
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 56
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 22
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 41.50
Radius 94.00
Radius 2 95.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Fan IF
Grooves/pulley 7
ID Code 24
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

  • Konkurrentreferens
    A0826S, CAL10024, LRA04476, 28-8585, 505.906.150, 443396, 444279, 554856RIB, 12090984, 32446540

  • Normaliserat artikelnummer
    a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842

  • Passar modeller
    Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
