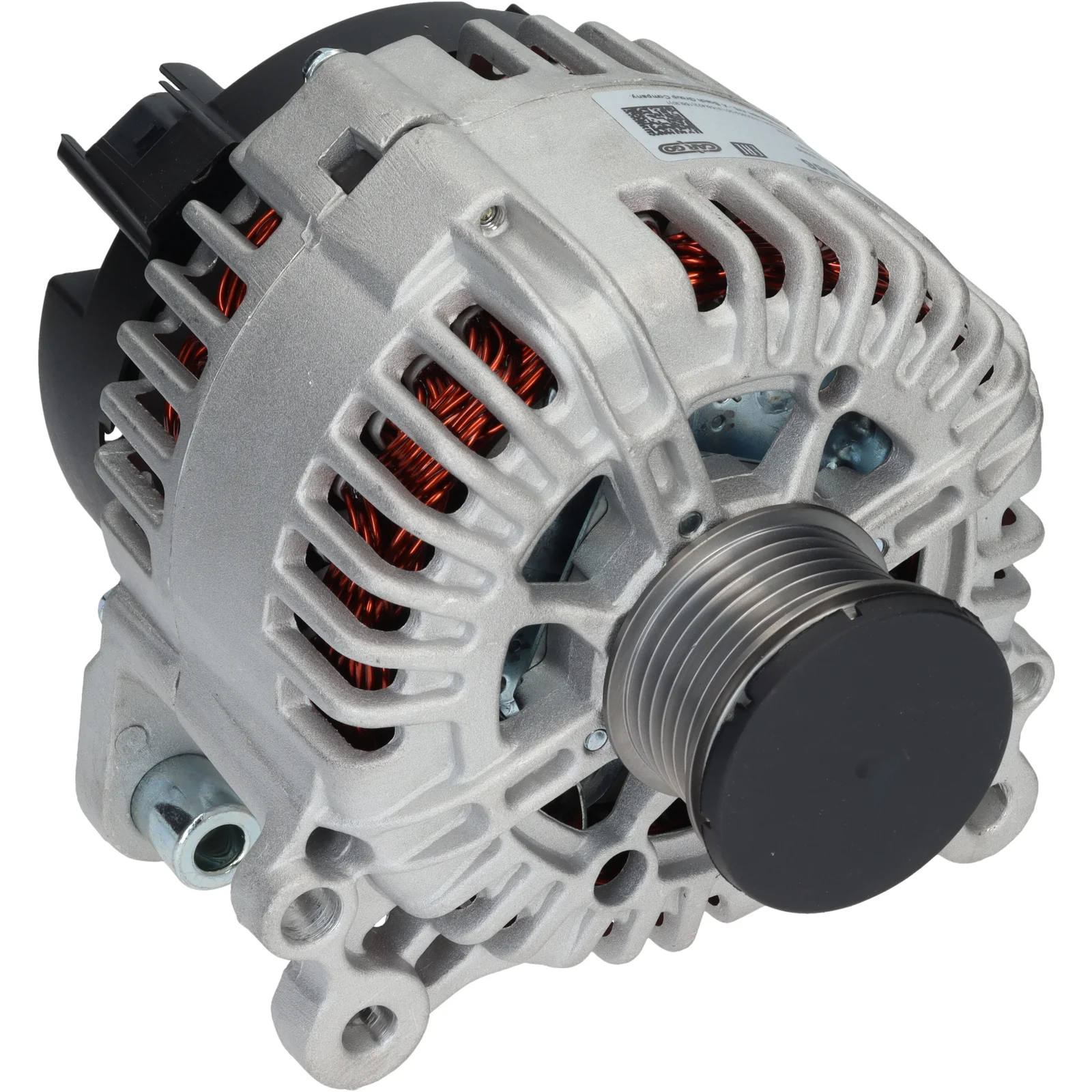

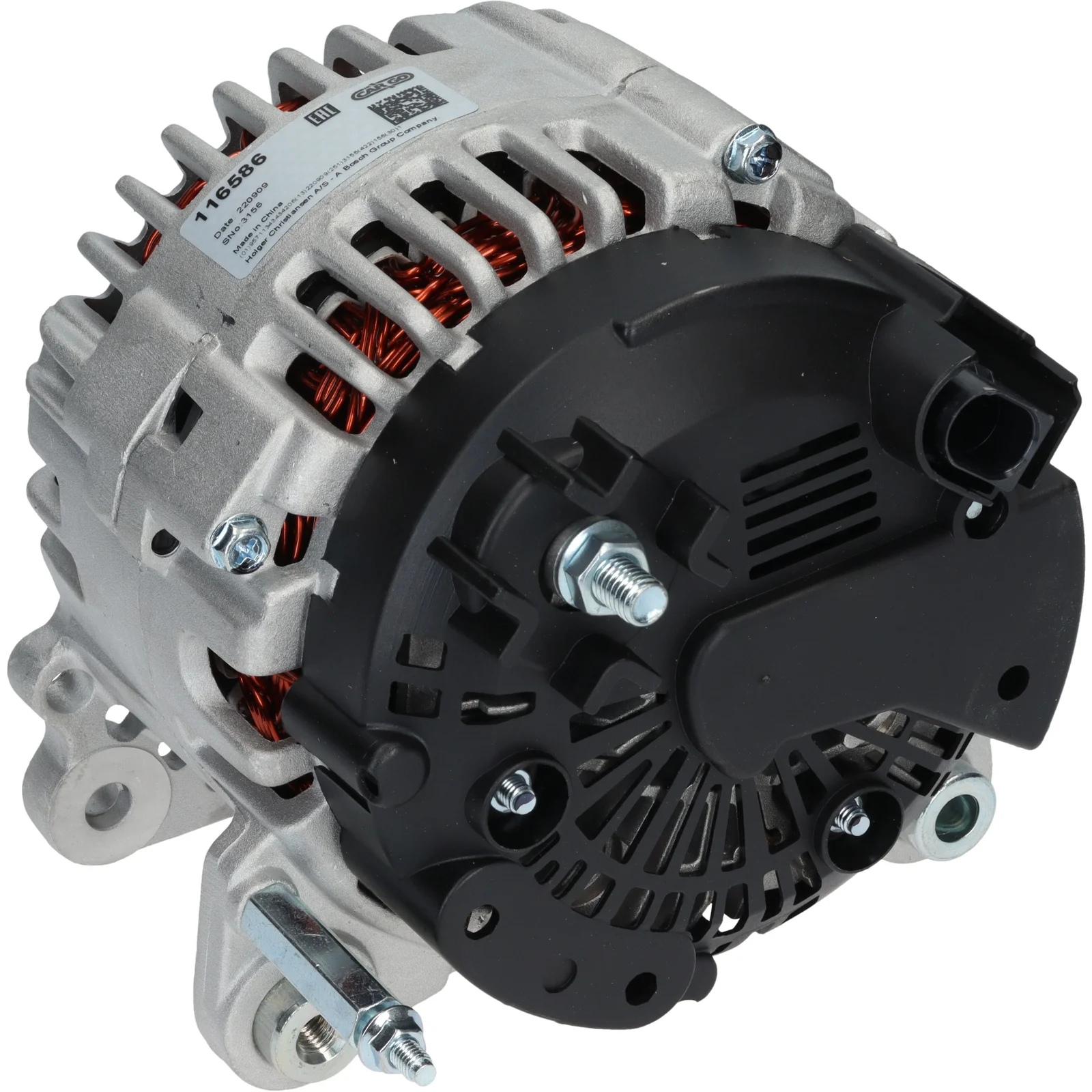

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116586

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL125
Total length mm: 190.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    A0009060304, CG25S020, CG25S036, F032116586, TG14C054, 03C903024F, 03C903024FX, 2617851A, 0009060304

  • Konkurrentreferens
    A0468PR, A3309PR, CAL15498, CAL15577, DRA1294, 305.920.250, 209228, 209228A, 439850, 440590, 440921, 442298, 553840RI, 12090588

  • Normaliserat artikelnummer
    a0009060304, a0468pr, a3309pr, cal15498, cal15577, cg25s020, cg25s036, dra1294, f032116586, tg14c054, 03c903024f, 03c903024fx, 209228, 209228a, 439850, 440590, 440921, 442298, 553840ri, 2617851a, 0009060304, 12090588, 305920250

  • Passar modeller
    VW Model: CC Model series: CC Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 358 Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TSI Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: EcoFuel Type of engine: TSi Size of motor: 1.4 Brand of engine: CDGA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi MultiFuel Size of motor: 1.4 Brand of engine: CKMA Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2014 Fuel: Bi-Fuel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.4 Brand of engine: CAXA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 362 From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.4 Brand of engine: CTHD Type description: 365 Body: Estate From date: 01-11-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Touran Model series: Touran Model type: EcoFuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: MPV From date: 01-05-2010 To date: 01-05-2015 Fuel: Gas Approved: Yes
    VW Model: Touran Model series: Touran Van Model type: Ecofuel Type of engine: TSI Size of motor: 1.4 Brand of engine: CDGA Type description: 1T3 Body: Van From date: 01-05-2010 To date: 01-05-2015 Fuel: Petrol/Compressed Na Approved: Yes
