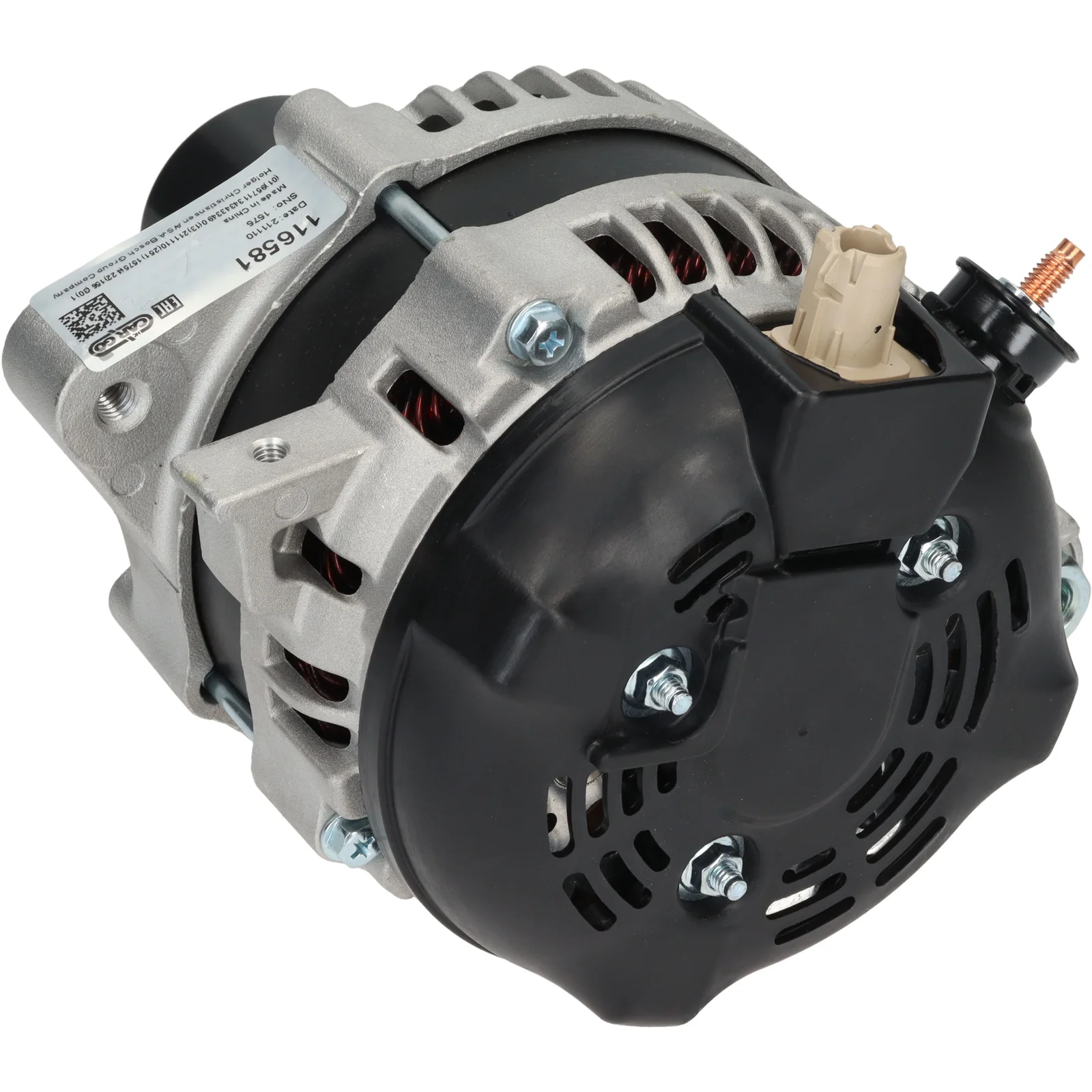

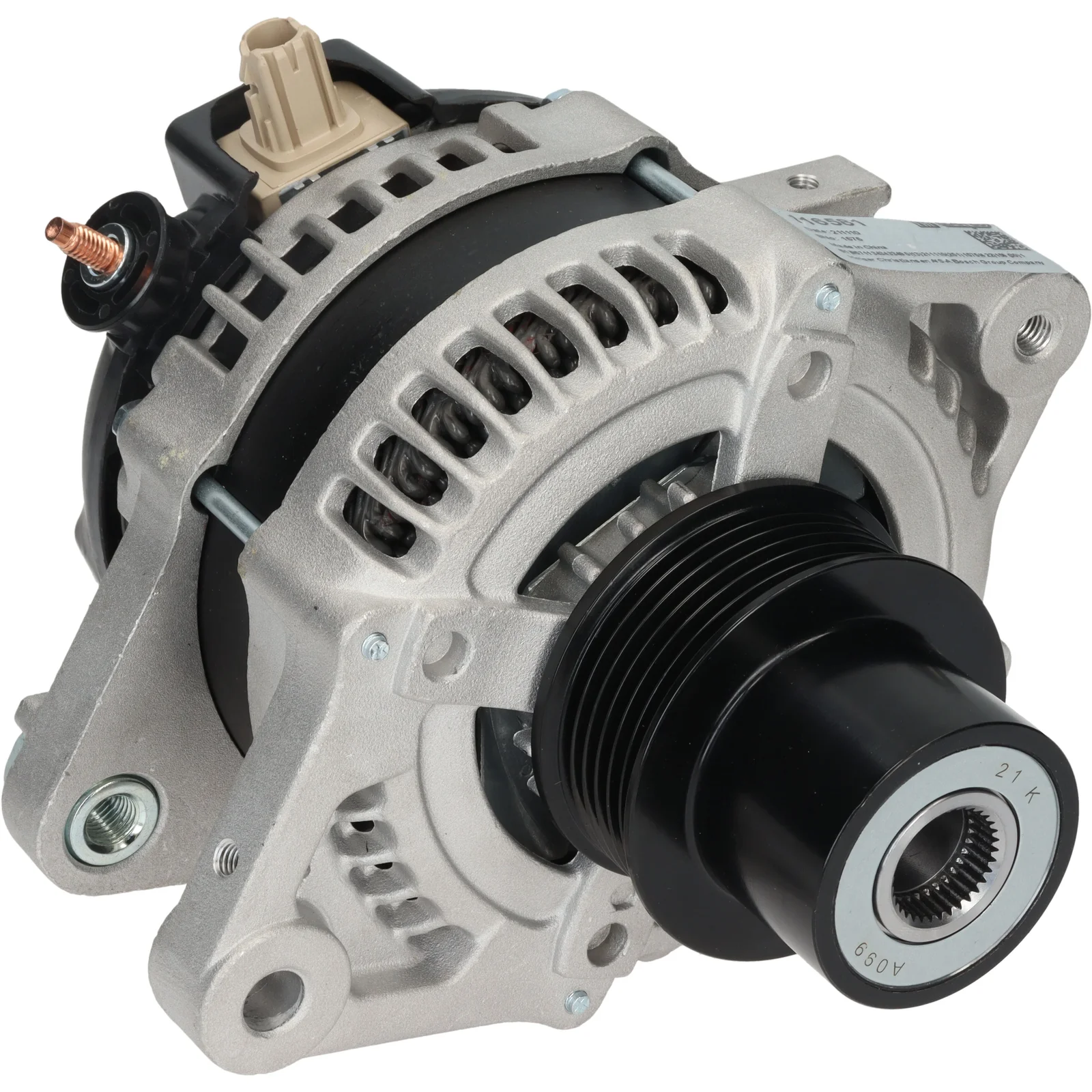

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116581

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 35.50

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 30.20
Width/holder arm: 19.00
Mount. bracket dist.: 35.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 58
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.50
Grooves/pulley: 6
Radius: 89.00
Radius 2: 82.50
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL204
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 35.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 58
Plug no. PL204
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 67.50
Pulley dist. 30.20
Radius 89.00
Radius 2 82.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 19.00
Amp 100

  • OEM
    F032116581, 1986A01658, 27060-0q150, 27060-0Q151, 104211-3010, 104211-3011, 104211-3012

  • Konkurrentreferens
    A6683S, CAL40434, DAN1315, DRA1093, LRA03538, 28-6648, 210972, 210972A, 554424RI, 12061216, 0986086510

  • Normaliserat artikelnummer
    a6683s, cal40434, dan1315, dra1093, f032116581, lra03538, 1986a01658, 210972, 210972a, 270600q150, 270600q151, 286648, 554424ri, 12061216, 0986086510, 1042113010, 1042113011, 1042113012

  • Passar modeller
    Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 30.20
    Width/holder arm: 19.00
    Mount. bracket dist.: 35.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 58
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.50
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 82.50
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL204
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M6
    Communication LIN
    Mount. bracket dist. 35.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 58
    Plug no. PL204
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 67.50
    Pulley dist. 30.20
    Radius 89.00
    Radius 2 82.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 19.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032116581, 1986A01658, 27060-0q150, 27060-0Q151, 104211-3010, 104211-3011, 104211-3012

    • Konkurrentreferens
      A6683S, CAL40434, DAN1315, DRA1093, LRA03538, 28-6648, 210972, 210972A, 554424RI, 12061216, 0986086510

    • Normaliserat artikelnummer
      a6683s, cal40434, dan1315, dra1093, f032116581, lra03538, 1986a01658, 210972, 210972a, 270600q150, 270600q151, 286648, 554424ri, 12061216, 0986086510, 1042113010, 1042113011, 1042113012

    • Passar modeller
      Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
