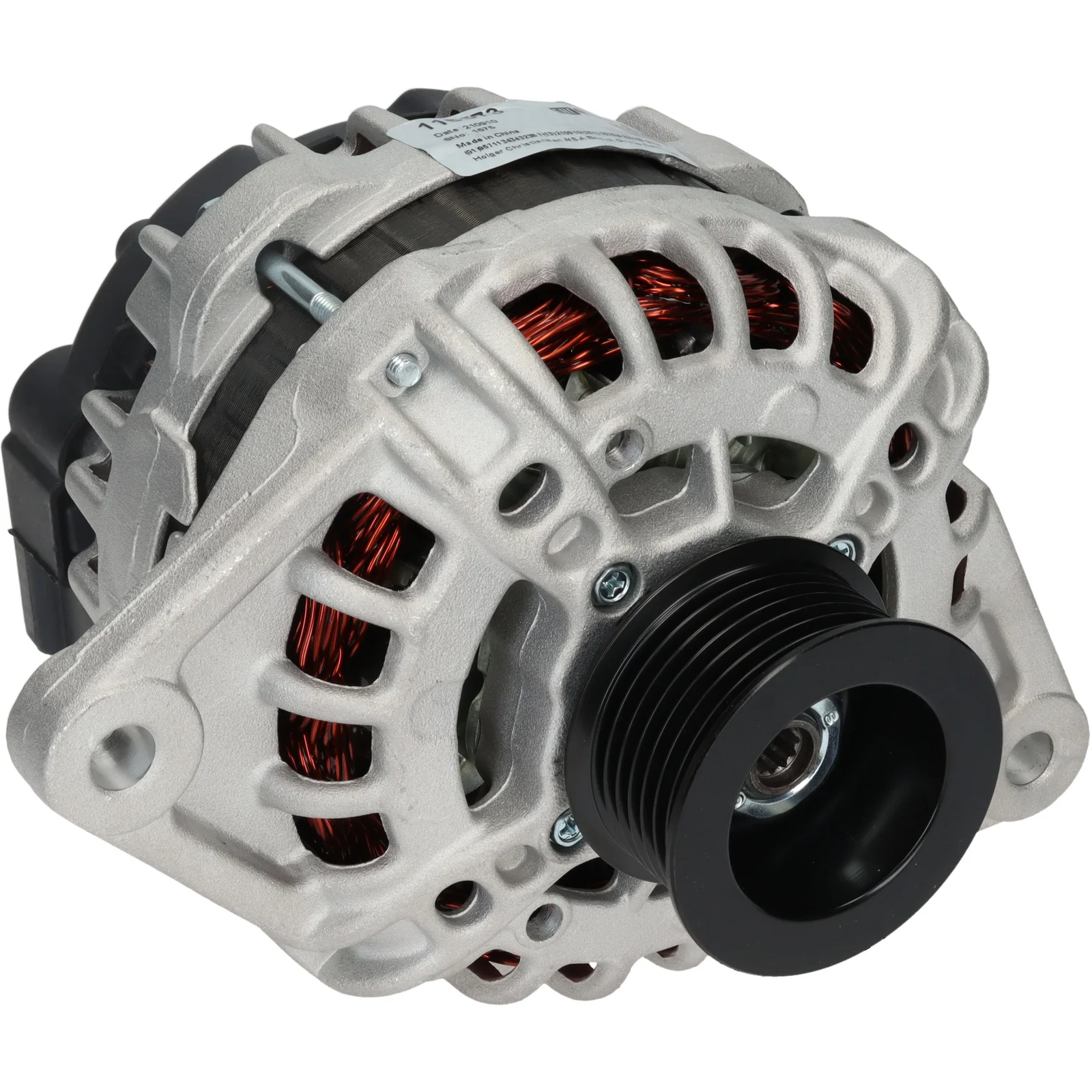

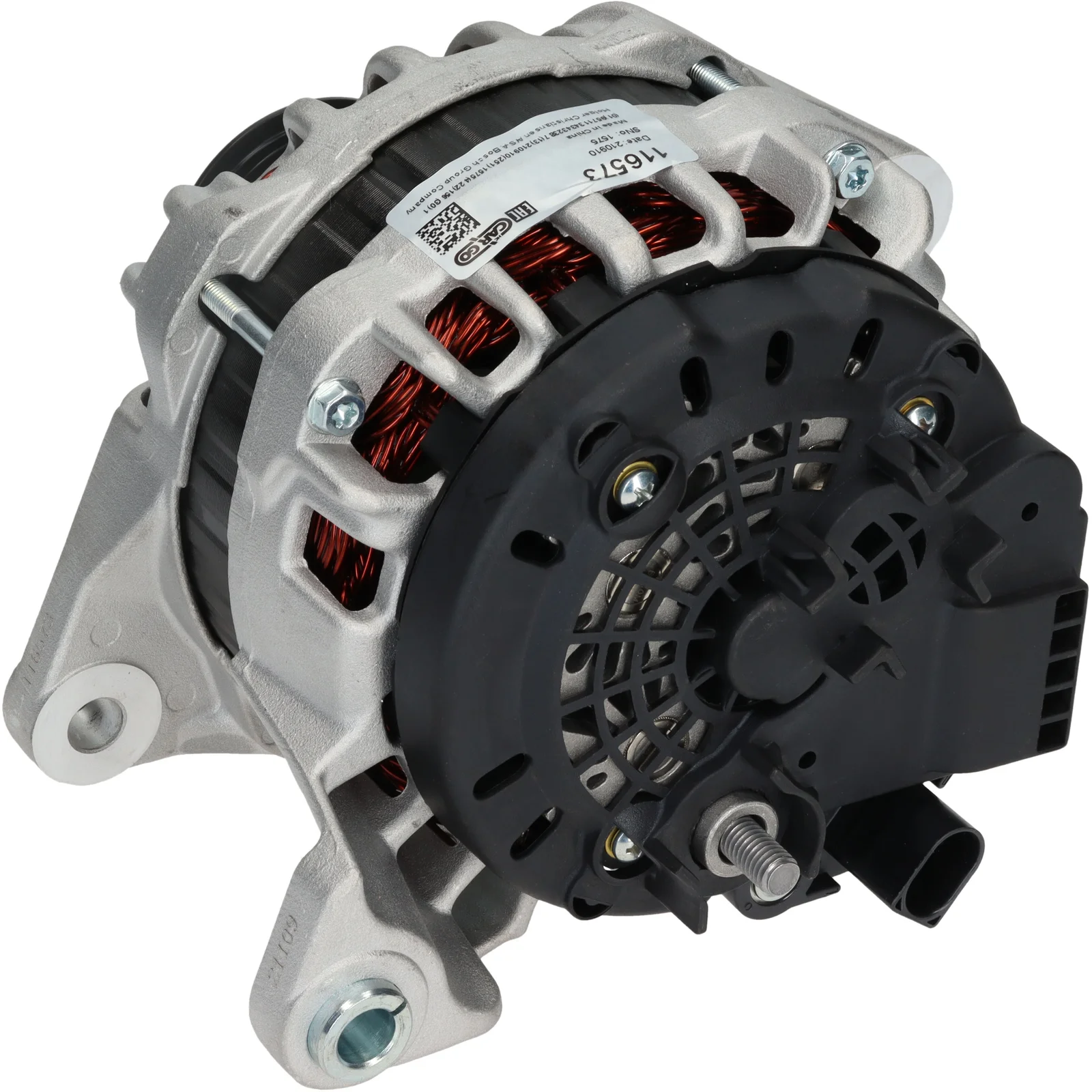

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116573

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 83.40

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 41.40
Width/holder arm: 14.20
Mount. bracket dist.: 83.40
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 95.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 22
Rotation: CW
Plug no.: PL174
Total length mm: 180.00
Terminal type: COM
ID Code: 24
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 83.40
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 55
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 22
Pulley SP
Pulley dia. 55.00
Pulley dist. 41.40
Radius 95.00
Radius 2 95.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
ID Code 24
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F000BL0781, F000BL0782, F032116573, 5801580927

  • Konkurrentreferens
    A0665PR, A0665S, CAL10547, 8EL015637-381, 28-7631, 505.594.150, 12090817

  • Normaliserat artikelnummer
    a0665pr, a0665s, cal10547, f000bl0781, f000bl0782, f032116573, 8el015637381, 287631, 12090817, 505594150, 5801580927

  • Passar modeller
    Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
