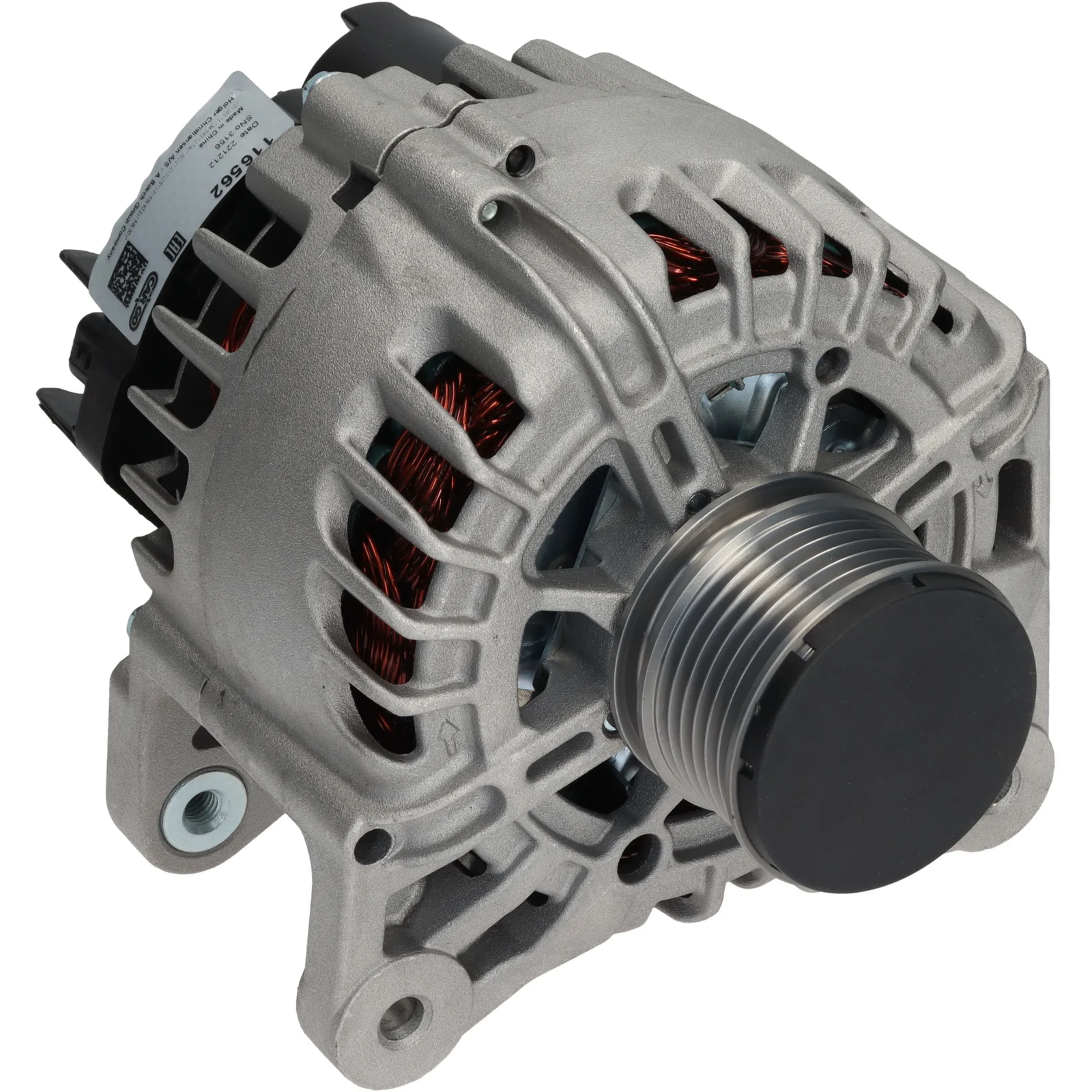

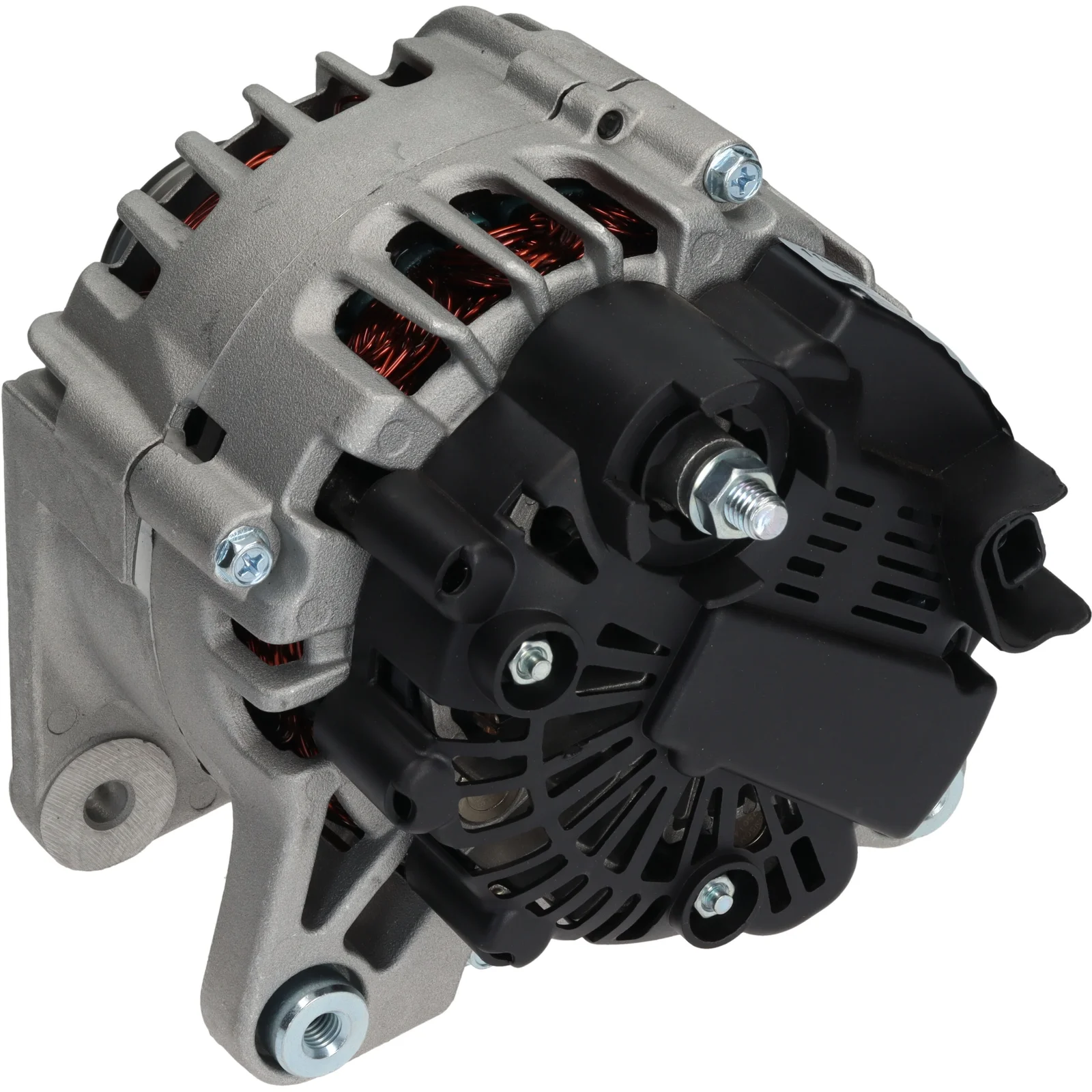

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116562

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 38.80
Width/holder arm: 14.00
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL124
Total length mm: 196.00
Terminal type: COM
ID Code: 41
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL124
Bracket hole 8.50
Position/B+ in min. 52
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.80
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 196.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F000BL078L, F032116562, TG12C073, TG12C078, TG12C150, TG12S273, 23100-0027R, 23100-4864R, 23100-6247R, 2606288, 2606288A, 231000027R, 231002151R, 231004864R

  • Konkurrentreferens
    CAL15534, LRA03676, 8EL011713-961, 28-6816, 575.942.120, 4294, 20638N, 439677, 440262, 553822RI, 9090747, 12090478

  • Normaliserat artikelnummer
    cal15534, f000bl078l, f032116562, lra03676, tg12c073, tg12c078, tg12c150, tg12s273, 8el011713961, 4294, 20638n, 286816, 439677, 440262, 553822ri, 2606288, 2606288a, 9090747, 12090478, 231000027r, 231002151r, 231004864r, 231006247r, 575942120

  • Passar modeller
    Dacia Model: Duster Model series: Duster Model type: 110 4x4 Type of engine: DCI Size of motor: 1.5 Brand of engine: H5F408 Type description: HM_ From date: 01-10-2017 Fuel: Diesel Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K656 Type description: HM_ From date: 01-10-2017 Fuel: Diesel Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: JS_ Body: MPV From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Renault Model: Duster Model series: Duster Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K658 Type description: HM_ Body: Closed Off-Road Vehicle From date: 01-07-2019 Fuel: Diesel Approved: Yes
    Renault Model: Duster Model series: Duster Model type: dCi 110 (HMAB) Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K656 Type description: HM_ Body: SUV From date: 01-07-2019 Fuel: Diesel Approved: Yes
    Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K826 Type description: L30_ From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K830 Type description: L38 From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: L30_ From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: L30_ From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Grand Kangoo Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: KW0/1_ Body: MPV From date: 01-03-2013 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: FW0/1_ Body: Van From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: DT0/1 Body: Coupe From date: 01-03-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane CC Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: EZ0/1_ Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Grand Coupe Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K656 From date: 01-10-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K834 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: DZO/1_ Body: Coupe From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: BZ0_ Body: Hatchback From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: DZ0/1_ Body: Coupe From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: KZ0/1 Body: Estate From date: 01-11-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9KJ836 Type description: DZO/1_ Body: Coupe From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: JZ0/1_ Body: MPV From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: JZ0/1_ Body: MPV From date: 01-11-2010 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivning
    Voltage: 14
    Amp: 120
    Pulley dist.: 38.80
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL124
    Total length mm: 196.00
    Terminal type: COM
    ID Code: 41
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL124
    Bracket hole 8.50
    Position/B+ in min. 52
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.80
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 41
    Terminal type COM
    Voltage 14
    Total length 196.00 mm
    Width/holder arm 14.00
    Amp 120
  • Fordonsmatchning

    • OEM
      F000BL078L, F032116562, TG12C073, TG12C078, TG12C150, TG12S273, 23100-0027R, 23100-4864R, 23100-6247R, 2606288, 2606288A, 231000027R, 231002151R, 231004864R

    • Konkurrentreferens
      CAL15534, LRA03676, 8EL011713-961, 28-6816, 575.942.120, 4294, 20638N, 439677, 440262, 553822RI, 9090747, 12090478

    • Normaliserat artikelnummer
      cal15534, f000bl078l, f032116562, lra03676, tg12c073, tg12c078, tg12c150, tg12s273, 8el011713961, 4294, 20638n, 286816, 439677, 440262, 553822ri, 2606288, 2606288a, 9090747, 12090478, 231000027r, 231002151r, 231004864r, 231006247r, 575942120

    • Passar modeller
      Dacia Model: Duster Model series: Duster Model type: 110 4x4 Type of engine: DCI Size of motor: 1.5 Brand of engine: H5F408 Type description: HM_ From date: 01-10-2017 Fuel: Diesel Approved: Yes
      Dacia Model: Duster Model series: Duster Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K656 Type description: HM_ From date: 01-10-2017 Fuel: Diesel Approved: Yes
      Dacia Model: Lodgy Model series: Lodgy Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Dacia Model: Lodgy Model series: Lodgy Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: JS_ Body: MPV From date: 01-03-2012 Fuel: Diesel Approved: Yes
      Renault Model: Duster Model series: Duster Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K658 Type description: HM_ Body: Closed Off-Road Vehicle From date: 01-07-2019 Fuel: Diesel Approved: Yes
      Renault Model: Duster Model series: Duster Model type: dCi 110 (HMAB) Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K656 Type description: HM_ Body: SUV From date: 01-07-2019 Fuel: Diesel Approved: Yes
      Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K826 Type description: L30_ From date: 01-07-2014 Fuel: Diesel Approved: Yes
      Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K830 Type description: L38 From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: L30_ From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Renault Model: Fluence Model series: Fluence Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: L30_ From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Grand Kangoo Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: KW0/1_ Body: MPV From date: 01-03-2013 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: FW0/1_ Body: Van From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: DT0/1 Body: Coupe From date: 01-03-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane CC Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: EZ0/1_ Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Grand Coupe Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K656 From date: 01-10-2016 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K834 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: DZO/1_ Body: Coupe From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: BZ0_ Body: Hatchback From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: BZO_ Body: Hatchback From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: DZ0/1_ Body: Coupe From date: 01-07-2014 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: KZ0/1 Body: Estate From date: 01-02-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K846 Type description: KZ0/1 Body: Estate From date: 01-11-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9KJ836 Type description: DZO/1_ Body: Coupe From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: JZ0/1_ Body: MPV From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K836 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K837 Type description: JZ0/1_ Body: MPV From date: 01-04-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K846 Type description: JZ0/1_ Body: MPV From date: 01-11-2010 Fuel: Diesel Approved: Yes
      1 / 8
