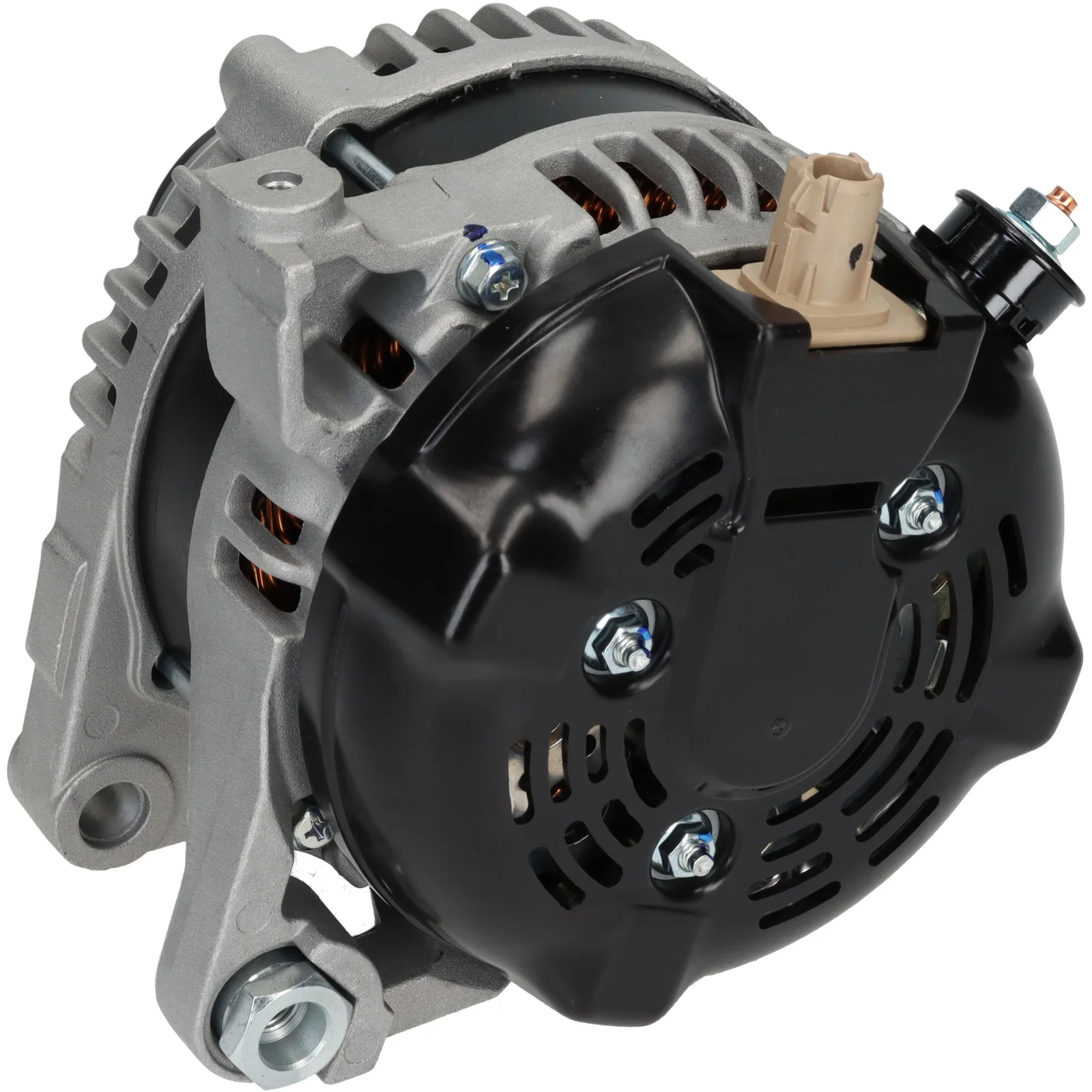

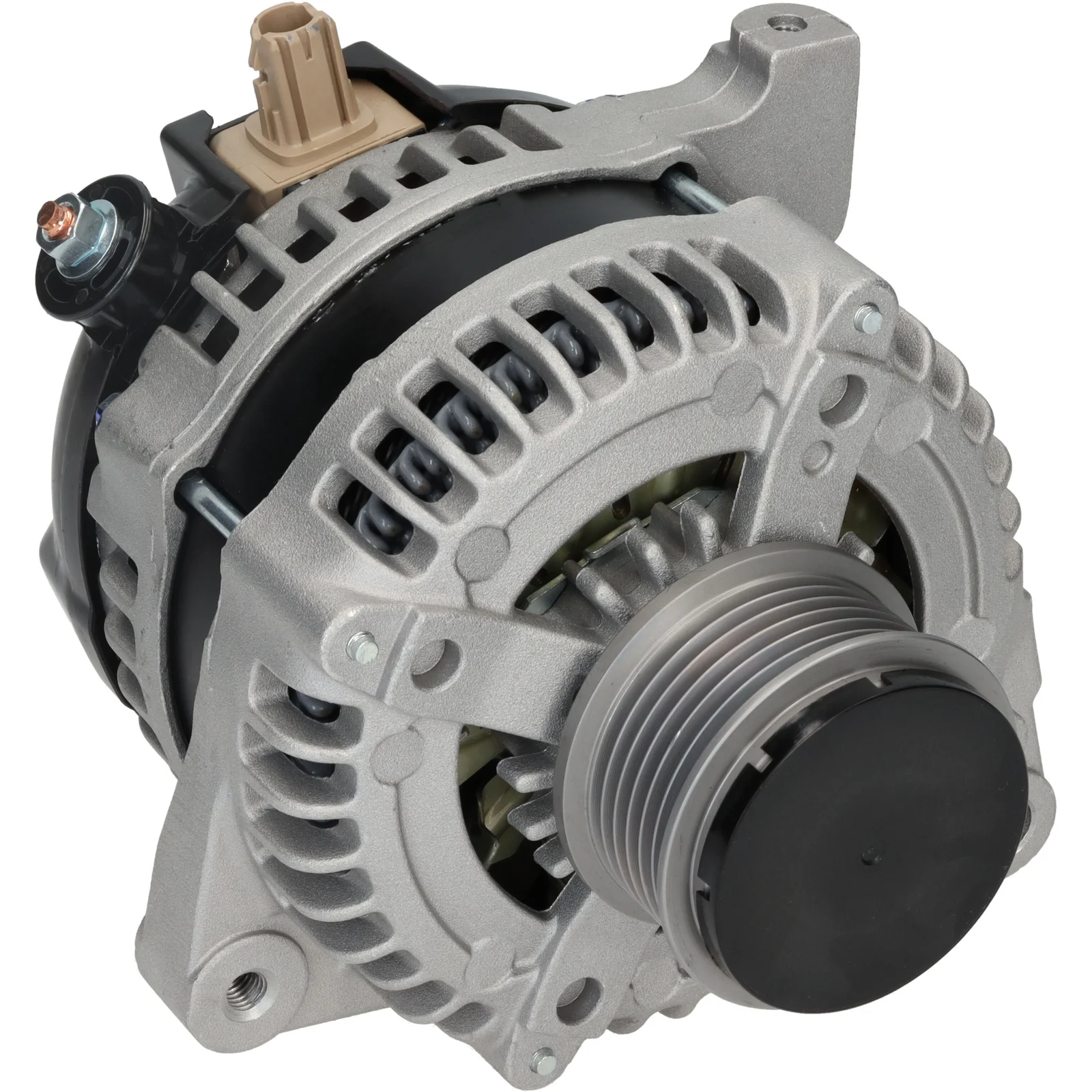

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116504

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 43.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 48.00
Width/holder arm: 20.00
Mount. bracket dist.: 43.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.40
Grooves/pulley: 6
Radius: 86.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL204
Total length mm: 167.00
Communication: LIN
Pulley: SP/FW
Fan: IF

Filer

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 43.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 45
Plug no. PL204
Bracket hole 11.00
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 58.40
Pulley dist. 48.00
Radius 86.00
Radius 2 82.00
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 167.00 mm
Width/holder arm 20.00
Amp 100

  • OEM
    F032116504, 1986A00641, 27060-0N090, 27060-0N100, 27060-0N140, 27060-33110, 104210-1370, 104211-3000, 104211-3001, 104211-3002, 104211-3130, 104211-3780

  • Konkurrentreferens
    A6337, CAL40377, DAN1094, DRA1095, LRA03563, 28-6673, 195.971.090, 195.971.100, 235.343.1002, 209108, 209108A, 553910RI, 12061099, 0986085130

  • Normaliserat artikelnummer
    a6337, cal40377, dan1094, dra1095, f032116504, lra03563, 1986a00641, 209108, 209108a, 270600n090, 270600n100, 270600n140, 286673, 553910ri, 12061099, 195971090, 195971100, 0986085130, 1042101370, 1042113000, 1042113001, 1042113002, 1042113130, 1042113780, 2353431002, 2706033110

  • Passar modeller
    Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 48.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 43.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 58.40
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL204
    Total length mm: 167.00
    Communication: LIN
    Pulley: SP/FW
    Fan: IF

    Filer

  • Specifikation
    B+ M6
    Communication LIN
    Mount. bracket dist. 43.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 45
    Plug no. PL204
    Bracket hole 11.00
    Position/B+ in min. 60
    Pulley SP/FW
    Pulley dia. 58.40
    Pulley dist. 48.00
    Radius 86.00
    Radius 2 82.00
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 20.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032116504, 1986A00641, 27060-0N090, 27060-0N100, 27060-0N140, 27060-33110, 104210-1370, 104211-3000, 104211-3001, 104211-3002, 104211-3130, 104211-3780

    • Konkurrentreferens
      A6337, CAL40377, DAN1094, DRA1095, LRA03563, 28-6673, 195.971.090, 195.971.100, 235.343.1002, 209108, 209108A, 553910RI, 12061099, 0986085130

    • Normaliserat artikelnummer
      a6337, cal40377, dan1094, dra1095, f032116504, lra03563, 1986a00641, 209108, 209108a, 270600n090, 270600n100, 270600n140, 286673, 553910ri, 12061099, 195971090, 195971100, 0986085130, 1042101370, 1042113000, 1042113001, 1042113002, 1042113130, 1042113780, 2353431002, 2706033110

    • Passar modeller
      Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
