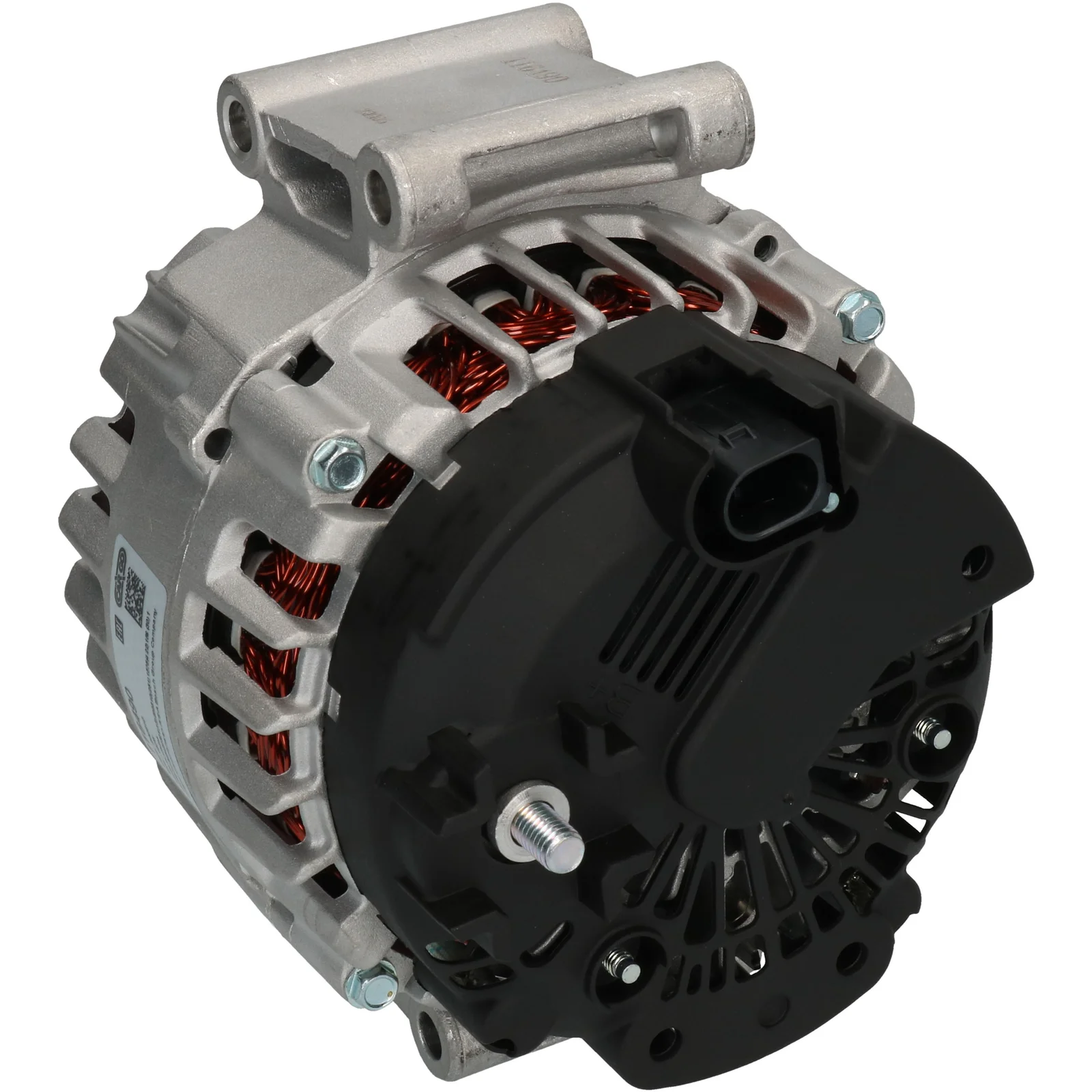

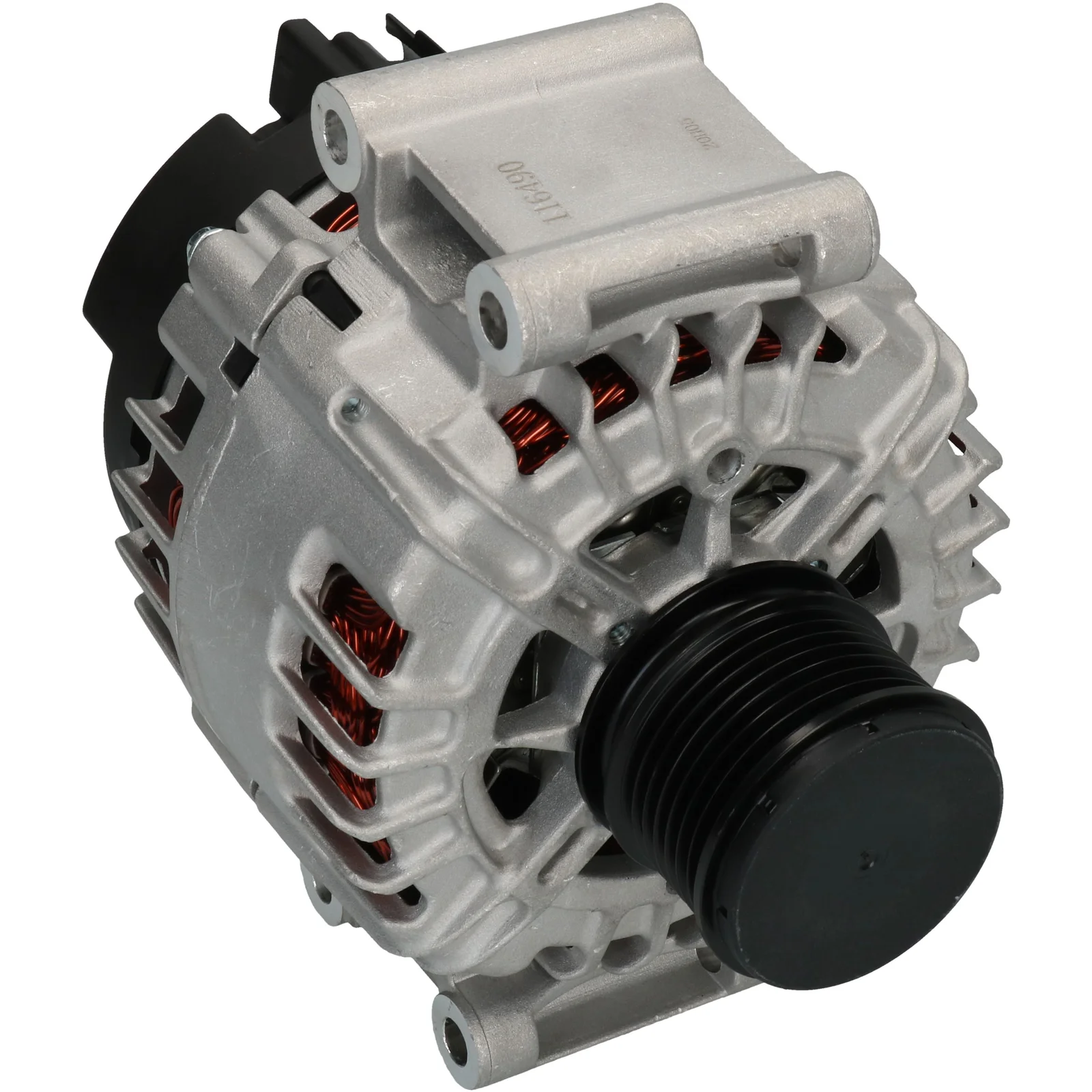

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116490

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

HC-Cargo Generator 14V-150A, 7gr

Voltage: 14
Amp: 150
Pulley dist.: 32.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.50
Bracket hole 2: 9.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.50
Belt. adj. bracket hole 2: 9.50
Pulley dia.: 56.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL86
Total length mm: 204.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Belt. adj. bracket hole 2 9.50
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.50
Bracket hole 2 9.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 32.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 204.00 mm
Width/holder arm 70.00
Amp 150

  • OEM
    A271 1541502, a2711541502, A3544S, CAL15473, DRA0632, F032116490, LRA03454, TG15C075, TG15C163, 8EL012240-201, 28-6564, 225.302.1502, 271 154 1502, 555.559.150, 24102N, 116490, 210965, 210965A, 439610, 440127, 442209, 554089RI, 2543417, 2543417A, 2543417B, 12090552, 32439610, 2711541502

  • Konkurrentreferens
    A3544S, CAL15473, DRA0632, LRA03454, 8EL012240-201, 28-6564, 225.302.1502, 555.559.150, 24102N, 210965, 210965A, 439610, 440127, 442209, 554089RI, 12090552, 32439610

  • Bilmärken
    MERCEDES-BENZ

  • Normaliserat artikelnummer
    a2711541502, a3544s, cal15473, dra0632, f032116490, lra03454, tg15c075, tg15c163, 8el012240201, 24102n, 116490, 210965, 210965a, 286564, 439610, 440127, 442209, 554089ri, 2543417, 2543417a, 2543417b, 12090552, 32439610, 555559150, 2253021502, 2711541502

  • Passar modeller
    MERCEDES-BENZ C-KLASS (W204) C 180 Kompressor (204.044, 204.045) Engine volume: 1.6 Engine type: M 271.910 Year: 01.08-01.14
    MERCEDES-BENZ C-KLASS (W204) C 180 Kompressor (204.046) Engine volume: 1.8 Engine type: M 271.952 Year: 01.07-01.09
    MERCEDES-BENZ C-KLASS T-Model (S204) C 180 Kompressor (204.245) Engine volume: 1.6 Engine type: M 271.910 Year: 01.08-08.14
    MERCEDES-BENZ C-KLASS T-Model (S204) C 180 Kompressor (204.246) Engine volume: 1.8 Engine type: M 271.952 Year: 08.07-08.14
    MERCEDES-BENZ C-KLASS T-Model (S204) C 200 Kompressor (204.241) Engine volume: 1.8 Engine type: M 271.950 Year: 08.07-08.14
    MERCEDES-BENZ E-KLASS (W212) E 200 CGI (212.048, 212.148) Engine volume: 1.8 Engine type: M 271.820, M 271.860 Year: 08.09-12.15
    MERCEDES-BENZ E-KLASS (W212) E 200 NGT (212.041) Engine volume: 1.8 Engine type: M 271.958 Year: 03.11-12.15
    MERCEDES-BENZ E-KLASS (W212) E 250 CGI (212.047, 212.147) Engine volume: 1.8 Engine type: M 271.860 Year: 01.09-12.15
    MERCEDES-BENZ E-KLASS T-Model (S212) E 200 CGI (212.248) Engine volume: 1.8 Engine type: M 271.860 Year: 11.09-12.16
    MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CGI (212.247) Engine volume: 1.8 Engine type: M 271.860 Year: 11.09-12.13
    MERCEDES-BENZ SPRINTER 3,5-t Buss (B906) 316 LGT (906.735, 906.733) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 3,5-t Buss (B906) 316 NGT (906.733) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
    MERCEDES-BENZ SPRINTER 3,5-t Flak/chassi (B906) 316 (906.133, 906.135, 906.233, 906.235) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 3,5-t Flak/chassi (B906) 316 LGT (906.133, 906.135, 906.233, 906.235) Engine volume: 1.8 Engine type: M 271.951 Year: 01.11-12.18
    MERCEDES-BENZ SPRINTER 3,5-t Flak/chassi (B906) 316 NGT (906.133, 906.135, 906.233, 906.235) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 3,5-t Skåp (B906) 316 LGT (906.633, 906.635) Engine volume: 1.8 Engine type: M 271.951 Year: 01.11-12.18
    MERCEDES-BENZ SPRINTER 3,5-t Skåp (B906) 316 NGT (906.633, 906.635) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 3-t Buss (B906) 216 (906.713) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
    MERCEDES-BENZ SPRINTER 3-t Flak/chassi (B906) 216 (906.113, 906.213) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 3-t Skåp (B906) 216 (906.613) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 5-t Flak/chassi (B906) 516 (906.153, 906.155, 906.253, 906.255) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 5-t Flak/chassi (B906) 516 NGT (906.153, 906.155, 906.253, 906.255) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
    MERCEDES-BENZ SPRINTER 5-t Skåp (B906) 516 (906.655) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
    MERCEDES-BENZ SPRINTER 5-t Skåp (B906) 516 NGT (906.655) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
    1 / 5
  • Beskrivning
    HC-Cargo Generator 14V-150A, 7gr

    Voltage: 14
    Amp: 150
    Pulley dist.: 32.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.50
    Bracket hole 2: 9.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.50
    Belt. adj. bracket hole 2: 9.50
    Pulley dia.: 56.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL86
    Total length mm: 204.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.50
    Belt. adj. bracket hole 2 9.50
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.50
    Bracket hole 2 9.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 32.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 204.00 mm
    Width/holder arm 70.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A271 1541502, a2711541502, A3544S, CAL15473, DRA0632, F032116490, LRA03454, TG15C075, TG15C163, 8EL012240-201, 28-6564, 225.302.1502, 271 154 1502, 555.559.150, 24102N, 116490, 210965, 210965A, 439610, 440127, 442209, 554089RI, 2543417, 2543417A, 2543417B, 12090552, 32439610, 2711541502

    • Konkurrentreferens
      A3544S, CAL15473, DRA0632, LRA03454, 8EL012240-201, 28-6564, 225.302.1502, 555.559.150, 24102N, 210965, 210965A, 439610, 440127, 442209, 554089RI, 12090552, 32439610

    • Bilmärken
      MERCEDES-BENZ

    • Normaliserat artikelnummer
      a2711541502, a3544s, cal15473, dra0632, f032116490, lra03454, tg15c075, tg15c163, 8el012240201, 24102n, 116490, 210965, 210965a, 286564, 439610, 440127, 442209, 554089ri, 2543417, 2543417a, 2543417b, 12090552, 32439610, 555559150, 2253021502, 2711541502

    • Passar modeller
      MERCEDES-BENZ C-KLASS (W204) C 180 Kompressor (204.044, 204.045) Engine volume: 1.6 Engine type: M 271.910 Year: 01.08-01.14
      MERCEDES-BENZ C-KLASS (W204) C 180 Kompressor (204.046) Engine volume: 1.8 Engine type: M 271.952 Year: 01.07-01.09
      MERCEDES-BENZ C-KLASS T-Model (S204) C 180 Kompressor (204.245) Engine volume: 1.6 Engine type: M 271.910 Year: 01.08-08.14
      MERCEDES-BENZ C-KLASS T-Model (S204) C 180 Kompressor (204.246) Engine volume: 1.8 Engine type: M 271.952 Year: 08.07-08.14
      MERCEDES-BENZ C-KLASS T-Model (S204) C 200 Kompressor (204.241) Engine volume: 1.8 Engine type: M 271.950 Year: 08.07-08.14
      MERCEDES-BENZ E-KLASS (W212) E 200 CGI (212.048, 212.148) Engine volume: 1.8 Engine type: M 271.820, M 271.860 Year: 08.09-12.15
      MERCEDES-BENZ E-KLASS (W212) E 200 NGT (212.041) Engine volume: 1.8 Engine type: M 271.958 Year: 03.11-12.15
      MERCEDES-BENZ E-KLASS (W212) E 250 CGI (212.047, 212.147) Engine volume: 1.8 Engine type: M 271.860 Year: 01.09-12.15
      MERCEDES-BENZ E-KLASS T-Model (S212) E 200 CGI (212.248) Engine volume: 1.8 Engine type: M 271.860 Year: 11.09-12.16
      MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CGI (212.247) Engine volume: 1.8 Engine type: M 271.860 Year: 11.09-12.13
      MERCEDES-BENZ SPRINTER 3,5-t Buss (B906) 316 LGT (906.735, 906.733) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 3,5-t Buss (B906) 316 NGT (906.733) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
      MERCEDES-BENZ SPRINTER 3,5-t Flak/chassi (B906) 316 (906.133, 906.135, 906.233, 906.235) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 3,5-t Flak/chassi (B906) 316 LGT (906.133, 906.135, 906.233, 906.235) Engine volume: 1.8 Engine type: M 271.951 Year: 01.11-12.18
      MERCEDES-BENZ SPRINTER 3,5-t Flak/chassi (B906) 316 NGT (906.133, 906.135, 906.233, 906.235) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 3,5-t Skåp (B906) 316 LGT (906.633, 906.635) Engine volume: 1.8 Engine type: M 271.951 Year: 01.11-12.18
      MERCEDES-BENZ SPRINTER 3,5-t Skåp (B906) 316 NGT (906.633, 906.635) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 3-t Buss (B906) 216 (906.713) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
      MERCEDES-BENZ SPRINTER 3-t Flak/chassi (B906) 216 (906.113, 906.213) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 3-t Skåp (B906) 216 (906.613) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 5-t Flak/chassi (B906) 516 (906.153, 906.155, 906.253, 906.255) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 5-t Flak/chassi (B906) 516 NGT (906.153, 906.155, 906.253, 906.255) Engine volume: 1.8 Engine type: M 271.951 Year: 09.08-12.18
      MERCEDES-BENZ SPRINTER 5-t Skåp (B906) 516 (906.655) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
      MERCEDES-BENZ SPRINTER 5-t Skåp (B906) 516 NGT (906.655) Engine volume: 1.8 Engine type: M 271.951 Year: 03.09-12.18
