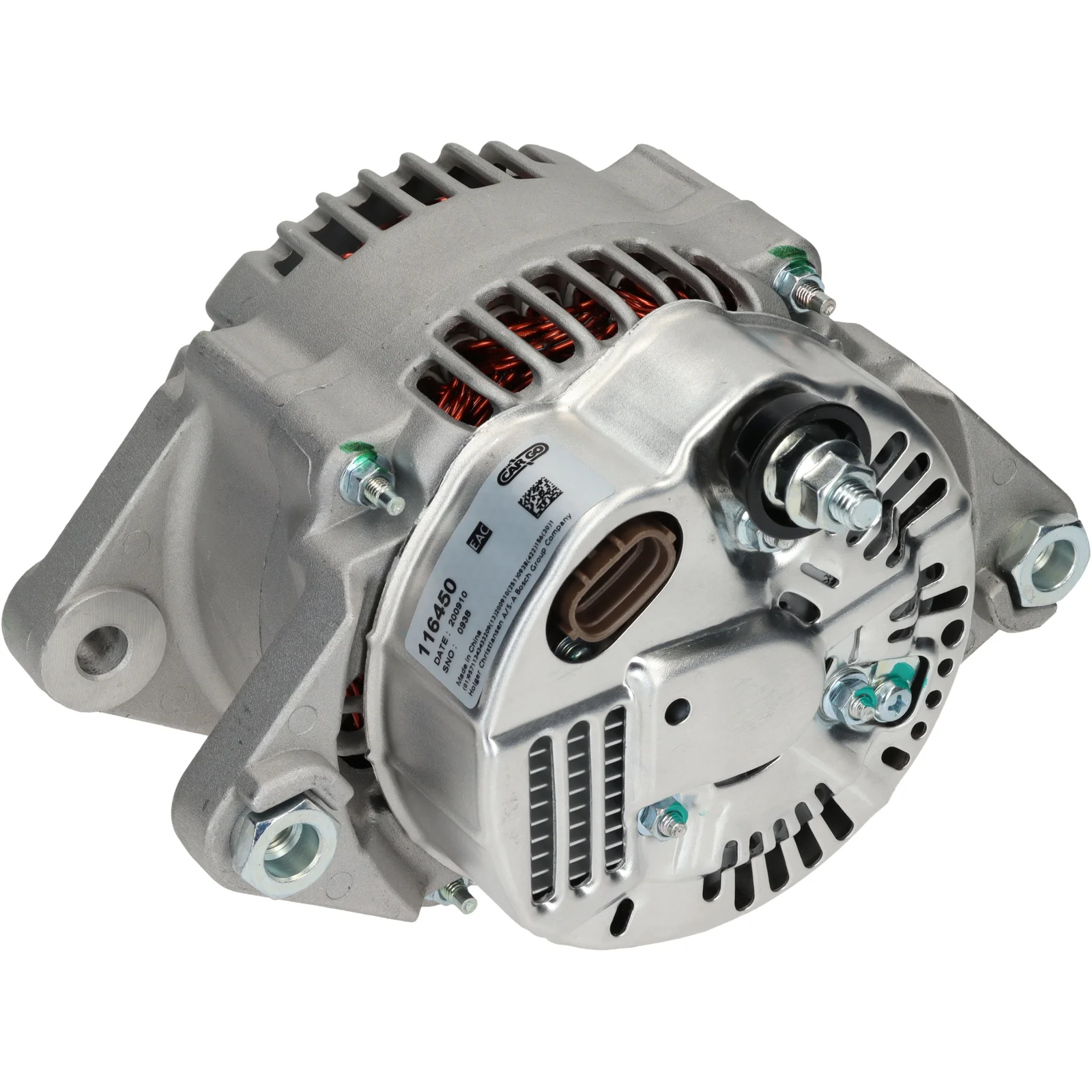

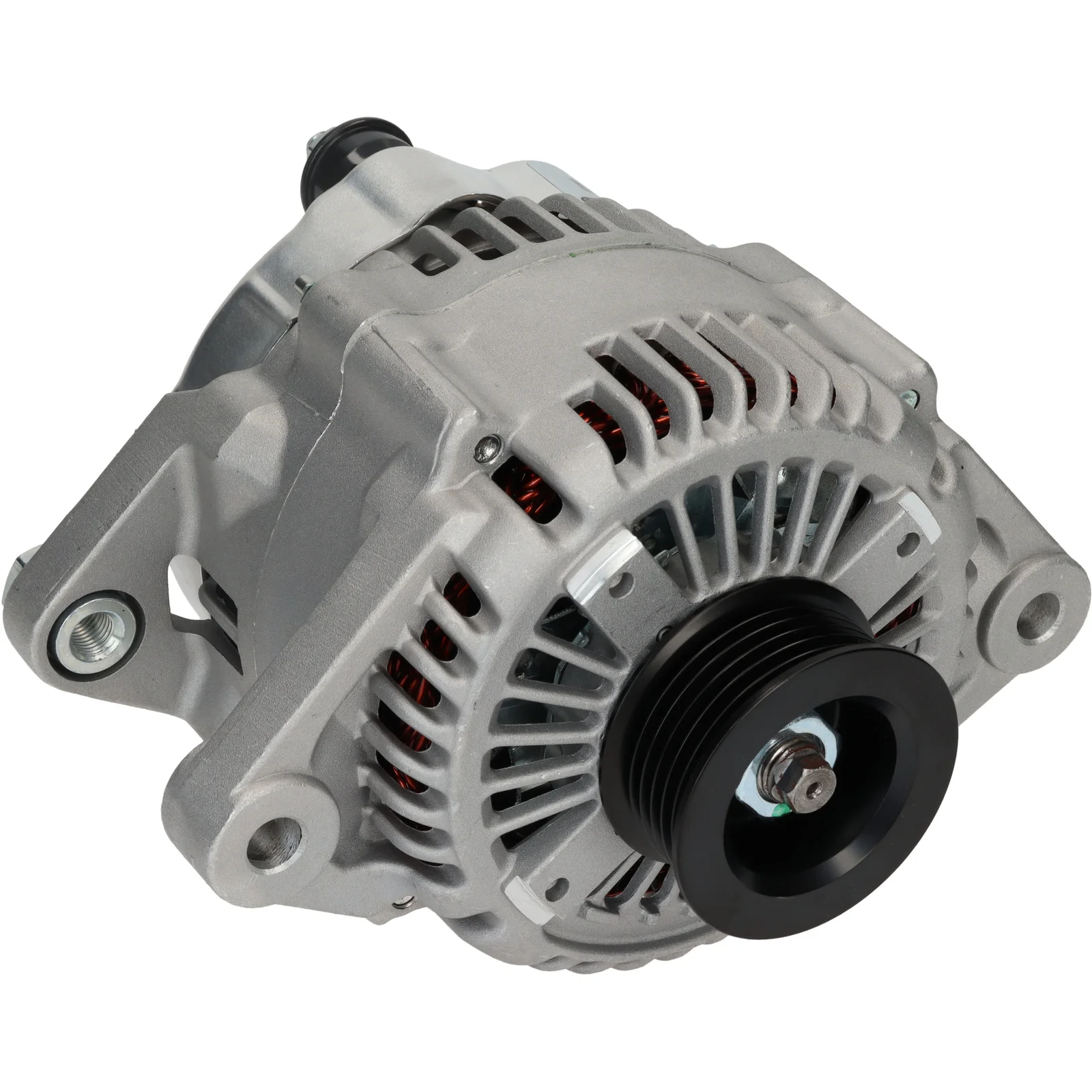

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116450

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 42.00
Width/holder arm: 20.00
Mount. bracket dist.: 56.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 10.50
Belt. adj. bracket hole 2: M10-1.25
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 46
D+ Size: Plug
Rotation: CW
Plug no.: PL133
Total length mm: 189.00
Terminal type: FR-L
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10-1.25
Belt. adj. brackethole pos. 57
Plug no. PL133
Bracket hole 10.50
Position/B+ in min. 46
Pulley SP
Pulley dia. 57.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-L
Voltage 14
Total length 189.00 mm
Width/holder arm 20.00
Amp 130

  • OEM
    F032116450, 02131-9271, 37300-3e100

  • Konkurrentreferens
    A9356S, CAL32153, DRA1083, 28-6998, 155.592.130, 224.321.1302, 11190N, 12061007

  • Normaliserat artikelnummer
    a9356s, cal32153, dra1083, f032116450, 11190n, 286998, 373003e100, 12061007, 021319271, 155592130, 2243211302

  • Passar modeller
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD GLS Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Body: SUV From date: 01-03-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Size of motor: 2.7 Brand of engine: G6BA Type description: CM Body: SUV From date: 01-03-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: GLS Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Body: SUV From date: 01-03-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.7 Brand of engine: G6BA Type description: CM Body: SUV From date: 01-03-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.7 Brand of engine: G6EA Type description: CM Body: Box Body / Estate From date: 01-01-2007 To date: 01-12-2008 Fuel: Petrol Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: GLS Size of motor: 2.7 Brand of engine: G6EA Type description: CM Body: SUV Van Fuel: Petrol Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Type description: UVP_ Body: MPV From date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Kia Model: Magentis Model series: Magentis Size of motor: 2.7 Brand of engine: G6EA From date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Kia Model: Magentis Model series: Magentis Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Type description: MG From date: 01-07-2009 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 42.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 56.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 10.50
    Belt. adj. bracket hole 2: M10-1.25
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 46
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL133
    Total length mm: 189.00
    Terminal type: FR-L
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. bracket hole 2 M10-1.25
    Belt. adj. brackethole pos. 57
    Plug no. PL133
    Bracket hole 10.50
    Position/B+ in min. 46
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type FR-L
    Voltage 14
    Total length 189.00 mm
    Width/holder arm 20.00
    Amp 130
  • Fordonsmatchning

    • OEM
      F032116450, 02131-9271, 37300-3e100

    • Konkurrentreferens
      A9356S, CAL32153, DRA1083, 28-6998, 155.592.130, 224.321.1302, 11190N, 12061007

    • Normaliserat artikelnummer
      a9356s, cal32153, dra1083, f032116450, 11190n, 286998, 373003e100, 12061007, 021319271, 155592130, 2243211302

    • Passar modeller
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD GLS Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Body: SUV From date: 01-03-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Size of motor: 2.7 Brand of engine: G6BA Type description: CM Body: SUV From date: 01-03-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: GLS Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Body: SUV From date: 01-03-2006 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Size of motor: 2.7 Brand of engine: G6BA Type description: CM Body: SUV From date: 01-03-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Size of motor: 2.7 Brand of engine: G6EA Type description: CM Body: Box Body / Estate From date: 01-01-2007 To date: 01-12-2008 Fuel: Petrol Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: GLS Size of motor: 2.7 Brand of engine: G6EA Type description: CM Body: SUV Van Fuel: Petrol Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Type description: UVP_ Body: MPV From date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Kia Model: Magentis Model series: Magentis Size of motor: 2.7 Brand of engine: G6EA From date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Kia Model: Magentis Model series: Magentis Type of engine: V6 Size of motor: 2.7 Brand of engine: G6EA Type description: MG From date: 01-07-2009 Fuel: Gasoline Approved: Yes
      1 / 2
