HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116408

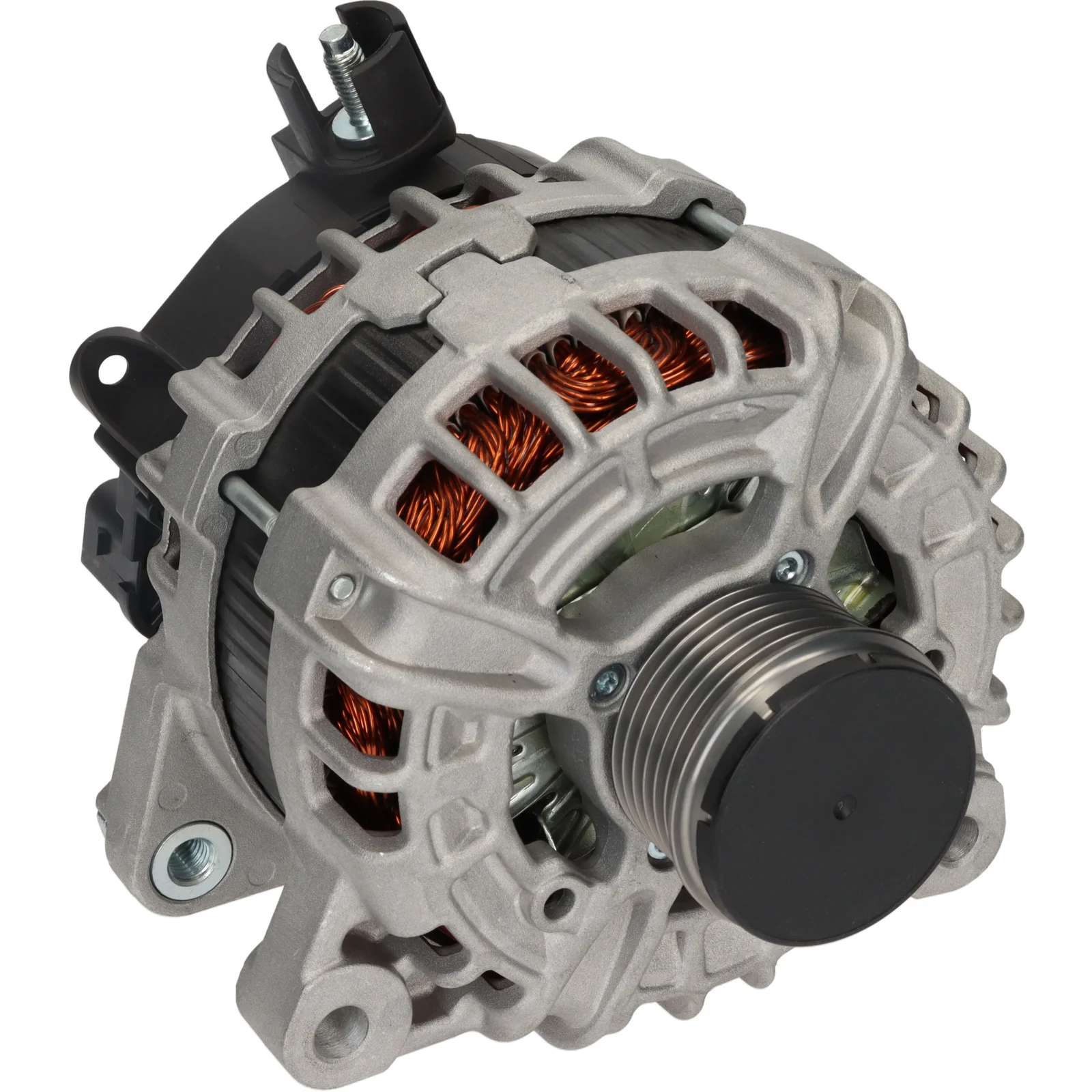

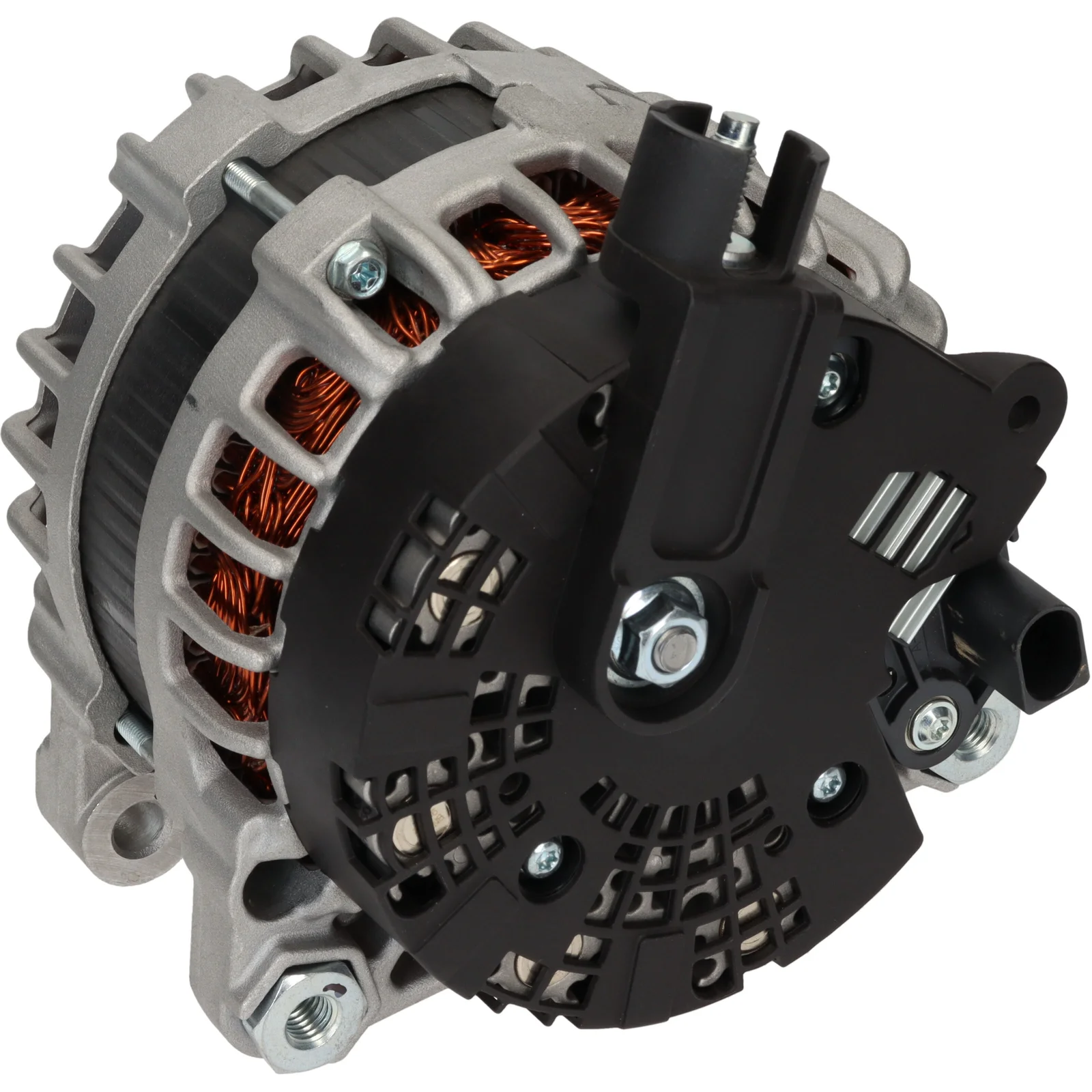

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 210, Rotation: CW, Mount. bracket dist.: 44.50

Beskrivning

Voltage: 14
Amp: 210
Pulley dist.: 42.80
Width/holder arm: 21.50
Mount. bracket dist.: 44.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.60
Pulley dia.: 54.60
Grooves/pulley: 6
Radius: 88.50
Radius 2: 91.50
B+: M8
Position/B+ in min.: 53
Rotation: CW
Plug no.: PL174
Total length mm: 183.00
Terminal type: COM
ID Code: 88
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 44.50
Belt. adj. bracket hole 1 10.60
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 10.20
Position/B+ in min. 53
Pulley SP/FW
Pulley dia. 54.60
Pulley dist. 42.80
Radius 88.50
Radius 2 91.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 88
Terminal type COM
Voltage 14
Total length 183.00 mm
Width/holder arm 21.50
Amp 210

  • OEM
    DRA1494, EJ3210300AC, EJ3210300AD, F032116408, LR047576, LR047579, LR077394, 28-7672, 20742N-OE, 444254, 12090706, 32009002, 0125812013, 0125812014, 0125812061, 0125812062

  • Konkurrentreferens
    DRA1494, 28-7672, 20742N-OE, 444254, 12090706, 32009002

  • Bilmärken
    LAND ROVER

  • Normaliserat artikelnummer
    dra1494, ej3210300ac, ej3210300ad, f032116408, lr047576, lr047579, lr077394, 20742noe, 287672, 444254, 12090706, 32009002, 0125812013, 0125812014, 0125812061, 0125812062

  • Passar modeller
    LAND ROVER DISCOVERY SPORT (L550) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 09.14-
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
