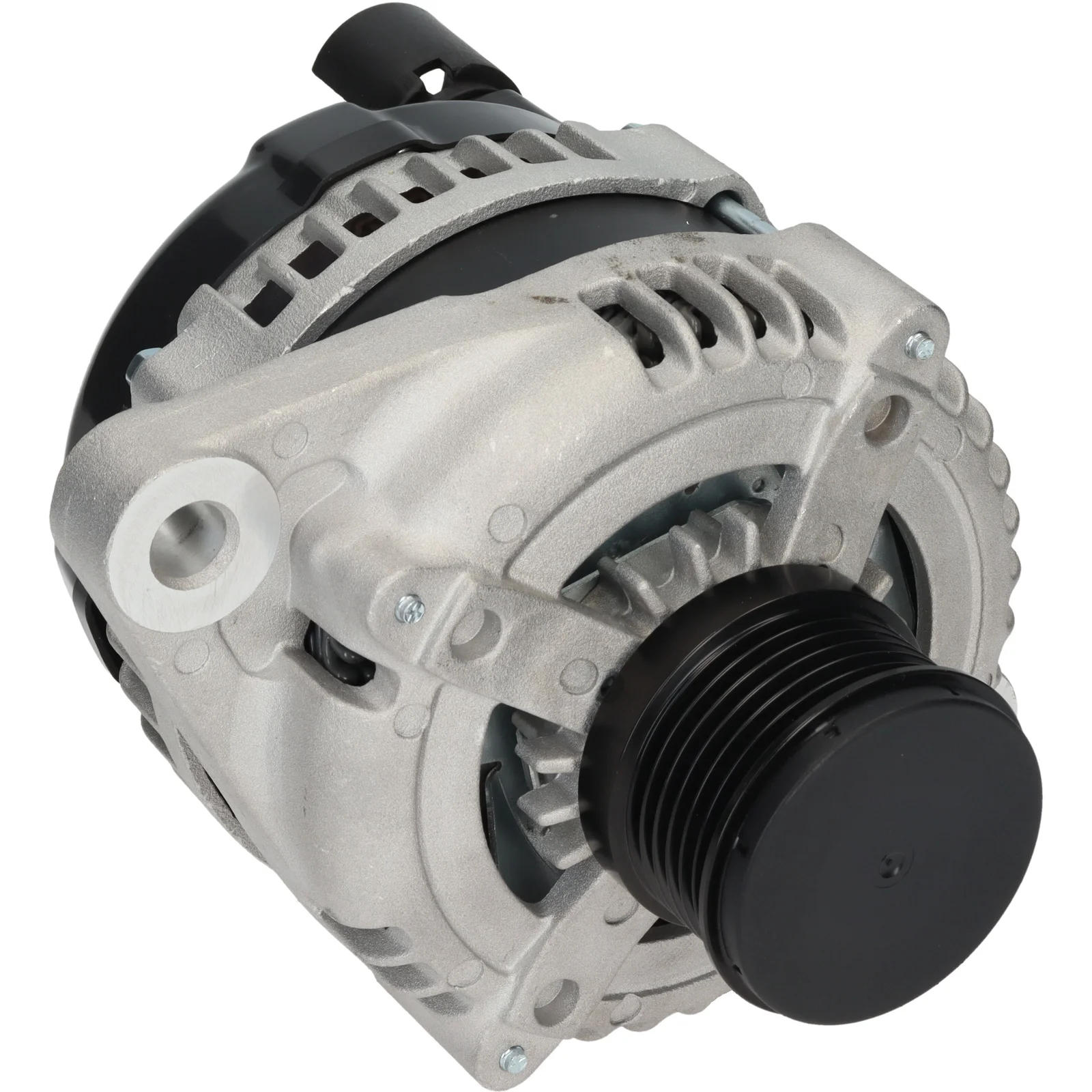

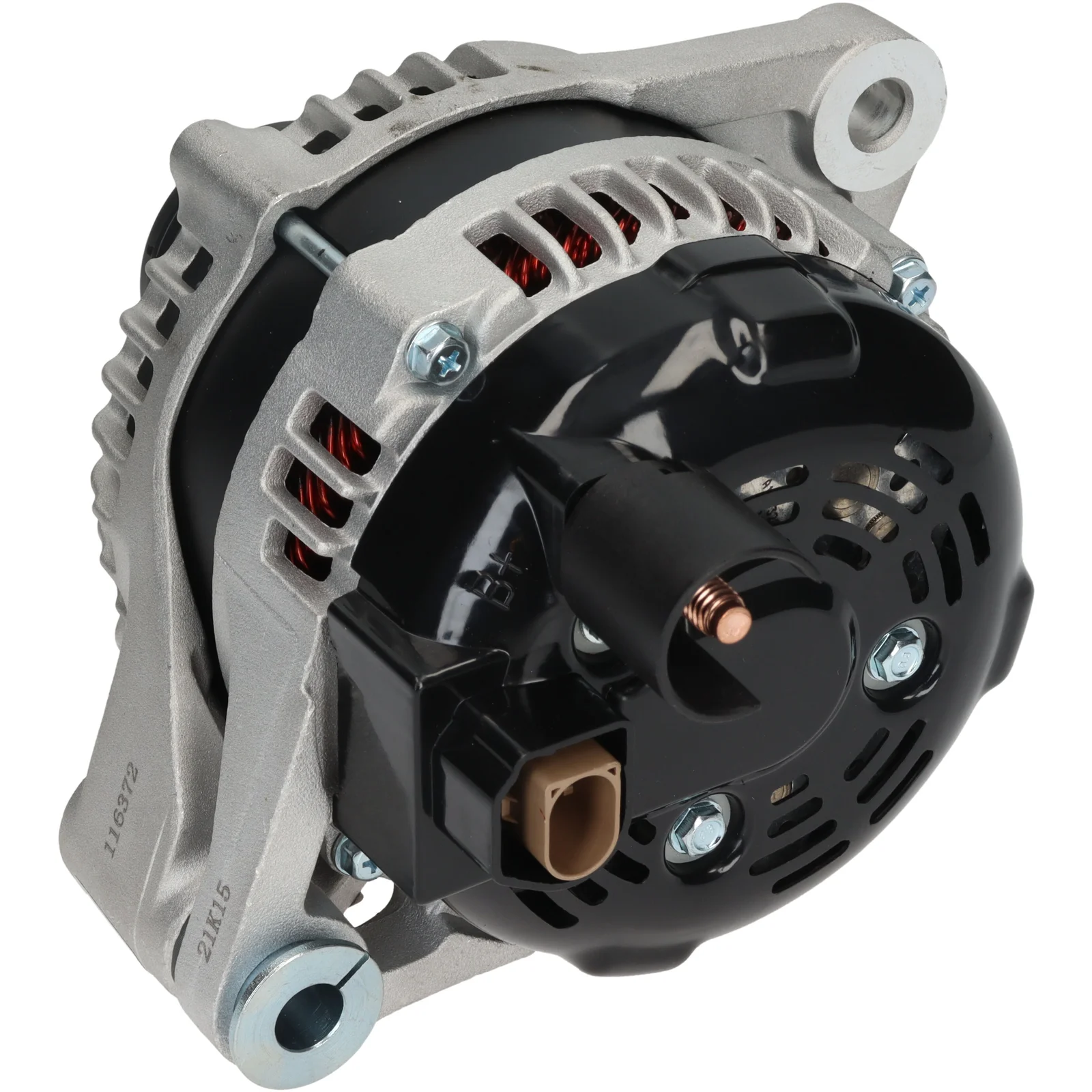

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116372

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Pulley dia.: 54.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 113.00
Width/holder arm: 61.00
Bracket hole: 14.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 12.00
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL174
Total length mm: 196.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 60
Plug no. PL174
Bracket hole 14.00
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 113.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 196.00 mm
Width/holder arm 61.00
Amp 150

  • OEM
    F032116372, 104210-8660, 104211-8660, 51929089

  • Konkurrentreferens
    DAN1146, 105.517.150, 21184-OS, 209456, 209456A, 849219, 12090784

  • Normaliserat artikelnummer
    dan1146, f032116372, 21184os, 209456, 209456a, 849219, 12090784, 51929089, 105517150, 1042108660, 1042118660

  • Passar modeller
    Alfa Romeo Model: Giulia Model series: Giulia Model type: Diesel Type of engine: JTD Size of motor: 2.2 Brand of engine: 55266388 Type description: 952_ From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Model type: Diesel Type of engine: JTD Size of motor: 2.2 Brand of engine: 55268532 Type description: 952_ From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Model type: Q4 Type of engine: Diesel Size of motor: 2.1 Brand of engine: 55268818 Type description: 952_ From date: 01-11-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Model type: Q4 Type of engine: Diesel Size of motor: 2.1 Brand of engine: 55268818, 55284529 Type description: 952_ From date: 01-08-2018 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Type of engine: Diesel Size of motor: 2.1 Brand of engine: 46335975 Type description: 952_ From date: 01-08-2018 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Type of engine: Diesel Size of motor: 2.2 Brand of engine: 46335975, 46346398, 55268818, 55284636 Type description: 952_ From date: 01-08-2018 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Type of engine: Diesel Size of motor: 2.2 Brand of engine: 55268818 Type description: 952_ From date: 01-04-2017 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Type of engine: JTD Size of motor: 2.2 Brand of engine: 55266388 Type description: 952_ From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulia Model series: Giulia Type of engine: JTD Size of motor: 2.2 Brand of engine: 55268532 Type description: 952_ From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giuiletta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940C5.000 Type description: 940 Body: Hatchback From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A8.000 Type description: 940 Body: Hatchback From date: 01-04-2010 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B5.000 Type description: 940 Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B6.000 Type description: 940 Body: Hatchback From date: 01-04-2010 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Stelvio Model series: Stelvio Type of engine: Diesel Size of motor: 2.1 Brand of engine: 46335692, 55275156 Type description: 949_ Body: Hatchback From date: 01-08-2018 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Stelvio Model series: Stelvio Type of engine: Diesel Size of motor: 2.1 Brand of engine: 55284529, 46335692 Type description: 949_ Body: Hatchback From date: 01-08-2018 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Model type: 4x4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263087 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Model type: 4x4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500X Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55260384 Type description: 334 Body: Hatchback From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Fiat Model: 500L Model series: 500L Type of engine: Multijet Size of motor: 1.6 Brand of engine: 955A3.000 Body: Hatchback From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Fiat Model: 500X Model series: 500X Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088 Type description: 334_ Body: Hatchback From date: 01-09-2018 Fuel: Diesel Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: Diesel Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ Body: Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes Manufacture type: Estate
    Fiat Model: Tipo Model series: Tipo Type of engine: Diesel Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ Body: Hatchback From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: Diesel Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ Body: Estate From date: 01-03-2016 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Fiat Model: Tipo Model series: Tipo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55260384 Type description: 356_ Body: Hatchback From date: 01-03-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 940C1.000 Type description: 356 From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4x4 Type of engine: CRD Size of motor: 2.0 Brand of engine: EBT Type description: BU From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55263087,55283099,55284064 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: CRD Size of motor: 1.6 Brand of engine: 55260384,EJJ Type description: BU, B1 Body: Closed Off-Road Vehicle From date: 01-11-2016 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: CRD Size of motor: 1.6 Brand of engine: EJK Type description: BU From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Type of engine: Multijet Size of motor: 1.6 Brand of engine: 55280444,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
