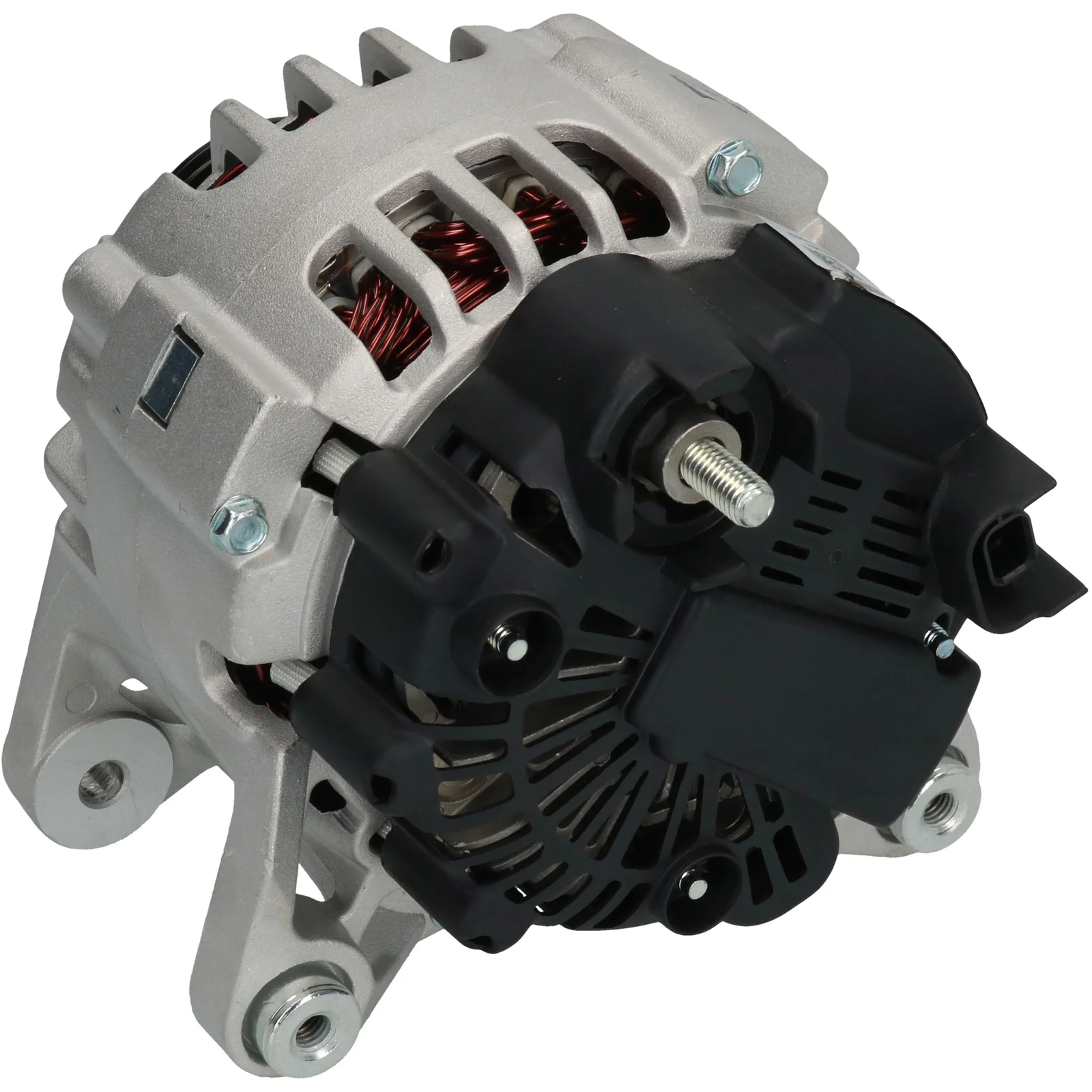

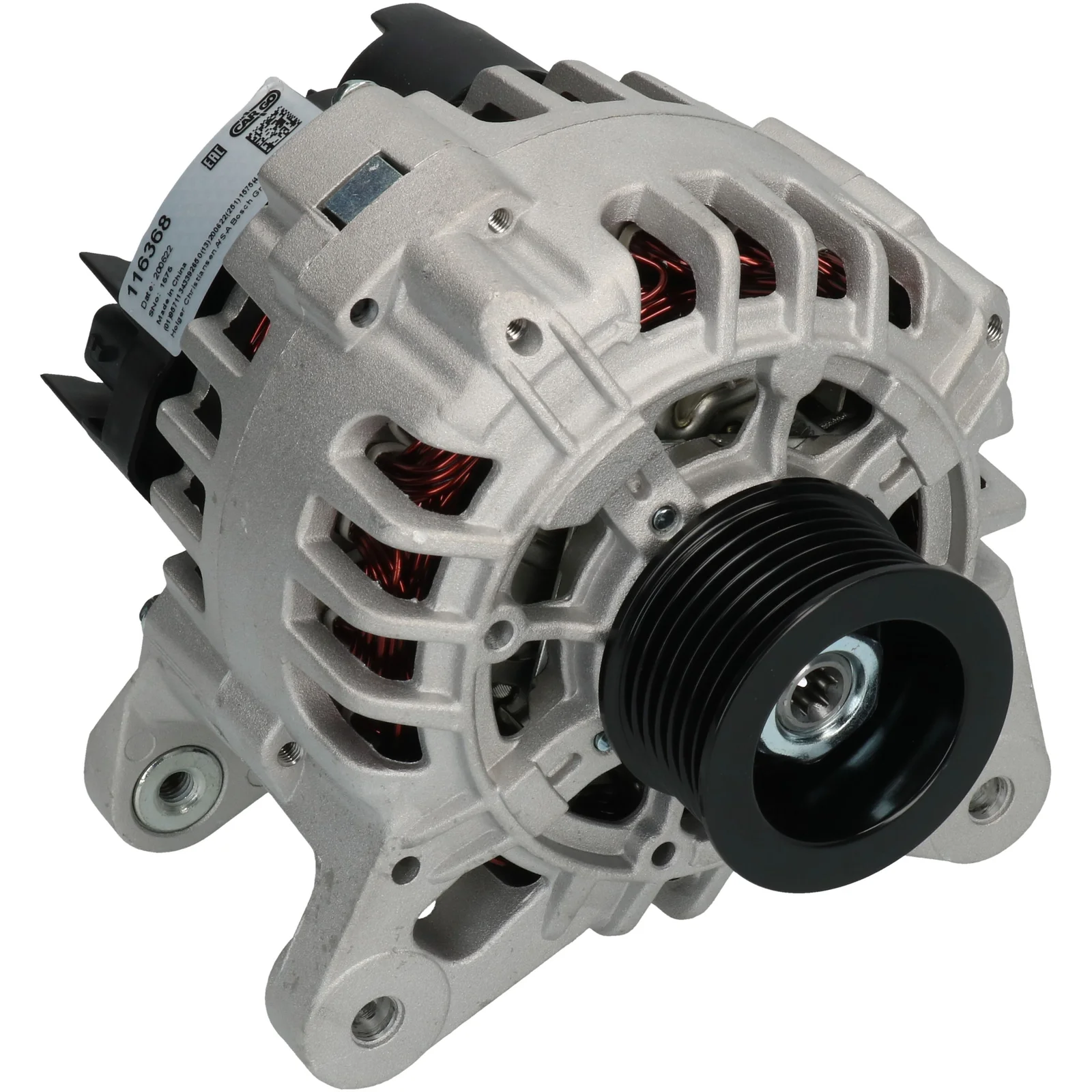

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116368

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 32.00
Width/holder arm: 14.20
Mount. bracket dist.: 61.00
Bracket hole: 8.70
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.70
Pulley dia.: 57.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL124
Total length mm: 182.00
Terminal type: COM
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 45
Plug no. PL124
Bracket hole 8.70
Position/B+ in min. 10
Pulley SP
Pulley dia. 57.00
Pulley dist. 32.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 14.20
Amp 90

  • OEM
    F032116368, TG9B041, TG9B042, 1866ir, 2543486, 2543509, 2543509a, 2543509B, 2543509C, 7711497091, 8200654541

  • Konkurrentreferens
    CAL15321, DRB6440X, 230.329.902, 4674, 112646, 210696, 210696A, 439625, 440185, 443041, 553245RI, 747115, 12046440, 12090369

  • Normaliserat artikelnummer
    cal15321, drb6440x, f032116368, tg9b041, tg9b042, 1866ir, 4674, 112646, 210696, 210696a, 439625, 440185, 443041, 553245ri, 747115, 2543486, 2543509, 2543509a, 2543509b, 2543509c, 12046440, 12090369, 230329902, 7711497091, 8200654541

  • Passar modeller
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F786 Type description: KR0/1_ Body: Estate From date: 01-03-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: SB_, SR_ Body: Box From date: 01-11-2007 To date: 01-12-2009 Fuel: Petrol/Ethanol/Natur Approved: Yes
    Renault Model: Clio Model series: Clio Model type: Hi-Flex Type of engine: 16V Size of motor: 1.1 Brand of engine: D4F742 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Diesel/Electro Approved: Yes Manufacture type: Sports Tou
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D4F742 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Hi-Flex Size of motor: 1.2 Brand of engine: D4F740 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Flex Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Flex Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F722 Type description: BH_ Body: Van From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-05-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F786 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: Hi-Flex Size of motor: 1.1 Brand of engine: D4F740 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Flex Approved: Yes Manufacture type: grandtour
    Renault Model: Clio Model series: Clio Type of engine: LPG 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Model type: Hi-Flex Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: F/JP0_ Body: Hatchback From date: 01-10-2008 Fuel: Flex Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.2 Brand of engine: D4F764 Type description: F/JP0_ Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.2 Brand of engine: D4F786 Type description: F/JP0_ Body: Hatchback From date: 01-04-2011 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: F/JP0_ Body: Hatchback From date: 01-05-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Model type: 100 Size of motor: 1.1 Brand of engine: D4F780 Type description: CN0_ Body: Hatchback From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Model type: 100 Size of motor: 1.1 Brand of engine: D4F782 Type description: CN0_ Body: Hatchback From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F800 Type description: CN0_ Body: Hatchback From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: CN0_ Body: Hatchback From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F772 Type description: CN0_ Body: Hatchback From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Type of engine: Turbo Size of motor: 1.2 Brand of engine: D4F780 Type description: CN0_ Body: Hatchback From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Type of engine: Turbo Size of motor: 1.2 Brand of engine: D4F782 Type description: CN0_ Body: Hatchback From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Wind Model series: Wind Model type: 100 Size of motor: 1.1 Brand of engine: D4F780 Type description: E4MA Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Renault Model: Wind Model series: Wind Size of motor: 1.2 Brand of engine: D4F782 Body: Convertible From date: 01-07-2010 Fuel: Gasoline Approved: Yes
