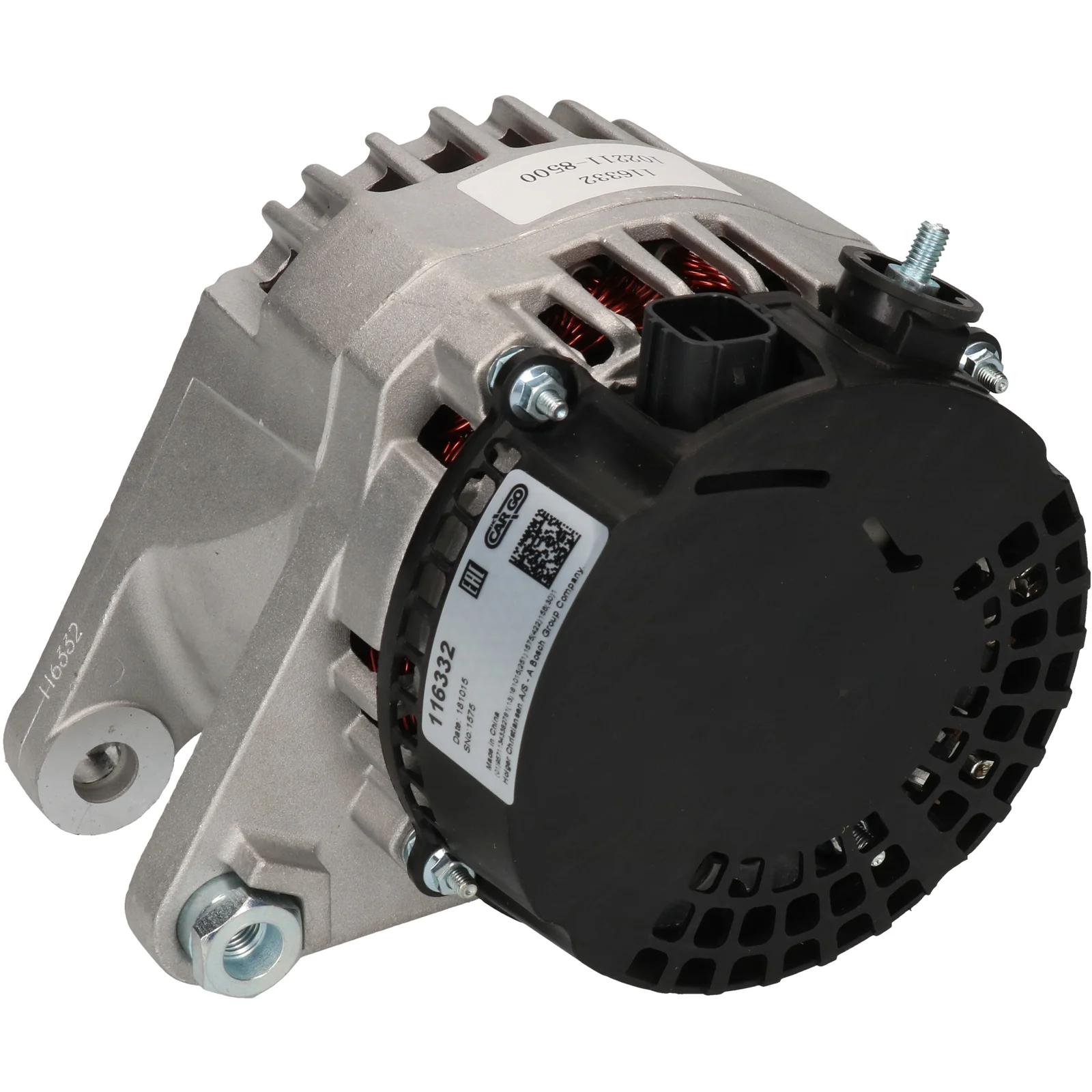

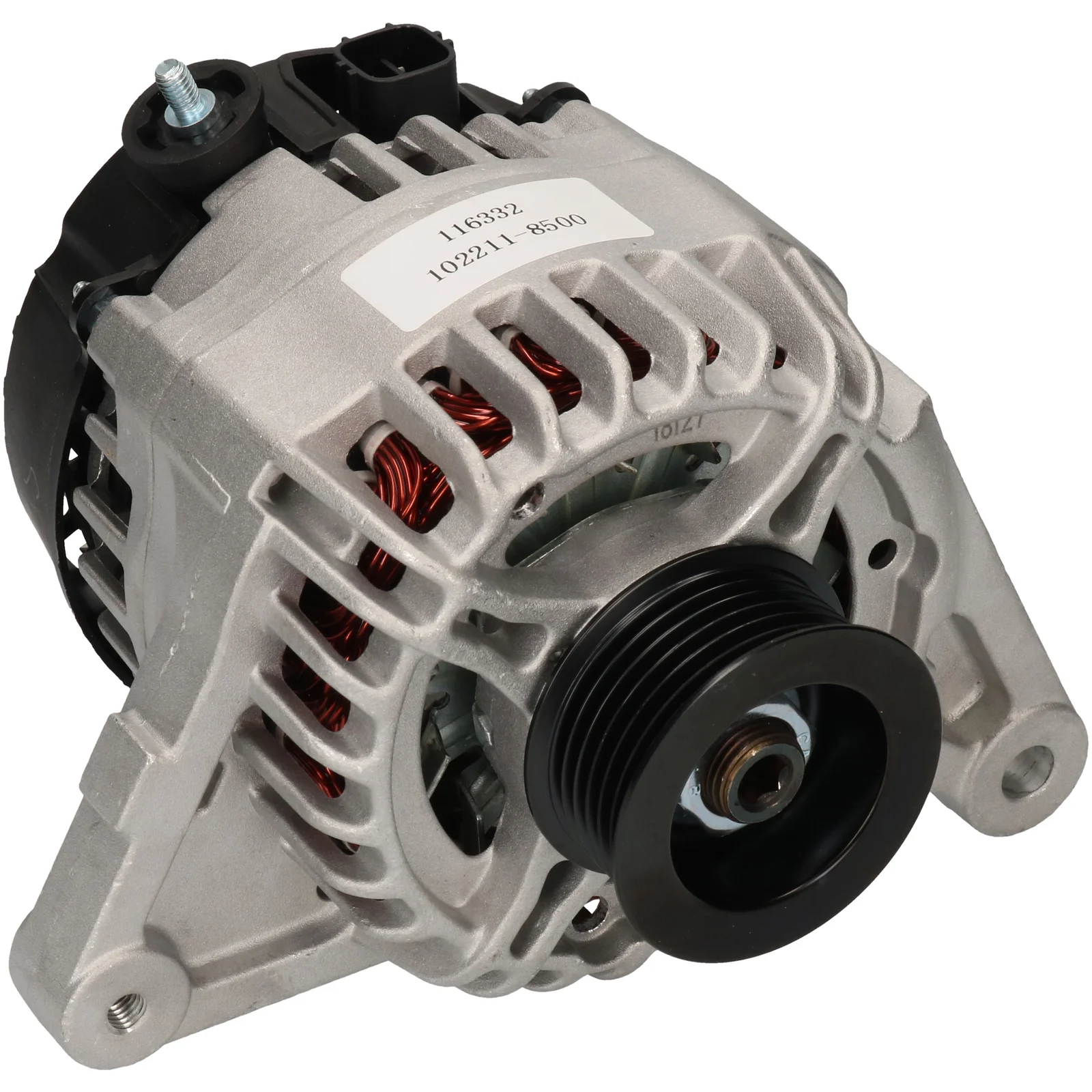

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116332

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 40.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 34.50
Width/holder arm: 18.00
Mount. bracket dist.: 40.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 98.00
Radius 2: 98.00
B+: M6
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 163.00
Terminal type: S-IG-L-DF/DFM
Pulley: SP
Fan: IF

Filer

Specifikation

B+ M6
Mount. bracket dist. 40.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 50
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 55
Pulley SP
Pulley dia. 55.00
Pulley dist. 34.50
Radius 98.00
D+ Size Plug
Radius 2 98.00
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type S-IG-L-DF/DFM
Voltage 14
Total length 163.00 mm
Width/holder arm 18.00
Amp 90

  • OEM
    F032116332, 27060-0D140, 27060-0D170, 27060-0D190, 27060-0D191, 27060-0D300, 101210-0890, 101210-0891, 102211-8500, 102211-9280, 0124325079, 0124325080

  • Konkurrentreferens
    A0257, A6067, A6067(DENSO), A6122, CAL40297, DAN1021, DENDAN1021, DRB6110, 8EL011712-191, 28-5520, 28-5594, 195.945.090, 235.182.902, 9320, 111554, 210980, 210980A, 401894RI, 440838, 443082, 12060771, 12060930, 0986046110, 0986046113, 063377542010

  • Normaliserat artikelnummer
    a0257, a6067, a6067denso, a6122, cal40297, dan1021, dendan1021, drb6110, f032116332, 8el011712191, 9320, 111554, 210980, 210980a, 270600d140, 270600d170, 270600d190, 270600d191, 270600d300, 285520, 285594, 401894ri, 440838, 443082, 12060771, 12060930, 0124325079, 0124325080, 195945090, 235182902, 0986046110, 0986046113, 1012100890, 1012100891, 1022118500, 1022119280, 063377542010

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Type description: ZER_, ZZE_ Body: MPV From date: 01-03-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: VVTi Size of motor: 1.4 Brand of engine: 4ZZ-FE Type description: ZZE150 From date: 01-11-2006 To date: 01-11-2013 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 34.50
    Width/holder arm: 18.00
    Mount. bracket dist.: 40.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 98.00
    Radius 2: 98.00
    B+: M6
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 163.00
    Terminal type: S-IG-L-DF/DFM
    Pulley: SP
    Fan: IF

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 40.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 50
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 55
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 34.50
    Radius 98.00
    D+ Size Plug
    Radius 2 98.00
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type S-IG-L-DF/DFM
    Voltage 14
    Total length 163.00 mm
    Width/holder arm 18.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032116332, 27060-0D140, 27060-0D170, 27060-0D190, 27060-0D191, 27060-0D300, 101210-0890, 101210-0891, 102211-8500, 102211-9280, 0124325079, 0124325080

    • Konkurrentreferens
      A0257, A6067, A6067(DENSO), A6122, CAL40297, DAN1021, DENDAN1021, DRB6110, 8EL011712-191, 28-5520, 28-5594, 195.945.090, 235.182.902, 9320, 111554, 210980, 210980A, 401894RI, 440838, 443082, 12060771, 12060930, 0986046110, 0986046113, 063377542010

    • Normaliserat artikelnummer
      a0257, a6067, a6067denso, a6122, cal40297, dan1021, dendan1021, drb6110, f032116332, 8el011712191, 9320, 111554, 210980, 210980a, 270600d140, 270600d170, 270600d190, 270600d191, 270600d300, 285520, 285594, 401894ri, 440838, 443082, 12060771, 12060930, 0124325079, 0124325080, 195945090, 235182902, 0986046110, 0986046113, 1012100890, 1012100891, 1022118500, 1022119280, 063377542010

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Type description: ZER_, ZZE_ Body: MPV From date: 01-03-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: VVTi Size of motor: 1.4 Brand of engine: 4ZZ-FE Type description: ZZE150 From date: 01-11-2006 To date: 01-11-2013 Fuel: Gasoline Approved: Yes
