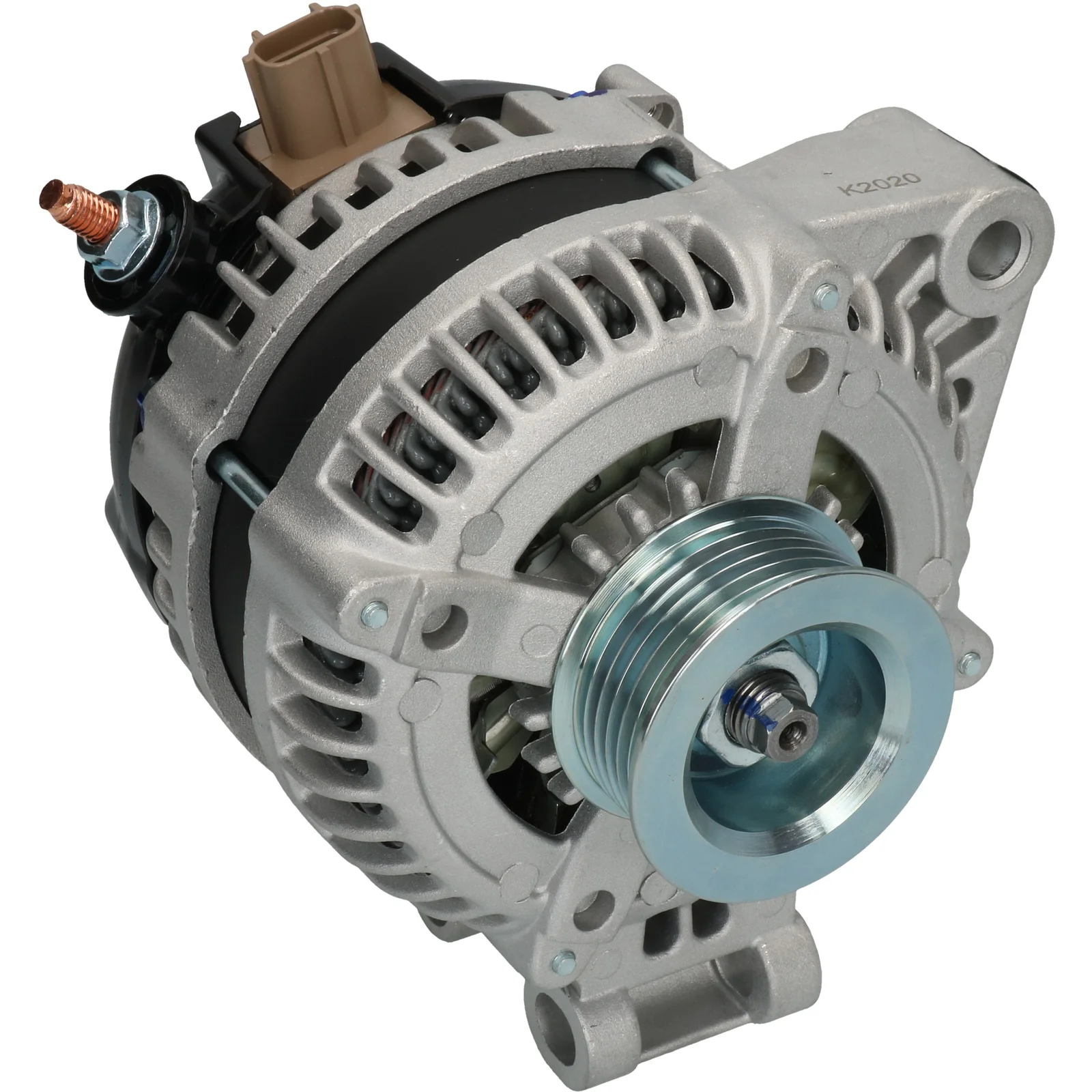

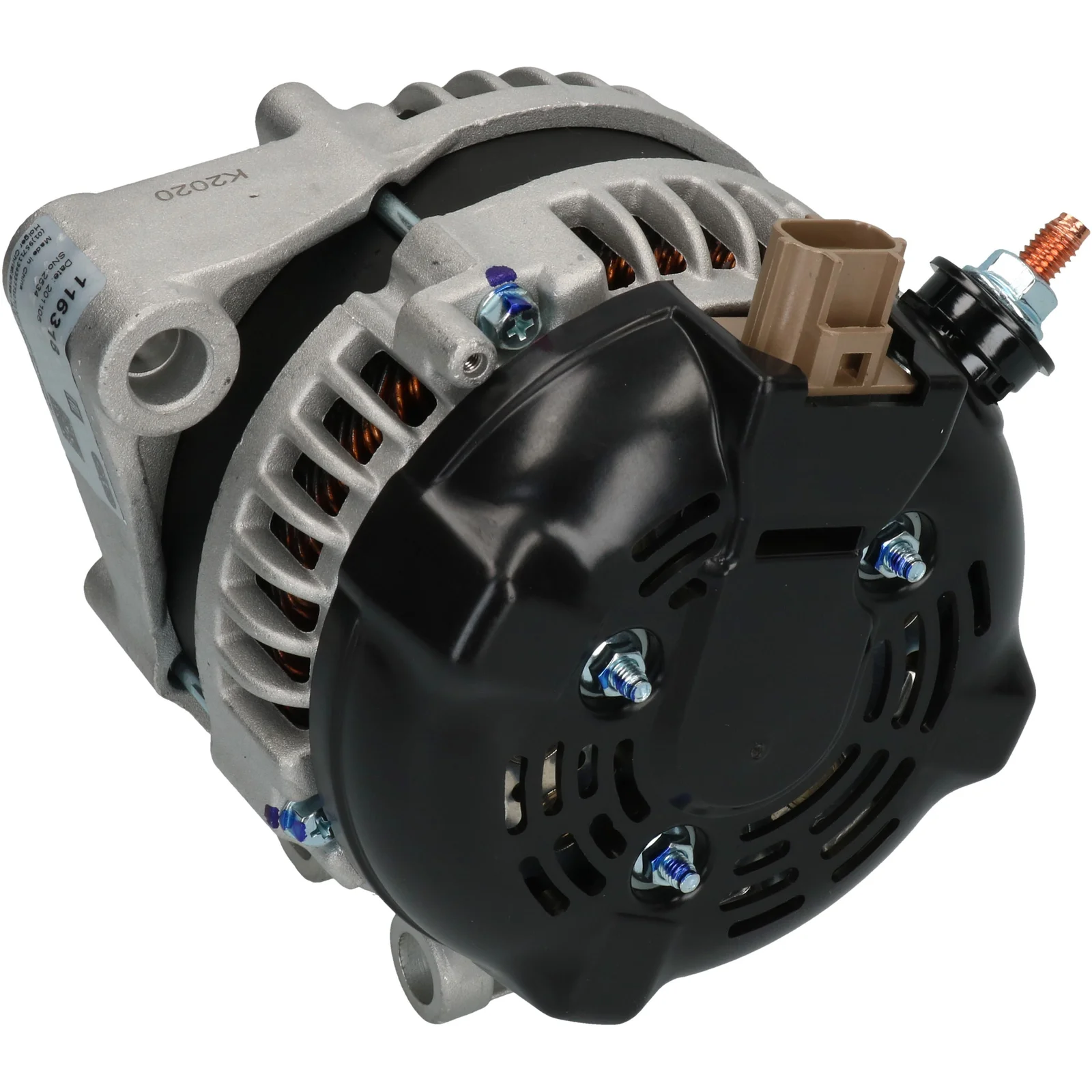

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116318

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 47.50

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 21.80
Width/holder arm: 50.00
Mount. bracket dist.: 47.50
Bracket hole: 11.50x14.40
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: 11.20
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 84.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 155.00
Terminal type: FR-SIG-A
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 47.50
Belt. adj. bracket hole 1 11.20
Belt. adj. brackethole pos. 8
Plug no. PL57
Bracket hole 11.50x14.40
Position/B+ in min. 8
Pulley SP
Pulley dia. 57.50
Pulley dist. 21.80
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-SIG-A
Voltage 14
Total length 155.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    F032116318, yle500290, YLE500430, 021080-0180, 104210-4650, 104210-4651

  • Konkurrentreferens
    A6081, A6081(DENSO), CAL40307, DAN990, DRA0924, LRA03383, 8EL015637-701, 28-5995, 214.169.1202, 214.175.1502, 455.529.150, 20425, 20425CT, 113318, 209403, 209403A, 440761, 553382RI, 12090397, 063377527010

  • Normaliserat artikelnummer
    a6081, a6081denso, cal40307, dan990, dra0924, f032116318, lra03383, yle500290, yle500430, 8el015637701, 20425, 20425ct, 113318, 209403, 209403a, 285995, 440761, 553382ri, 12090397, 0210800180, 455529150, 1042104650, 1042104651, 2141691202, 2141751502, 063377527010

  • Passar modeller
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-03-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-08-2012 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 21.80
    Width/holder arm: 50.00
    Mount. bracket dist.: 47.50
    Bracket hole: 11.50x14.40
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: 11.20
    Pulley dia.: 57.50
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 155.00
    Terminal type: FR-SIG-A
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 47.50
    Belt. adj. bracket hole 1 11.20
    Belt. adj. brackethole pos. 8
    Plug no. PL57
    Bracket hole 11.50x14.40
    Position/B+ in min. 8
    Pulley SP
    Pulley dia. 57.50
    Pulley dist. 21.80
    Radius 84.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type FR-SIG-A
    Voltage 14
    Total length 155.00 mm
    Width/holder arm 50.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032116318, yle500290, YLE500430, 021080-0180, 104210-4650, 104210-4651

    • Konkurrentreferens
      A6081, A6081(DENSO), CAL40307, DAN990, DRA0924, LRA03383, 8EL015637-701, 28-5995, 214.169.1202, 214.175.1502, 455.529.150, 20425, 20425CT, 113318, 209403, 209403A, 440761, 553382RI, 12090397, 063377527010

    • Normaliserat artikelnummer
      a6081, a6081denso, cal40307, dan990, dra0924, f032116318, lra03383, yle500290, yle500430, 8el015637701, 20425, 20425ct, 113318, 209403, 209403a, 285995, 440761, 553382ri, 12090397, 0210800180, 455529150, 1042104650, 1042104651, 2141691202, 2141751502, 063377527010

    • Passar modeller
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-03-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD8 Size of motor: 3.6 Brand of engine: 368DT From date: 01-04-2006 To date: 01-08-2012 Fuel: Diesel Approved: Yes
