Artikelnr: F032116313

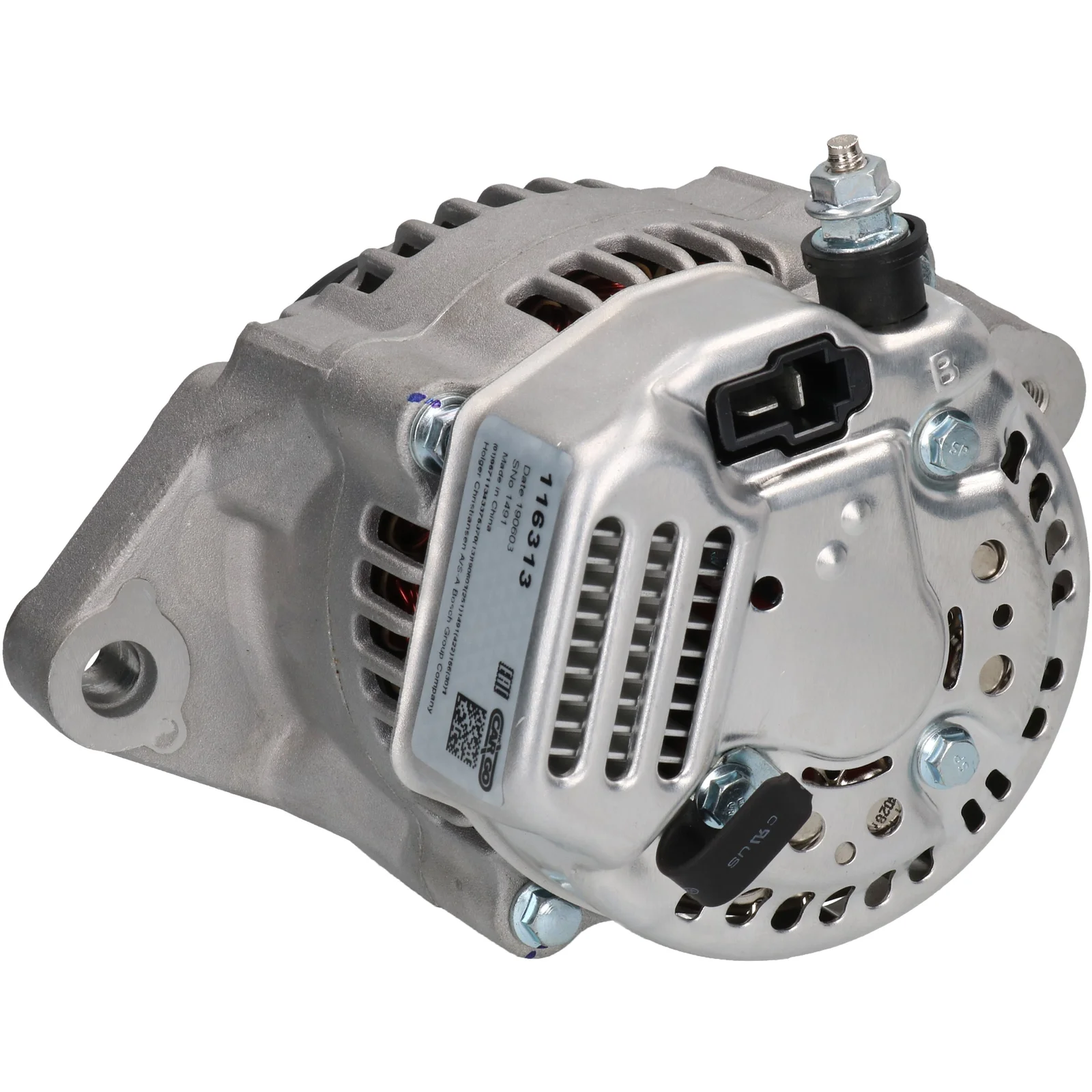

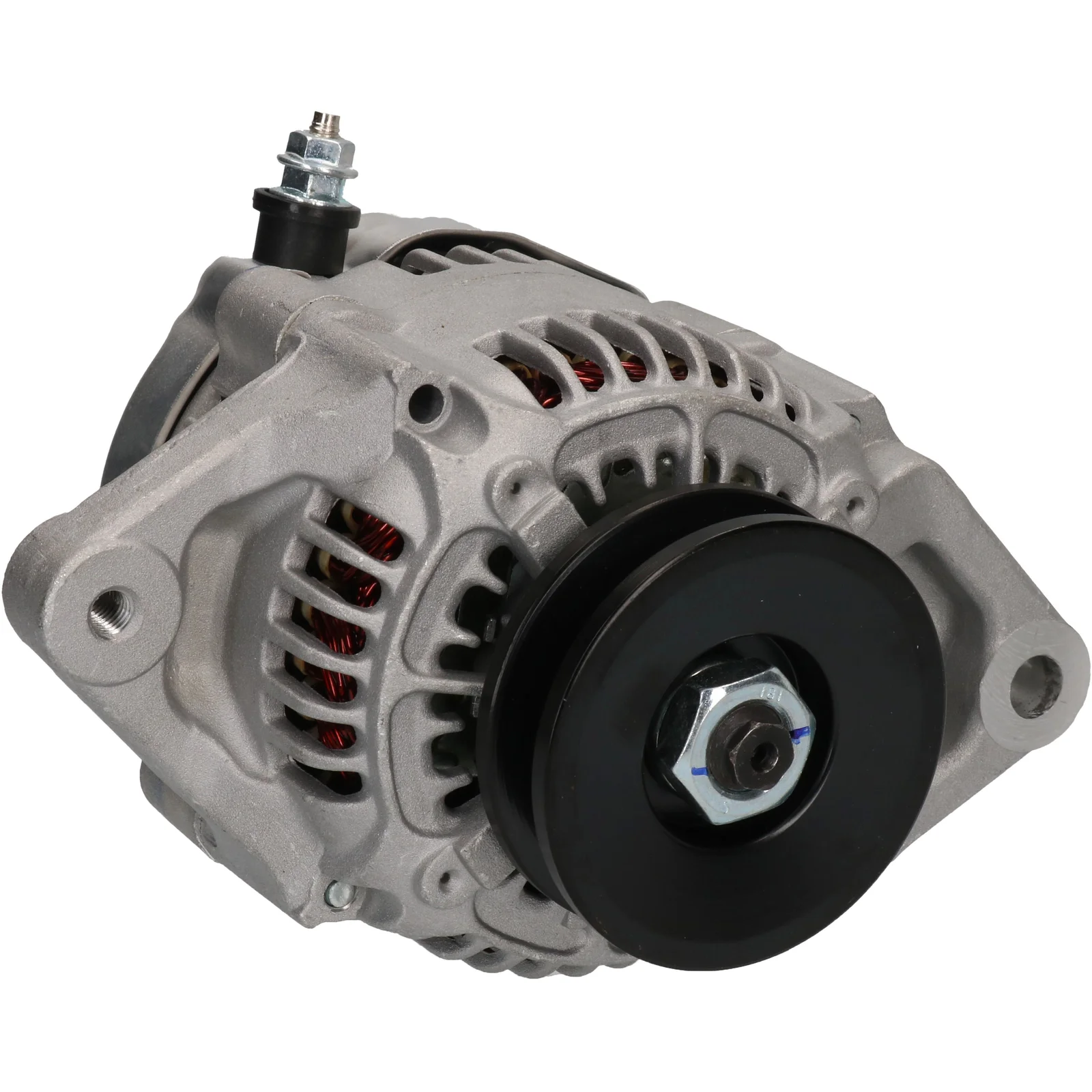

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Pulley dia.: 69.00

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 43.00
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 69.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 75.00
B+: M6
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL10
Total length mm: 150.00
Pulley: P
Regulator type: IR

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 45
Pulley P
Pulley dia. 69.00
Pulley dist. 43.00
Radius 77.50
Radius 2 75.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 150.00 mm
Width/holder arm 21.00
Amp 60
  • OEM

    F032116313, 3A611-74012, 3A611-74013, 3a611-74014, 16615-64012, 16615-64013, 16615-64014, 021080-2510, 101211-2490, 101211-2851, 101211-2852, 101211-2853, 101211-8520, 101211-8521, 101211-8522, 101211-8523
  • Konkurrentreferens

    CAL40177, DAN2038, DRA0316, LRA03514, 28-6624, 583.112.602, 695.512.060, 995.507.060, 11903N
  • Normaliserat artikelnummer

    cal40177, dan2038, dra0316, f032116313, lra03514, 3a61174012, 3a61174013, 3a61174014, 11903n, 286624, 0210802510, 583112602, 695512060, 995507060, 1012112490, 1012112851, 1012112852, 1012112853, 1012118520, 1012118521, 1012118522, 1012118523, 1661564012, 1661564013, 1661564014
  • Passar modeller

    Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: L Model series: L5740, L5740HST Brand of engine: V2403-MT-E2 Body: Tractor From date: 01-01-2007 Approved: Yes
    Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
