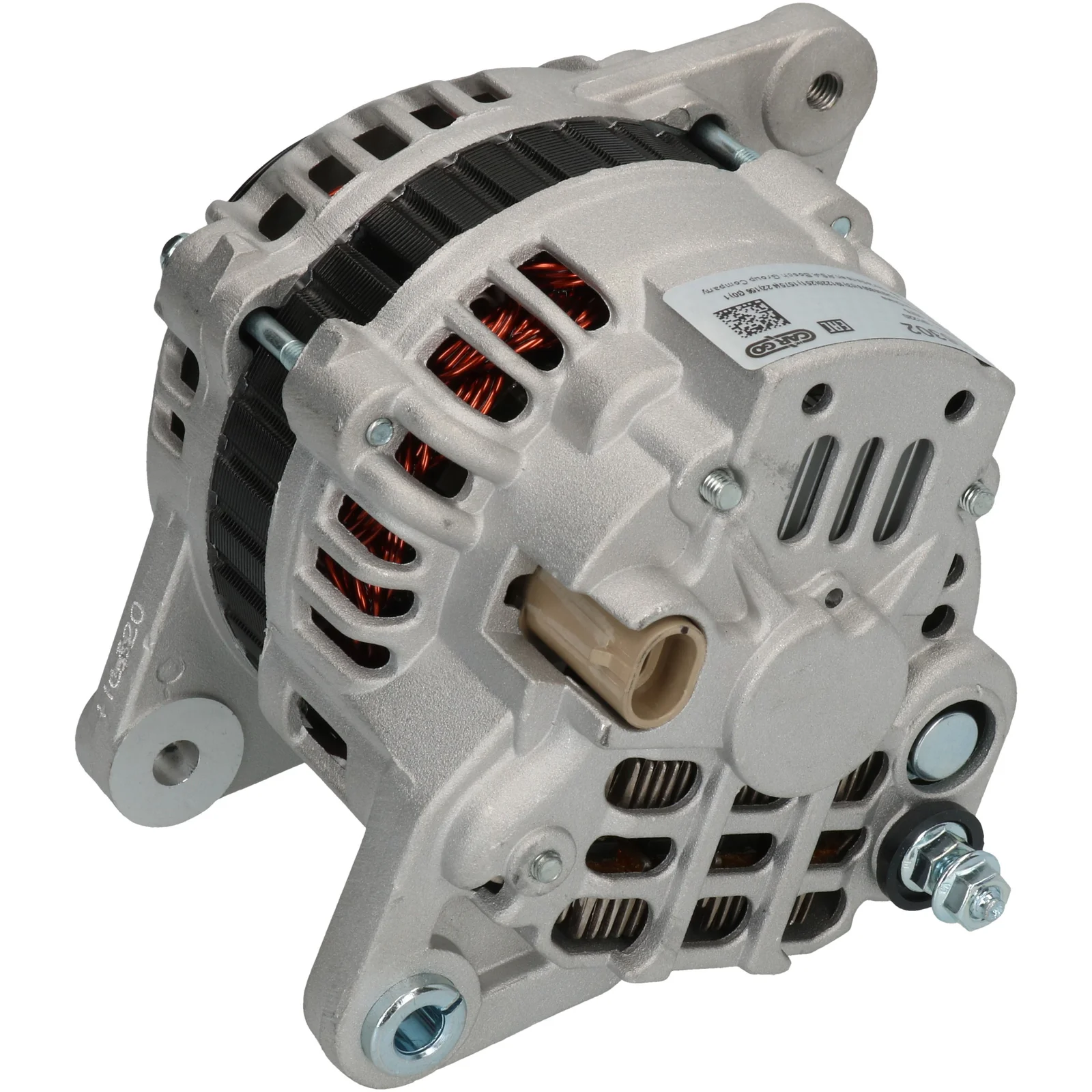

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116302

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 65, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 65
Pulley dist.: 40.30
Width/holder arm: 14.30
Mount. bracket dist.: 66.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 64.60
Grooves/pulley: 3
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL77
Total length mm: 164.00
Terminal type: L-IG
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL77
Bracket hole 8.30
Position/B+ in min. 15
Pulley SP
Pulley dia. 64.60
Pulley dist. 40.30
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Grooves/pulley 3
Terminal type L-IG
Voltage 14
Total length 164.00 mm
Width/holder arm 14.30
Amp 65

  • OEM
    F032116302, 219292, 96567255

  • Konkurrentreferens
    CAL46112, dra0338, DRA0338X, J5110912, 28-5612, 24001N, 210683, 210683A, 600197, 9060910, 12060904

  • Normaliserat artikelnummer
    cal46112, dra0338, dra0338x, f032116302, j5110912, 24001n, 210683, 210683a, 219292, 285612, 600197, 9060910, 12060904, 96567255

  • Passar modeller
    Chevrolet Model: Matiz Model series: Matiz Model type: LPG Size of motor: 0.8 Brand of engine: F8CV Type description: M200 Body: Hatchback From date: 01-03-2005 Fuel: Bi-Fuel Approved: Yes
    Chevrolet Model: Matiz Model series: Matiz Size of motor: 0.8 Brand of engine: F8CV Body: Hatchback From date: 01-03-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Spark Model series: Spark Size of motor: 0.8 Brand of engine: F8CV Body: Hatchback From date: 01-05-2005 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 65
    Pulley dist.: 40.30
    Width/holder arm: 14.30
    Mount. bracket dist.: 66.00
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 64.60
    Grooves/pulley: 3
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL77
    Total length mm: 164.00
    Terminal type: L-IG
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL77
    Bracket hole 8.30
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 64.60
    Pulley dist. 40.30
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 3
    Terminal type L-IG
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 14.30
    Amp 65
  • Fordonsmatchning

    • OEM
      F032116302, 219292, 96567255

    • Konkurrentreferens
      CAL46112, dra0338, DRA0338X, J5110912, 28-5612, 24001N, 210683, 210683A, 600197, 9060910, 12060904

    • Normaliserat artikelnummer
      cal46112, dra0338, dra0338x, f032116302, j5110912, 24001n, 210683, 210683a, 219292, 285612, 600197, 9060910, 12060904, 96567255

    • Passar modeller
      Chevrolet Model: Matiz Model series: Matiz Model type: LPG Size of motor: 0.8 Brand of engine: F8CV Type description: M200 Body: Hatchback From date: 01-03-2005 Fuel: Bi-Fuel Approved: Yes
      Chevrolet Model: Matiz Model series: Matiz Size of motor: 0.8 Brand of engine: F8CV Body: Hatchback From date: 01-03-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Spark Model series: Spark Size of motor: 0.8 Brand of engine: F8CV Body: Hatchback From date: 01-05-2005 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
