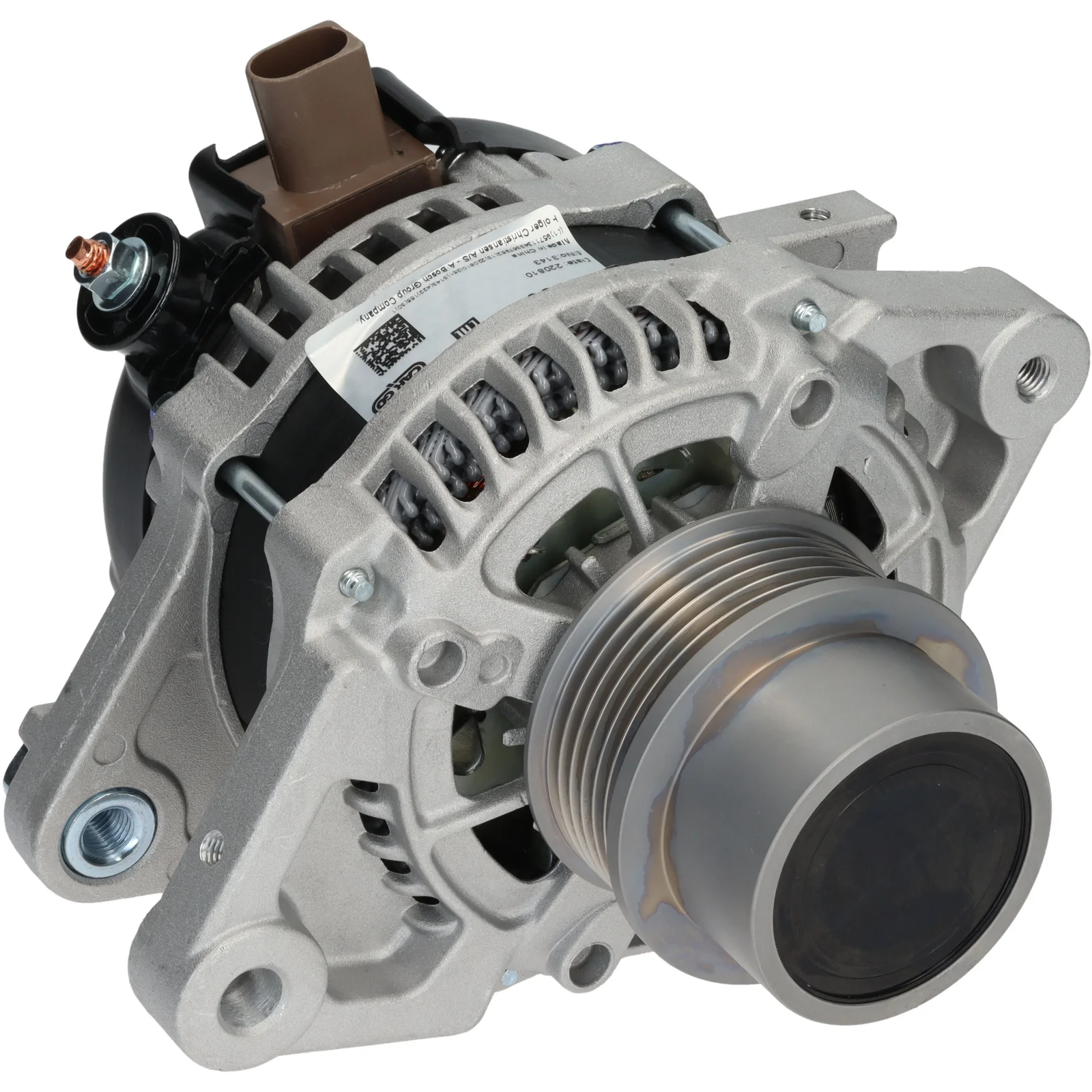

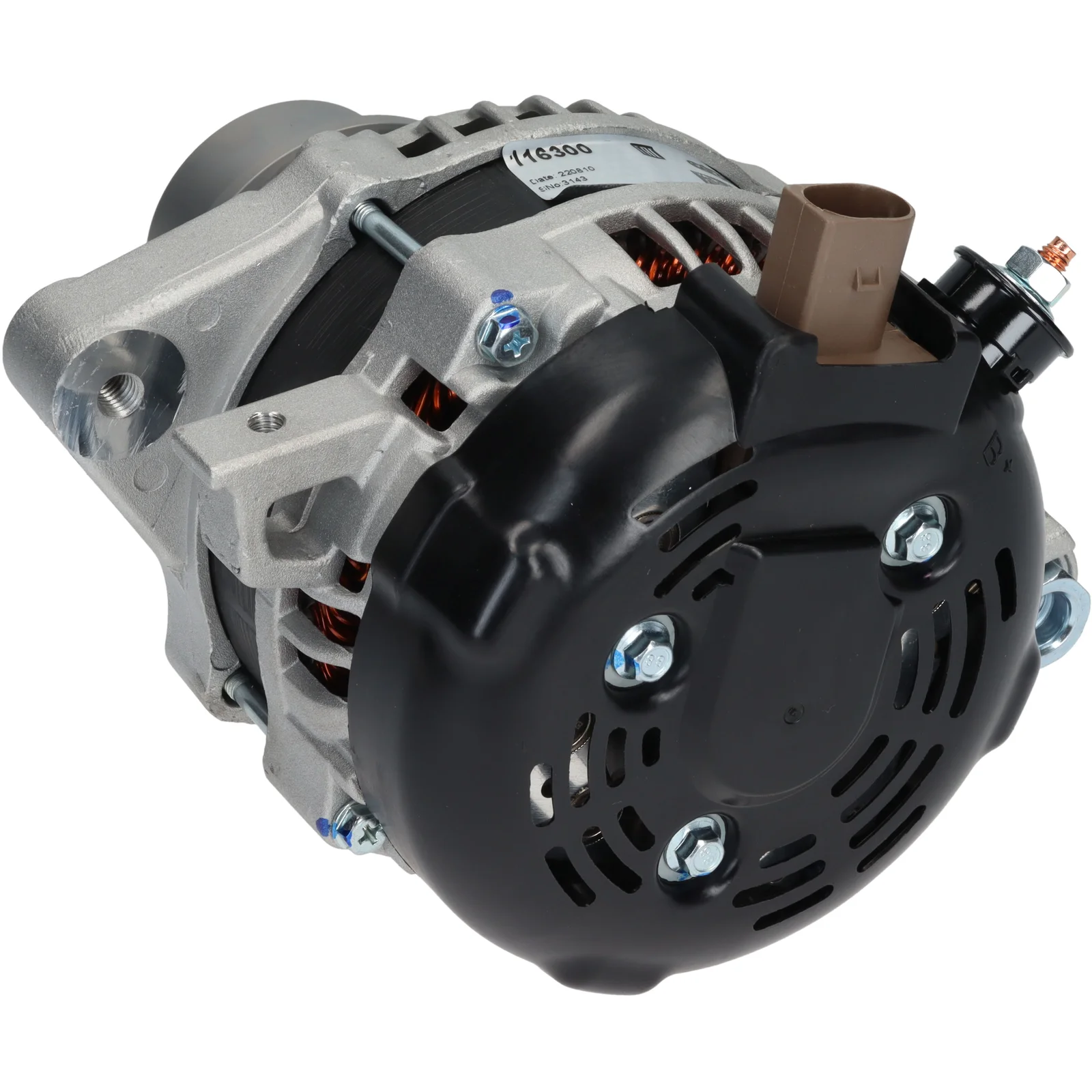

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116300

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 115, Rotation: CW, Mount. bracket dist.: 37.00

Beskrivning

Voltage: 14
Amp: 115
Pulley dist.: 29.00
Width/holder arm: 19.00
Mount. bracket dist.: 37.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 59
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 81.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL181
Total length mm: 182.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 37.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 59
Plug no. PL181
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 67.00
Pulley dist. 29.00
Radius 89.00
Radius 2 81.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 19.00
Amp 115

  • OEM
    b000912180, F032116300, 27060-0Q170, 104211-3480, 104211-3481, 1612352080

  • Konkurrentreferens
    A6628S, CAL40483, DAN1319, DRA1458, LRA03954, 28-7564, 225.539.100, 235.354.1002, 554641RID, 12090790

  • Normaliserat artikelnummer
    a6628s, b000912180, cal40483, dan1319, dra1458, f032116300, lra03954, 270600q170, 287564, 554641rid, 12090790, 225539100, 1042113480, 1042113481, 1612352080, 2353541002

  • Passar modeller
    Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo X Model type: VVT-i (KGB70) Type of engine: VVT-i Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B7_ Body: Hatchback From date: 01-03-2022 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P21_, _PA1_, _PH1_ Body: Hatchback From date: 01-02-2020 Fuel: Petrol Approved: Yes
