HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116299

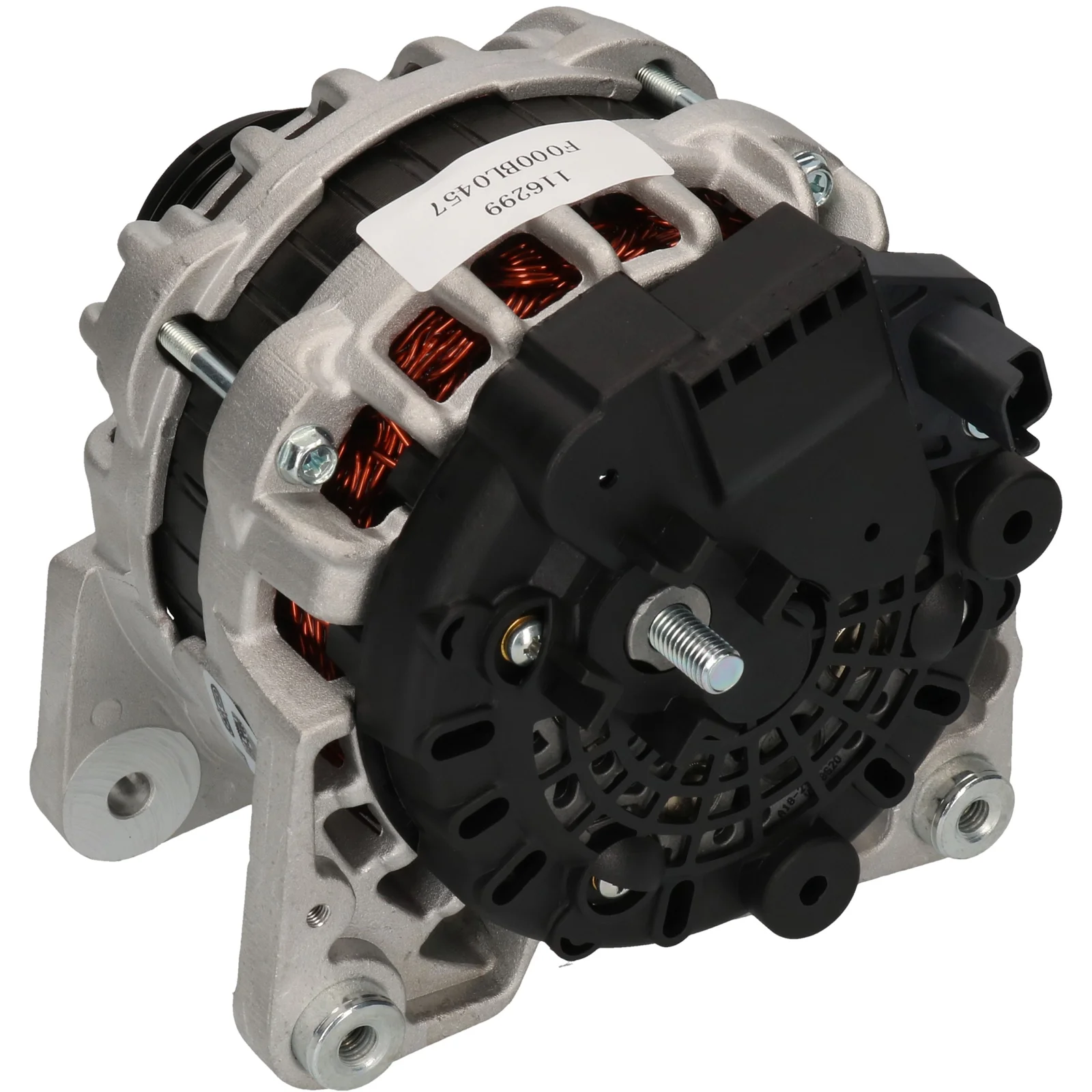

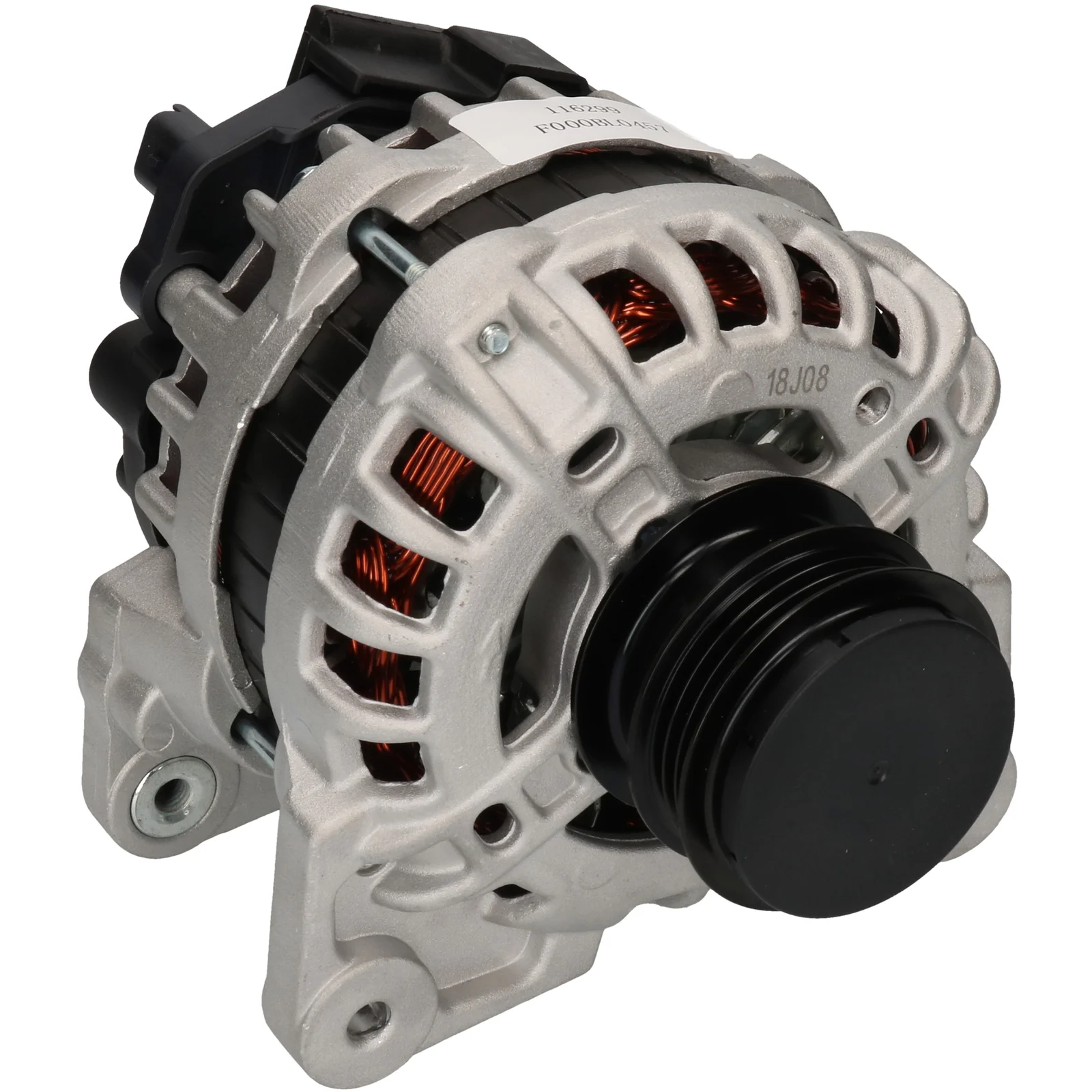

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 47.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 58.00
Grooves/pulley: 3
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 171.00
Terminal type: L-DFM
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 47.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 3
Terminal type L-DFM
Voltage 14
Total length 171.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F000BL0457, F000BL04BC, F032116299, 231008344R, 231008386, 231008386R

  • Konkurrentreferens
    A0597S, CAL10535, 28-7784, 575.952.090, 554490RI, 12090927, 32085050, 0986085050

  • Normaliserat artikelnummer
    a0597s, cal10535, f000bl0457, f000bl04bc, f032116299, 287784, 554490ri, 12090927, 32085050, 231008344r, 231008386, 231008386r, 575952090, 0986085050

  • Passar modeller
    Dacia Model: Logan Model series: Logan MCV Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F734 Body: Estate From date: 01-02-2013 Fuel: Petrol/Electro Approved: Yes Manufacture type: MCV
    Dacia Model: Logan Model series: Logan Model type: LPG Size of motor: 1.2 Brand of engine: D4F734 From date: 01-10-2012 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F734 From date: 01-02-2013 Fuel: Petrol/Electro Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.2 Brand of engine: D4F732 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Size of motor: 1.2 From date: 01-05-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Thalia Model series: Thalia Type of engine: 16V Size of motor: 1.2 From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 47.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 58.00
    Grooves/pulley: 3
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 171.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL72
    Bracket hole 8.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 47.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 3
    Terminal type L-DFM
    Voltage 14
    Total length 171.00 mm
    Width/holder arm 14.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F000BL0457, F000BL04BC, F032116299, 231008344R, 231008386, 231008386R

    • Konkurrentreferens
      A0597S, CAL10535, 28-7784, 575.952.090, 554490RI, 12090927, 32085050, 0986085050

    • Normaliserat artikelnummer
      a0597s, cal10535, f000bl0457, f000bl04bc, f032116299, 287784, 554490ri, 12090927, 32085050, 231008344r, 231008386, 231008386r, 575952090, 0986085050

    • Passar modeller
      Dacia Model: Logan Model series: Logan MCV Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F734 Body: Estate From date: 01-02-2013 Fuel: Petrol/Electro Approved: Yes Manufacture type: MCV
      Dacia Model: Logan Model series: Logan Model type: LPG Size of motor: 1.2 Brand of engine: D4F734 From date: 01-10-2012 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Logan Model series: Logan Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F734 From date: 01-02-2013 Fuel: Petrol/Electro Approved: Yes
      Dacia Model: Logan Model series: Logan Size of motor: 1.2 Brand of engine: D4F732 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Dacia Model: Logan Model series: Logan Size of motor: 1.2 From date: 01-05-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Thalia Model series: Thalia Type of engine: 16V Size of motor: 1.2 From date: 01-12-2013 Fuel: Gasoline Approved: Yes
