HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116296

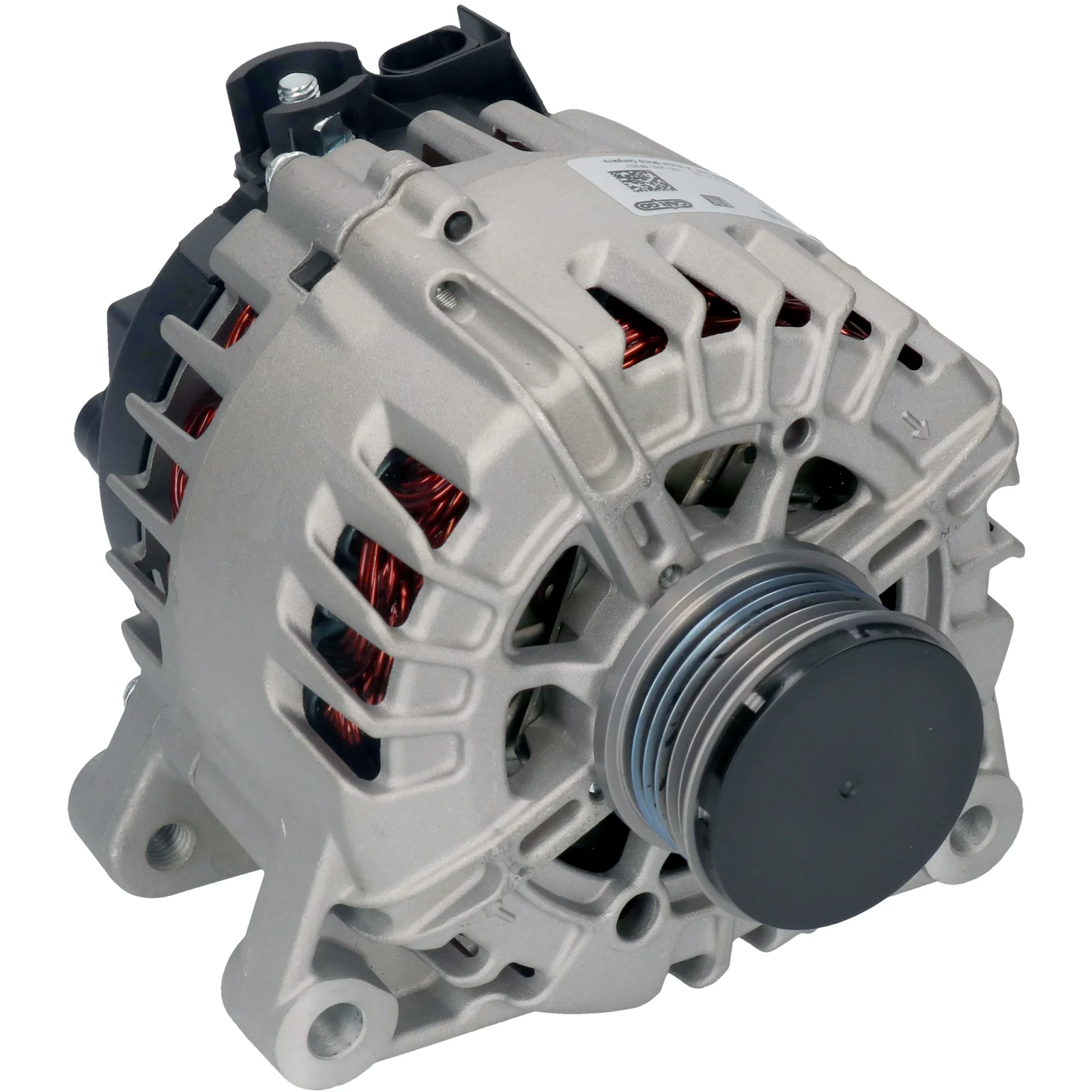

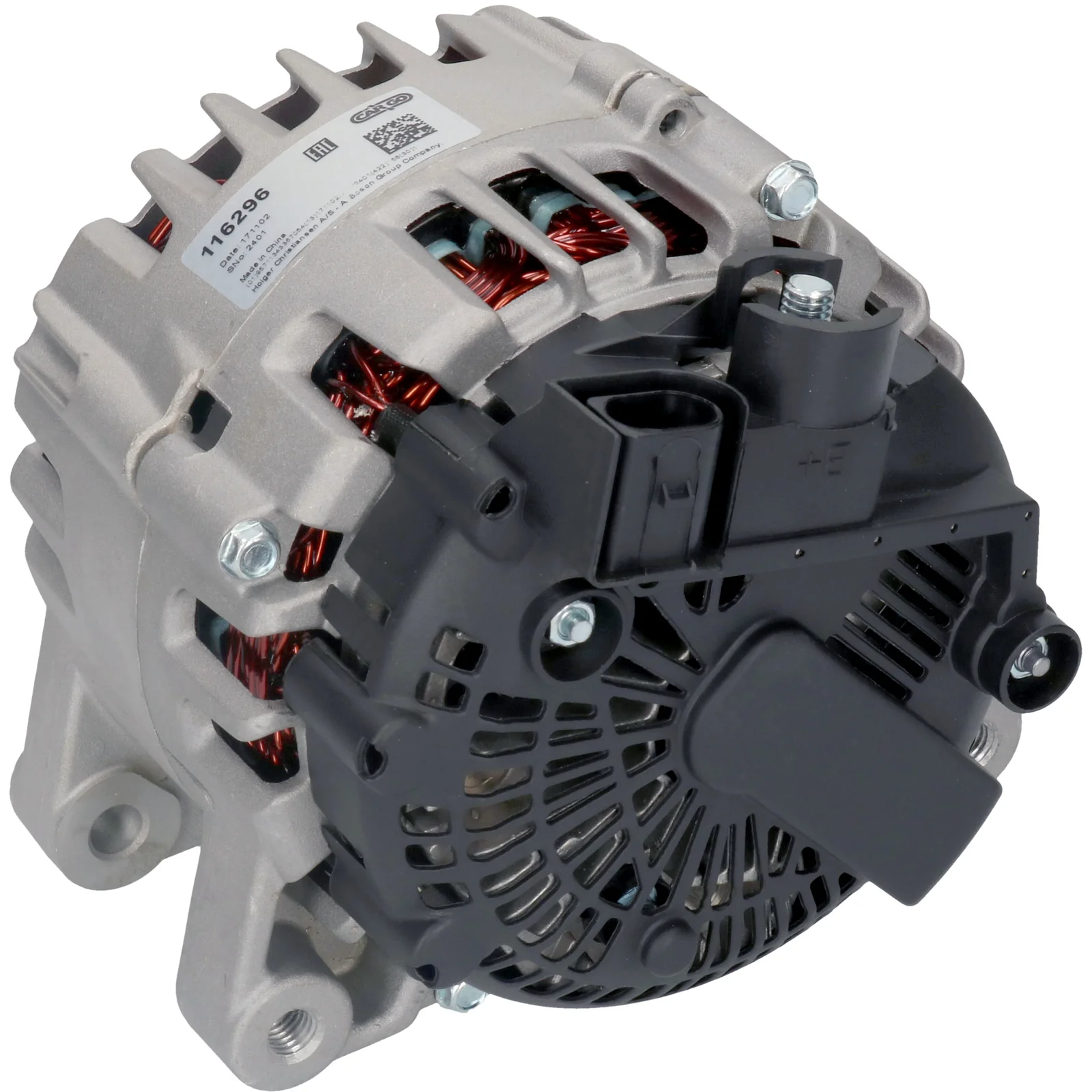

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 45.00

Beskrivning

HC-Cargo Generator 14V - 150A, 6gr

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 45.00
Bracket hole: 10.70
Belt. adj. brackethole pos.: 48
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL174
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 48
Plug no. PL174
Bracket hole 10.70
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    AG9T-10300AA, AG9T-10300CA, AG9T10300AA, AG9T10300CA, F032116296, TG15C174, TG15C176, 116296, 1678607, 1678608, 31419219

  • Konkurrentreferens
    A3274(VALEO), A3318, CAL15520, DRA1239, LRA03555, 8EL011713-421, 28-6665, 219.141.1502, 595.560.150, 20716N, 210878, 210878A, 439907, 439912, 439913, 440588, 553944RI, 12090520, 0986083620, 0986084940

  • Bilmärken
    Ford EU

  • Normaliserat artikelnummer
    a3274valeo, a3318, ag9t10300aa, ag9t10300ca, cal15520, dra1239, f032116296, lra03555, tg15c174, tg15c176, 8el011713421, 20716n, 116296, 210878, 210878a, 286665, 439907, 439912, 439913, 440588, 553944ri, 1678607, 1678608, 12090520, 31419219, 595560150, 0986083620, 0986084940, 2191411502

  • Passar modeller
    Ford EU Series: GALAXY II Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXWA Year: 03.10-06.15
    Ford EU Series: GALAXY MK II VAN Model: TDCi Engine volume: 2.0 Engine type: QXWA/QXWB/QXWC/UFWA Year: 05.06-06.15
    Ford EU Series: MONDEO IV Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: AZBC/UKBA/UKBB Year: 08.08-12.14
    Ford EU Series: MONDEO IV Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXBA/TXBB Year: 03.10-01.15
    Ford EU Series: MONDEO IV Van Model: 2.0 TDCi Engine volume: 2 Engine type: TXBA Year: 03.10-09.14
    Ford EU Series: S-MAX Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXWA Year: 03.10-12.14
    Ford EU Series: S-MAX VAN (WA6) Model: 2.0 TDCi Engine volume: 2.0 Engine type: KLWA/TYWA Year: 01.07-12.14
    Ford EU Series: S-MAX VAN (WA6) Model: 2.0 TDCi Engine volume: 2.0 Engine type: QXWA/QXWB/QXWC/UFWA Year: 03.10-12.14
    Ford EU Series: S-MAX VAN (WA6) Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXWA Year: 03.10-12.14
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXWB,QXWA,QXWC,UFWA Type description: WA6 Body: Van From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Body: MPV From date: 01-03-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Type description: WA6 Body: Van From date: 01-03-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYWA,KLWA Type description: WA6 Body: Van From date: 01-01-2007 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Saloon Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Type description: BA7 Body: Saloon From date: 01-08-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Box Body / Estate From date: 01-03-2010 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Type description: WA6 Body: MPV From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Type description: WA6 Body: Van From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYWA,KLWA Type description: WA6 Body: Van From date: 01-01-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFWA,QXWA,QXWC,QXWB Type description: WA6 Body: Van From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 4
