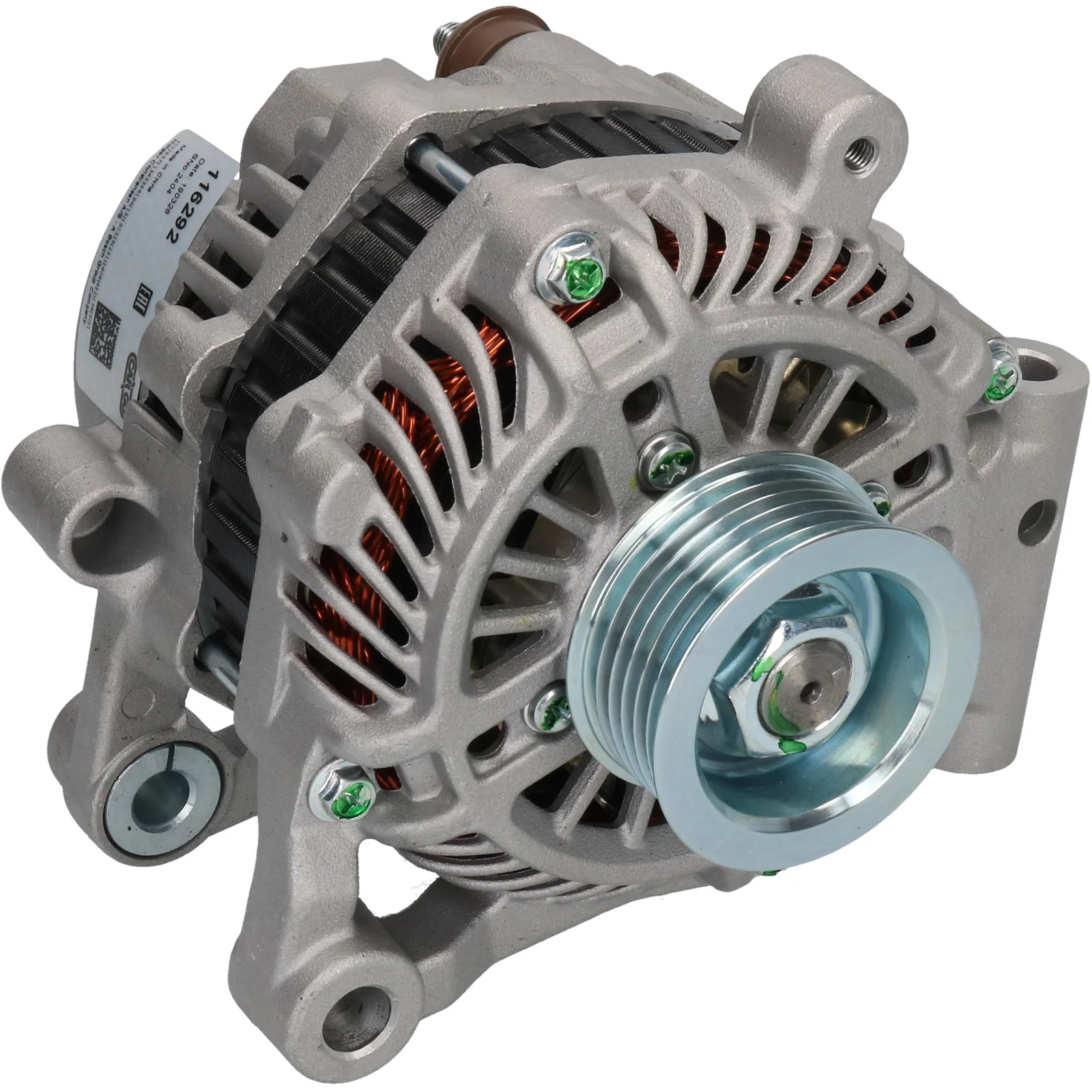

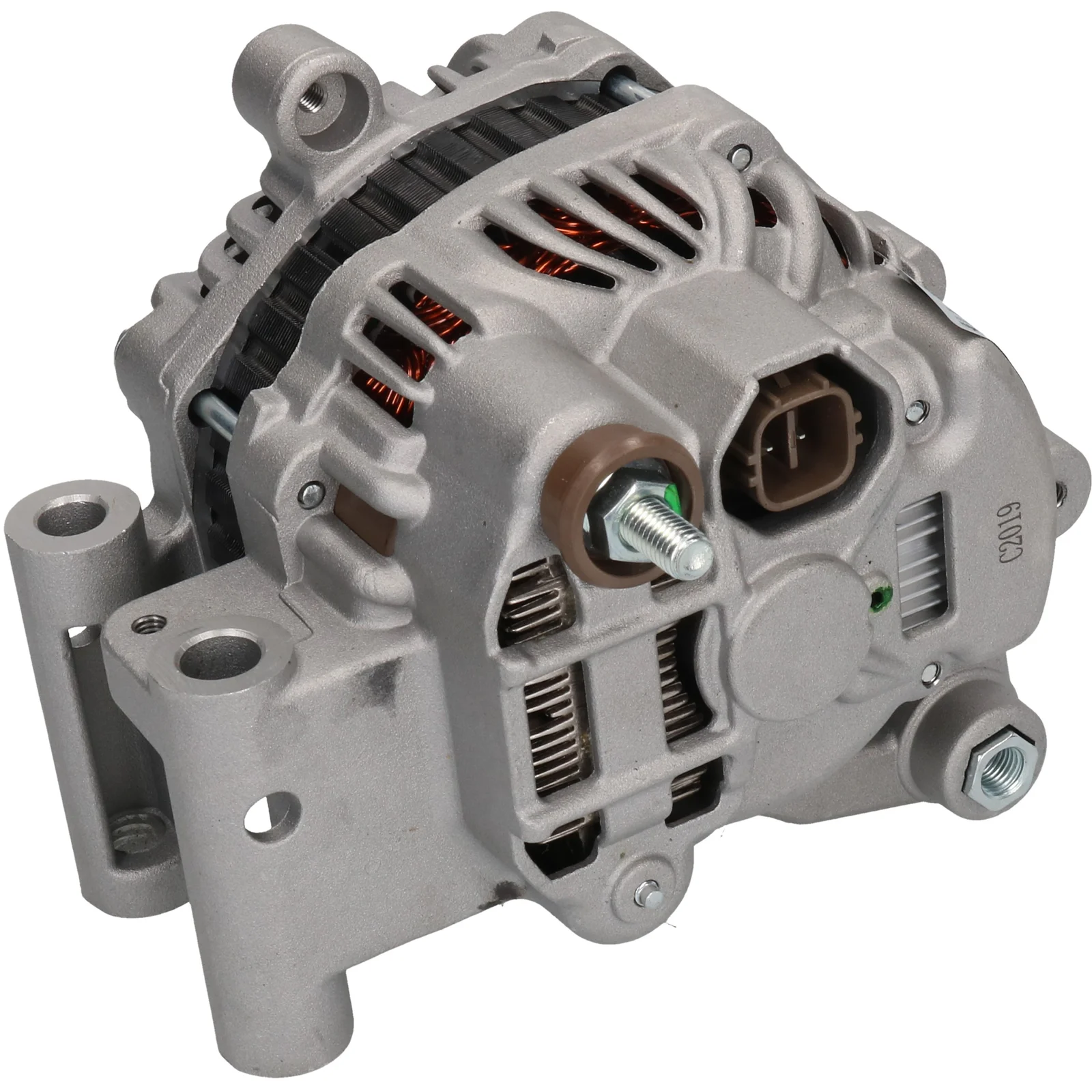

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116292

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 75, Rotation: CW, Mount. bracket dist.: 55.00

Beskrivning

Voltage: 14
Amp: 75
Pulley dist.: 41.00
Width/holder arm: 75.00
Mount. bracket dist.: 55.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 12.00
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 83.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 35
Rotation: CW
Plug no.: PL60
Total length mm: 173.00
Terminal type: IG-L-C-FR
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 50
Plug no. PL60
Bracket hole 11.00
Position/B+ in min. 35
Pulley SP
Pulley dia. 55.00
Pulley dist. 41.00
Radius 83.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type IG-L-C-FR
Voltage 14
Total length 173.00 mm
Width/holder arm 75.00
Amp 75

  • OEM
    A005TG1891, A5TG1491, A5TG1891, A5TG1891A, F032116292, 31400-78k00, 31400-78K10

  • Konkurrentreferens
    A5191, A5267, CAL35306, DRA1056, DRA1056N, 28-7500, 185.517.075, 185.519.080, 245.135.752, 11480, 553863RI, 12061080

  • Normaliserat artikelnummer
    a005tg1891, a5191, a5267, a5tg1491, a5tg1891, a5tg1891a, cal35306, dra1056, dra1056n, f032116292, 11480, 287500, 553863ri, 3140078k00, 3140078k10, 12061080, 185517075, 185519080, 245135752

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.4 Brand of engine: J24B From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.4 Brand of engine: J24B Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-09-2009 Fuel: Petrol Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 75
    Pulley dist.: 41.00
    Width/holder arm: 75.00
    Mount. bracket dist.: 55.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 12.00
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 35
    Rotation: CW
    Plug no.: PL60
    Total length mm: 173.00
    Terminal type: IG-L-C-FR
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 50
    Plug no. PL60
    Bracket hole 11.00
    Position/B+ in min. 35
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 41.00
    Radius 83.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type IG-L-C-FR
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 75.00
    Amp 75
  • Fordonsmatchning

    • OEM
      A005TG1891, A5TG1491, A5TG1891, A5TG1891A, F032116292, 31400-78k00, 31400-78K10

    • Konkurrentreferens
      A5191, A5267, CAL35306, DRA1056, DRA1056N, 28-7500, 185.517.075, 185.519.080, 245.135.752, 11480, 553863RI, 12061080

    • Normaliserat artikelnummer
      a005tg1891, a5191, a5267, a5tg1491, a5tg1891, a5tg1891a, cal35306, dra1056, dra1056n, f032116292, 11480, 287500, 553863ri, 3140078k00, 3140078k10, 12061080, 185517075, 185519080, 245135752

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.4 Brand of engine: J24B From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.4 Brand of engine: J24B Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-09-2009 Fuel: Petrol Approved: Yes
