- Generator
-

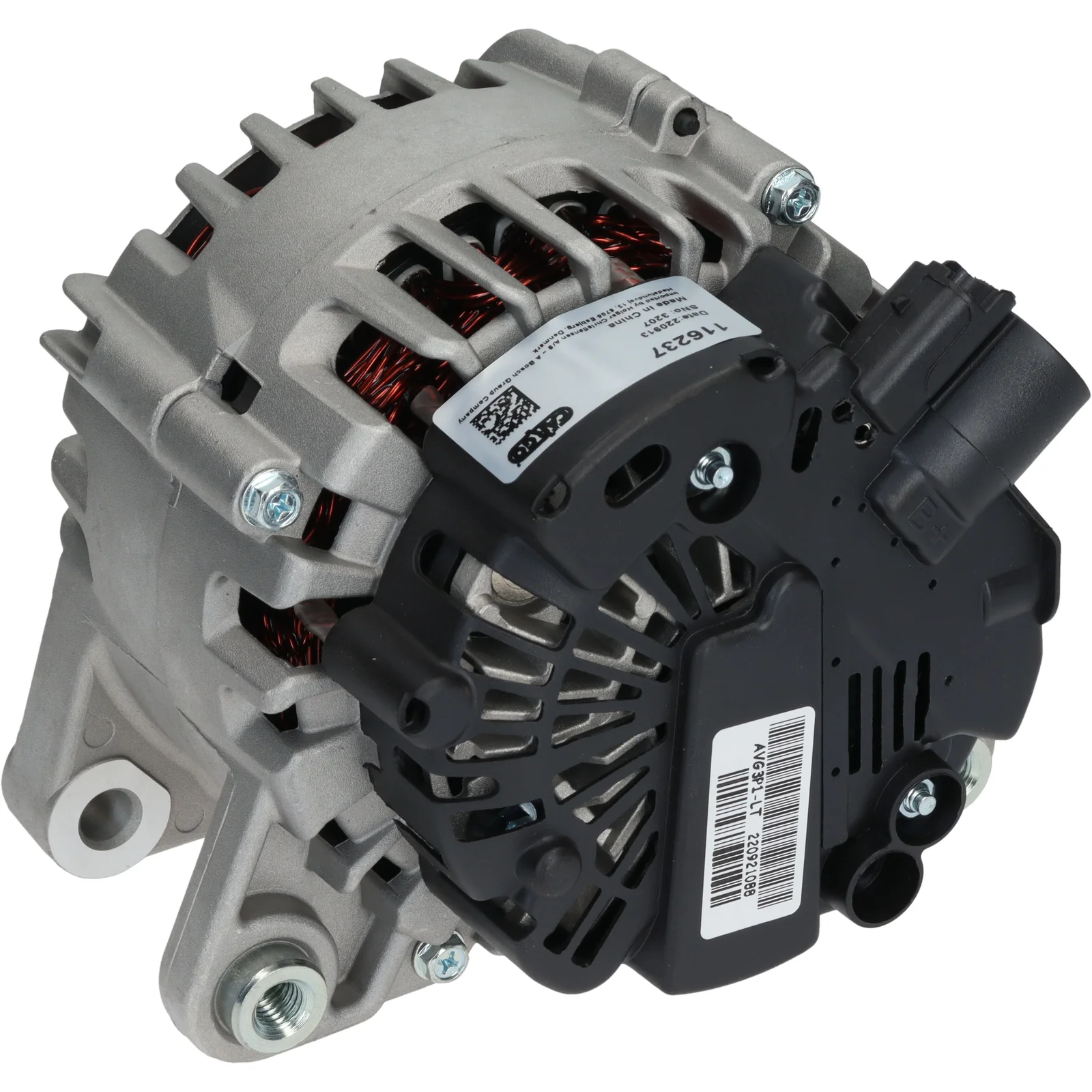

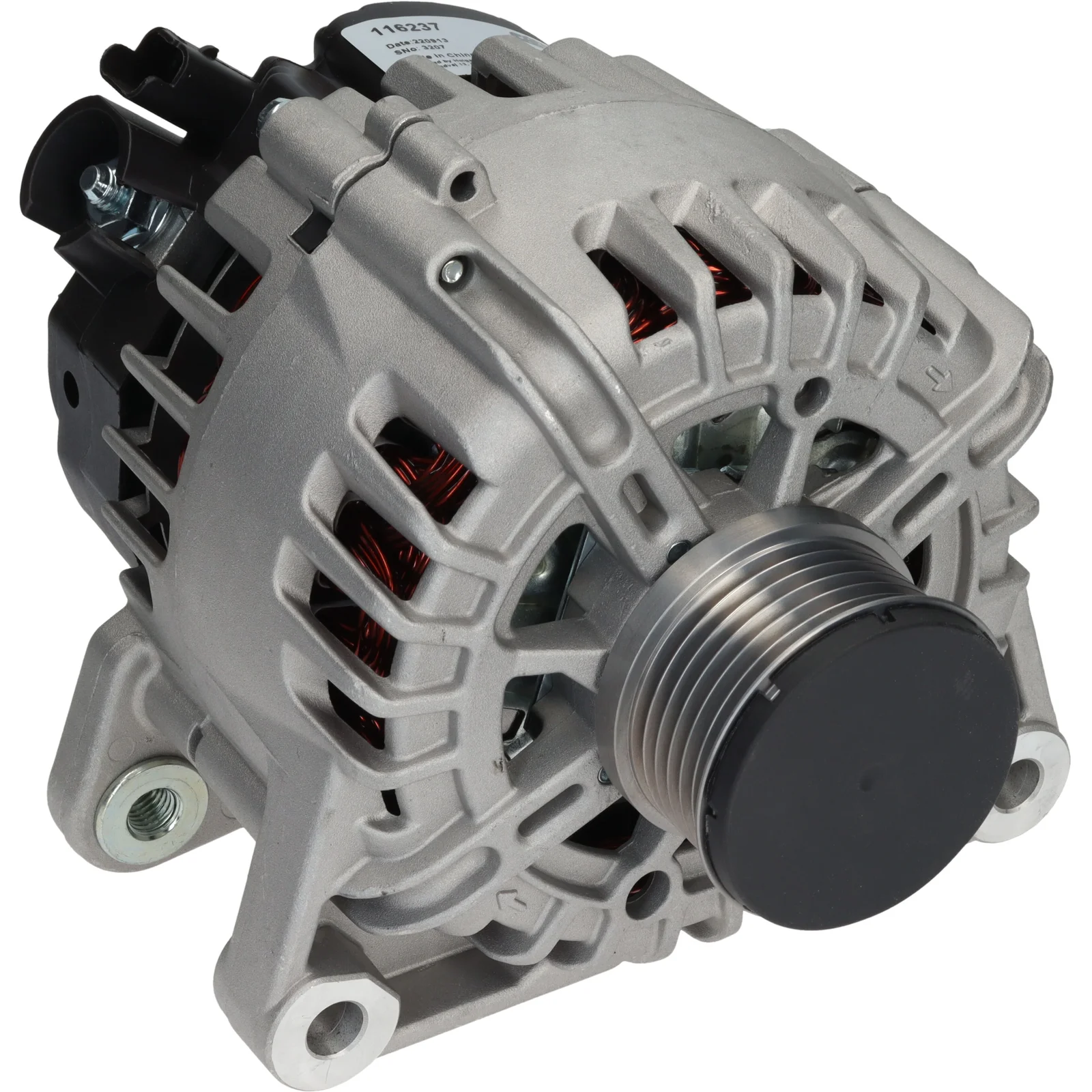

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032116237
HC-Cargo Generator
Voltage: 14, Amp: 125, Rotation: CW, Mount. bracket dist.: 49.00
Beskrivning
HC-Cargo Generator 14V - 125A, 6gr
Voltage: 14
Amp: 125
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 49.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.30
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL132
Total length mm: 178.00
Terminal type: COM
ID Code: 33
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Voltage: 14
Amp: 125
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 49.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.30
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL132
Total length mm: 178.00
Terminal type: COM
ID Code: 33
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Filer
Specifikation
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 49.00 |
| Belt. adj. bracket hole 1 | 10.50 |
| Belt. adj. brackethole pos. | 47 |
| Plug no. | PL132 |
| Bracket hole | 10.50 |
| Position/B+ in min. | 3 |
| Pulley | SP/FW |
| Pulley dia. | 54.30 |
| Pulley dist. | 42.50 |
| Radius | 90.00 |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Fan | IF |
| Grooves/pulley | 6 |
| ID Code | 33 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 178.00 mm |
| Width/holder arm | 21.00 |
| Amp | 125 |
-
OEM
F032116237, TG12C106, TG12C228, TG12C261, 1986A00079, 27060-YV030, 116237, 2610711B, 2610711C, 2624851, 2624851A, 2713135A, 1608064580, 9670899580, 9810971880, 9818677980 -
Konkurrentreferens
A3455S, A3472(VALEO), CAL15590, DRA1103, 8EL011713-601, 28-6839, 225.562.120, 225.580.120, 229.150.1202, 20653N, 20653N-OE, 200281, 200288, 209223, 209223A, 439758, 440350, 440819, 443017, 12090669, 0986083800, 0986085240 -
Bilmärken
Citroen, DS (Citroen), Opel, Peugeot, Toyota -
Normaliserat artikelnummer
a3455s, a3472valeo, cal15590, dra1103, f032116237, tg12c106, tg12c228, tg12c261, 8el011713601, 1986a00079, 20653n, 20653noe, 27060yv030, 116237, 200281, 200288, 209223, 209223a, 286839, 439758, 440350, 440819, 443017, 2610711b, 2610711c, 2624851, 2624851a, 2713135a, 12090669, 225562120, 225580120, 0986083800, 0986085240, 1608064580, 2291501202, 9670899580, 9810971880, 9818677980 -
Passar modeller
Citroen Model: Berlingo Model series: Berlingo Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 Body: Box From date: 01-01-2018 Fuel: Petrol Approved: Yes Citroen Model: Berlingo Model series: Berlingo Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 From date: 01-02-2016 Fuel: Gasoline Approved: Yes Citroen Model: Berlingo Model series: Berlingo Model type: VTi 115 Size of motor: 1.6 Brand of engine: NFP (EC5F) Type description: ER_, EC_ Body: MPV Fuel: Petrol Approved: Yes Citroen Model: C-Elysee Model series: C-Elysee Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes Citroen Model: C1 Model series: C1 Model type: 82 Size of motor: 1.2 Brand of engine: HMT (EB2D) Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Aircross Model type: PureTech 130 (2RHNYH) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 2R_, 2C_ Body: SUV From date: 01-07-2017 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Aircross Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: 2C_, 2R_ Body: Closed Off-Road Vehicle From date: 01-05-2019 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: 68 Type of engine: VTi Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2012 To date: 01-09-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: MPV From date: 01-01-2015 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX_, SY_ Body: Box Body / Hatchback From date: 01-03-2019 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Vti 68 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: VTi 82 LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Petrol/Electro Approved: Yes Citroen Model: C3 Model series: C3 Model type: Vti 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX_, SY_ Body: Hatchback Van From date: 01-07-2016 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Type of engine: VTI Size of motor: 1.6 Brand of engine: NFP (EC5) Type description: SX Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes Citroen Model: C4 Model series: C4 Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B7 Body: Hatchback From date: 01-02-2015 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: B7 Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Model type: THP 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-11-2017 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNX (EB2DTSD) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3D_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE Citroen Model: C4 Model series: Grand C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Convertible From date: 01-10-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 To date: 01-03-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-01-2013 To date: 01-07-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-01-2013 To date: 01-03-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS4 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-07-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes Citroen Model: Grand C4 Spacetourer Model series: Grand C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3A_, 3E_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE Citroen Series: Berlingo MULTISPACE Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16- Citroen Series: Berlingo Skåp B9 Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.18- Citroen Series: C - ELYSSE Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EBZ2/F) Year: 12.14- Citroen Series: C 3 III Model: 1.6 VTi Engine volume: 1.6 Engine type: NFP(EC5) Year: 02.17- Citroen Series: C 3 Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2/F) Year: 06.12-09.16 Citroen Series: C 4 Cactus Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 09.14- Citroen Series: C 4 Cactus Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.14- Citroen Series: C1 II (PA_, PS_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMT(EB2D),HMZ(EB2/F) Year: 04.14-04.18 Citroen Series: C3 AIRCROSS II Model: 1.2 PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 06.17- Citroen Series: C3 AIRCROSS II Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 07.17- Citroen Series: C3 AIRCROSS II VAN Model: PURETECH 82 Engine volume: 1.2 Engine type: HNP<EB2ADT> Year: 05.19- Citroen Series: C3 II (SC_) Model: 1.0 VTi 68 Engine volume: 1.0 Engine type: ZMZ (EB0) Year: 08.12-09.16 Citroen Series: C3 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-09.16 Citroen Series: C3 III (SX) Model: 1.2 VTi 68 Engine volume: 1.2 Engine type: HMM(EB2FAD)/P(EB2FB) Year: 07.16- Citroen Series: C3 III (SX) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16- Citroen Series: C3 III (SX) Model: 1.2 VTi 82 LPG Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16- Citroen Series: C3 III Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 07.16- Citroen Series: C3 III Van Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 03.19- Citroen Series: C3 III Van(SX_, SY_) Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16- Citroen Series: C3 PICASSO Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.15-12.15 Citroen Series: C4 CACTUS Model: 1.2 PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 11.17- Citroen Series: C4 CACTUS Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19- Citroen Series: C4 CACTUS Van Model: PureTech 82 Engine volume: 1.2 Engine type: HMZ (EB2) Year: 05.19- Citroen Series: C4 GRAND PICASSO II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14- Citroen Series: C4 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 02.15-12.17 Citroen Series: C4 II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14-12.17 Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNX (EB2DTSD) Year: 04.18- Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 04.18- Citroen Series: C4 SPACETOURER VAN Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19- Citroen Series: DS3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-07.15 Citroen Series: DS3 Cabriolet Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 01.13-07.15 Citroen Series: DS3 Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-03.15 Citroen Series: DS3 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2/EB2F) Year: 01.13-03.15 Citroen Series: DS4 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.14-07.15 Citroen Series: GRAND C4 SPACETOURER Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.18- Citroen Series: GRAND C4 SPACETOURER Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19- DS (Citroen) Series: DS 3 (SA_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2)/HMZ (EB2F) Year: 04.15-07.19 DS (Citroen) Series: DS 3 Cabriolet (SB_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.15-07.19 DS (Citroen) Series: DS 3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 07.15-07.19 DS (Citroen) Series: DS 3 Cabriolet Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19 DS (Citroen) Series: DS 3 Model: 1.2 THP 110 / PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.15-07.19 DS (Citroen) Series: DS 3 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19 DS (Citroen) Series: DS 4 / DS 4 CROSSBAC Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.15-12.18 DS Model: DS 3 Model series: Ds 3 Convertible Model type: THP 110 Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SB_ Body: Convertible Fuel: Petrol Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: THP 110 / PureTech 110 (S Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Convertible From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes DS Model: DS 3 Model series: DS 3 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-07-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes DS Model: DS 4 Model series: DS 4 / DS 4 Crossback Model type: THP 130 (NXHNYM) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: NX_ Body: Hatchback Fuel: Petrol Approved: Yes Opel Model: Grandland X Model series: Grandland X Size of motor: 1.2 Brand of engine: D12XHT (EB2ADTS) Body: Box Body / Estate From date: 01-04-2018 Fuel: Petrol Approved: Yes Opel Series: GRANDLAND X VAN Model: 1.2 (75) Engine volume: 1.2 Engine type: D 12 XHT (EB2ADTS) Year: 04.18-07.21 Peugeot Model: 2008 Model series: 2008 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DTS) Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes Peugeot Model: 2008 Model series: 2008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS),HNS (EB2ADTS) Type description: CU_ Body: Box Body / Estate From date: 01-01-2018 Fuel: Petrol Approved: Yes Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes Peugeot Model: 3008 Model series: 3008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: MR_, MC_, MJ_ Body: Box Body / Estate From date: 01-05-2016 Fuel: Petrol Approved: Yes Peugeot Model: 3008 Model series: 3008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) From date: 01-05-2016 Fuel: Gasoline Approved: Yes Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes Peugeot Model: 301 Model series: 301 Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: NFP (EC5) From date: 01-07-2014 Fuel: Petrol/Electro Approved: Yes Peugeot Model: 308 Model series: 308 Model type: 72 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2013 Fuel: Gasoline Approved: Yes Peugeot Model: 5008 Model series: 5008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-12-2016 Fuel: Gasoline Approved: Yes Peugeot Model: Grand Raid Model series: Grand Raid Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Box From date: 01-02-2016 Fuel: Petrol Approved: Yes Peugeot Series: 2008 I Model: 1.2 THP 130 / PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 01.15-11.19 Peugeot Series: 2008 I Van Model: PureTech 130 Engine volume: 1.2 Engine type: samtliga Year: 01.18-11.19 Peugeot Series: 208 I (CA_, CC_) Model: 1.2 GPL Engine volume: 1.2 Engine type: HMX(EB2) / HMZ(EB2F) Year: 06.15-12.19 Peugeot Series: 208 I (CA_, CC_) Model: 1.2 VTi 68 / PureTech 68 Engine volume: 1.2 Engine type: HMM/HMP(EB2FB/2FAD) Year: 08.16-12.19 Peugeot Series: 3008 Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.16- Peugeot Series: 3008 II SUV Model: 1.2 THP/PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 05.16- Peugeot Series: 301 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 12.14- Peugeot Series: 301 Model: 1.6 LPG Engine volume: 1.6 Engine type: NFP (EC5) Year: 07.14- Peugeot Series: 308 II Model: 1.2 VTi 72 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.13-06.21 Peugeot Series: 5008 II Model: 1.2 THP Engine volume: 1.2 Engine type: HNY/HNS(EB2DTS/ADTS) Year: 12.16- Peugeot Series: PARTNER Skåp/stor Model: 1.2 THP Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16- Toyota Model: Aygo Model series: Aygo Size of motor: 1.2 Brand of engine: 1PP Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes Toyota Series: Aygo Model: 1.2 Engine volume: 1.2 Engine type: 1PP Year: 05.14- 1 / 24
-
Beskrivning
HC-Cargo Generator 14V - 125A, 6gr
Voltage: 14
Amp: 125
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 49.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.30
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL132
Total length mm: 178.00
Terminal type: COM
ID Code: 33
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.Filer
-
Specifikation
B+ M8 Communication LIN Mount. bracket dist. 49.00 Belt. adj. bracket hole 1 10.50 Belt. adj. brackethole pos. 47 Plug no. PL132 Bracket hole 10.50 Position/B+ in min. 3 Pulley SP/FW Pulley dia. 54.30 Pulley dist. 42.50 Radius 90.00 Radius 2 90.00 Regulator type IR Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. Rotation CW Fan IF Grooves/pulley 6 ID Code 33 Terminal type COM Voltage 14 Total length 178.00 mm Width/holder arm 21.00 Amp 125 -
Fordonsmatchning
-
OEM
F032116237, TG12C106, TG12C228, TG12C261, 1986A00079, 27060-YV030, 116237, 2610711B, 2610711C, 2624851, 2624851A, 2713135A, 1608064580, 9670899580, 9810971880, 9818677980 -
Konkurrentreferens
A3455S, A3472(VALEO), CAL15590, DRA1103, 8EL011713-601, 28-6839, 225.562.120, 225.580.120, 229.150.1202, 20653N, 20653N-OE, 200281, 200288, 209223, 209223A, 439758, 440350, 440819, 443017, 12090669, 0986083800, 0986085240 -
Bilmärken
Citroen, DS (Citroen), Opel, Peugeot, Toyota -
Normaliserat artikelnummer
a3455s, a3472valeo, cal15590, dra1103, f032116237, tg12c106, tg12c228, tg12c261, 8el011713601, 1986a00079, 20653n, 20653noe, 27060yv030, 116237, 200281, 200288, 209223, 209223a, 286839, 439758, 440350, 440819, 443017, 2610711b, 2610711c, 2624851, 2624851a, 2713135a, 12090669, 225562120, 225580120, 0986083800, 0986085240, 1608064580, 2291501202, 9670899580, 9810971880, 9818677980 -
Passar modeller
Citroen Model: Berlingo Model series: Berlingo Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 Body: Box From date: 01-01-2018 Fuel: Petrol Approved: Yes Citroen Model: Berlingo Model series: Berlingo Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B9 From date: 01-02-2016 Fuel: Gasoline Approved: Yes Citroen Model: Berlingo Model series: Berlingo Model type: VTi 115 Size of motor: 1.6 Brand of engine: NFP (EC5F) Type description: ER_, EC_ Body: MPV Fuel: Petrol Approved: Yes Citroen Model: C-Elysee Model series: C-Elysee Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes Citroen Model: C1 Model series: C1 Model type: 82 Size of motor: 1.2 Brand of engine: HMT (EB2D) Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Aircross Model type: PureTech 130 (2RHNYH) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 2R_, 2C_ Body: SUV From date: 01-07-2017 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Aircross Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: 2C_, 2R_ Body: Closed Off-Road Vehicle From date: 01-05-2019 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: 68 Type of engine: VTi Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2012 To date: 01-09-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: MPV From date: 01-01-2015 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Puretech 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX_, SY_ Body: Box Body / Hatchback From date: 01-03-2019 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: Vti 68 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: VTi 82 LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Petrol/Electro Approved: Yes Citroen Model: C3 Model series: C3 Model type: Vti 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Citroen Model: C3 Model series: C3 Model type: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX_, SY_ Body: Hatchback Van From date: 01-07-2016 Fuel: Petrol Approved: Yes Citroen Model: C3 Model series: C3 Type of engine: VTI Size of motor: 1.6 Brand of engine: NFP (EC5) Type description: SX Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes Citroen Model: C4 Model series: C4 Model type: 110 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: B7 Body: Hatchback From date: 01-02-2015 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: B7 Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Model type: Picasso Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2014 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Model type: THP 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-11-2017 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 110 Size of motor: 1.2 Brand of engine: HNX (EB2DTSD) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes Citroen Model: C4 Model series: C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3D_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE Citroen Model: C4 Model series: Grand C4 Spacetourer Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-04-2018 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Convertible From date: 01-10-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 110 Type of engine: VTi Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Hatchback From date: 01-10-2014 To date: 01-03-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-01-2013 To date: 01-07-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-01-2013 To date: 01-03-2015 Fuel: Gasoline Approved: Yes Citroen Model: DS Model series: DS4 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-07-2014 To date: 01-07-2015 Fuel: Gasoline Approved: Yes Citroen Model: Grand C4 Spacetourer Model series: Grand C4 Spacetourer Model type: Puretech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: 3A_, 3E_ Body: Box Body / Estate From date: 01-05-2019 Fuel: Petrol Approved: Yes Manufacture type: SPACETOURE Citroen Series: Berlingo MULTISPACE Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16- Citroen Series: Berlingo Skåp B9 Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.18- Citroen Series: C - ELYSSE Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EBZ2/F) Year: 12.14- Citroen Series: C 3 III Model: 1.6 VTi Engine volume: 1.6 Engine type: NFP(EC5) Year: 02.17- Citroen Series: C 3 Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2/F) Year: 06.12-09.16 Citroen Series: C 4 Cactus Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 09.14- Citroen Series: C 4 Cactus Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.14- Citroen Series: C1 II (PA_, PS_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMT(EB2D),HMZ(EB2/F) Year: 04.14-04.18 Citroen Series: C3 AIRCROSS II Model: 1.2 PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 06.17- Citroen Series: C3 AIRCROSS II Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 07.17- Citroen Series: C3 AIRCROSS II VAN Model: PURETECH 82 Engine volume: 1.2 Engine type: HNP<EB2ADT> Year: 05.19- Citroen Series: C3 II (SC_) Model: 1.0 VTi 68 Engine volume: 1.0 Engine type: ZMZ (EB0) Year: 08.12-09.16 Citroen Series: C3 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-09.16 Citroen Series: C3 III (SX) Model: 1.2 VTi 68 Engine volume: 1.2 Engine type: HMM(EB2FAD)/P(EB2FB) Year: 07.16- Citroen Series: C3 III (SX) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16- Citroen Series: C3 III (SX) Model: 1.2 VTi 82 LPG Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16- Citroen Series: C3 III Model: 1.2 THP 110 Engine volume: 1.2 Engine type: Samtliga Year: 07.16- Citroen Series: C3 III Van Model: PureTech 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 03.19- Citroen Series: C3 III Van(SX_, SY_) Model: 1.2 VTi Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.16- Citroen Series: C3 PICASSO Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 01.15-12.15 Citroen Series: C4 CACTUS Model: 1.2 PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 11.17- Citroen Series: C4 CACTUS Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19- Citroen Series: C4 CACTUS Van Model: PureTech 82 Engine volume: 1.2 Engine type: HMZ (EB2) Year: 05.19- Citroen Series: C4 GRAND PICASSO II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14- Citroen Series: C4 II Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 02.15-12.17 Citroen Series: C4 II Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 04.14-12.17 Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 110 Engine volume: 1.2 Engine type: HNX (EB2DTSD) Year: 04.18- Citroen Series: C4 SPACETOURER (3D_) Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 04.18- Citroen Series: C4 SPACETOURER VAN Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19- Citroen Series: DS3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-07.15 Citroen Series: DS3 Cabriolet Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 01.13-07.15 Citroen Series: DS3 Model: 1.2 THP 110 Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 10.14-03.15 Citroen Series: DS3 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2/EB2F) Year: 01.13-03.15 Citroen Series: DS4 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.14-07.15 Citroen Series: GRAND C4 SPACETOURER Model: 1.2 PureTech 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.18- Citroen Series: GRAND C4 SPACETOURER Model: PURETECH 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.19- DS (Citroen) Series: DS 3 (SA_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2)/HMZ (EB2F) Year: 04.15-07.19 DS (Citroen) Series: DS 3 Cabriolet (SB_) Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 07.15-07.19 DS (Citroen) Series: DS 3 CABRIOLET Model: 1.2 THP 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 07.15-07.19 DS (Citroen) Series: DS 3 Cabriolet Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19 DS (Citroen) Series: DS 3 Model: 1.2 THP 110 / PURETECH 110 Engine volume: 1.2 Engine type: SAMTLIGA Year: 04.15-07.19 DS (Citroen) Series: DS 3 Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 09.15-07.19 DS (Citroen) Series: DS 4 / DS 4 CROSSBAC Model: 1.2 THP 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 07.15-12.18 DS Model: DS 3 Model series: Ds 3 Convertible Model type: THP 110 Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SB_ Body: Convertible Fuel: Petrol Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: THP 110 / PureTech 110 (S Size of motor: 1.2 Brand of engine: HNP (EB2ADT), HNZ (EB2DT) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Convertible From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: THP 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: Hatchback From date: 01-09-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes DS Model: DS 3 Model series: DS 3 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-07-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes DS Model: DS 4 Model series: DS 4 / DS 4 Crossback Model type: THP 130 (NXHNYM) Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: NX_ Body: Hatchback Fuel: Petrol Approved: Yes Opel Model: Grandland X Model series: Grandland X Size of motor: 1.2 Brand of engine: D12XHT (EB2ADTS) Body: Box Body / Estate From date: 01-04-2018 Fuel: Petrol Approved: Yes Opel Series: GRANDLAND X VAN Model: 1.2 (75) Engine volume: 1.2 Engine type: D 12 XHT (EB2ADTS) Year: 04.18-07.21 Peugeot Model: 2008 Model series: 2008 Model type: 130 Type of engine: THP Size of motor: 1.2 Brand of engine: HNZ (EB2DTS) Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes Peugeot Model: 2008 Model series: 2008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS),HNS (EB2ADTS) Type description: CU_ Body: Box Body / Estate From date: 01-01-2018 Fuel: Petrol Approved: Yes Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes Peugeot Model: 3008 Model series: 3008 Model type: PureTech 130 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Type description: MR_, MC_, MJ_ Body: Box Body / Estate From date: 01-05-2016 Fuel: Petrol Approved: Yes Peugeot Model: 3008 Model series: 3008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) From date: 01-05-2016 Fuel: Gasoline Approved: Yes Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes Peugeot Model: 301 Model series: 301 Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: NFP (EC5) From date: 01-07-2014 Fuel: Petrol/Electro Approved: Yes Peugeot Model: 308 Model series: 308 Model type: 72 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2013 Fuel: Gasoline Approved: Yes Peugeot Model: 5008 Model series: 5008 Size of motor: 1.2 Brand of engine: HNY (EB2DTS) Body: MPV From date: 01-12-2016 Fuel: Gasoline Approved: Yes Peugeot Model: Grand Raid Model series: Grand Raid Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Body: Box From date: 01-02-2016 Fuel: Petrol Approved: Yes Peugeot Series: 2008 I Model: 1.2 THP 130 / PURETECH 130 Engine volume: 1.2 Engine type: SAMTLIGA Year: 01.15-11.19 Peugeot Series: 2008 I Van Model: PureTech 130 Engine volume: 1.2 Engine type: samtliga Year: 01.18-11.19 Peugeot Series: 208 I (CA_, CC_) Model: 1.2 GPL Engine volume: 1.2 Engine type: HMX(EB2) / HMZ(EB2F) Year: 06.15-12.19 Peugeot Series: 208 I (CA_, CC_) Model: 1.2 VTi 68 / PureTech 68 Engine volume: 1.2 Engine type: HMM/HMP(EB2FB/2FAD) Year: 08.16-12.19 Peugeot Series: 3008 Van Model: PureTech 130 Engine volume: 1.2 Engine type: HNY (EB2DTS) Year: 05.16- Peugeot Series: 3008 II SUV Model: 1.2 THP/PureTech 130 Engine volume: 1.2 Engine type: Samtliga Year: 05.16- Peugeot Series: 301 Model: 1.2 VTi 82 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 12.14- Peugeot Series: 301 Model: 1.6 LPG Engine volume: 1.6 Engine type: NFP (EC5) Year: 07.14- Peugeot Series: 308 II Model: 1.2 VTi 72 Engine volume: 1.2 Engine type: HMZ (EB2F) Year: 09.13-06.21 Peugeot Series: 5008 II Model: 1.2 THP Engine volume: 1.2 Engine type: HNY/HNS(EB2DTS/ADTS) Year: 12.16- Peugeot Series: PARTNER Skåp/stor Model: 1.2 THP Engine volume: 1.2 Engine type: HNZ (EB2DT) Year: 02.16- Toyota Model: Aygo Model series: Aygo Size of motor: 1.2 Brand of engine: 1PP Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes Toyota Series: Aygo Model: 1.2 Engine volume: 1.2 Engine type: 1PP Year: 05.14- 1 / 24
-
