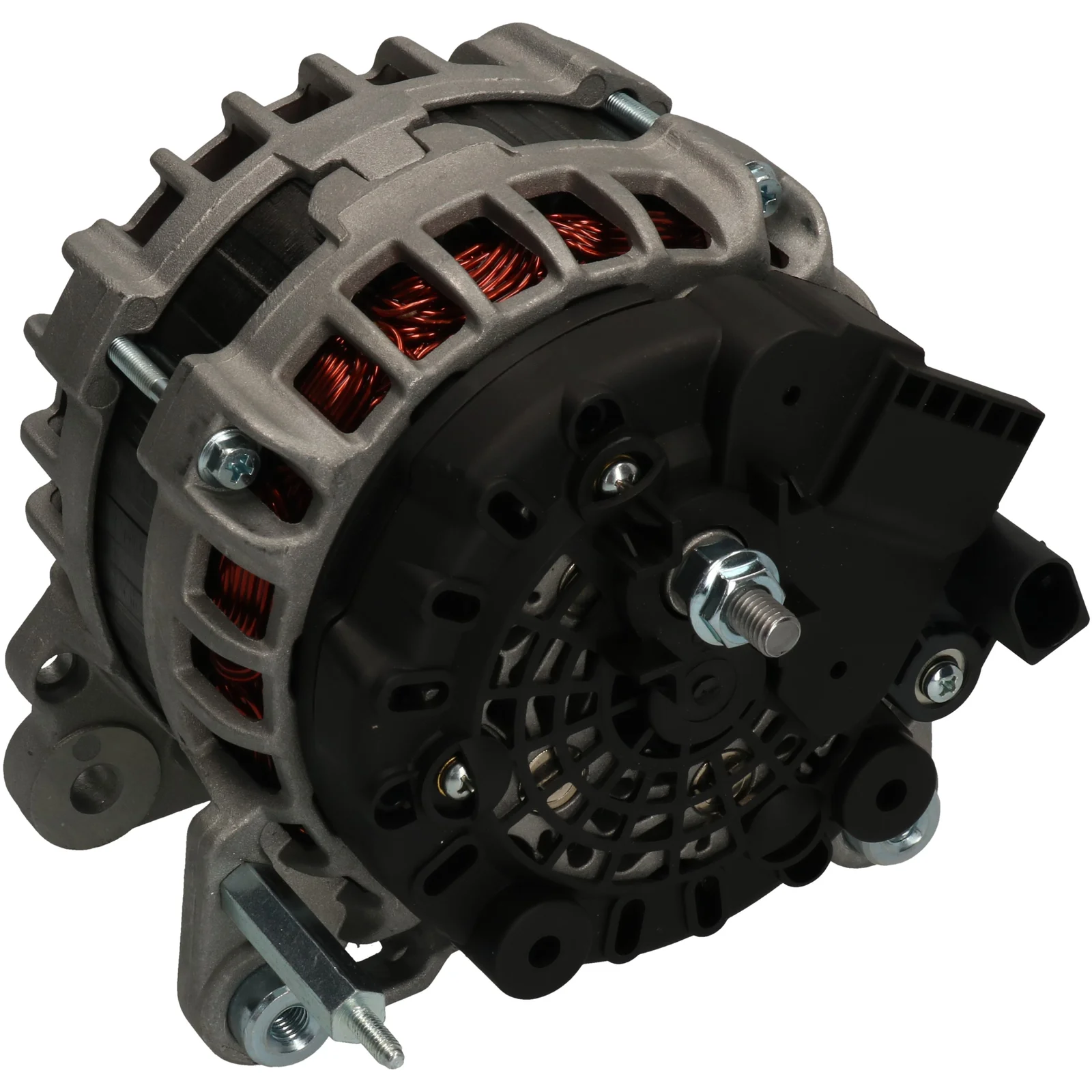

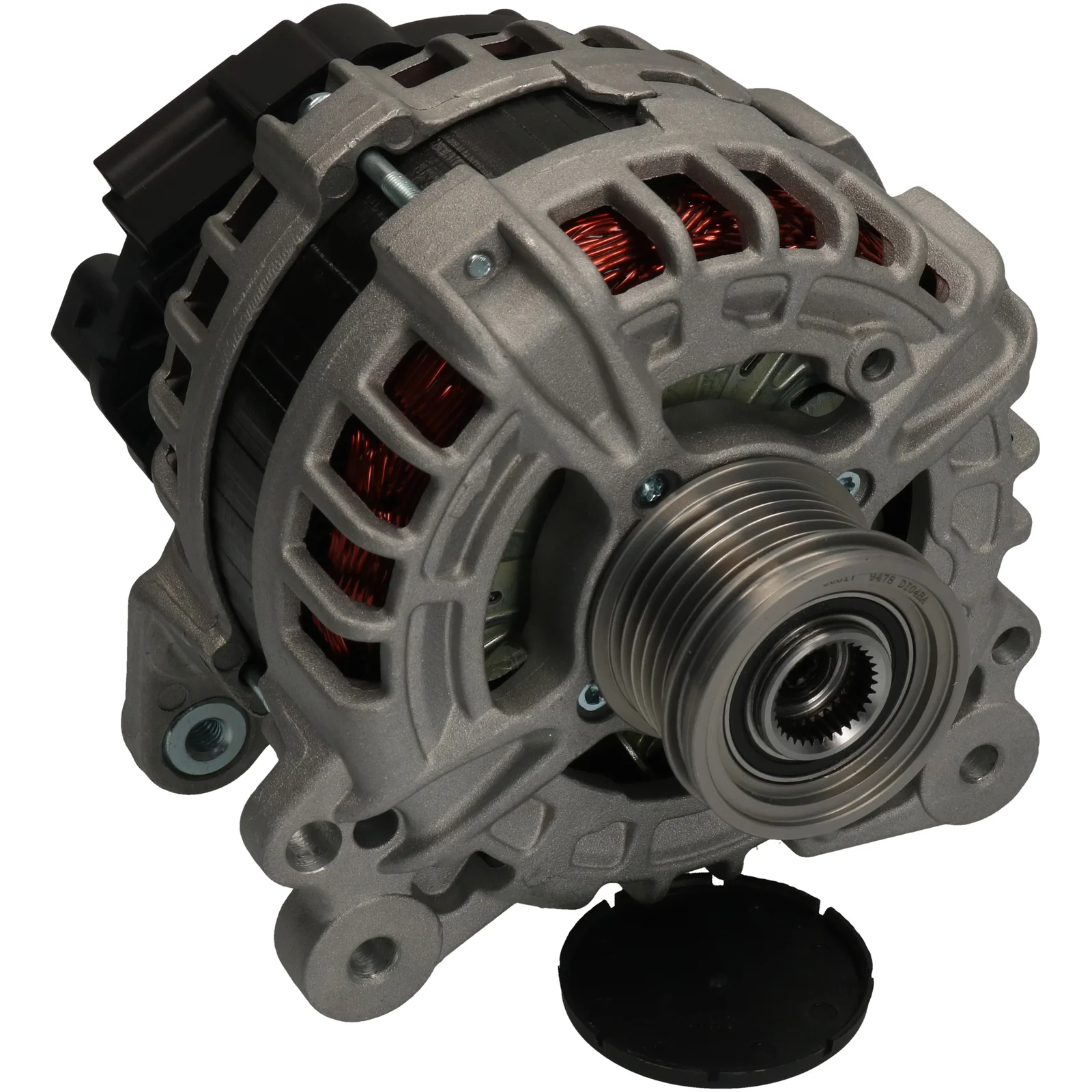

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116235

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 61.70

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 29.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.70
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL125
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.70
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 29.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F000BL0805, F000BL0818, F000BL0830, F000BL08C8, F032116235, 04E903023B, 04E903023J, 04E903023JX

  • Konkurrentreferens
    CAL10553, 305.967.140, 20353N, 443304, 444217, 554022RI, 12090443, 0986083740

  • Normaliserat artikelnummer
    cal10553, f000bl0805, f000bl0818, f000bl0830, f000bl08c8, f032116235, 04e903023b, 04e903023j, 04e903023jx, 20353n, 443304, 444217, 554022ri, 12090443, 305967140, 0986083740

  • Passar modeller
    Seat Model: Leon Model series: Leon Type of engine: TGI Size of motor: 1.4 Brand of engine: CPWA Type description: 5F1 Body: Hatchback From date: 01-02-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5F1 From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5F8 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVA Type description: 5F1 From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVA Type description: 5F8 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CMBA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CPTA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 1.4 Brand of engine: CXSA Type description: 5F1 From date: 01-09-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
