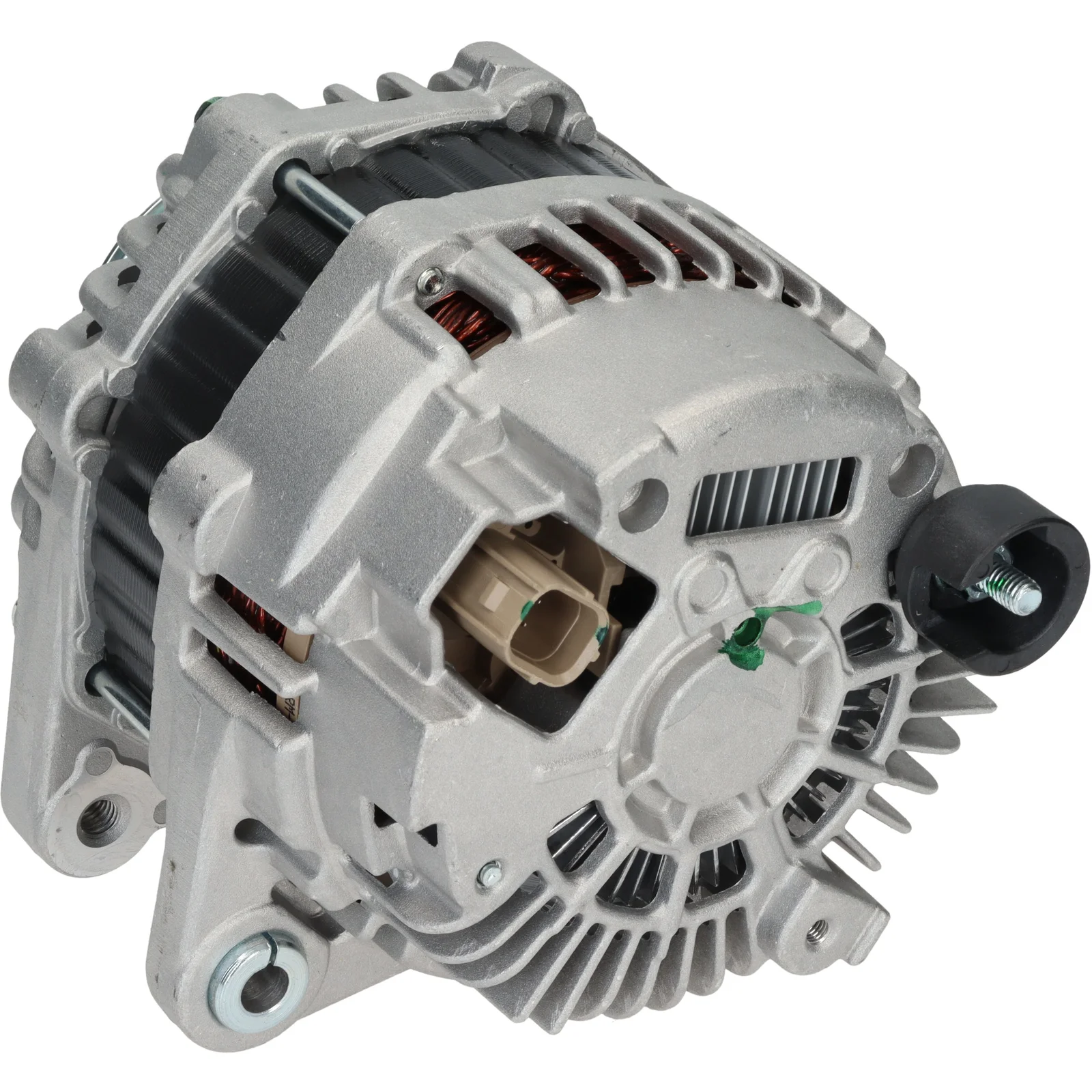

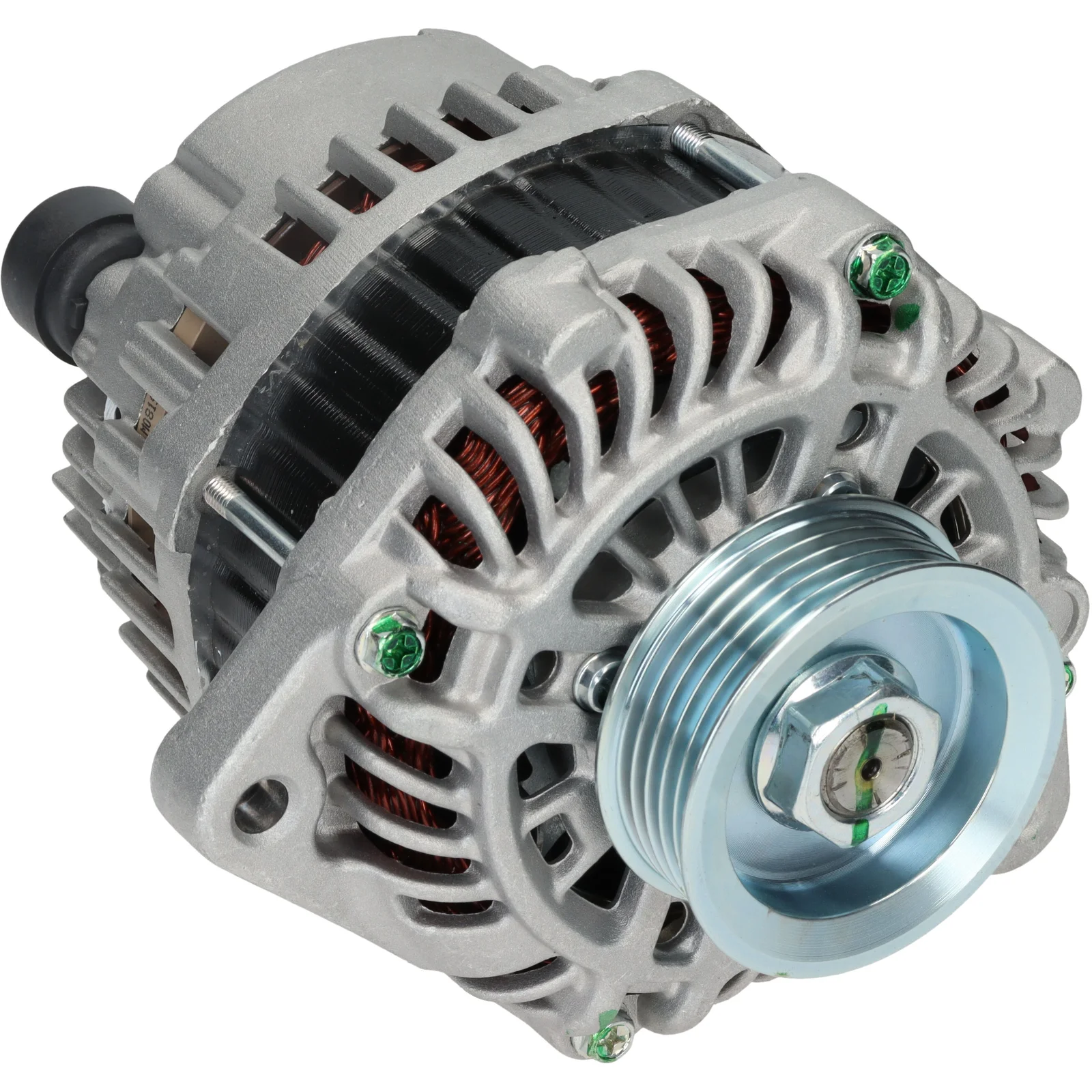

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116218

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 39.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 37.50
Width/holder arm: 17.00
Mount. bracket dist.: 39.00
Bracket hole: M8
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 62.00
Grooves/pulley: 5
Radius: 79.00
Radius 2: 76.00
B+: M6
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL167
Total length mm: 150.00
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 53
Plug no. PL167
Bracket hole M8
Position/B+ in min. 5
Pulley SP
Pulley dia. 62.00
Pulley dist. 37.50
Radius 79.00
Radius 2 76.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Voltage 14
Total length 150.00 mm
Width/holder arm 17.00
Amp 90

  • OEM
    A005TJ0091, A005TJ0091ZD, a5tj0091, A5TJ0091ZD, AHGA77, F032116218, 1986A01576, 31100-RB0-004, 31100-RB0-0041, 31100-RB0-A024, 31100-RB0-A0243

  • Konkurrentreferens
    A5116, DRA0893, DRA0893N, F042205038, 8EL011713-611, 28-6963, 125.550.095, 11410N, 11410R, 210953, 210953A, 443137, 12061018, 0986082790

  • Normaliserat artikelnummer
    a005tj0091, a005tj0091zd, a5116, a5tj0091, a5tj0091zd, ahga77, dra0893, dra0893n, f032116218, f042205038, 8el011713611, 1986a01576, 11410n, 11410r, 31100rb0004, 31100rb00041, 31100rb0a024, 31100rb0a0243, 210953, 210953a, 286963, 443137, 12061018, 125550095, 0986082790

  • Passar modeller
    Honda Model: Jazz Model series: Jazz Model type: 4WD Size of motor: 1.5 Brand of engine: L15-A7 Type description: GE_, GG_, GP_, ZA_ Body: Hatchback From date: 01-10-2007 To date: 01-03-2014 Fuel: Petrol Approved: Yes
    Honda Model: Jazz Model series: Jazz Model type: Flexfuel Size of motor: 1.5 Brand of engine: L15A3 Type description: GE Body: Hatchback From date: 01-07-2008 Fuel: Bi-Fuel Approved: Yes
    Honda Model: Jazz Model series: Jazz Shuttle Model type: 4WD (GG8) Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate Fuel: Petrol Approved: Yes
    Honda Model: Jazz Model series: Jazz Shuttle Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate From date: 01-03-2011 To date: 01-03-2014 Fuel: Gasoline Approved: Yes Manufacture type: Shuttle
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 37.50
    Width/holder arm: 17.00
    Mount. bracket dist.: 39.00
    Bracket hole: M8
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 62.00
    Grooves/pulley: 5
    Radius: 79.00
    Radius 2: 76.00
    B+: M6
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL167
    Total length mm: 150.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 53
    Plug no. PL167
    Bracket hole M8
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 62.00
    Pulley dist. 37.50
    Radius 79.00
    Radius 2 76.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Voltage 14
    Total length 150.00 mm
    Width/holder arm 17.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A005TJ0091, A005TJ0091ZD, a5tj0091, A5TJ0091ZD, AHGA77, F032116218, 1986A01576, 31100-RB0-004, 31100-RB0-0041, 31100-RB0-A024, 31100-RB0-A0243

    • Konkurrentreferens
      A5116, DRA0893, DRA0893N, F042205038, 8EL011713-611, 28-6963, 125.550.095, 11410N, 11410R, 210953, 210953A, 443137, 12061018, 0986082790

    • Normaliserat artikelnummer
      a005tj0091, a005tj0091zd, a5116, a5tj0091, a5tj0091zd, ahga77, dra0893, dra0893n, f032116218, f042205038, 8el011713611, 1986a01576, 11410n, 11410r, 31100rb0004, 31100rb00041, 31100rb0a024, 31100rb0a0243, 210953, 210953a, 286963, 443137, 12061018, 125550095, 0986082790

    • Passar modeller
      Honda Model: Jazz Model series: Jazz Model type: 4WD Size of motor: 1.5 Brand of engine: L15-A7 Type description: GE_, GG_, GP_, ZA_ Body: Hatchback From date: 01-10-2007 To date: 01-03-2014 Fuel: Petrol Approved: Yes
      Honda Model: Jazz Model series: Jazz Model type: Flexfuel Size of motor: 1.5 Brand of engine: L15A3 Type description: GE Body: Hatchback From date: 01-07-2008 Fuel: Bi-Fuel Approved: Yes
      Honda Model: Jazz Model series: Jazz Shuttle Model type: 4WD (GG8) Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate Fuel: Petrol Approved: Yes
      Honda Model: Jazz Model series: Jazz Shuttle Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate From date: 01-03-2011 To date: 01-03-2014 Fuel: Gasoline Approved: Yes Manufacture type: Shuttle
