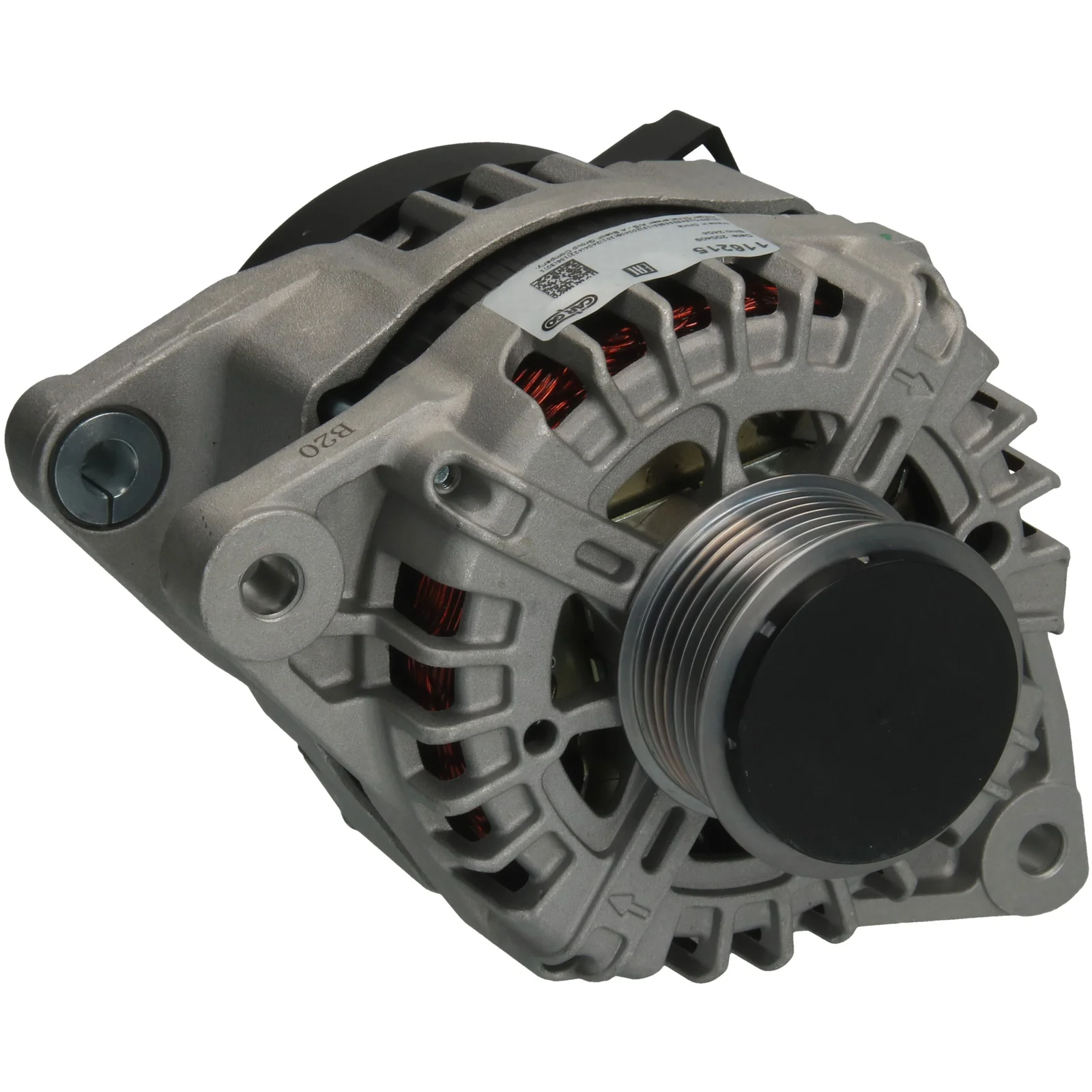

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116215

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 32.00

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 43.50
Width/holder arm: 16.00
Mount. bracket dist.: 32.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 60.00
Grooves/pulley: 7
Radius: 97.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 37
Rotation: CW
Plug no.: PL176
Total length mm: 173.00
Pulley: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 32.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 5
Plug no. PL176
Bracket hole 10.30
Position/B+ in min. 37
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 43.50
Radius 97.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 173.00 mm
Width/holder arm 16.00
Amp 130

  • OEM
    A0002610011, F032116215, 1986A01415, 37300-4A320, 2610011

  • Konkurrentreferens
    A3554S, A9250S, CAL32156, 28-6908, 155.910.130, 226.318.1302, 11700N, 20957N, 209013, 209013A, 554170RI, 600230, 600273, 600704, 600735, 12061213, 0986086450

  • Normaliserat artikelnummer
    a0002610011, a3554s, a9250s, cal32156, f032116215, 1986a01415, 11700n, 20957n, 209013, 209013a, 286908, 373004a320, 554170ri, 600230, 600273, 600704, 600735, 2610011, 12061213, 155910130, 0986086450, 2263181302

  • Passar modeller
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-L Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Cargo Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: Travel
    Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Model type: 4WD Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: TL, TLE Body: Closed Off-Road Vehicle From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Size of motor: 2.0 Brand of engine: G4NA Type description: QL, QLE Body: Closed Off-Road Vehicle From date: 01-12-2015 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 43.50
    Width/holder arm: 16.00
    Mount. bracket dist.: 32.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 60.00
    Grooves/pulley: 7
    Radius: 97.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 37
    Rotation: CW
    Plug no.: PL176
    Total length mm: 173.00
    Pulley: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 32.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 5
    Plug no. PL176
    Bracket hole 10.30
    Position/B+ in min. 37
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 43.50
    Radius 97.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 16.00
    Amp 130
  • Fordonsmatchning

    • OEM
      A0002610011, F032116215, 1986A01415, 37300-4A320, 2610011

    • Konkurrentreferens
      A3554S, A9250S, CAL32156, 28-6908, 155.910.130, 226.318.1302, 11700N, 20957N, 209013, 209013A, 554170RI, 600230, 600273, 600704, 600735, 12061213, 0986086450

    • Normaliserat artikelnummer
      a0002610011, a3554s, a9250s, cal32156, f032116215, 1986a01415, 11700n, 20957n, 209013, 209013a, 286908, 373004a320, 554170ri, 600230, 600273, 600704, 600735, 2610011, 12061213, 155910130, 0986086450, 2263181302

    • Passar modeller
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-L Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Model type: Cargo Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: Travel
      Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDI Size of motor: 2.5 Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Model type: 4WD Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Type of engine: CVVT Size of motor: 2.0 Brand of engine: G4NA Type description: TL, TLE Body: Closed Off-Road Vehicle From date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: Tucson Model series: Tucson Type of engine: GDI Size of motor: 2.0 Brand of engine: G4NA Type description: LM, EL, ELH From date: 01-08-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Size of motor: 2.0 Brand of engine: G4NA Type description: QL, QLE Body: Closed Off-Road Vehicle From date: 01-12-2015 Fuel: Gasoline Approved: Yes
