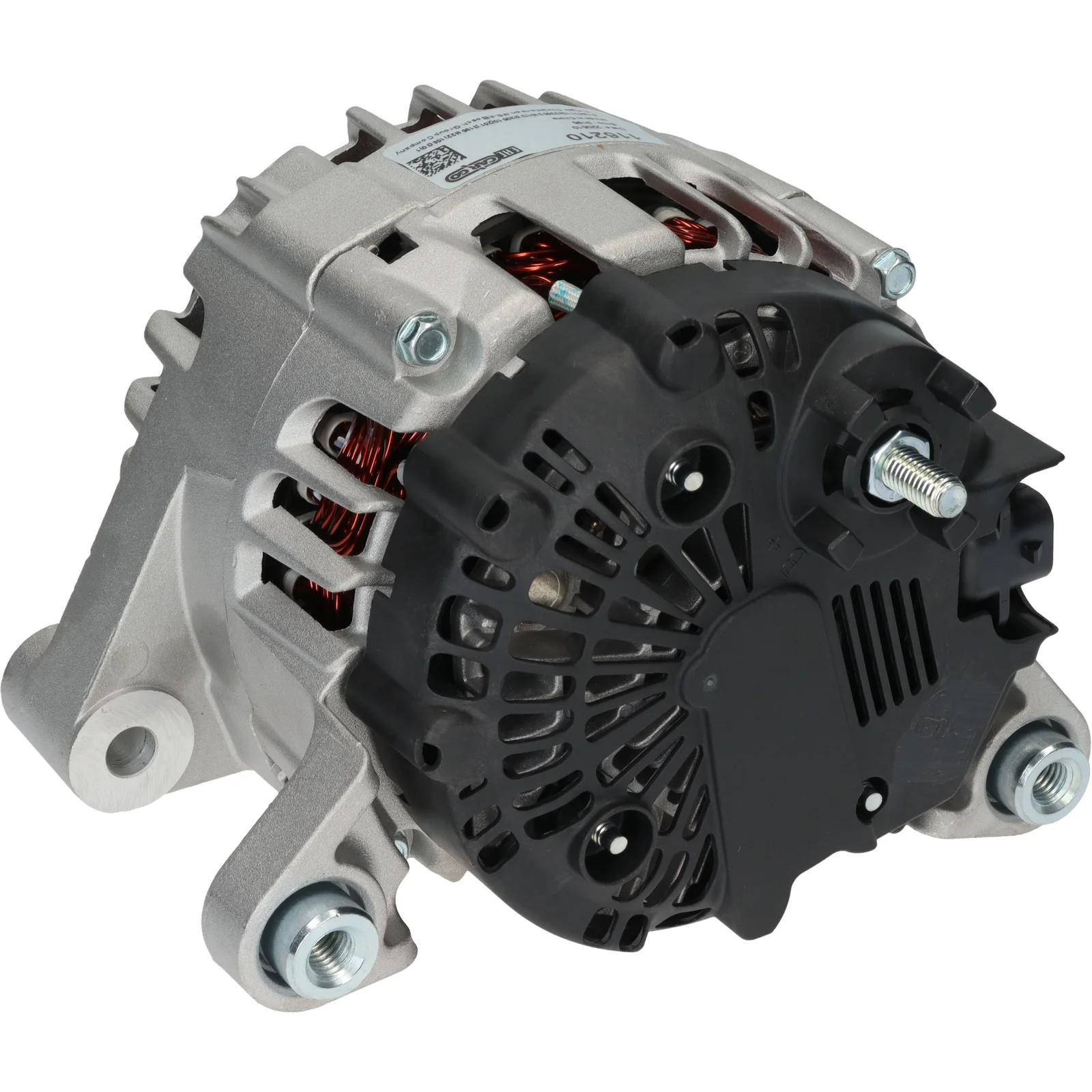

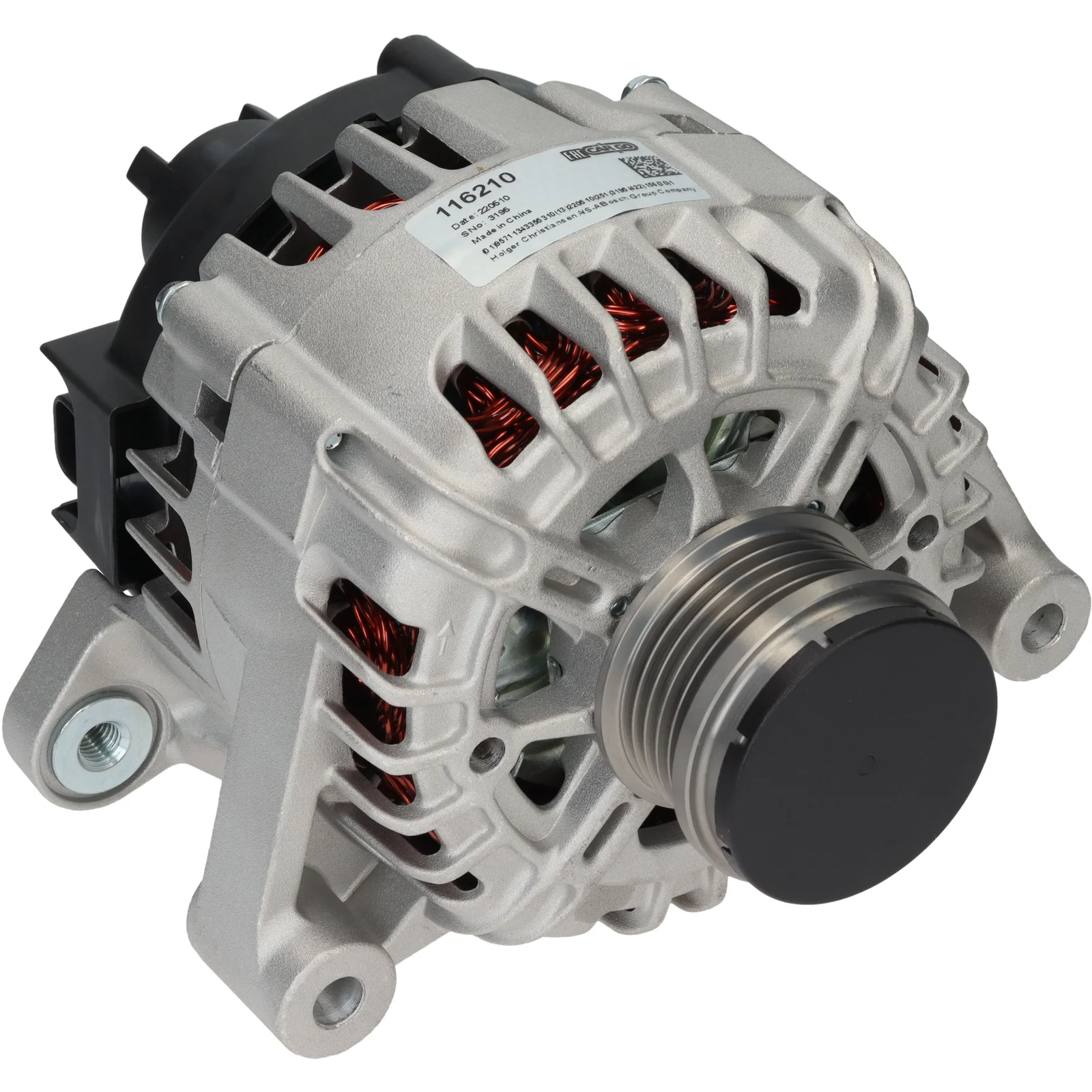

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116210

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 58.00

Beskrivning

HC-Cargo Generator

Voltage: 14
Amp: 140
Pulley dist.: 55.00
Width/holder arm: 33.50
Mount. bracket dist.: 58.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 53.50
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 194.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 58.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 50
Plug no. PL180
Bracket hole 10.00
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 55.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 5
Terminal type L-F
Voltage 14
Total length 194.00 mm
Width/holder arm 33.50
Amp 140

  • OEM
    F032116210, TG12C137, TG12C184, 19YY1715, 1202243, 1202319, 2614366A, 2620371A, 13581893, 13588296

  • Konkurrentreferens
    A3525S, DRA1331, 8EL011713-711, 135.591.140, 24109N, 24109N-OE, 209406, 209406A, 440747, 849234, 12090929, 0986086960

  • Normaliserat artikelnummer
    a3525s, dra1331, f032116210, tg12c137, tg12c184, 8el011713711, 19yy1715, 24109n, 24109noe, 209406, 209406a, 440747, 849234, 1202243, 1202319, 2614366a, 2620371a, 12090929, 13581893, 13588296, 135591140, 0986086960

  • Passar modeller
    Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.4 Brand of engine: LUJ Type description: J300 Body: Saloon Fuel: Petrol Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.4 Brand of engine: LUJ Type description: J308 Body: Estate From date: 01-08-2012 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14NEL Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14XER Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec 75 Size of motor: 1.4 Brand of engine: A14XER Type description: S10 Body: Van From date: 01-01-2013 To date: 01-03-2017 Fuel: Petrol Approved: Yes
  • Beskrivning
    HC-Cargo Generator

    Voltage: 14
    Amp: 140
    Pulley dist.: 55.00
    Width/holder arm: 33.50
    Mount. bracket dist.: 58.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 53.50
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL180
    Total length mm: 194.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 58.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 50
    Plug no. PL180
    Bracket hole 10.00
    Position/B+ in min. 55
    Pulley SP/FW
    Pulley dia. 53.50
    Pulley dist. 55.00
    Radius 92.00
    D+ Size Plug
    Radius 2 92.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Terminal type L-F
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 33.50
    Amp 140
  • Fordonsmatchning

    • OEM
      F032116210, TG12C137, TG12C184, 19YY1715, 1202243, 1202319, 2614366A, 2620371A, 13581893, 13588296

    • Konkurrentreferens
      A3525S, DRA1331, 8EL011713-711, 135.591.140, 24109N, 24109N-OE, 209406, 209406A, 440747, 849234, 12090929, 0986086960

    • Normaliserat artikelnummer
      a3525s, dra1331, f032116210, tg12c137, tg12c184, 8el011713711, 19yy1715, 24109n, 24109noe, 209406, 209406a, 440747, 849234, 1202243, 1202319, 2614366a, 2620371a, 12090929, 13581893, 13588296, 135591140, 0986086960

    • Passar modeller
      Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.4 Brand of engine: LUJ Type description: J300 Body: Saloon Fuel: Petrol Approved: Yes
      Chevrolet Model: Cruze Model series: Cruze Size of motor: 1.4 Brand of engine: LUJ Type description: J308 Body: Estate From date: 01-08-2012 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14NEL Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14XER Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: Ecotec 75 Size of motor: 1.4 Brand of engine: A14XER Type description: S10 Body: Van From date: 01-01-2013 To date: 01-03-2017 Fuel: Petrol Approved: Yes
