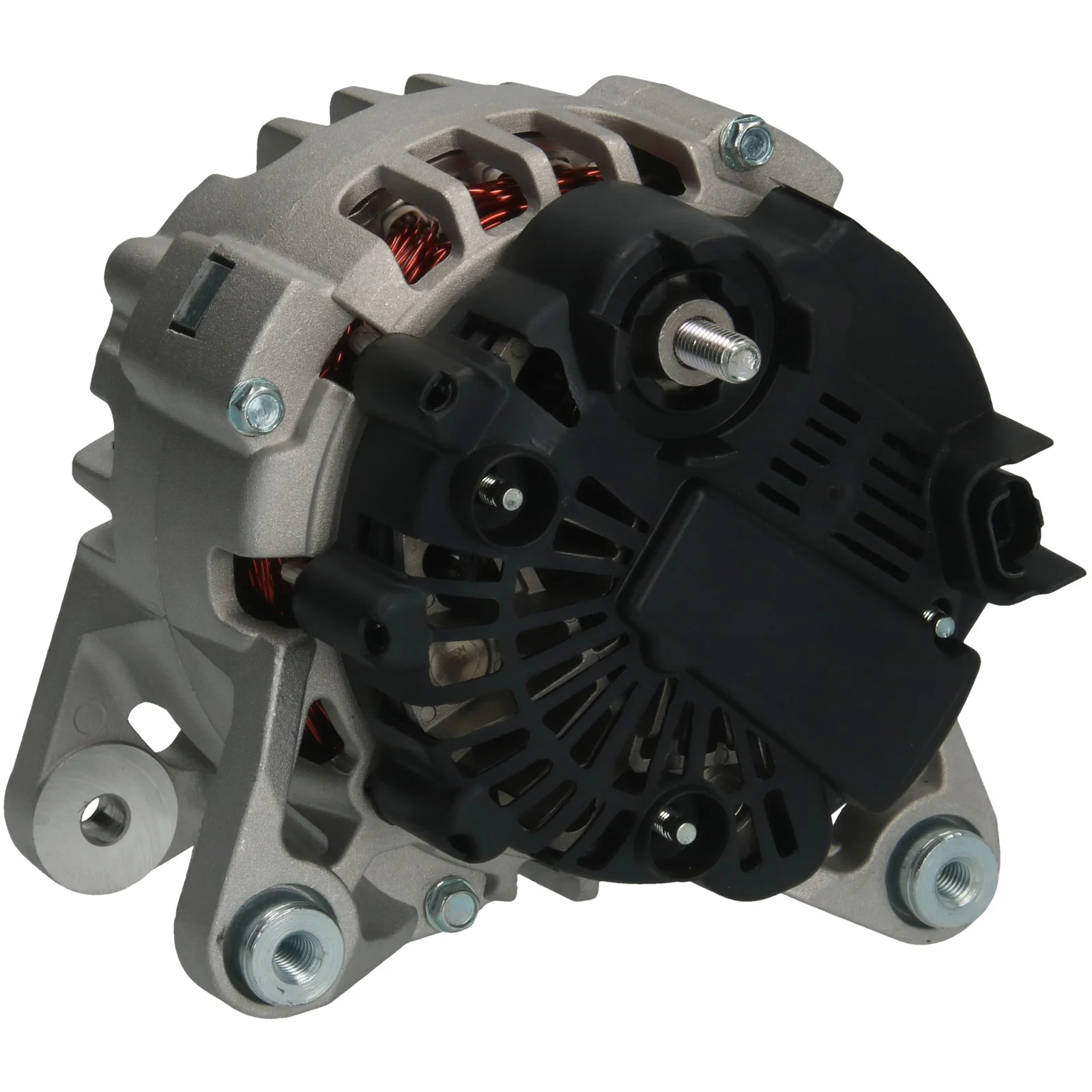

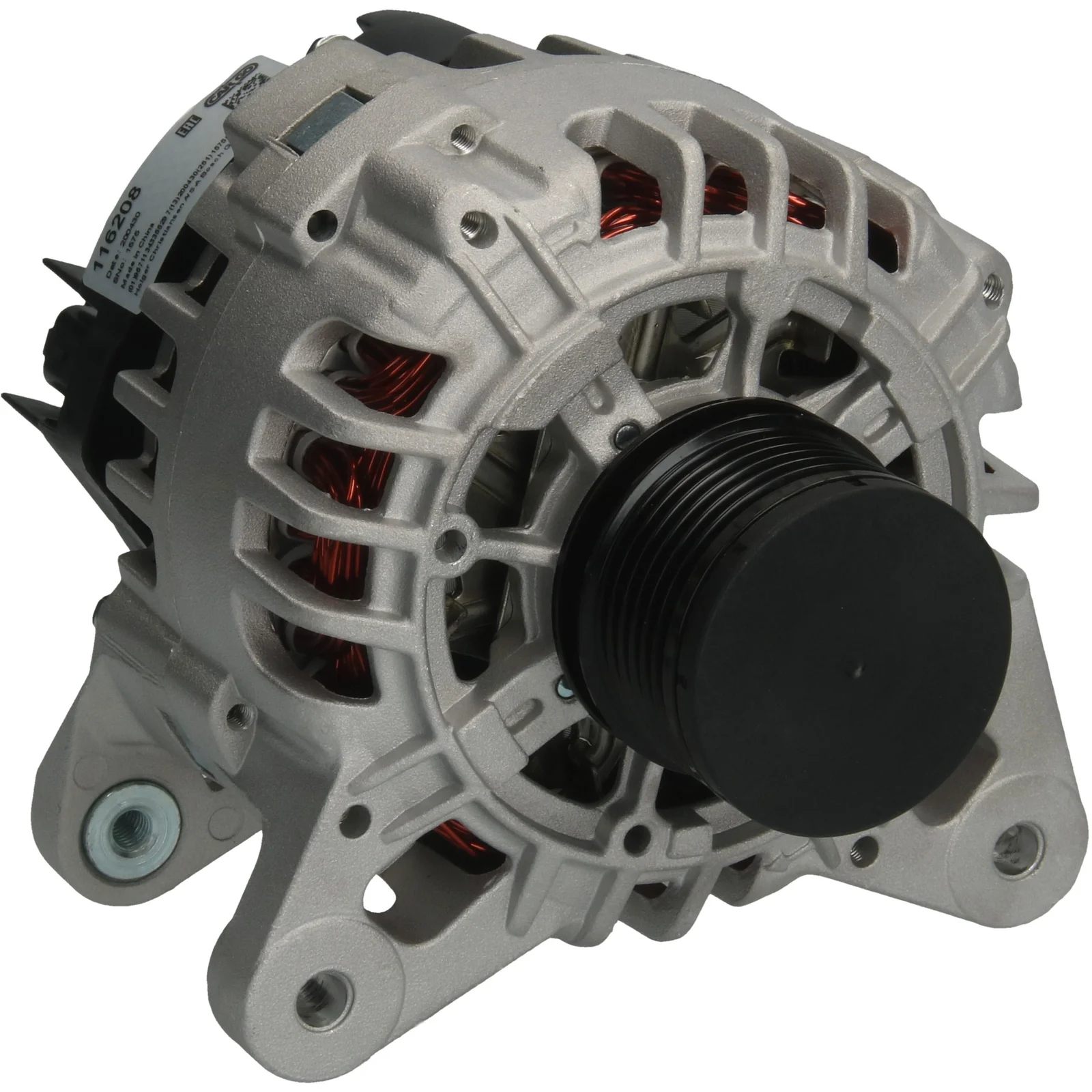

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116208

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 60.50

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 38.00
Width/holder arm: 15.00
Mount. bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 51
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 186.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.50
Position/B+ in min. 51
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 186.00 mm
Width/holder arm 15.00
Amp 90

  • OEM
    F032116208, TG9B046, TG9B052, 1986A01325, 2543531, 2605646, 2605646B, 8200674760, 8200810614

  • Konkurrentreferens
    A3345S, DRA0966, 20972N, 209289, 209289A, 12090651

  • Normaliserat artikelnummer
    a3345s, dra0966, f032116208, tg9b046, tg9b052, 1986a01325, 20972n, 209289, 209289a, 2543531, 2605646, 2605646b, 12090651, 8200674760, 8200810614

  • Passar modeller
    Dacia Model: Duster Model series: Duster Model type: Hi-Flex Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M696 Body: Van From date: 01-04-2011 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: LPG Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M696 From date: 01-04-2011 To date: 01-01-2018 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Duster Model series: Duster Size of motor: 1.6 Brand of engine: K4M696 Type description: HS Body: Box From date: 01-04-2011 Fuel: Petrol Approved: Yes
    Dacia Model: Duster Model series: Duster Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M690 From date: 01-04-2010 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M696 From date: 01-04-2010 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: Flex Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M696 Type description: LS_ From date: 01-07-2010 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: Flexifuel Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M690 Type description: KS_ Body: Estate From date: 01-11-2009 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: Flexifuel Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M694 Type description: KS_ Body: Estate From date: 01-11-2009 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: MCV Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M690 Type description: KS, FS Body: Estate From date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Model type: MCV Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M696 Type description: KS, FS Body: Estate From date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Pickup Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M690 Type description: US_ Body: Pick Up From date: 01-01-2010 To date: 01-08-2013 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M690 From date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Dacia Model: Logan Model series: Logan Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M696 From date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Dacia Model: Sandero Model series: Sandero Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M690 Body: Hatchback From date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Dacia Model: Sandero Model series: Sandero Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M690 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Dacia Model: Sandero Model series: Sandero Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M694 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Dacia Model: Sandero Model series: Sandero Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M696 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Renault Model: Duster Model series: Duster Model type: Flex Size of motor: 1.6 Brand of engine: K4M690 From date: 01-10-2011 To date: 01-12-2016 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Logan Model series: Logan Model type: Flex Size of motor: 1.6 Brand of engine: K4M697 Type description: LS_ Body: Saloon From date: 01-07-2007 To date: 01-09-2013 Fuel: Petrol/Ethanol Approved: Yes
    Renault Model: Logan Model series: Logan Size of motor: 1.6 Brand of engine: K4M690 Type description: LS_ From date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Logan Model series: Logan Size of motor: 1.6 Brand of engine: K4M697 Type description: LS_ From date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero Model series: Sandero Size of motor: 1.6 Body: Hatchback From date: 01-12-2007 To date: 01-07-2013 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero Model series: Sandero Type of engine: Hi-Flex Size of motor: 1.6 Body: Hatchback From date: 01-11-2007 Fuel: Flex Approved: Yes
    Renault Model: Sandero/Stepway Model series: Sandero/Stepway Model type: Flex Size of motor: 1.6 Brand of engine: K4M766 Body: Hatchback From date: 01-08-2008 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Sandero/Stepway Model series: Sandero/Stepway Model type: Flex Size of motor: 1.6 Type description: BS_ Body: Hatchback From date: 01-12-2012 Fuel: Diesel Approved: Yes
    Renault Model: Sandero/Stepway Model series: Sandero/Stepway Size of motor: 1.6 Brand of engine: K4M690 Type description: BS_ Body: Hatchback From date: 01-12-2012 Fuel: Petrol Approved: Yes
