HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116205

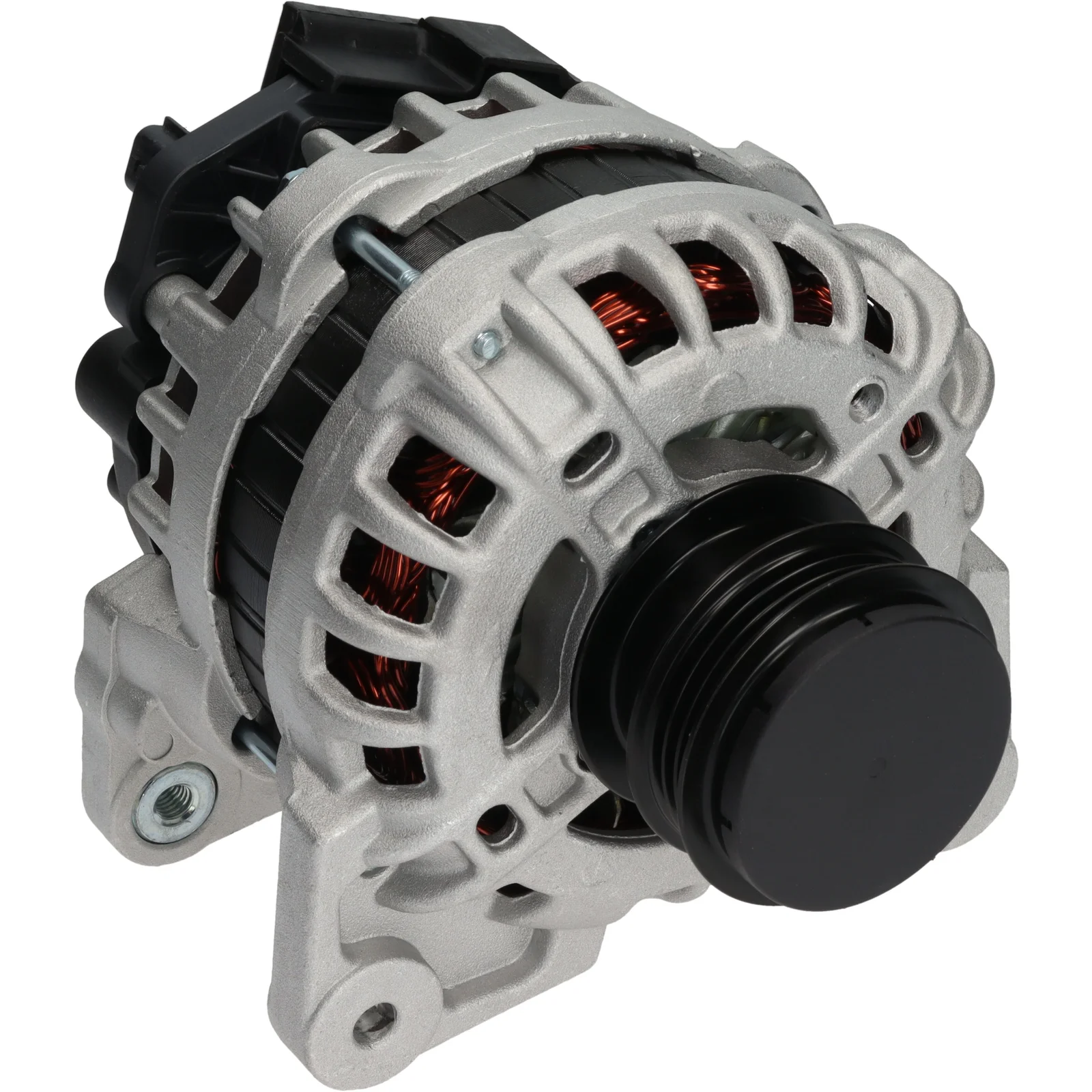

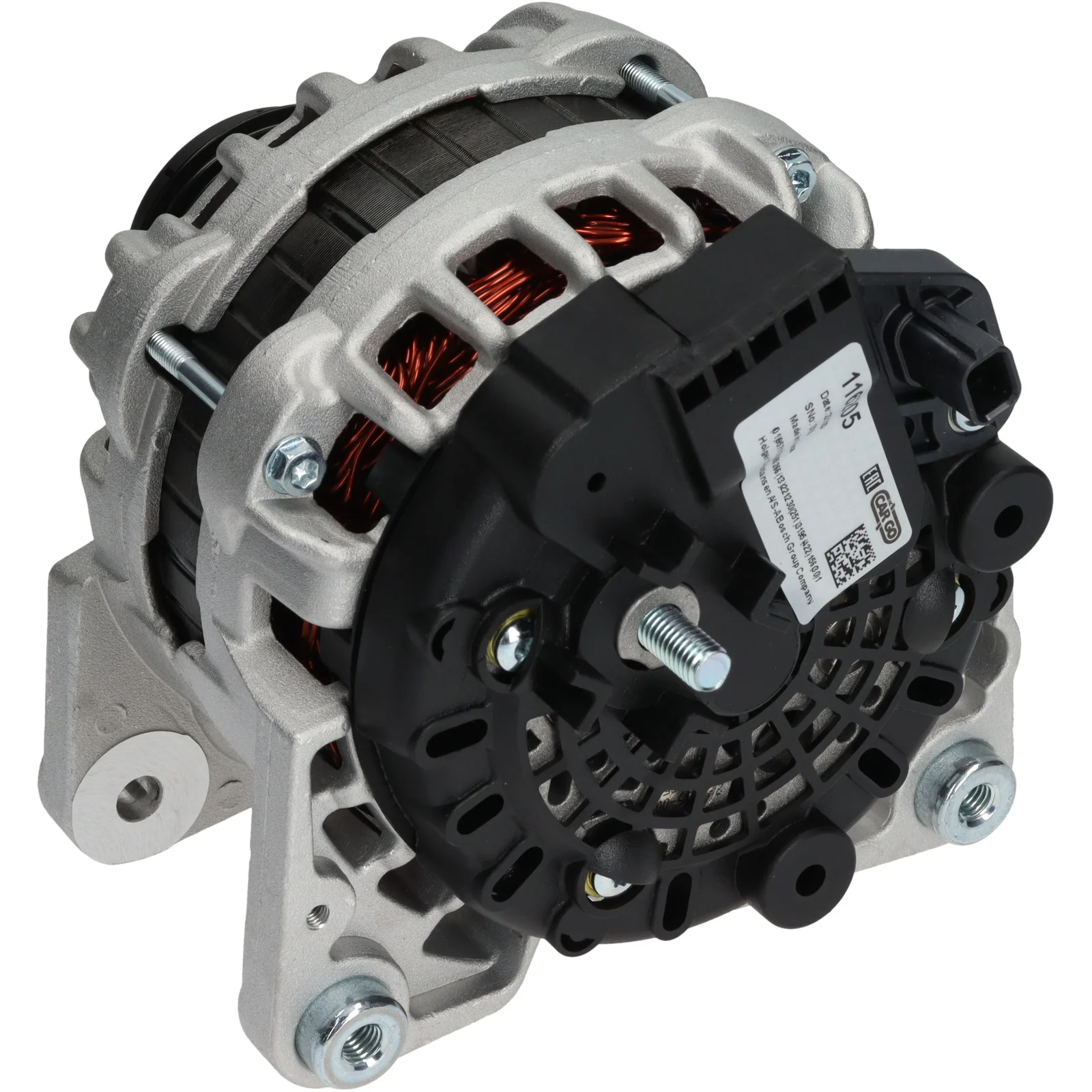

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 60.00

Beskrivning

HC-Cargo Generator 14V - 90A, 3gr

Voltage: 14
Amp: 90
Pulley dist.: 47.50
Width/holder arm: 14.50
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 58.50
Grooves/pulley: 3
Radius: 90.00
Radius 2: 90.00
B+ Length mm: 10.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL131
Total length mm: 182.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 58.50
Pulley dist. 47.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 3
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 14.50
Amp 90
B+ Length 10.00 mm

  • OEM
    F000 BL0 458, F000 BL0 4DB, F000BL0458, F000BL04DB, F032116205, 1986A01067, 23100-3730R, 23100-4426R, 116205, 231003730R, 231004426R

  • Konkurrentreferens
    A0677S, DRA1152, 8EL015637-521, 28-6994, 440946, 446538, 12090701, 32085930, 0986085930

  • Bilmärken
    Renault

  • Normaliserat artikelnummer
    a0677s, dra1152, f000bl0458, f000bl04db, f032116205, 8el015637521, 1986a01067, 116205, 286994, 440946, 446538, 12090701, 32085930, 231003730r, 231004426r, 0986085930

  • Passar modeller
    Renault Model: Clio Model series: Clio Model type: Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: SB_, SR_ Body: Box From date: 01-11-2007 To date: 01-12-2009 Fuel: Petrol/Ethanol/Natur Approved: Yes
    Renault Model: Clio Model series: Clio Model type: Hi-Flex Type of engine: 16V Size of motor: 1.1 Brand of engine: D4F742 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Diesel/Electro Approved: Yes Manufacture type: Sports Tou
    Renault Model: Clio Model series: Clio Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F744 Body: Box From date: 01-01-2014 Fuel: Petrol/Electro Approved: Yes
    Renault Model: Clio Model series: Clio Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F744 Type description: BH_ Body: Hatchback From date: 01-01-2014 Fuel: Petrol/Electro Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D4F740 Type description: BH_ Body: Hatchback From date: 01-06-2015 Fuel: Petrol Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F722 Type description: BH_ Body: Van From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: LPG 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Logan Model series: Logan Size of motor: 1.1 Brand of engine: D4F732 From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Model type: GPL Size of motor: 1.1 Brand of engine: D4F744 Type description: F/JP0_ Body: Hatchback From date: 01-05-2008 To date: 01-12-2012 Fuel: Petrol/Electro Approved: Yes
    Renault Series: CLIO III Grandtour Model: 1.2 16V Hi-Flex (KR1U) Engine volume: 1.2 Engine type: D4F 742 Year: 11.07-12.12
    Renault Series: CLIO IV (BH_) Model: 1.2 16V Engine volume: 1.2 Engine type: H4F 740 Year: 06.15-08.21
    Renault Series: CLIO IV Model: 1.2 LPG 16V Engine volume: 1.2 Engine type: D4F 740/D4F 744 Year: 11.12-06.15
    Renault Series: CLIO IV Skåp/halvko Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 722 Year: 01.14-08.21
    Renault Series: LOGAN/STEPWAY II Model: 1.2 Engine volume: 1.2 Engine type: D4F 732 Year: 11.13-
