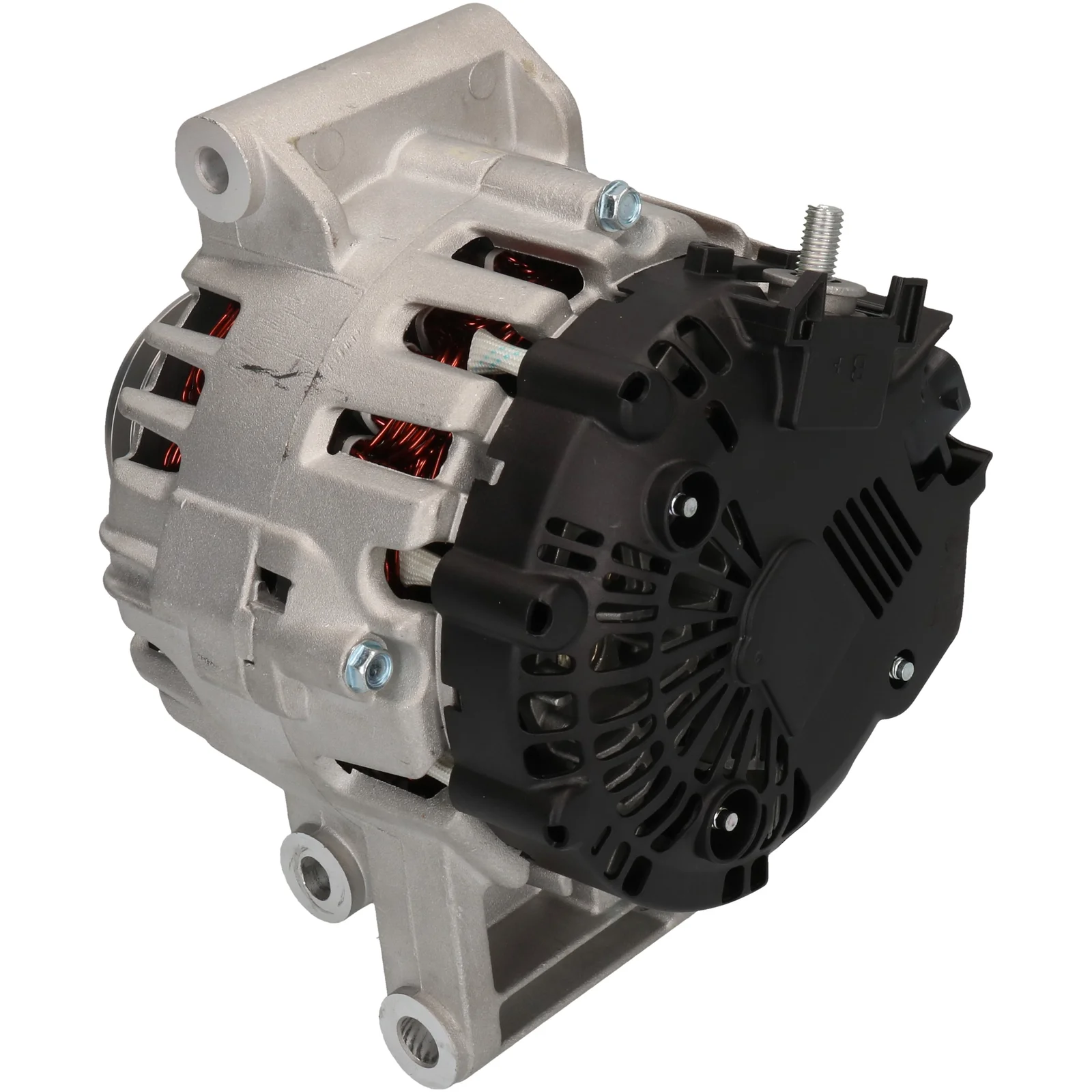

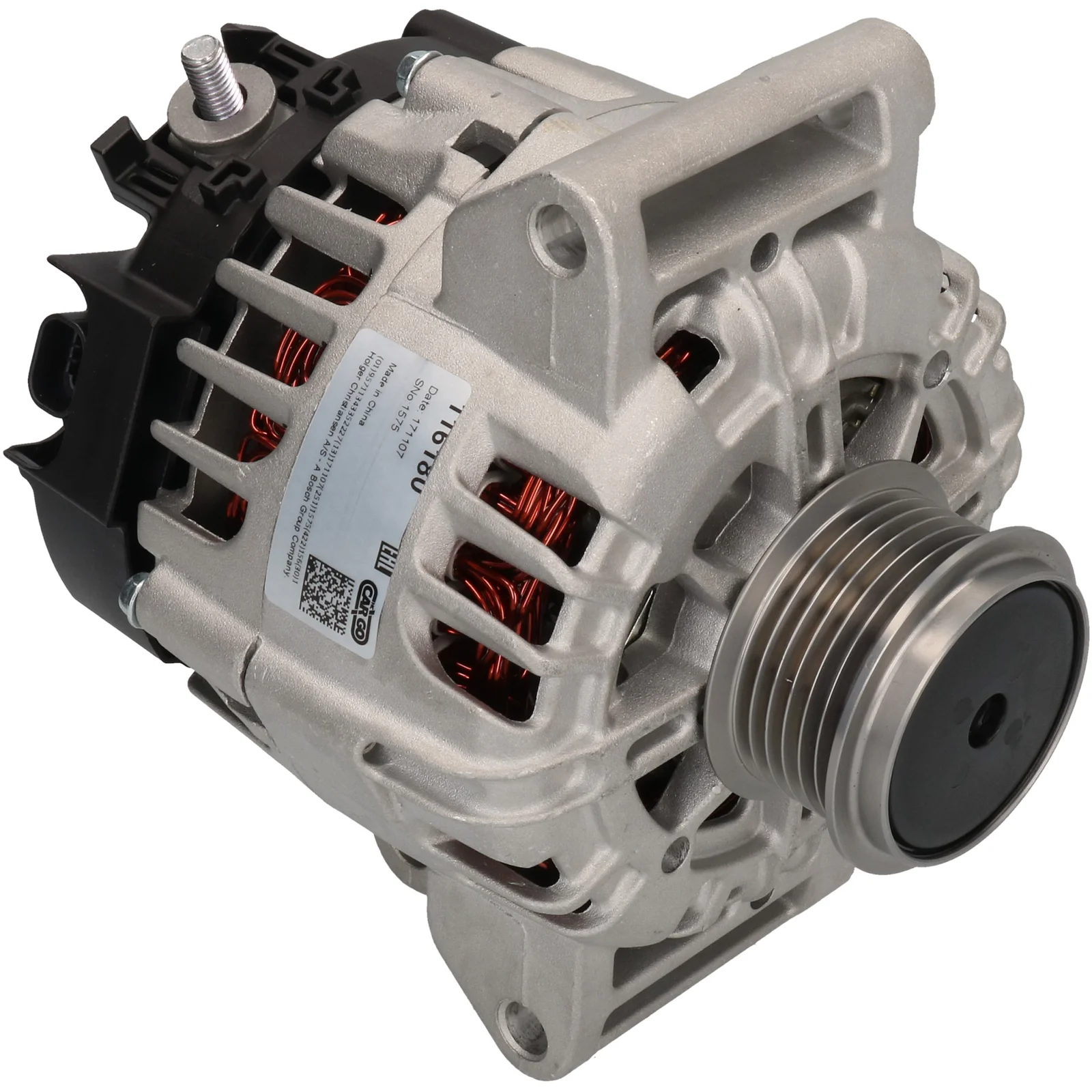

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116180

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 32.00
Width/holder arm: 79.00
Mount. bracket dist.: 56.00
Bracket hole: 8.50
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 173.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.50
Plug no. PL180
Bracket hole 8.50
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 32.00
Radius 81.50
D+ Size Plug
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 173.00 mm
Width/holder arm 79.00
Amp 140

  • OEM
    F032116180, TG12C065, TG12C177, 1204651, 2605326A, 13500332, 13512761

  • Konkurrentreferens
    A3276, CAL15505, DRA1043, 28-7571, 135.592.140, 228.304.1402, 24107N, 209246, 209246A, 440618, 849241, 12090603, 32004040

  • Normaliserat artikelnummer
    a3276, cal15505, dra1043, f032116180, tg12c065, tg12c177, 24107n, 209246, 209246a, 287571, 440618, 849241, 1204651, 2605326a, 12090603, 13500332, 13512761, 32004040, 135592140, 2283041402

  • Passar modeller
    Opel Model: Antara Model series: Antara Size of motor: 2.4 Brand of engine: A24XE From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
