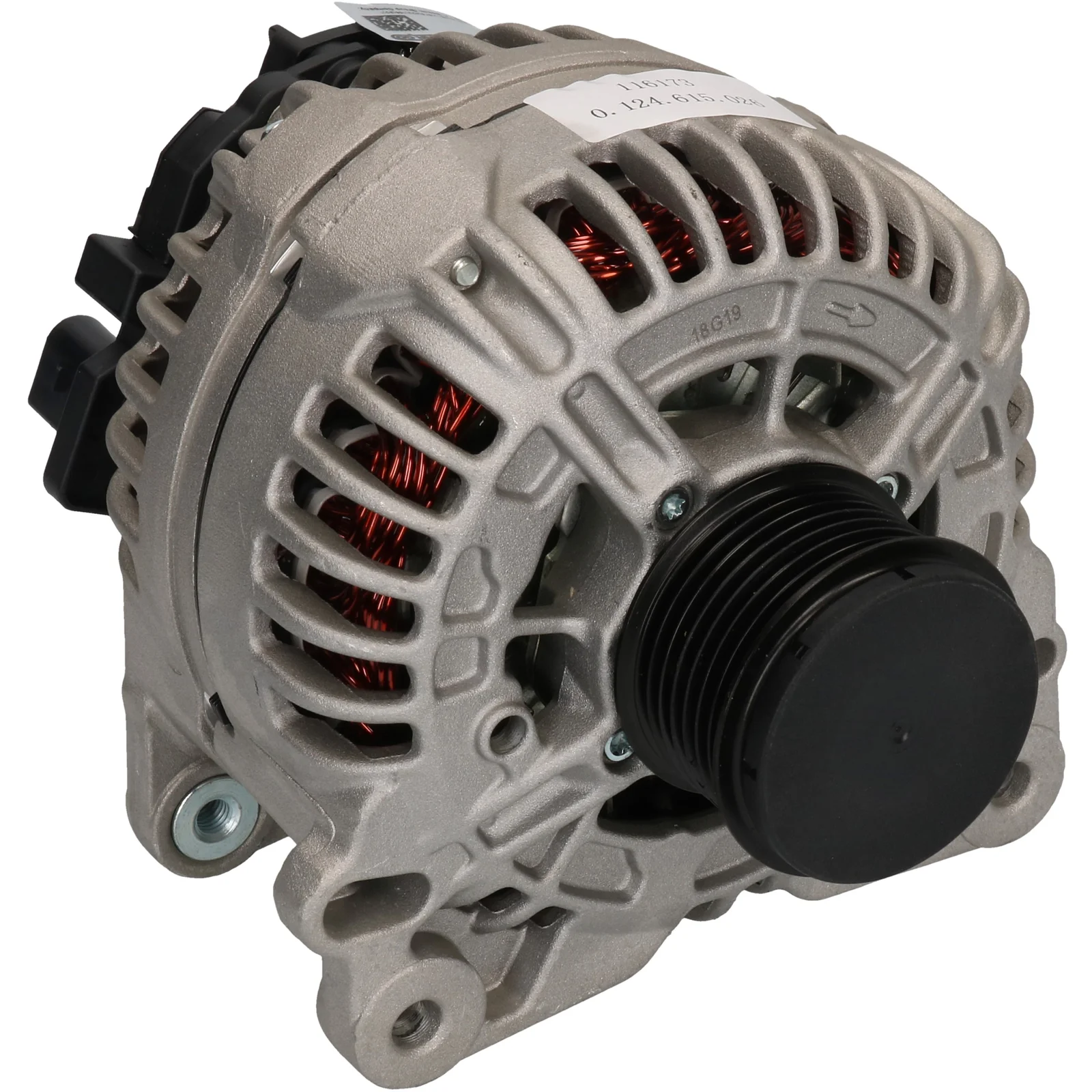

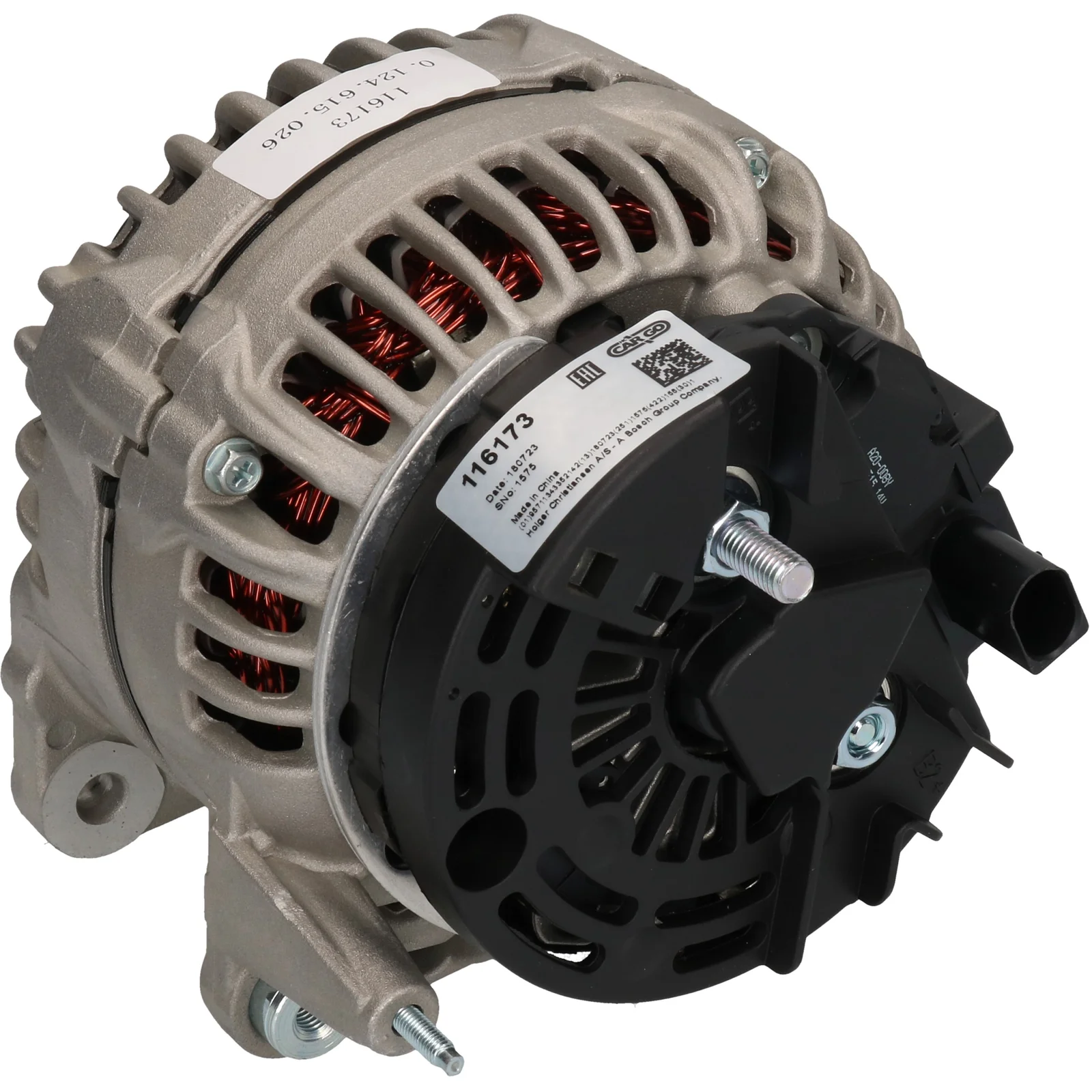

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116173

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 7
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 200.00
Pulley: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 200.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032116173, 1749IR, 1986A00937, 021903026B, 074903018, 0124615026, 0124615067, 95560301700, 95560391701

  • Konkurrentreferens
    A0709S, CAL10254, DRA4163, LRA02346, 28-4848, 305.565.150, 23346N, 210606, 210606A, 301749RI, 12047450, 32000018, 0986047450, 0986047457

  • Normaliserat artikelnummer
    a0709s, cal10254, dra4163, f032116173, lra02346, 1749ir, 1986a00937, 23346n, 210606, 210606a, 284848, 301749ri, 12047450, 021903026b, 32000018, 074903018, 0124615026, 0124615067, 305565150, 0986047450, 0986047457, 95560301700, 95560391701

  • Passar modeller
    Porsche Model: Cayenne Model series: Cayenne Model type: S4 Size of motor: 3.2 Type description: 955 Body: SUV From date: 01-08-2003 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Porsche Model: Cayenne Model series: Cayenne Size of motor: 3.2 Brand of engine: M02.2Y Type description: 955 Body: SUV From date: 01-10-2003 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: FSi V6 Size of motor: 3.6 Brand of engine: BHK Type description: 7LA Body: SUV From date: 01-10-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: FSi V6 Size of motor: 3.6 Brand of engine: BHL Type description: 7LA Body: SUV From date: 01-10-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: AZZ Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BKJ Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BMV Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BMV Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BMX Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BRJ Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 30.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 7
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 200.00
    Pulley: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 55
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 92.00
    D+ Size Plug
    Radius 2 92.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 14.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032116173, 1749IR, 1986A00937, 021903026B, 074903018, 0124615026, 0124615067, 95560301700, 95560391701

    • Konkurrentreferens
      A0709S, CAL10254, DRA4163, LRA02346, 28-4848, 305.565.150, 23346N, 210606, 210606A, 301749RI, 12047450, 32000018, 0986047450, 0986047457

    • Normaliserat artikelnummer
      a0709s, cal10254, dra4163, f032116173, lra02346, 1749ir, 1986a00937, 23346n, 210606, 210606a, 284848, 301749ri, 12047450, 021903026b, 32000018, 074903018, 0124615026, 0124615067, 305565150, 0986047450, 0986047457, 95560301700, 95560391701

    • Passar modeller
      Porsche Model: Cayenne Model series: Cayenne Model type: S4 Size of motor: 3.2 Type description: 955 Body: SUV From date: 01-08-2003 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Porsche Model: Cayenne Model series: Cayenne Size of motor: 3.2 Brand of engine: M02.2Y Type description: 955 Body: SUV From date: 01-10-2003 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: FSi V6 Size of motor: 3.6 Brand of engine: BHK Type description: 7LA Body: SUV From date: 01-10-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: FSi V6 Size of motor: 3.6 Brand of engine: BHL Type description: 7LA Body: SUV From date: 01-10-2005 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: AZZ Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BKJ Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BMV Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BMV Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BMX Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 Size of motor: 3.2 Brand of engine: BRJ Body: SUV From date: 01-10-2002 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
