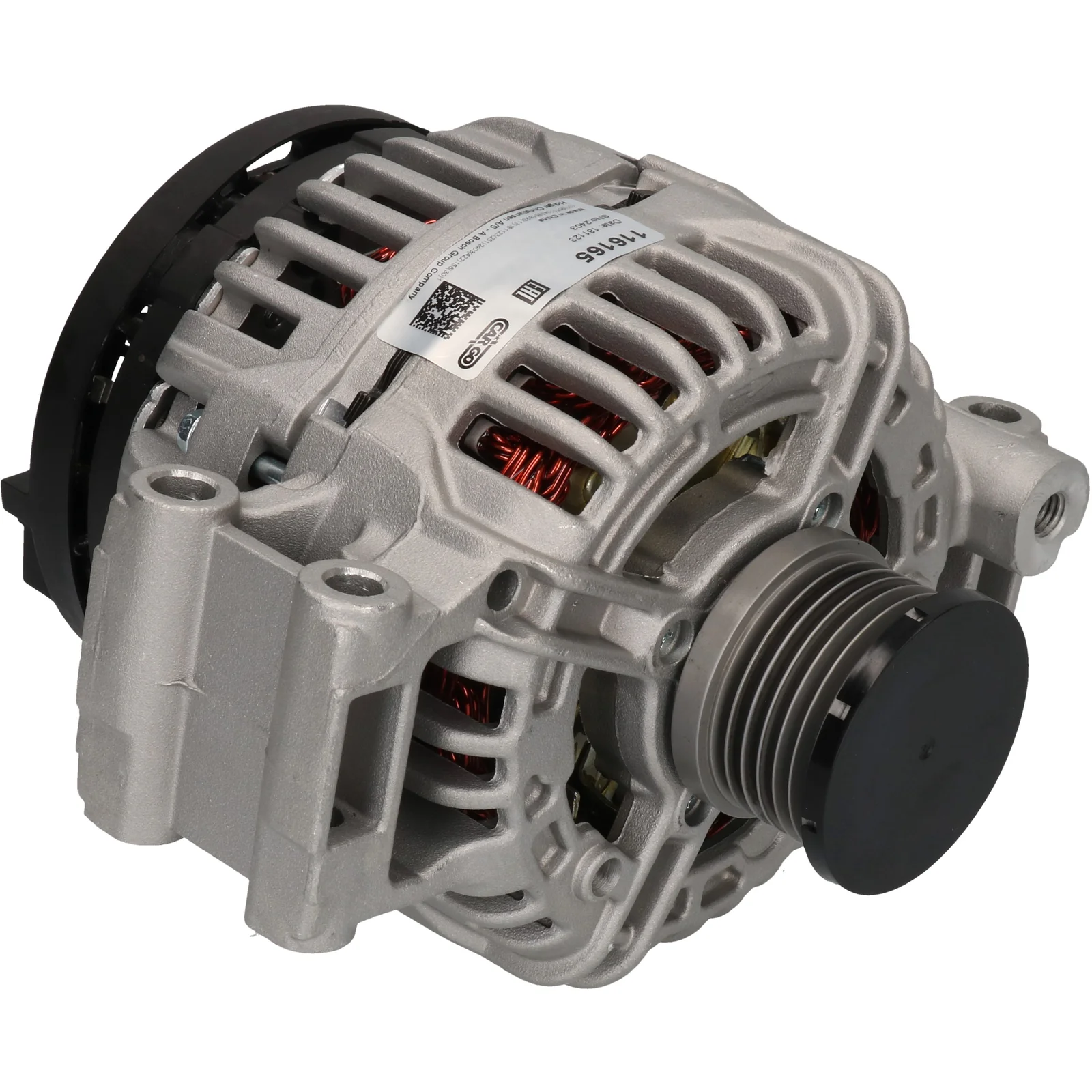

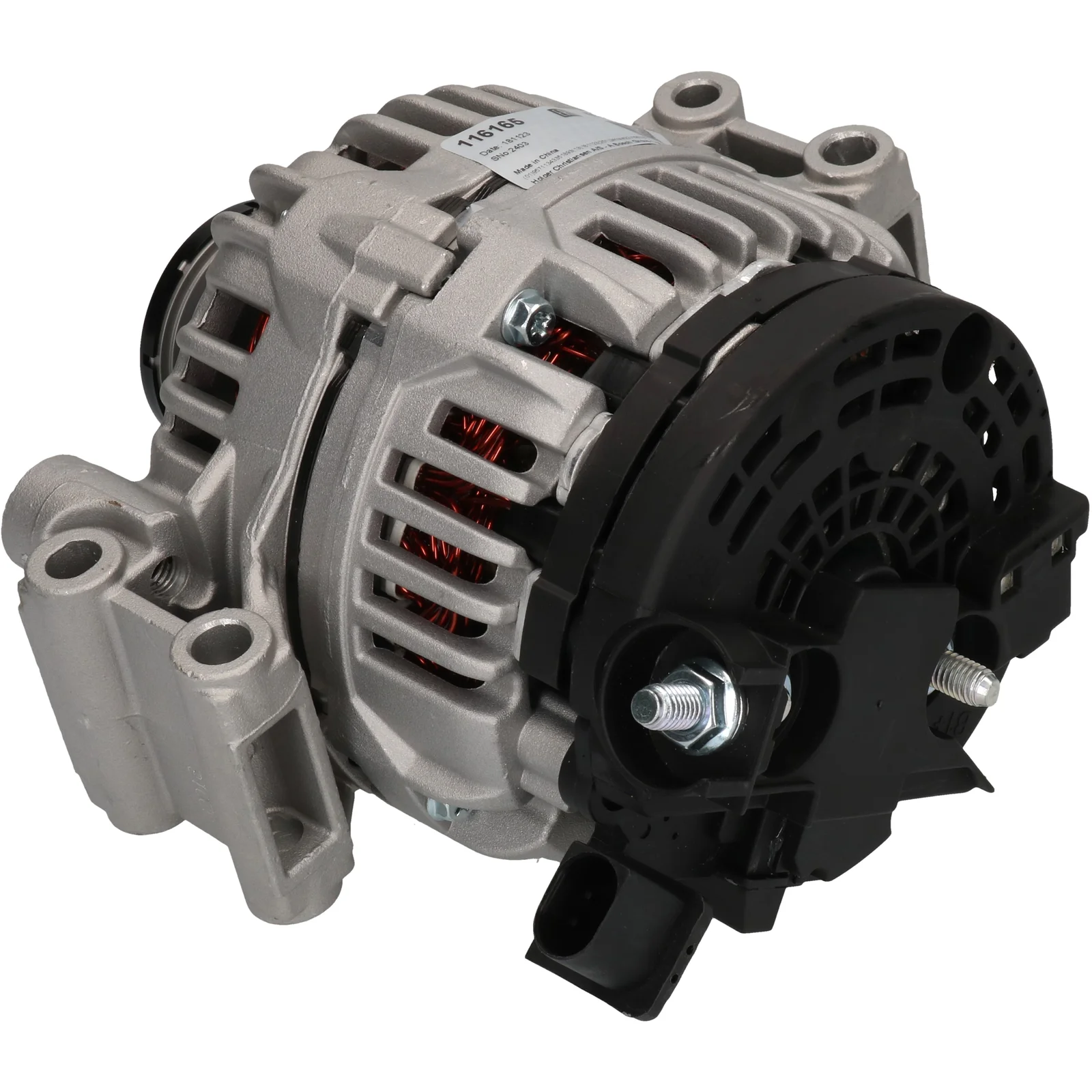

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116165

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 40.40

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 30.50
Width/holder arm: 63.00
Mount. bracket dist.: 40.40
Bracket hole: 9.00x10.00
Belt. adj. bracket hole 1: 9.00
Belt. adj. bracket hole 2: 10.00
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL86
Total length mm: 187.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 40.40
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 10.00
Plug no. PL86
Bracket hole 9.00x10.00
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 30.50
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 63.00
Amp 90

  • OEM
    F032116165, sg9b040, SG9B050, 2542458A, 2542608A, 0124325072, 12317505898, 12317516098, 12317516107, 12317516721, 12317516722

  • Konkurrentreferens
    A0216, CAL15280, DRA4167, DRB6270X, 28-4837, 215.150.902, 215.551.090, 23249R, 111739, 209216, 209216A, 12090186

  • Normaliserat artikelnummer
    a0216, cal15280, dra4167, drb6270x, f032116165, sg9b040, sg9b050, 23249r, 111739, 209216, 209216a, 284837, 2542458a, 2542608a, 12090186, 0124325072, 215150902, 215551090, 12317505898, 12317516098, 12317516107, 12317516721, 12317516722

  • Passar modeller
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.8 Brand of engine: N42B18 Type description: E46 From date: 01-02-2002 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.8 Brand of engine: N42B18A Type description: E46 Body: Estate From date: 01-03-2002 To date: 01-02-2005 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.8 Brand of engine: N46B18 Type description: E46 Body: Estate From date: 01-03-2002 To date: 01-02-2005 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 316 Type of engine: Ti Size of motor: 1.6 Brand of engine: N40B16A Type description: E46 Body: Hatchback From date: 01-06-2002 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: Ti Size of motor: 1.8 Brand of engine: N42B18 Type description: E46 Body: Hatchback From date: 01-06-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 318 Type of engine: Ci Size of motor: 2.0 Brand of engine: N42B20A Type description: E46 Body: Convertible From date: 01-09-2001 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ci Size of motor: 2.0 Brand of engine: N42B20A Type description: E46 Body: Coupe From date: 01-09-2001 To date: 01-02-2004 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ci Size of motor: 2.0 Brand of engine: N46B20A Type description: E46 Body: Convertible From date: 01-09-2001 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ci Size of motor: 2.0 Brand of engine: N46B20A Type description: E46 Body: Coupe From date: 01-09-2001 To date: 01-02-2004 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 2.0 Brand of engine: N42B20A Type description: E46 Body: Estate From date: 01-09-2001 To date: 01-07-2005 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 2.0 Brand of engine: N46B20 Type description: E46 Body: Estate From date: 01-09-2001 To date: 01-07-2005 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 2.0 Brand of engine: N42B20 Type description: E46 Body: Hatchback From date: 01-03-2001 To date: 01-12-2004 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 2.0 Brand of engine: N42B20A Type description: E46 From date: 01-09-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 2.0 Brand of engine: N46B20A Type description: E46 Body: Hatchback From date: 01-03-2001 To date: 01-12-2004 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 2.0 Brand of engine: N46B20A Type description: E46 From date: 01-09-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
