HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116148

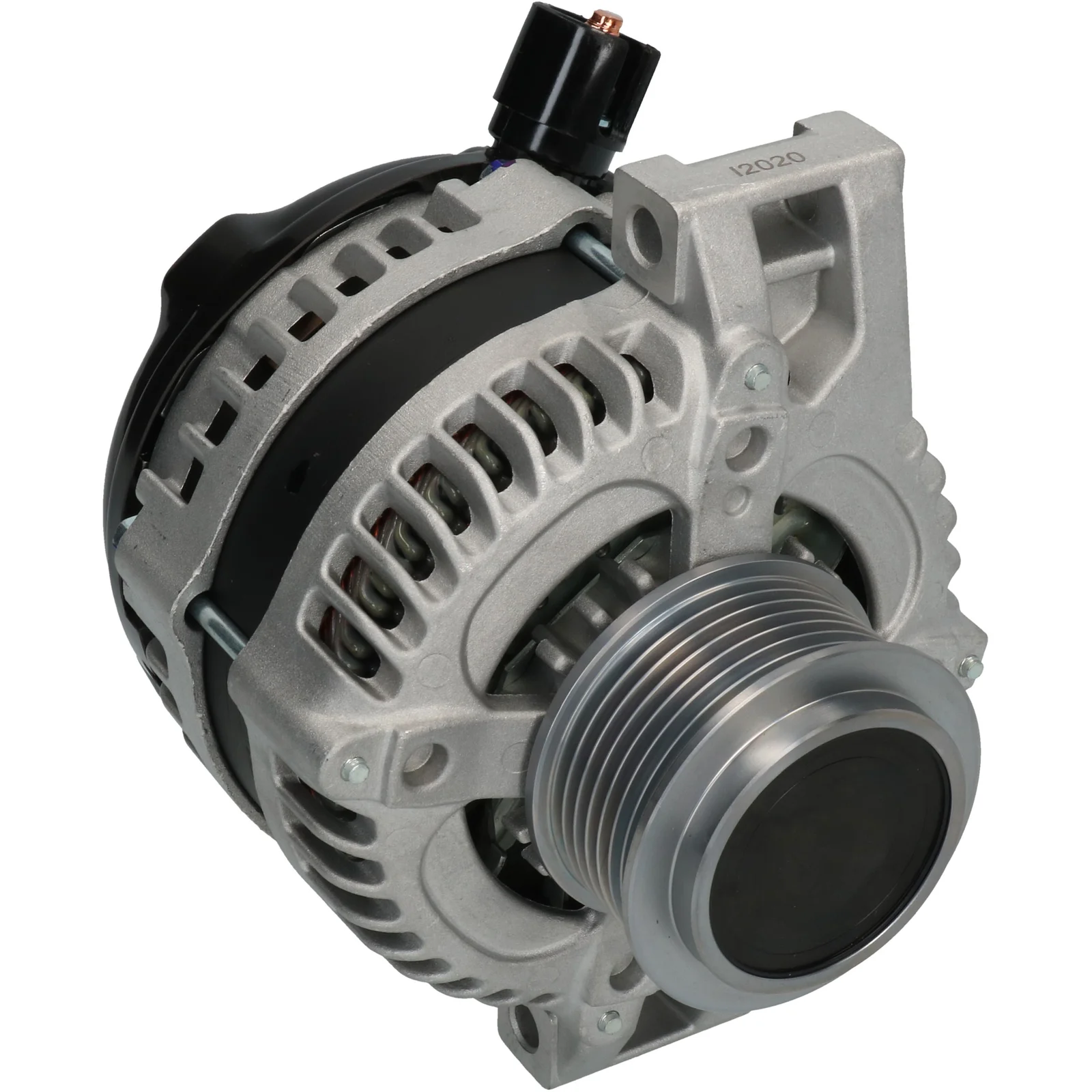

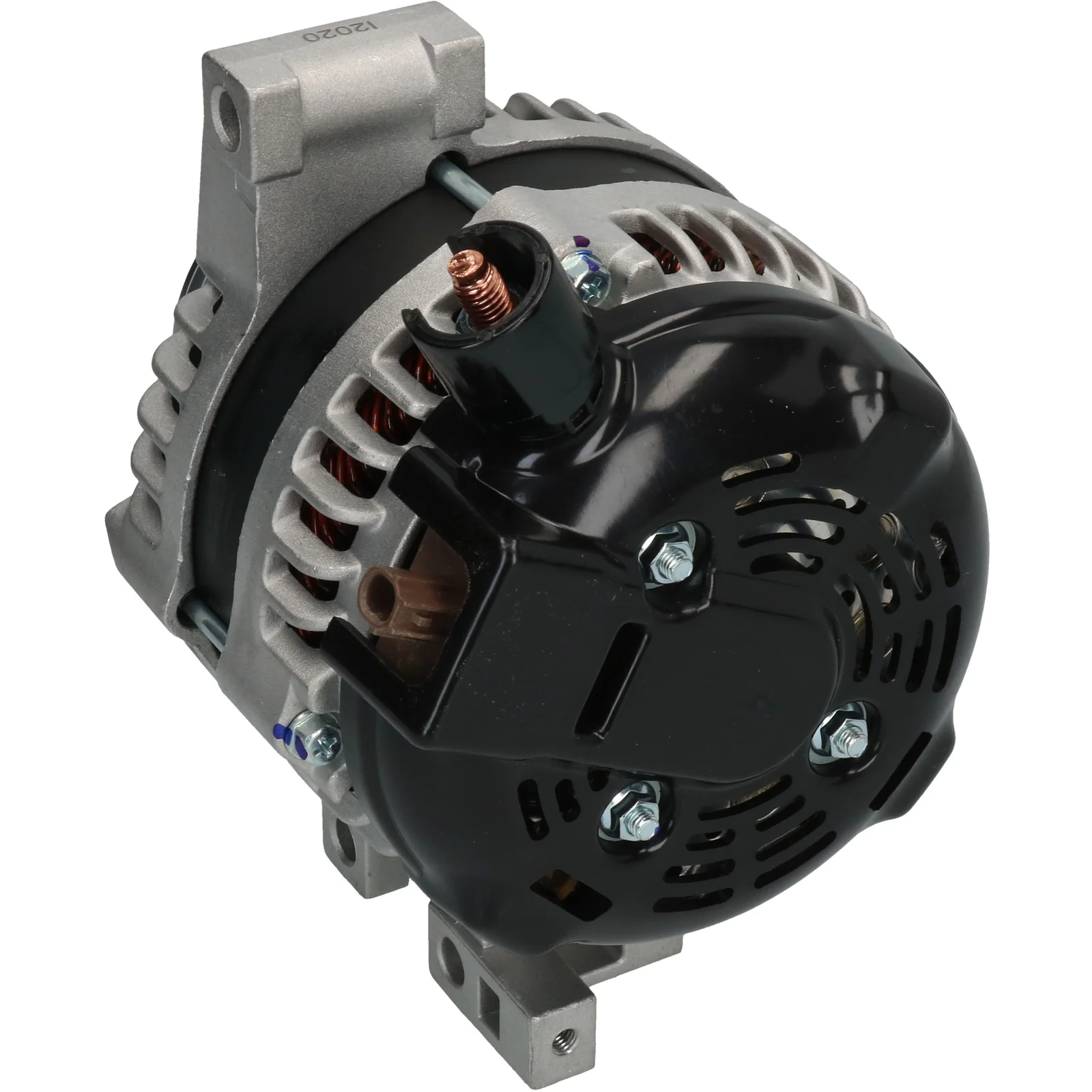

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 43.50

Beskrivning

Voltage: 14
Amp: 150
Width/holder arm: 46.00
Mount. bracket dist.: 43.50
Bracket hole: 8.90
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 65.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 80.50
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL205
Total length mm: 167.00
Terminal type: COM
Lamp type: Active
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 43.50
Belt. adj. bracket hole 1 9.00
Plug no. PL205
Bracket hole 8.90
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 65.00
Radius 81.50
Radius 2 80.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Lamp type Active
Terminal type COM
Voltage 14
Total length 167.00 mm
Width/holder arm 46.00
Amp 150

  • OEM
    CSJ65, F032116148, MAN7582, 31100-R3L-G01, 104210-1650

  • Konkurrentreferens
    A6566S, CAL40430, DAN1308, DRA1218, LRA04008, 8EL015637-471, 28-7618, 125.570.150, 222.169.1502, 210970, 210970A, 554459RI, 12061217

  • Normaliserat artikelnummer
    a6566s, cal40430, csj65, dan1308, dra1218, f032116148, lra04008, man7582, 8el015637471, 31100r3lg01, 210970, 210970a, 287618, 554459ri, 12061217, 125570150, 1042101650, 2221691502

  • Passar modeller
    Honda Model: Civic Model series: Civic Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 Body: Hatchback From date: 01-02-2012 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 From date: 01-10-2012 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B4 Type description: RM_ Body: SUV From date: 01-11-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Width/holder arm: 46.00
    Mount. bracket dist.: 43.50
    Bracket hole: 8.90
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 65.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 80.50
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug no.: PL205
    Total length mm: 167.00
    Terminal type: COM
    Lamp type: Active
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 43.50
    Belt. adj. bracket hole 1 9.00
    Plug no. PL205
    Bracket hole 8.90
    Position/B+ in min. 58
    Pulley SP/FW
    Pulley dia. 65.00
    Radius 81.50
    Radius 2 80.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Lamp type Active
    Terminal type COM
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 46.00
    Amp 150
  • Fordonsmatchning

    • OEM
      CSJ65, F032116148, MAN7582, 31100-R3L-G01, 104210-1650

    • Konkurrentreferens
      A6566S, CAL40430, DAN1308, DRA1218, LRA04008, 8EL015637-471, 28-7618, 125.570.150, 222.169.1502, 210970, 210970A, 554459RI, 12061217

    • Normaliserat artikelnummer
      a6566s, cal40430, csj65, dan1308, dra1218, f032116148, lra04008, man7582, 8el015637471, 31100r3lg01, 210970, 210970a, 287618, 554459ri, 12061217, 125570150, 1042101650, 2221691502

    • Passar modeller
      Honda Model: Civic Model series: Civic Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 Body: Hatchback From date: 01-02-2012 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 From date: 01-10-2012 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B4 Type description: RM_ Body: SUV From date: 01-11-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes
