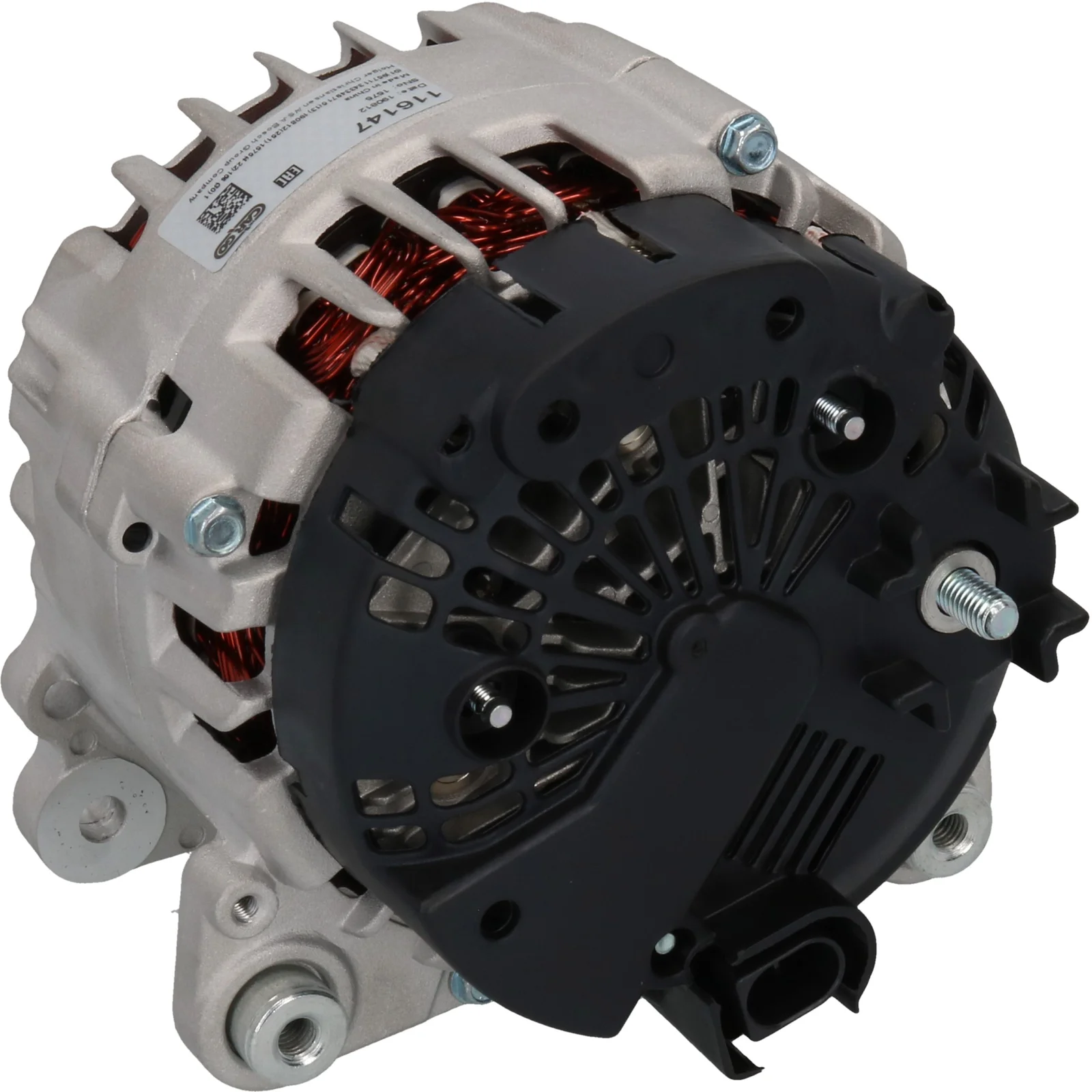

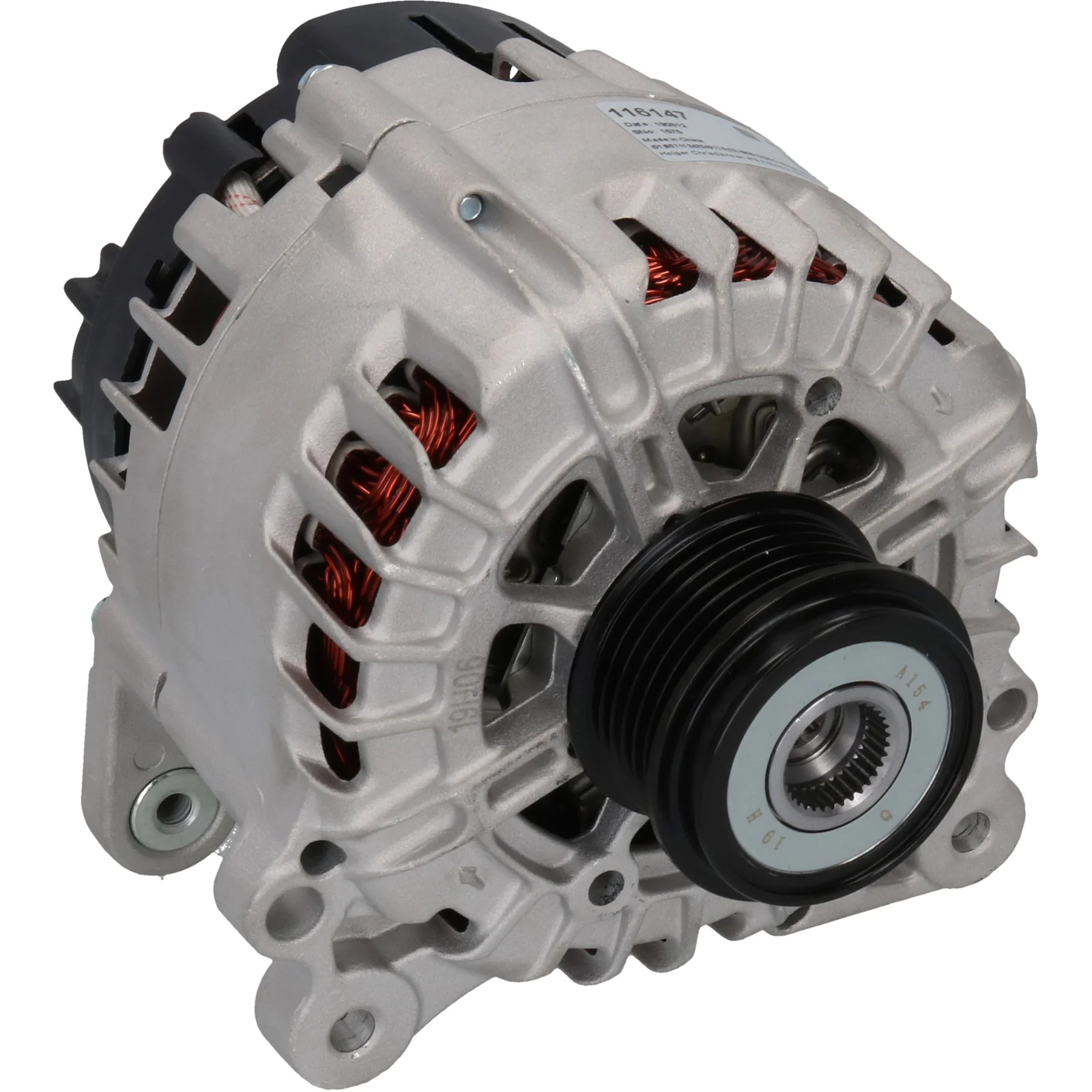

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116147

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 60.80

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 29.30
Width/holder arm: 13.70
Mount. bracket dist.: 60.80
Bracket hole: 8.50
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 25
Rotation: CW
Plug no.: PL181
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.80
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 25
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.30
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 13.70
Amp 180

  • OEM
    F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

  • Konkurrentreferens
    A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

  • Normaliserat artikelnummer
    a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

  • Passar modeller
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 29.30
    Width/holder arm: 13.70
    Mount. bracket dist.: 60.80
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 25
    Rotation: CW
    Plug no.: PL181
    Total length mm: 191.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.80
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 25
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 29.30
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 13.70
    Amp 180
  • Fordonsmatchning

    • OEM
      F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

    • Konkurrentreferens
      A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

    • Normaliserat artikelnummer
      a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

    • Passar modeller
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
