HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116138

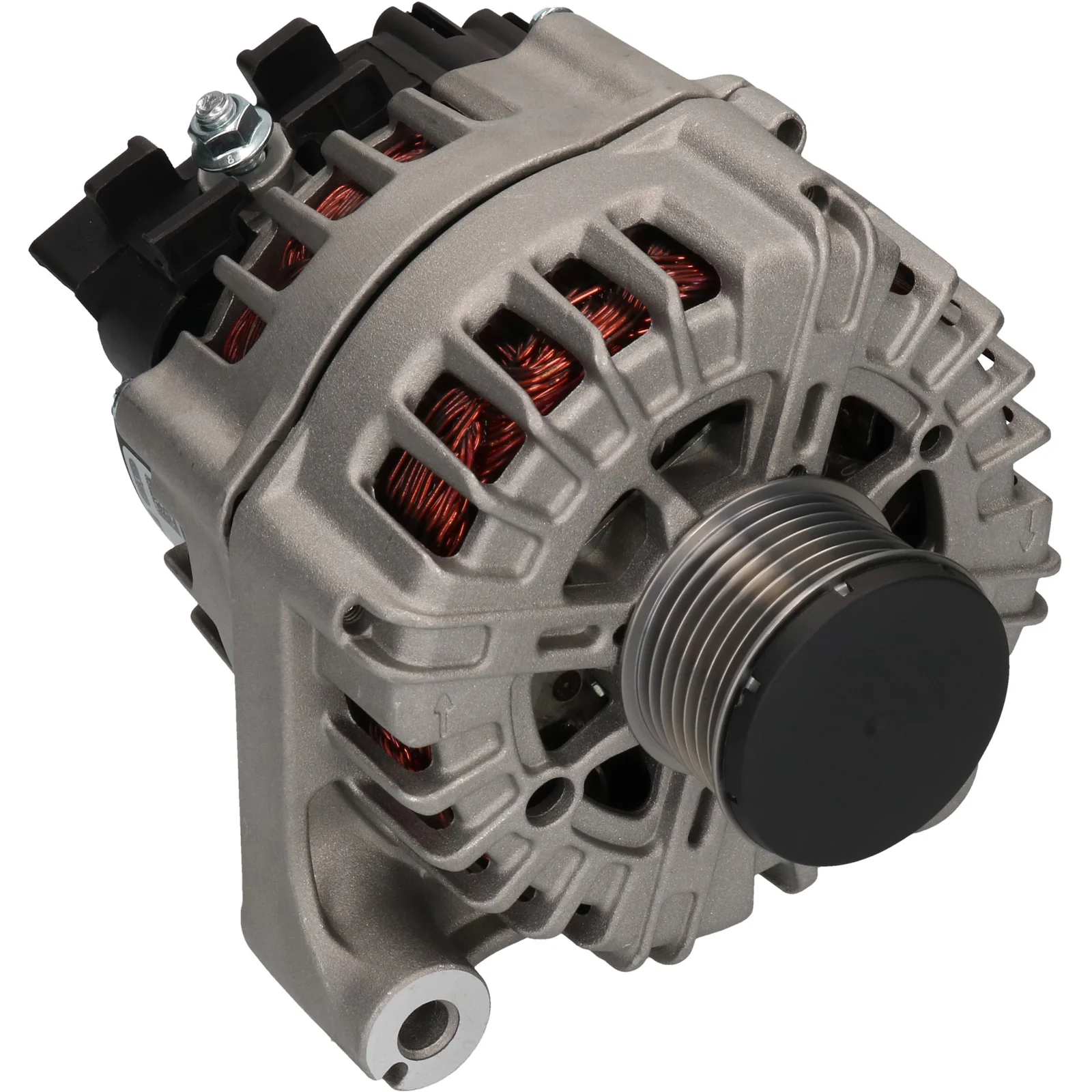

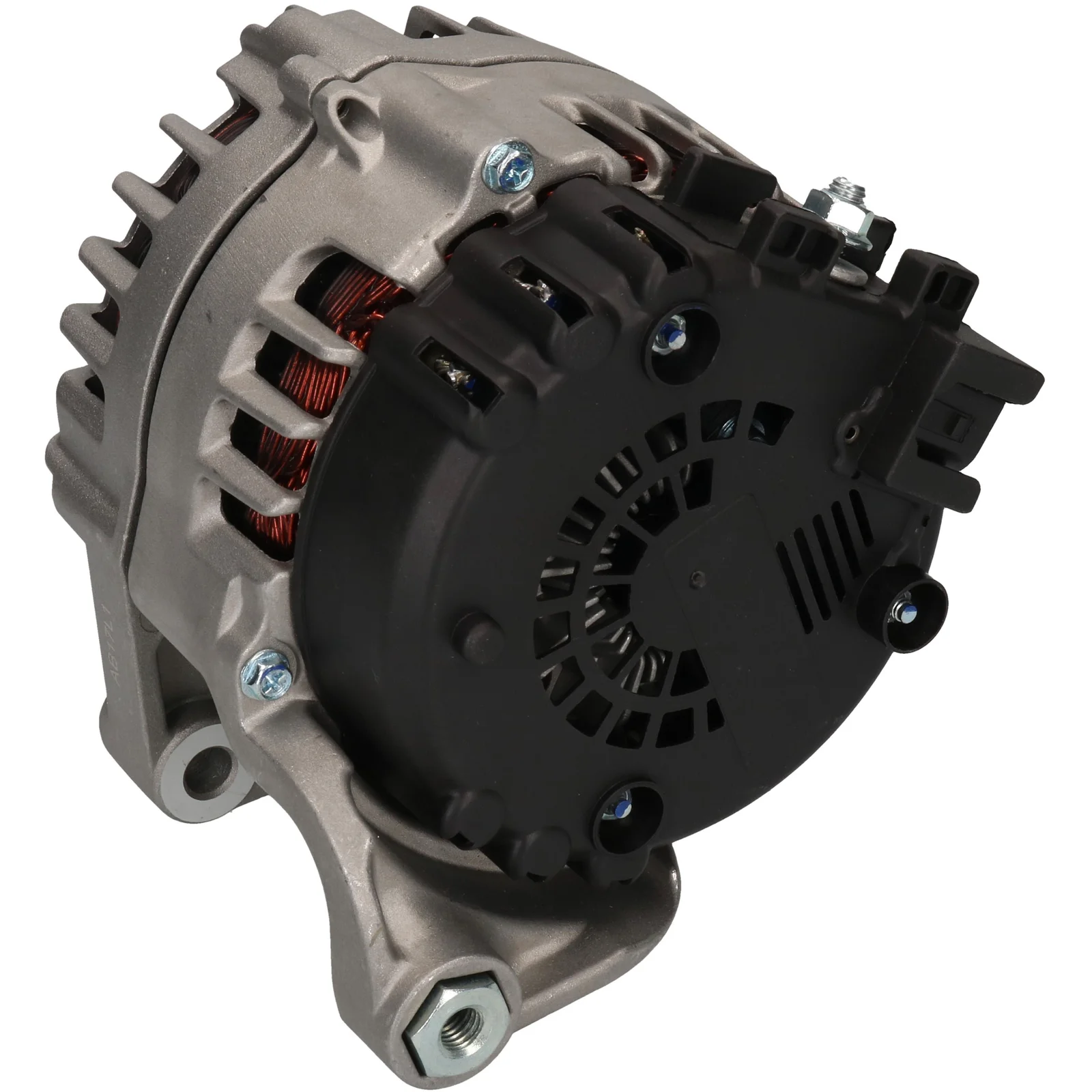

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 76.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 55.30
Width/holder arm: 28.00
Mount. bracket dist.: 76.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 7
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 76.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 55.30
Radius 92.00
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 28.00
Amp 220

  • OEM
    F032116138, FG23S011, FGN23S011, 2543517B, 2543517C, 7807187, 12317807187, 12317808075

  • Konkurrentreferens
    A3402S, CAL15523, DRA1254, LRA03642, 8EL011713-081, 28-6782, 215.198.2202, 215.583.220, 215.583.230, 24129N, 200216, 209272, 209272A, 439670, 440256, 553844RI, 9090572, 12090634, 32440256, 0986086670

  • Normaliserat artikelnummer
    a3402s, cal15523, dra1254, f032116138, fg23s011, fgn23s011, lra03642, 8el011713081, 24129n, 200216, 209272, 209272a, 286782, 439670, 440256, 553844ri, 2543517b, 2543517c, 7807187, 9090572, 12090634, 32440256, 215583220, 215583230, 0986086670, 2151982202, 12317807187, 12317808075

  • Passar modeller
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Model type: Gran Turismo Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-08-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: GRAN TURISMO Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07GT Body: Hatchback From date: 01-06-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-06-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F07GT Body: Hatchback From date: 01-03-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F07 Body: Hatchback From date: 01-03-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02 From date: 01-09-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 740 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57SD30B Type description: F01, F02 From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E70 From date: 01-09-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes
