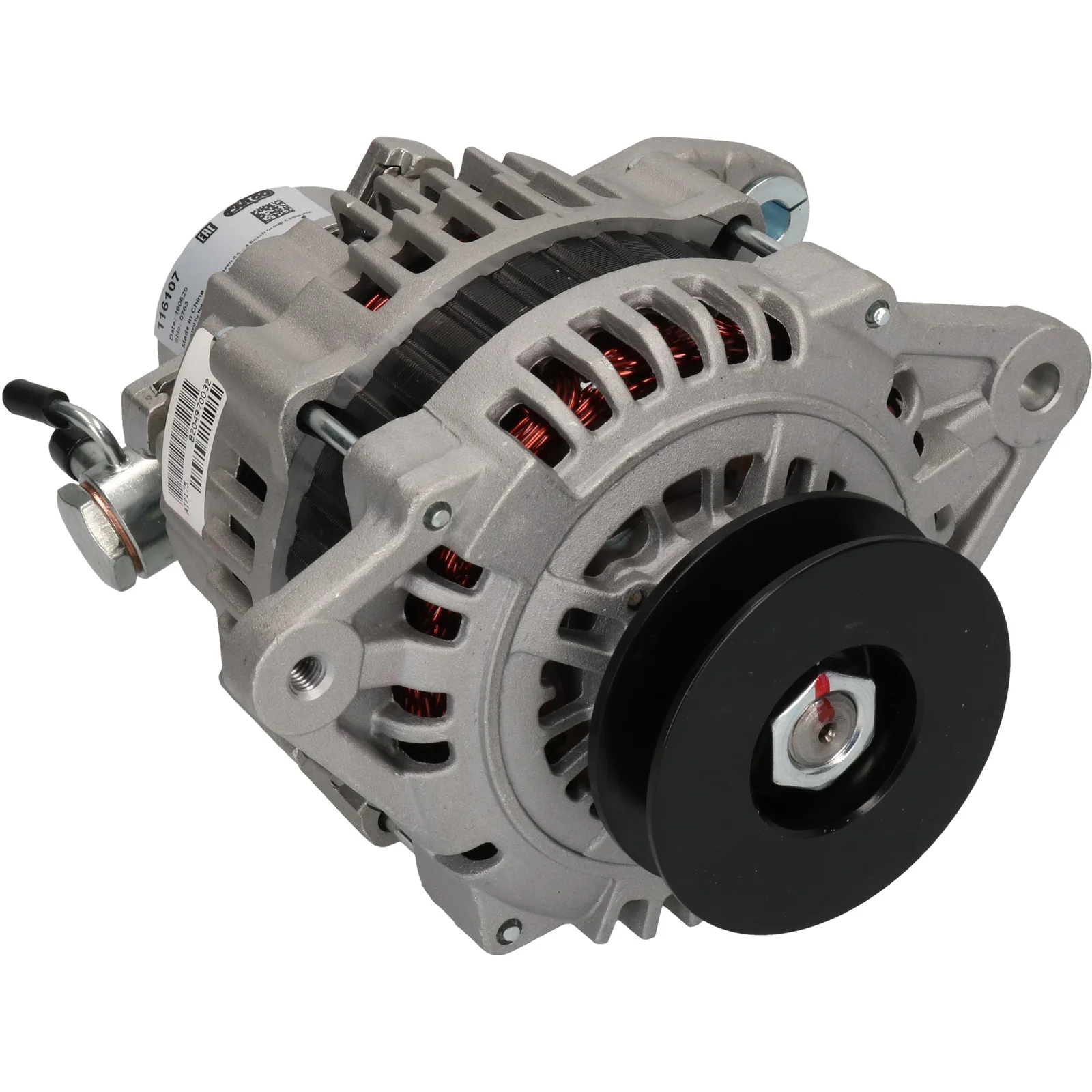

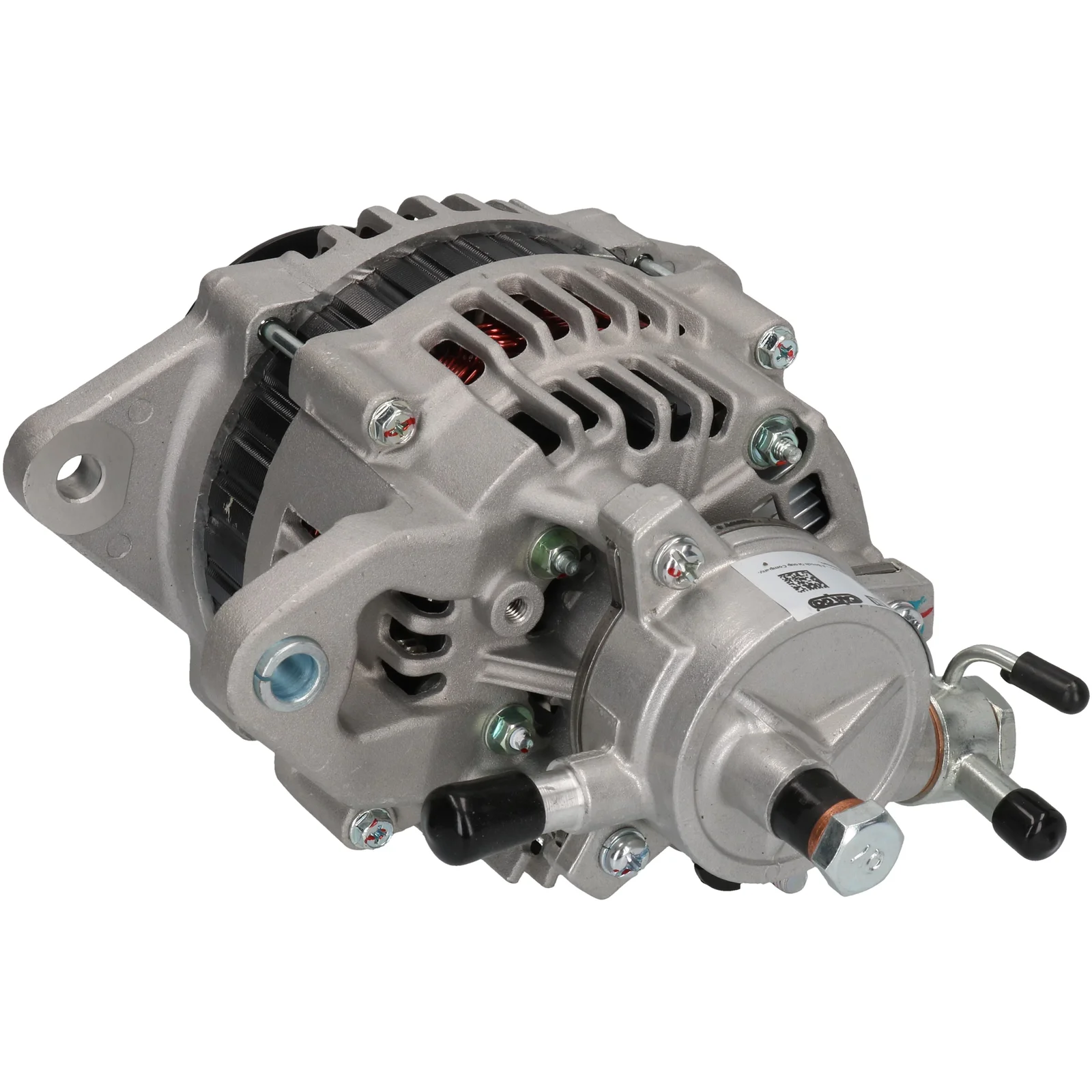

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116107

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 81.50

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 49.00
Width/holder arm: 18.00
Mount. bracket dist.: 81.50
Bracket hole: 12.20
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 82.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL07
Total length mm: 242.50
Terminal type: L-S
Pulley: P
Regulator type: IR
Vac. pump: Yes

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 12.20
Position/B+ in min. 10
Pulley P
Pulley dia. 82.00
Pulley dist. 49.00
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal type L-S
Vac. pump Yes
Voltage 14
Total length 242.50 mm
Width/holder arm 18.00
Amp 80

  • OEM
    F032116107, lr180-513, lr180-513B, 8973272181

  • Konkurrentreferens
    A2089S, CAL20244, DRA1024, F042205116, LRA03441, 28-6551, 135.606.080, 243.128.802, 20095, 20095N

  • Normaliserat artikelnummer
    a2089s, cal20244, dra1024, f032116107, f042205116, lr180513, lr180513b, lra03441, 20095, 20095n, 286551, 135606080, 243128802, 8973272181

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2004 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 2.5 Brand of engine: 4JK1-TC Body: Pick Up From date: 01-10-2008 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Type of engine: DiTD Size of motor: 3.0 Brand of engine: 4JH1-TC Body: Pick Up From date: 01-10-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 49.00
    Width/holder arm: 18.00
    Mount. bracket dist.: 81.50
    Bracket hole: 12.20
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 82.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL07
    Total length mm: 242.50
    Terminal type: L-S
    Pulley: P
    Regulator type: IR
    Vac. pump: Yes

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 12.20
    Position/B+ in min. 10
    Pulley P
    Pulley dia. 82.00
    Pulley dist. 49.00
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal type L-S
    Vac. pump Yes
    Voltage 14
    Total length 242.50 mm
    Width/holder arm 18.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032116107, lr180-513, lr180-513B, 8973272181

    • Konkurrentreferens
      A2089S, CAL20244, DRA1024, F042205116, LRA03441, 28-6551, 135.606.080, 243.128.802, 20095, 20095N

    • Normaliserat artikelnummer
      a2089s, cal20244, dra1024, f032116107, f042205116, lr180513, lr180513b, lra03441, 20095, 20095n, 286551, 135606080, 243128802, 8973272181

    • Passar modeller
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2004 To date: 01-09-2008 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 2.5 Brand of engine: 4JK1-TC Body: Pick Up From date: 01-10-2008 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Type of engine: DiTD Size of motor: 3.0 Brand of engine: 4JH1-TC Body: Pick Up From date: 01-10-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
