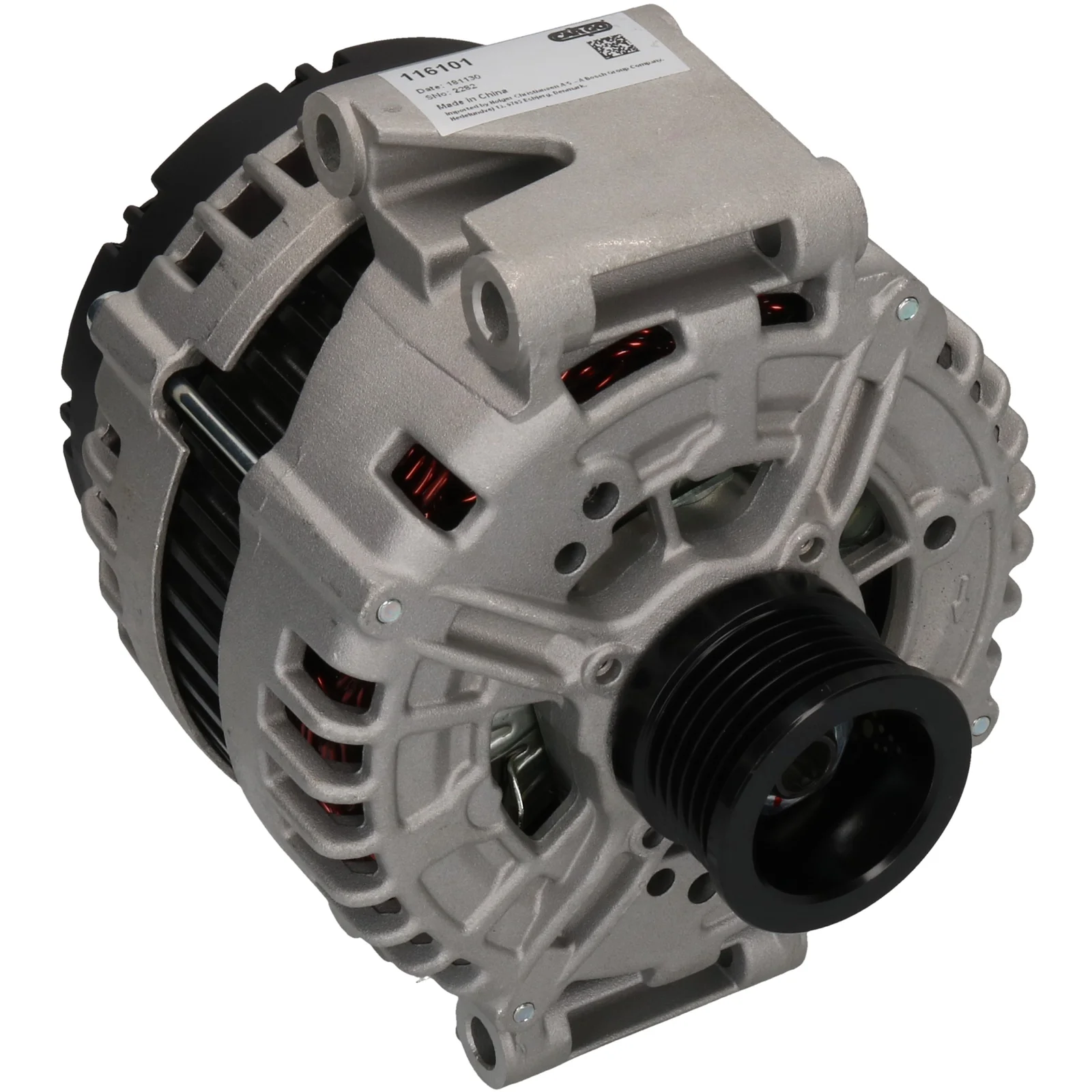

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116101

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 32.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.20
Bracket hole 2: 9.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.20
Belt. adj. bracket hole 2: 9.20
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL86
Total length mm: 182.50
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Belt. adj. bracket hole 2 9.20
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.20
Bracket hole 2 9.20
Position/B+ in min. 10
Pulley SP
Pulley dia. 50.00
Pulley dist. 32.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 182.50 mm
Width/holder arm 70.00
Amp 220

  • OEM
    a0131545502, A013154550280, F032116101, 0121813006, 0121813106, 0131545502, 013154550280

  • Konkurrentreferens
    A0214, A0214R, DRA0695, 28-6957, 225.320.2202, 555.570.220, 11310R, 553806RI, 9090801, 12090413, 0986048430, 0986048433, 0986048434, 0986048437

  • Normaliserat artikelnummer
    a0131545502, a013154550280, a0214, a0214r, dra0695, f032116101, 11310r, 286957, 553806ri, 9090801, 12090413, 0121813006, 0121813106, 0131545502, 555570220, 0986048430, 0986048433, 0986048434, 0986048437, 2253202202, 013154550280

  • Passar modeller
    Mercedes-Benz Model: 350 Model series: S 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.975 Type description: W221 From date: 01-02-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 450 Model series: S 450 Model type: 4 Matic Size of motor: 4.7 Brand of engine: M273.924 Type description: W221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: CL 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.968 Type description: C216 Body: Coupe From date: 01-02-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: S 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.961 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: S 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.968 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 32.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.20
    Bracket hole 2: 9.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.20
    Belt. adj. bracket hole 2: 9.20
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL86
    Total length mm: 182.50
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.20
    Belt. adj. bracket hole 2 9.20
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.20
    Bracket hole 2 9.20
    Position/B+ in min. 10
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 32.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 182.50 mm
    Width/holder arm 70.00
    Amp 220
  • Fordonsmatchning

    • OEM
      a0131545502, A013154550280, F032116101, 0121813006, 0121813106, 0131545502, 013154550280

    • Konkurrentreferens
      A0214, A0214R, DRA0695, 28-6957, 225.320.2202, 555.570.220, 11310R, 553806RI, 9090801, 12090413, 0986048430, 0986048433, 0986048434, 0986048437

    • Normaliserat artikelnummer
      a0131545502, a013154550280, a0214, a0214r, dra0695, f032116101, 11310r, 286957, 553806ri, 9090801, 12090413, 0121813006, 0121813106, 0131545502, 555570220, 0986048430, 0986048433, 0986048434, 0986048437, 2253202202, 013154550280

    • Passar modeller
      Mercedes-Benz Model: 350 Model series: S 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.975 Type description: W221 From date: 01-02-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 450 Model series: S 450 Model type: 4 Matic Size of motor: 4.7 Brand of engine: M273.924 Type description: W221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: CL 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.968 Type description: C216 Body: Coupe From date: 01-02-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: S 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.961 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: S 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.968 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
