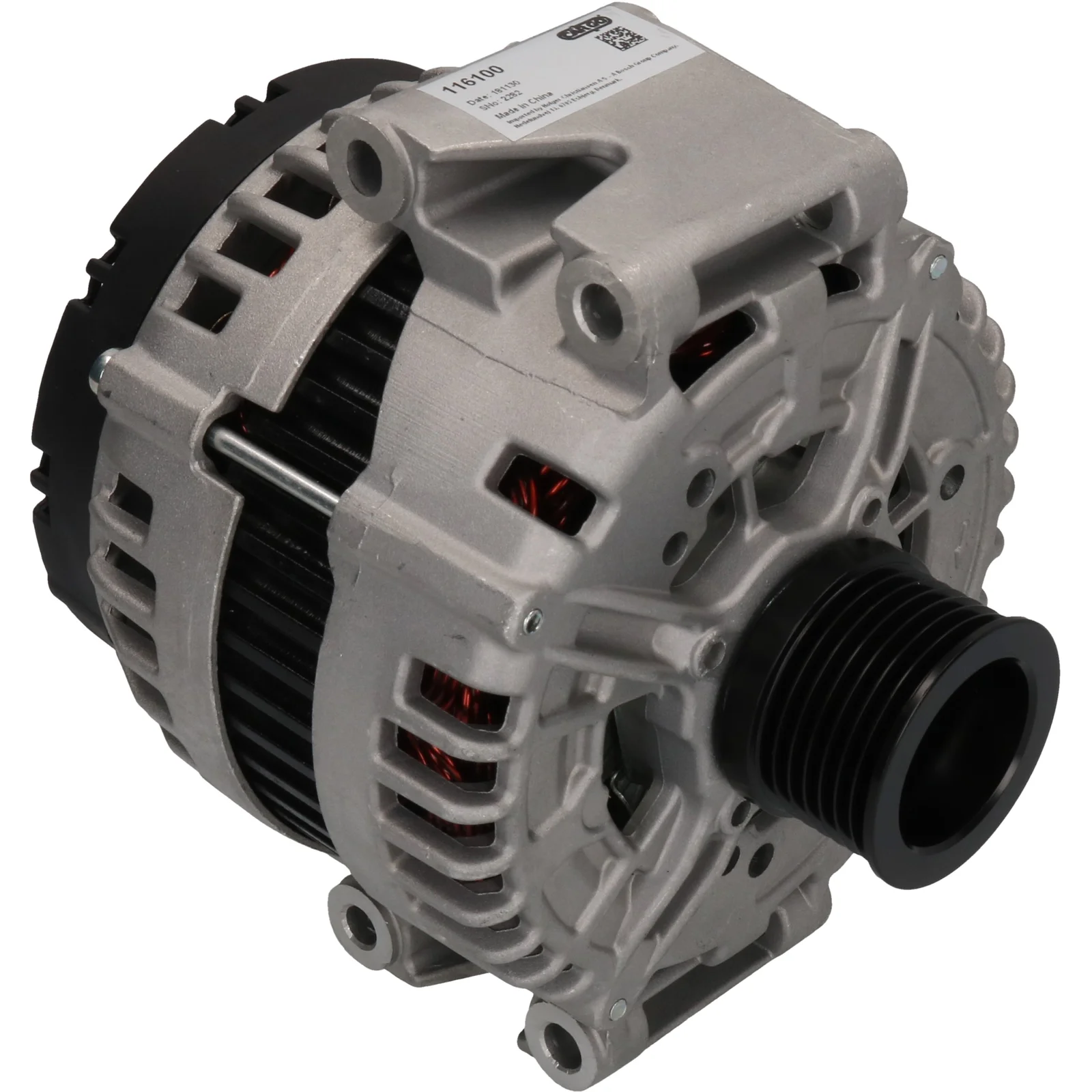

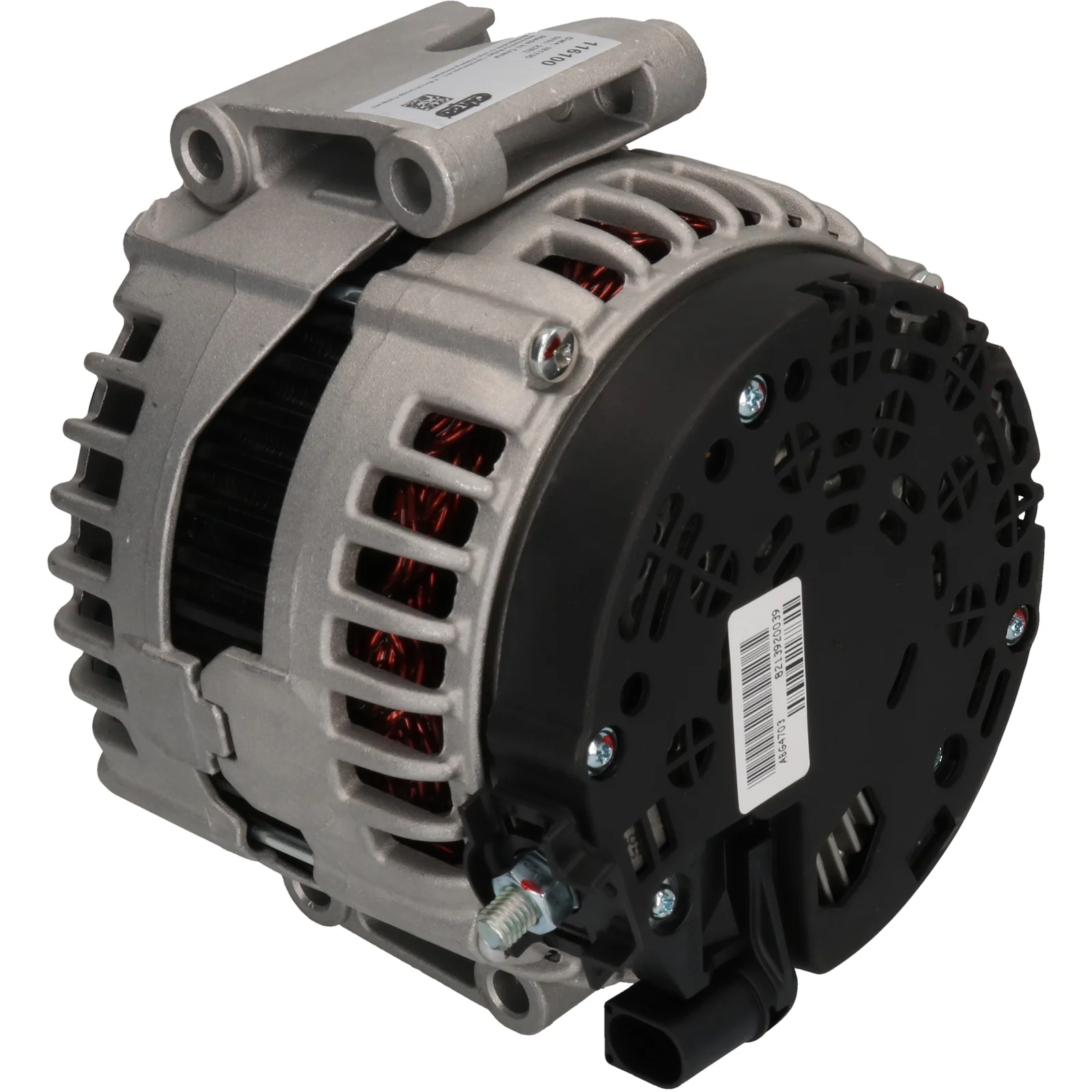

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116100

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 32.20
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.50
Bracket hole 2: 9.50
Belt. adj. brackethole pos.: 30
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 50.00
Grooves/pulley: 7
Radius: 81.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL86
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Belt. adj. brackethole pos. 30
Plug no. PL86
Bracket hole 9.50
Bracket hole 2 9.50
Position/B+ in min. 10
Pulley SP
Pulley dia. 50.00
Pulley dist. 32.20
Radius 81.00
Radius 2 81.00
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 70.00
Amp 220

  • OEM
    A0131540602, A013154060280, A013154060287, F032116100, 0121813002, 0121813102, 0131540602, 013154060280, 013154060287

  • Konkurrentreferens
    A0504, CAL10454, DRB7790, 28-7521, 225.322.2202, 555.552.220, 11304N, 443299, 553634RI, 12047790, 0986047790, 0986047793, 0986047797

  • Normaliserat artikelnummer
    a0131540602, a013154060280, a013154060287, a0504, cal10454, drb7790, f032116100, 11304n, 287521, 443299, 553634ri, 12047790, 0121813002, 0121813102, 0131540602, 555552220, 0986047790, 0986047793, 0986047797, 2253222202, 013154060280, 013154060287

  • Passar modeller
    Mercedes-Benz Model: 350 Model series: S 350 Model type: 4-Matic Size of motor: 3.0 Brand of engine: OM642.868 Type description: W221 From date: 01-04-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: S 350 Size of motor: 3.0 Brand of engine: OM642.862 Type description: W221 From date: 01-04-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 600 Model series: CL 600 Size of motor: 5.5 Brand of engine: M275.953 Type description: 216 Body: Coupe From date: 01-05-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 600 Model series: S 600 Size of motor: 5.5 Brand of engine: M275.953 Type description: 221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 65 AMG Model series: CL 65 AMG Model type: AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: C216 Body: Coupe From date: 01-02-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 65 AMG Model series: S 65 AMG Model type: AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: W221 From date: 01-10-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 65 Model series: CL 65 AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: 216 Body: Coupe From date: 01-10-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 65 Model series: S 65 AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: 221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 32.20
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.50
    Bracket hole 2: 9.50
    Belt. adj. brackethole pos.: 30
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 50.00
    Grooves/pulley: 7
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL86
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.50
    Belt. adj. brackethole pos. 30
    Plug no. PL86
    Bracket hole 9.50
    Bracket hole 2 9.50
    Position/B+ in min. 10
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 32.20
    Radius 81.00
    Radius 2 81.00
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 70.00
    Amp 220
  • Fordonsmatchning

    • OEM
      A0131540602, A013154060280, A013154060287, F032116100, 0121813002, 0121813102, 0131540602, 013154060280, 013154060287

    • Konkurrentreferens
      A0504, CAL10454, DRB7790, 28-7521, 225.322.2202, 555.552.220, 11304N, 443299, 553634RI, 12047790, 0986047790, 0986047793, 0986047797

    • Normaliserat artikelnummer
      a0131540602, a013154060280, a013154060287, a0504, cal10454, drb7790, f032116100, 11304n, 287521, 443299, 553634ri, 12047790, 0121813002, 0121813102, 0131540602, 555552220, 0986047790, 0986047793, 0986047797, 2253222202, 013154060280, 013154060287

    • Passar modeller
      Mercedes-Benz Model: 350 Model series: S 350 Model type: 4-Matic Size of motor: 3.0 Brand of engine: OM642.868 Type description: W221 From date: 01-04-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: S 350 Size of motor: 3.0 Brand of engine: OM642.862 Type description: W221 From date: 01-04-2011 To date: 01-12-2013 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 600 Model series: CL 600 Size of motor: 5.5 Brand of engine: M275.953 Type description: 216 Body: Coupe From date: 01-05-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 600 Model series: S 600 Size of motor: 5.5 Brand of engine: M275.953 Type description: 221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 65 AMG Model series: CL 65 AMG Model type: AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: C216 Body: Coupe From date: 01-02-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 65 AMG Model series: S 65 AMG Model type: AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: W221 From date: 01-10-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 65 Model series: CL 65 AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: 216 Body: Coupe From date: 01-10-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 65 Model series: S 65 AMG Size of motor: 6.0 Brand of engine: M275.982 Type description: 221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
