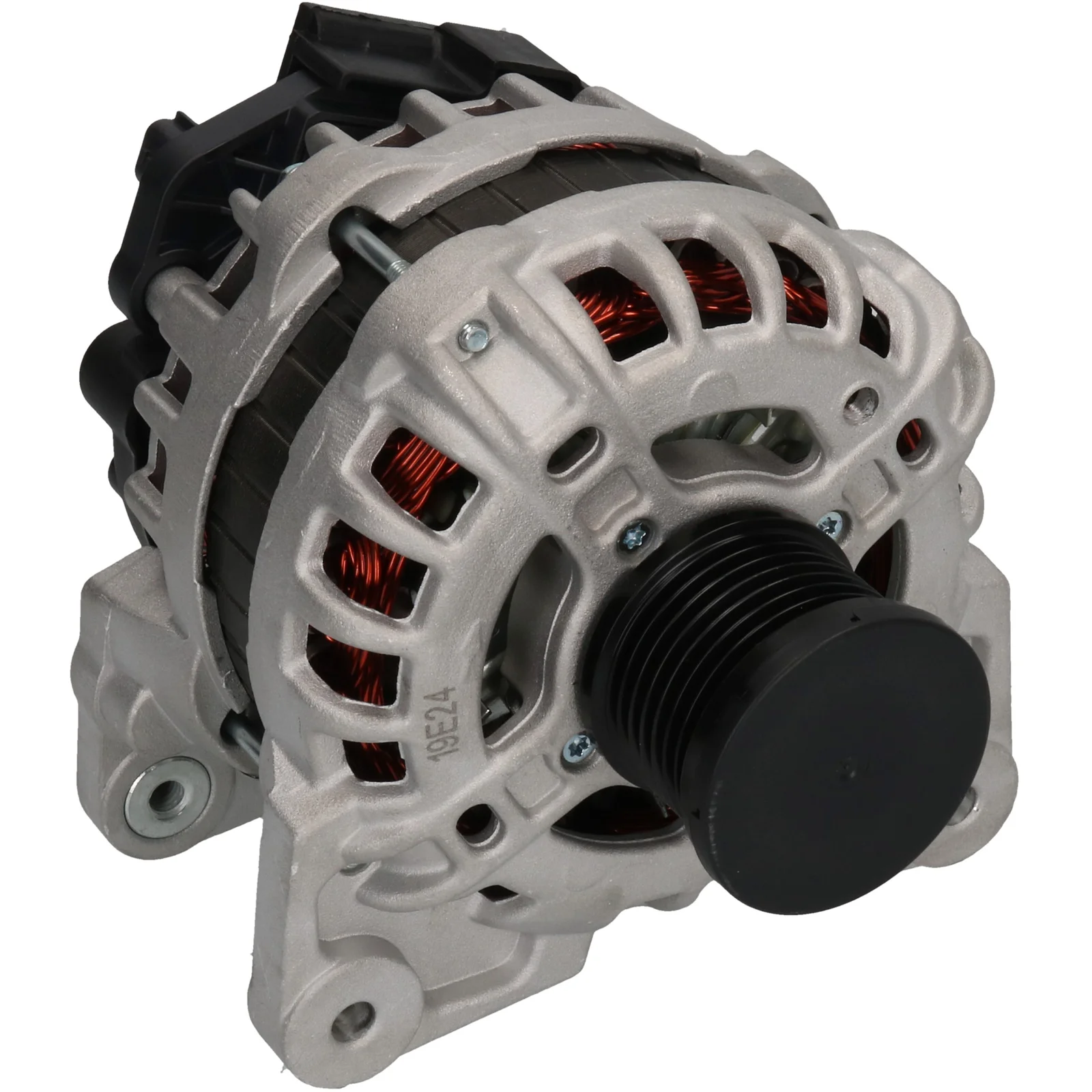

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116095

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

HC-Cargo Generator 14V - 90A, 7g

Voltage: 14
Amp: 90
Pulley dist.: 32.30
Width/holder arm: 14.50
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL131
Total length mm: 179.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 32.30
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 179.00 mm
Width/holder arm 14.50
Amp 90

  • OEM
    A0710S, A4539063900, CAL10559, DRA1365, F000 BL0 410, F000 BL0 4C3, F000 BL0 4C4, F000BL0410, F000BL04BF, F000BL04C3, F000BL04C4, F000BL04CX, F000BL502G, F032116095, 8EL011713-661, 28-6981, 230.359.902, 575.946.090, 575.954.090, 1986A01559, 20641N, 23100-2243R, 23100-6007R, 23100-7644R, 23100-8593R, 116095, 444344, 446530, 554467RI, 12090700, 32118603, 231002243, 231002243R, 231002854, 231002854R, 231006007, 231006007R, 231007644, 231008593, 231008593R, 0986085170, 0986086240, 4539063900, 8201342064

  • Konkurrentreferens
    A0710S, CAL10559, DRA1365, 8EL011713-661, 28-6981, 230.359.902, 575.946.090, 575.954.090, 20641N, 444344, 446530, 554467RI, 12090700, 32118603, 0986085170, 0986086240

  • Bilmärken
    DACIA, RENAULT, SMART

  • Normaliserat artikelnummer
    a0710s, a4539063900, cal10559, dra1365, f000bl0410, f000bl04bf, f000bl04c3, f000bl04c4, f000bl04cx, f000bl502g, f032116095, 8el011713661, 1986a01559, 20641n, 116095, 286981, 444344, 446530, 554467ri, 12090700, 32118603, 230359902, 231002243, 231002243r, 231002854, 231002854r, 231006007, 231006007r, 231007644, 231007644r, 231008593, 231008593r, 575946090, 575954090, 0986085170, 0986086240, 4539063900, 8201342064

  • Passar modeller
    DACIA DOKKER Minibus, minivan (KE_) 1.2 TCe (KEM0, KEAY) Engine volume: 1.2 Engine type: H5F 402, H5F 408 Year: 11.12-12.21
    DACIA DOKKER Skåp/stor limousine 1.2 TCe 115 (FEAY) Engine volume: 1.2 Engine type: H5F 408 Year: 07.15-12.21
    DACIA DOKKER Skåp/stor limousine 1.2 TCe 115 (FEM0) Engine volume: 1.2 Engine type: H5F 402 Year: 12.12-12.15
    DACIA DUSTER (HM_) 1.2 TCe 125 4x4 (HMMA) Engine volume: 1.2 Engine type: H5F 410 Year: 10.17-
    DACIA LODGY (JS_) 1.2 TCe (JSAY, JSM0) Engine volume: 1.2 Engine type: H5F 402, H5F 408 Year: 03.12-
    DACIA LOGAN II TCe 90 (L8MA, L8M1, L8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 10.12-
    DACIA LOGAN II TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410, H4B 405 Year: 09.15-
    DACIA LOGAN MCV II TCe 90 (K8M1, K8MA, K8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 02.13-
    DACIA LOGAN MCV II TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410, H4B 405 Year: 09.15-
    DACIA SANDERO II (B8_) TCe 90 (B8M1, B8MA, B8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 411, H4B 410, H4B 408 Year: 10.12-
    DACIA SANDERO II (B8_) TCe 90 LPG (B8M1) Engine volume: 0.9 Engine type: H4B 410 Year: 09.15-
    RENAULT CAPTUR I (J5_, H5_) 0.9 TCe 90 Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 06.13-12.19
    RENAULT CLIO IV (BH_) 0.9 TCe 75 (BHNP) Engine volume: 0.9 Engine type: H4B 408 Year: 05.18-08.21
    RENAULT CLIO IV (BH_) 0.9 TCe 90 (BHNF, BHMA, BHMH, BHJK, BHJR) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 11.12-08.21
    RENAULT CLIO IV (BH_) 0.9 TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410 Year: 06.16-08.21
    RENAULT CLIO IV Skåp / kombi (KH_) 0.9 TCe 90 Engine volume: 0.9 Engine type: H4B 400 Year: 01.14-08.21
    RENAULT CLIO IV Skåp / kombi (KH_) 1.5 dCi 75 Engine volume: 1.5 Engine type: K9K 612 Year: 01.14-08.21
    RENAULT CLIO IV Skåp/halvkombi (BH_) 0.9 TCe 75 Engine volume: 0.9 Engine type: H4B 408 Year: 01.14-08.21
    RENAULT CLIO IV Skåp/halvkombi (BH_) 0.9 TCe 90 Engine volume: 0.9 Engine type: H4B 400, H4B 408 Year: 01.14-08.21
    RENAULT CLIO IV Sport Tourer (KH_) 0.9 TCe 75 (KHNP) Engine volume: 0.9 Engine type: H4B 408 Year: 08.18-08.21
    RENAULT CLIO IV Sport Tourer (KH_) 0.9 TCe 90 (KHJR, KHMA, KHM1) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 01.13-08.21
    RENAULT CLIO IV Sport Tourer (KH_) 1.5 dCi 75 Engine volume: 1.5 Engine type: K9K 612, K9K 628 Year: 01.13-08.21
    RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 110 Engine volume: 0.9 Engine type: H4B 401 Year: 11.16-04.19
    RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 90 (BCM9, BCM2) Engine volume: 0.9 Engine type: H4B 401 Year: 09.14-04.19
    RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 90 LPG (BCMD) Engine volume: 0.9 Engine type: H4B 451 Year: 08.18-04.19
    RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 95 Engine volume: 0.9 Engine type: H4B 453 Year: 03.19-01.21
    RENAULT TWINGO III (BCM_, BCA_) 1.0 SCe 65 (BCMJ) Engine volume: 1.0 Engine type: B4D 403, B4D413 Year: 03.19-07.24
    RENAULT TWINGO III (BCM_, BCA_) 1.0 SCe 70 (BCMB) Engine volume: 1.0 Engine type: H4D 400 Year: 09.15-04.19
    RENAULT TWINGO III (BCM_, BCA_) 1.0 SCe 70 Engine volume: 1.0 Engine type: H4D 400 Year: 09.14-04.19
    SMART FORFOUR Halvkombi (453) 0.9 (453.044, 453.053) Engine volume: 0.9 Engine type: H4B 409, M 281.910 Year: 11.14-
    SMART FORFOUR Halvkombi (453) 0.9 Brabus (453.062) Engine volume: 0.9 Engine type: M 281.910 Year: 07.16-
    SMART FORFOUR Halvkombi (453) 1.0 (453.041) Engine volume: 1.0 Engine type: M 281.920 Year: 11.14-
    SMART FORFOUR Halvkombi (453) 1.0 (453.042, 453.043) Engine volume: 1.0 Engine type: M 281.920 Year: 07.14-
    SMART FORTWO Cabriolet (453) 0.9 (453.444, 453.453) Engine volume: 0.9 Engine type: M 281.910 Year: 09.15-
    SMART FORTWO Cabriolet (453) 0.9 Brabus (453.462) Engine volume: 0.9 Engine type: M 281.910 Year: 07.16-
    SMART FORTWO Cabriolet (453) 1.0 (453.442, 453.443) Engine volume: 1.0 Engine type: M 281.920 Year: 09.15-
    SMART FORTWO Coupé (453) 0.9 (453.344, 453.353) Engine volume: 0.9 Engine type: M 281.910 Year: 09.14-
    SMART FORTWO Coupé (453) 0.9 Brabus (453.362) Engine volume: 0.9 Engine type: M 281.910 Year: 07.16-
    SMART FORTWO Coupé (453) 1.0 (453.341) Engine volume: 1.0 Engine type: M 281.920 Year: 11.14-
    SMART FORTWO Coupé (453) 1.0 (453.342, 453.343) Engine volume: 1.0 Engine type: M 281.920 Year: 07.14-
    1 / 8
  • Beskrivning
    HC-Cargo Generator 14V - 90A, 7g

    Voltage: 14
    Amp: 90
    Pulley dist.: 32.30
    Width/holder arm: 14.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL131
    Total length mm: 179.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 32.30
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 14.50
    Amp 90
  • Fordonsmatchning

    • OEM
      A0710S, A4539063900, CAL10559, DRA1365, F000 BL0 410, F000 BL0 4C3, F000 BL0 4C4, F000BL0410, F000BL04BF, F000BL04C3, F000BL04C4, F000BL04CX, F000BL502G, F032116095, 8EL011713-661, 28-6981, 230.359.902, 575.946.090, 575.954.090, 1986A01559, 20641N, 23100-2243R, 23100-6007R, 23100-7644R, 23100-8593R, 116095, 444344, 446530, 554467RI, 12090700, 32118603, 231002243, 231002243R, 231002854, 231002854R, 231006007, 231006007R, 231007644, 231008593, 231008593R, 0986085170, 0986086240, 4539063900, 8201342064

    • Konkurrentreferens
      A0710S, CAL10559, DRA1365, 8EL011713-661, 28-6981, 230.359.902, 575.946.090, 575.954.090, 20641N, 444344, 446530, 554467RI, 12090700, 32118603, 0986085170, 0986086240

    • Bilmärken
      DACIA, RENAULT, SMART

    • Normaliserat artikelnummer
      a0710s, a4539063900, cal10559, dra1365, f000bl0410, f000bl04bf, f000bl04c3, f000bl04c4, f000bl04cx, f000bl502g, f032116095, 8el011713661, 1986a01559, 20641n, 116095, 286981, 444344, 446530, 554467ri, 12090700, 32118603, 230359902, 231002243, 231002243r, 231002854, 231002854r, 231006007, 231006007r, 231007644, 231007644r, 231008593, 231008593r, 575946090, 575954090, 0986085170, 0986086240, 4539063900, 8201342064

    • Passar modeller
      DACIA DOKKER Minibus, minivan (KE_) 1.2 TCe (KEM0, KEAY) Engine volume: 1.2 Engine type: H5F 402, H5F 408 Year: 11.12-12.21
      DACIA DOKKER Skåp/stor limousine 1.2 TCe 115 (FEAY) Engine volume: 1.2 Engine type: H5F 408 Year: 07.15-12.21
      DACIA DOKKER Skåp/stor limousine 1.2 TCe 115 (FEM0) Engine volume: 1.2 Engine type: H5F 402 Year: 12.12-12.15
      DACIA DUSTER (HM_) 1.2 TCe 125 4x4 (HMMA) Engine volume: 1.2 Engine type: H5F 410 Year: 10.17-
      DACIA LODGY (JS_) 1.2 TCe (JSAY, JSM0) Engine volume: 1.2 Engine type: H5F 402, H5F 408 Year: 03.12-
      DACIA LOGAN II TCe 90 (L8MA, L8M1, L8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 10.12-
      DACIA LOGAN II TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410, H4B 405 Year: 09.15-
      DACIA LOGAN MCV II TCe 90 (K8M1, K8MA, K8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 02.13-
      DACIA LOGAN MCV II TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410, H4B 405 Year: 09.15-
      DACIA SANDERO II (B8_) TCe 90 (B8M1, B8MA, B8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 411, H4B 410, H4B 408 Year: 10.12-
      DACIA SANDERO II (B8_) TCe 90 LPG (B8M1) Engine volume: 0.9 Engine type: H4B 410 Year: 09.15-
      RENAULT CAPTUR I (J5_, H5_) 0.9 TCe 90 Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 06.13-12.19
      RENAULT CLIO IV (BH_) 0.9 TCe 75 (BHNP) Engine volume: 0.9 Engine type: H4B 408 Year: 05.18-08.21
      RENAULT CLIO IV (BH_) 0.9 TCe 90 (BHNF, BHMA, BHMH, BHJK, BHJR) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 11.12-08.21
      RENAULT CLIO IV (BH_) 0.9 TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410 Year: 06.16-08.21
      RENAULT CLIO IV Skåp / kombi (KH_) 0.9 TCe 90 Engine volume: 0.9 Engine type: H4B 400 Year: 01.14-08.21
      RENAULT CLIO IV Skåp / kombi (KH_) 1.5 dCi 75 Engine volume: 1.5 Engine type: K9K 612 Year: 01.14-08.21
      RENAULT CLIO IV Skåp/halvkombi (BH_) 0.9 TCe 75 Engine volume: 0.9 Engine type: H4B 408 Year: 01.14-08.21
      RENAULT CLIO IV Skåp/halvkombi (BH_) 0.9 TCe 90 Engine volume: 0.9 Engine type: H4B 400, H4B 408 Year: 01.14-08.21
      RENAULT CLIO IV Sport Tourer (KH_) 0.9 TCe 75 (KHNP) Engine volume: 0.9 Engine type: H4B 408 Year: 08.18-08.21
      RENAULT CLIO IV Sport Tourer (KH_) 0.9 TCe 90 (KHJR, KHMA, KHM1) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 01.13-08.21
      RENAULT CLIO IV Sport Tourer (KH_) 1.5 dCi 75 Engine volume: 1.5 Engine type: K9K 612, K9K 628 Year: 01.13-08.21
      RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 110 Engine volume: 0.9 Engine type: H4B 401 Year: 11.16-04.19
      RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 90 (BCM9, BCM2) Engine volume: 0.9 Engine type: H4B 401 Year: 09.14-04.19
      RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 90 LPG (BCMD) Engine volume: 0.9 Engine type: H4B 451 Year: 08.18-04.19
      RENAULT TWINGO III (BCM_, BCA_) 0.9 TCe 95 Engine volume: 0.9 Engine type: H4B 453 Year: 03.19-01.21
      RENAULT TWINGO III (BCM_, BCA_) 1.0 SCe 65 (BCMJ) Engine volume: 1.0 Engine type: B4D 403, B4D413 Year: 03.19-07.24
      RENAULT TWINGO III (BCM_, BCA_) 1.0 SCe 70 (BCMB) Engine volume: 1.0 Engine type: H4D 400 Year: 09.15-04.19
      RENAULT TWINGO III (BCM_, BCA_) 1.0 SCe 70 Engine volume: 1.0 Engine type: H4D 400 Year: 09.14-04.19
      SMART FORFOUR Halvkombi (453) 0.9 (453.044, 453.053) Engine volume: 0.9 Engine type: H4B 409, M 281.910 Year: 11.14-
      SMART FORFOUR Halvkombi (453) 0.9 Brabus (453.062) Engine volume: 0.9 Engine type: M 281.910 Year: 07.16-
      SMART FORFOUR Halvkombi (453) 1.0 (453.041) Engine volume: 1.0 Engine type: M 281.920 Year: 11.14-
      SMART FORFOUR Halvkombi (453) 1.0 (453.042, 453.043) Engine volume: 1.0 Engine type: M 281.920 Year: 07.14-
      SMART FORTWO Cabriolet (453) 0.9 (453.444, 453.453) Engine volume: 0.9 Engine type: M 281.910 Year: 09.15-
      SMART FORTWO Cabriolet (453) 0.9 Brabus (453.462) Engine volume: 0.9 Engine type: M 281.910 Year: 07.16-
      SMART FORTWO Cabriolet (453) 1.0 (453.442, 453.443) Engine volume: 1.0 Engine type: M 281.920 Year: 09.15-
      SMART FORTWO Coupé (453) 0.9 (453.344, 453.353) Engine volume: 0.9 Engine type: M 281.910 Year: 09.14-
      SMART FORTWO Coupé (453) 0.9 Brabus (453.362) Engine volume: 0.9 Engine type: M 281.910 Year: 07.16-
      SMART FORTWO Coupé (453) 1.0 (453.341) Engine volume: 1.0 Engine type: M 281.920 Year: 11.14-
      SMART FORTWO Coupé (453) 1.0 (453.342, 453.343) Engine volume: 1.0 Engine type: M 281.920 Year: 07.14-
      1 / 8
