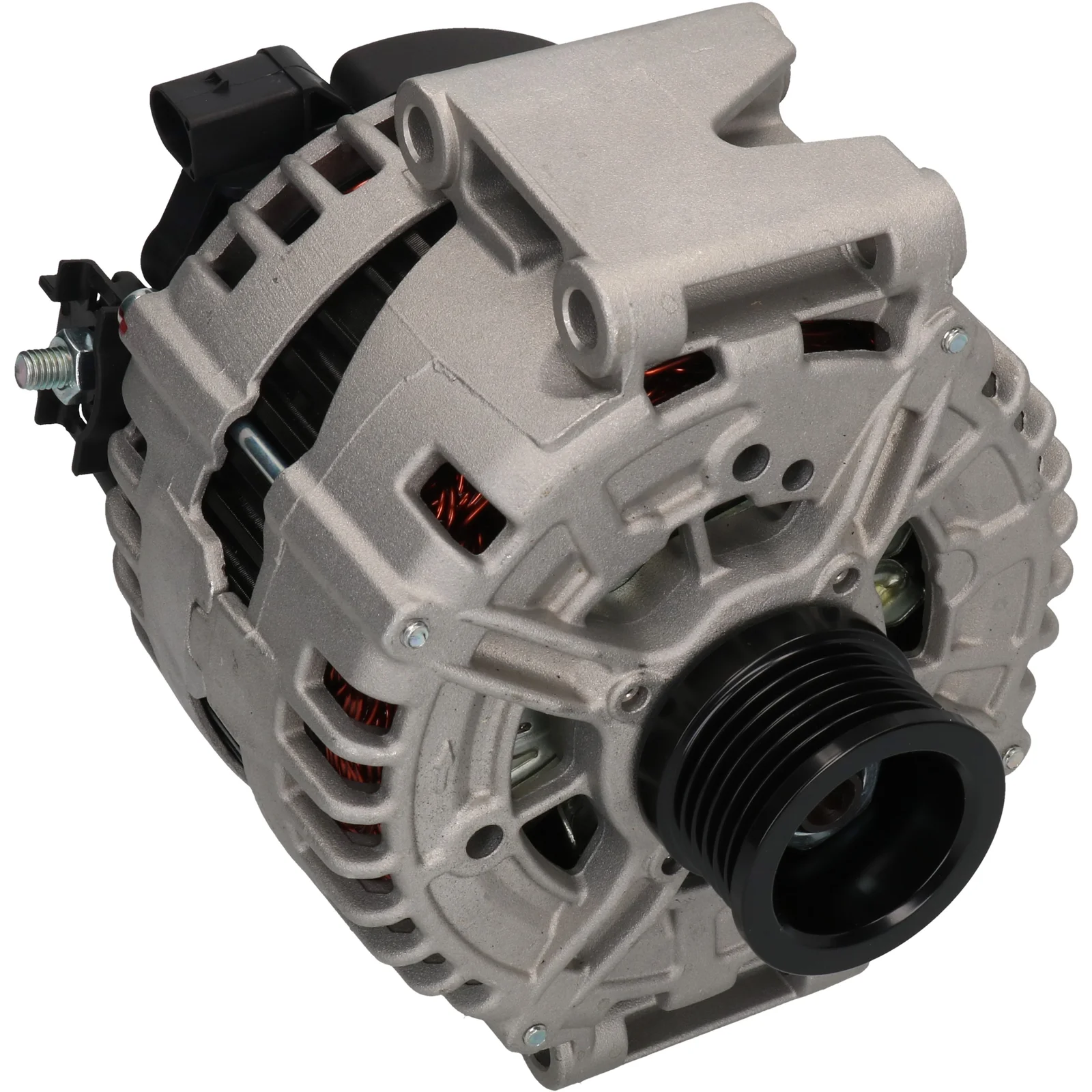

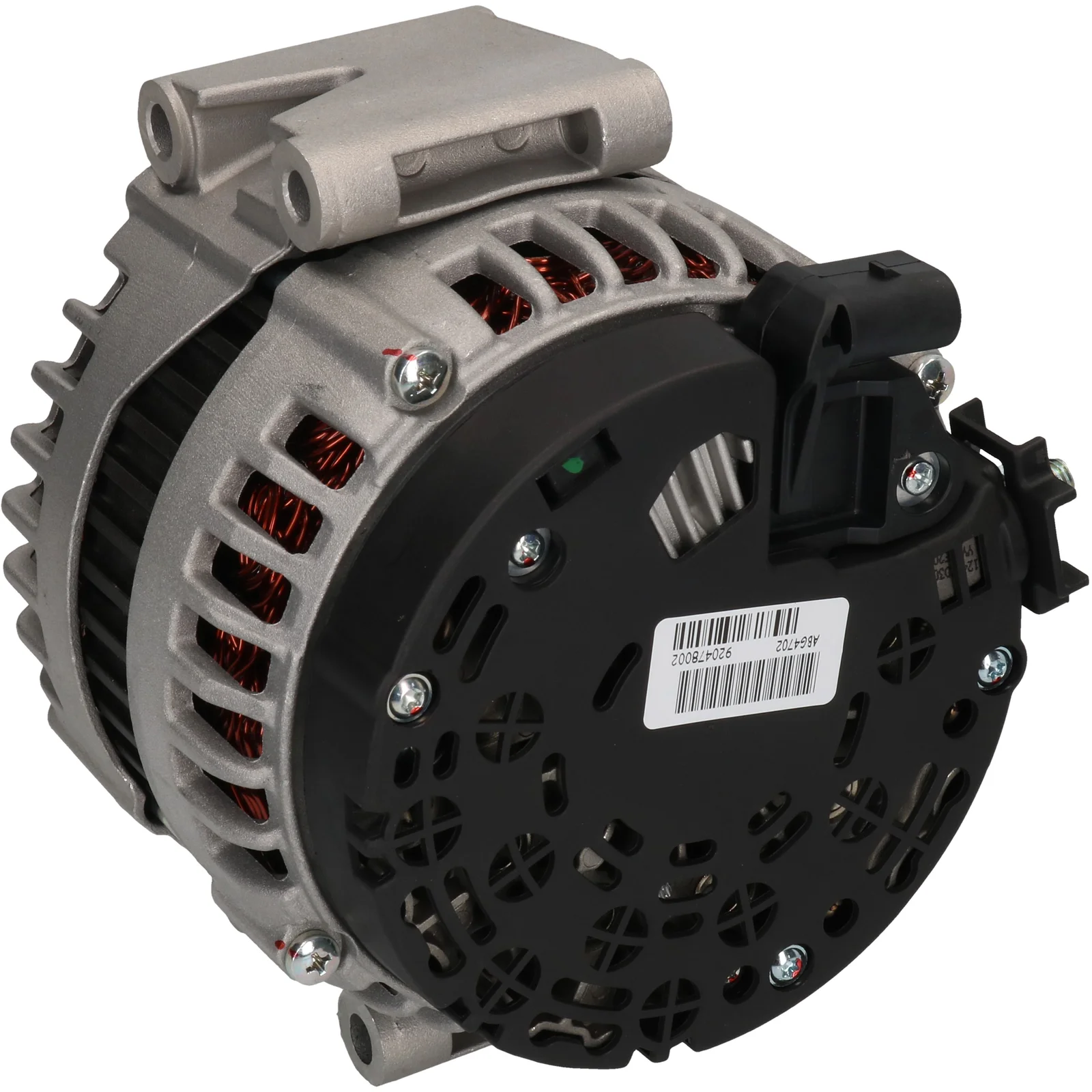

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116081

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 31.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.80
Bracket hole 2: 9.80
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.80
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 12
Rotation: CW
Plug no.: PL86
Total length mm: 181.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.80
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.80
Bracket hole 2 9.80
Position/B+ in min. 12
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.50
Radius 80.00
Radius 2 84.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 181.00 mm
Width/holder arm 70.00
Amp 220

  • OEM
    a0131540502, A013154050280, F032116081, 1986A00769, 06811843AA, 6811843AA, 68011843AA, 68011843AC, 68011843AD, 0121813001, 0121813101, 0131540502, 013154050280

  • Konkurrentreferens
    A0570S, CAL10389, DRB7640, LRA03135, 8EL011712-621, 28-5747, 225.182.202, 555.551.220, 11305N, 112207, 209080, 209080A, 440923, 443270, 553632RI, 9047640, 12047640, 32047640, 0986047640, 0986047643, 0986047644, 0986047647

  • Normaliserat artikelnummer
    a0131540502, a013154050280, a0570s, cal10389, drb7640, f032116081, lra03135, 8el011712621, 1986a00769, 11305n, 112207, 209080, 209080a, 285747, 440923, 443270, 553632ri, 06811843aa, 6811843aa, 9047640, 12047640, 32047640, 68011843aa, 68011843ac, 68011843ad, 0121813001, 0121813101, 0131540502, 225182202, 555551220, 0986047640, 0986047643, 0986047644, 0986047647, 013154050280

  • Passar modeller
    Mercedes-Benz Model: 280 Model series: S 280 Size of motor: 3.0 Brand of engine: M272.946 Type description: W221 From date: 01-08-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.972 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.972 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Size of motor: 3.5 Brand of engine: M272.972 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 164 From date: 01-02-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: S 350 Size of motor: 3.5 Brand of engine: M272.965 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 450 Model series: S 450 Size of motor: 4.7 Brand of engine: M273.922 Type description: W221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: CL 500 Size of motor: 5.5 Brand of engine: M273.961 Type description: 216 Body: Coupe From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: S 500 Size of motor: 5.5 Brand of engine: M273.961 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: E Model series: E-Class Model type: 4 Matic T-Model Size of motor: 3.5 Brand of engine: M272.972 Type description: S211 Body: Estate From date: 01-08-2004 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: S-Class Model series: S 300 Model type: S 300 (221.154) Size of motor: 3.0 Brand of engine: M272.946 Type description: W221, V221 Body: Saloon Fuel: Petrol Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 224 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 224 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 224 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 324 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 324 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 324 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 424 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 424 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 524 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 524 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Viano Model series: Viano Model type: 126 Size of motor: 3.5 Brand of engine: M272.978 Type description: W639 Body: MPV From date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Size of motor: 3.5 Brand of engine: M272.978 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Size of motor: 3.5 Brand of engine: M272.978 Type description: W639 Body: Van From date: 01-09-2007 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.80
    Bracket hole 2: 9.80
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.80
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 12
    Rotation: CW
    Plug no.: PL86
    Total length mm: 181.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.80
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.80
    Bracket hole 2 9.80
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 31.50
    Radius 80.00
    Radius 2 84.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 181.00 mm
    Width/holder arm 70.00
    Amp 220
  • Fordonsmatchning

    • OEM
      a0131540502, A013154050280, F032116081, 1986A00769, 06811843AA, 6811843AA, 68011843AA, 68011843AC, 68011843AD, 0121813001, 0121813101, 0131540502, 013154050280

    • Konkurrentreferens
      A0570S, CAL10389, DRB7640, LRA03135, 8EL011712-621, 28-5747, 225.182.202, 555.551.220, 11305N, 112207, 209080, 209080A, 440923, 443270, 553632RI, 9047640, 12047640, 32047640, 0986047640, 0986047643, 0986047644, 0986047647

    • Normaliserat artikelnummer
      a0131540502, a013154050280, a0570s, cal10389, drb7640, f032116081, lra03135, 8el011712621, 1986a00769, 11305n, 112207, 209080, 209080a, 285747, 440923, 443270, 553632ri, 06811843aa, 6811843aa, 9047640, 12047640, 32047640, 68011843aa, 68011843ac, 68011843ad, 0121813001, 0121813101, 0131540502, 225182202, 555551220, 0986047640, 0986047643, 0986047644, 0986047647, 013154050280

    • Passar modeller
      Mercedes-Benz Model: 280 Model series: S 280 Size of motor: 3.0 Brand of engine: M272.946 Type description: W221 From date: 01-08-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.972 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.972 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Size of motor: 3.5 Brand of engine: M272.964 Type description: 211 From date: 01-03-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Size of motor: 3.5 Brand of engine: M272.972 Type description: 211 Body: Estate From date: 01-03-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: ML 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 164 From date: 01-02-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: S 350 Size of motor: 3.5 Brand of engine: M272.965 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 450 Model series: S 450 Size of motor: 4.7 Brand of engine: M273.922 Type description: W221 From date: 01-12-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: CL 500 Size of motor: 5.5 Brand of engine: M273.961 Type description: 216 Body: Coupe From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: S 500 Size of motor: 5.5 Brand of engine: M273.961 Type description: 221 From date: 01-10-2005 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: E Model series: E-Class Model type: 4 Matic T-Model Size of motor: 3.5 Brand of engine: M272.972 Type description: S211 Body: Estate From date: 01-08-2004 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: S-Class Model series: S 300 Model type: S 300 (221.154) Size of motor: 3.0 Brand of engine: M272.946 Type description: W221, V221 Body: Saloon Fuel: Petrol Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 224 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 224 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 224 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 324 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Bus From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 324 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 324 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 424 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 424 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 524 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Platform / Chassis From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 524 Size of motor: 3.5 Brand of engine: M272.979 Type description: 906 Body: Van From date: 01-06-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Viano Model series: Viano Model type: 126 Size of motor: 3.5 Brand of engine: M272.978 Type description: W639 Body: MPV From date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Size of motor: 3.5 Brand of engine: M272.978 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Size of motor: 3.5 Brand of engine: M272.978 Type description: W639 Body: Van From date: 01-09-2007 Fuel: Gasoline Approved: Yes
      1 / 6
