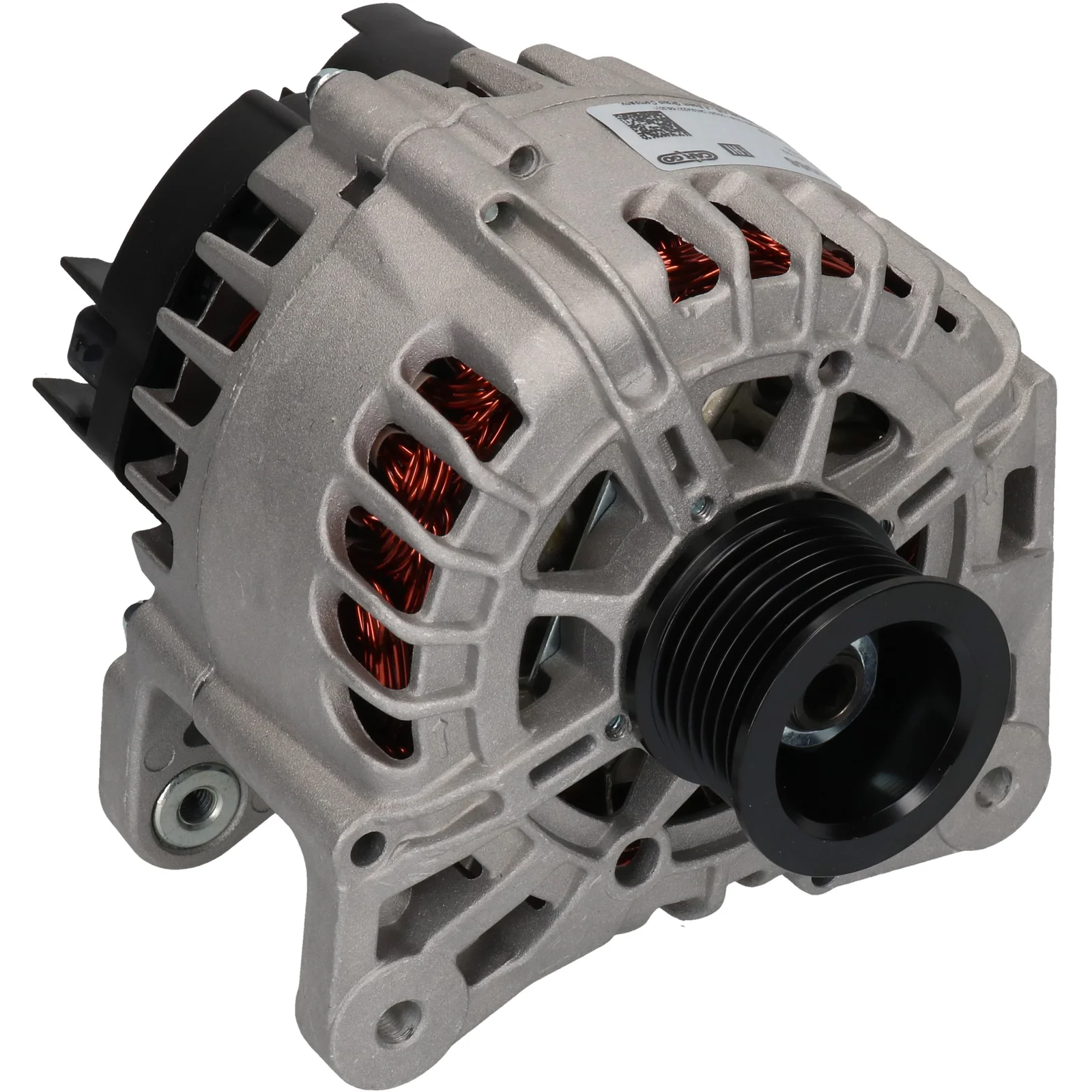

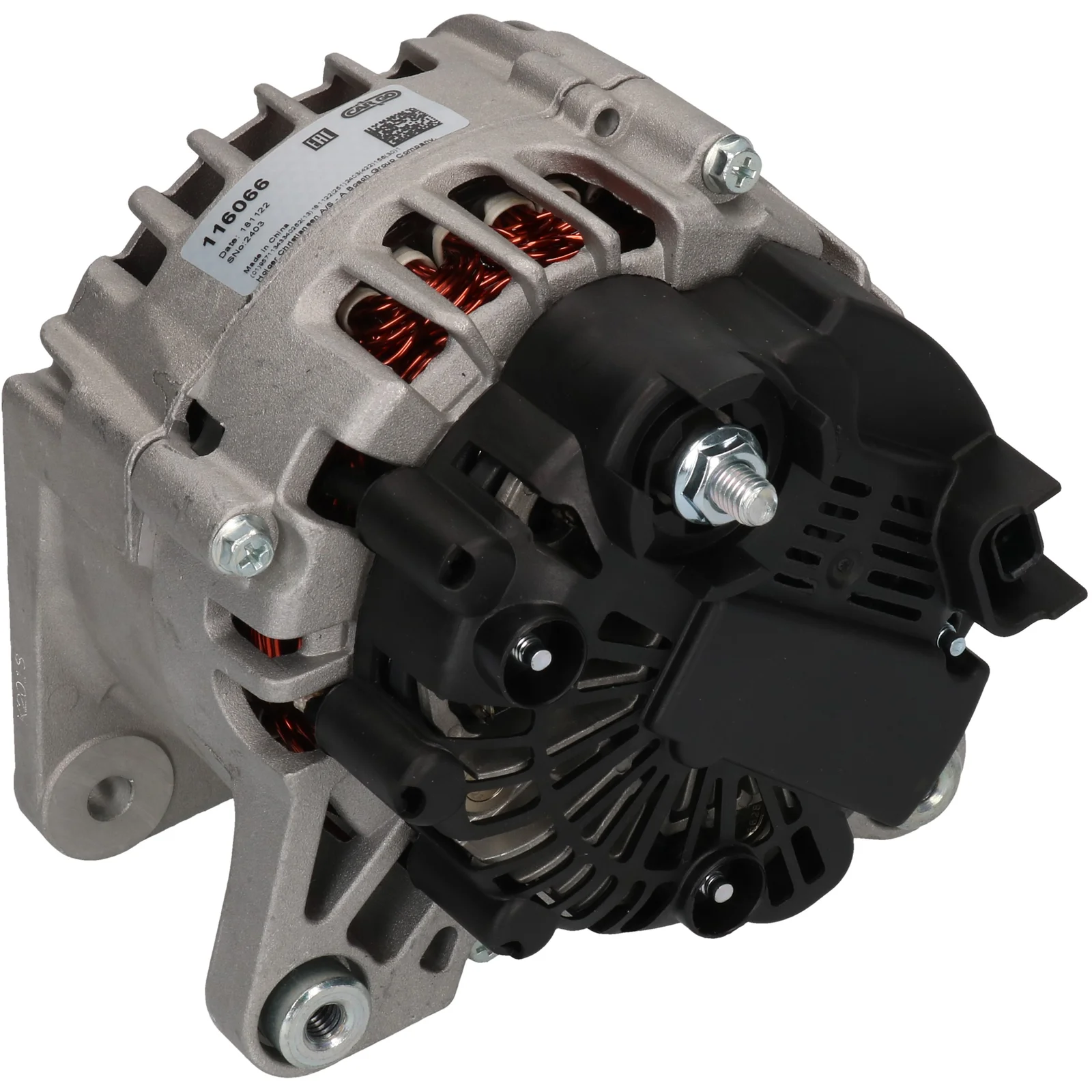

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116066

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 33.50
Width/holder arm: 13.70
Mount. bracket dist.: 60.50
Bracket hole: 8.20
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL131
Total length mm: 184.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.20
Position/B+ in min. 6
Pulley SP
Pulley dia. 49.00
Pulley dist. 33.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 13.70
Amp 120

  • OEM
    F032116066, tg12c062, 2605419B, 8200757870

  • Konkurrentreferens
    A3313(VALEO), A3313S, CAL15391, DRA0379, LRA03253, 8EL012240-141, 28-5865, 230.344.1202, 575.913.120, 20878N-OE, 210698, 210698A, 439648, 440218, 553593RI, 9090836, 12090480, 32005011

  • Normaliserat artikelnummer
    a3313s, a3313valeo, cal15391, dra0379, f032116066, lra03253, tg12c062, 8el012240141, 20878noe, 210698, 210698a, 285865, 439648, 440218, 553593ri, 2605419b, 9090836, 12090480, 32005011, 575913120, 2303441202, 8200757870

  • Passar modeller
    Renault Model: Megane Model series: Megane CC Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Coupe From date: 01-11-2008 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R872 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Hatchback From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: Hatchback From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Scenic Model series: Scenic Type of engine: DCI Size of motor: 1.9 Brand of engine: F9Q870,F9Q872 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 120
    Pulley dist.: 33.50
    Width/holder arm: 13.70
    Mount. bracket dist.: 60.50
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL131
    Total length mm: 184.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.20
    Position/B+ in min. 6
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 33.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 13.70
    Amp 120
  • Fordonsmatchning

    • OEM
      F032116066, tg12c062, 2605419B, 8200757870

    • Konkurrentreferens
      A3313(VALEO), A3313S, CAL15391, DRA0379, LRA03253, 8EL012240-141, 28-5865, 230.344.1202, 575.913.120, 20878N-OE, 210698, 210698A, 439648, 440218, 553593RI, 9090836, 12090480, 32005011

    • Normaliserat artikelnummer
      a3313s, a3313valeo, cal15391, dra0379, f032116066, lra03253, tg12c062, 8el012240141, 20878noe, 210698, 210698a, 285865, 439648, 440218, 553593ri, 2605419b, 9090836, 12090480, 32005011, 575913120, 2303441202, 8200757870

    • Passar modeller
      Renault Model: Megane Model series: Megane CC Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Coupe From date: 01-11-2008 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R870 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R872 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Hatchback From date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: Hatchback From date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Scenic Model series: Scenic Type of engine: DCI Size of motor: 1.9 Brand of engine: F9Q870,F9Q872 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
