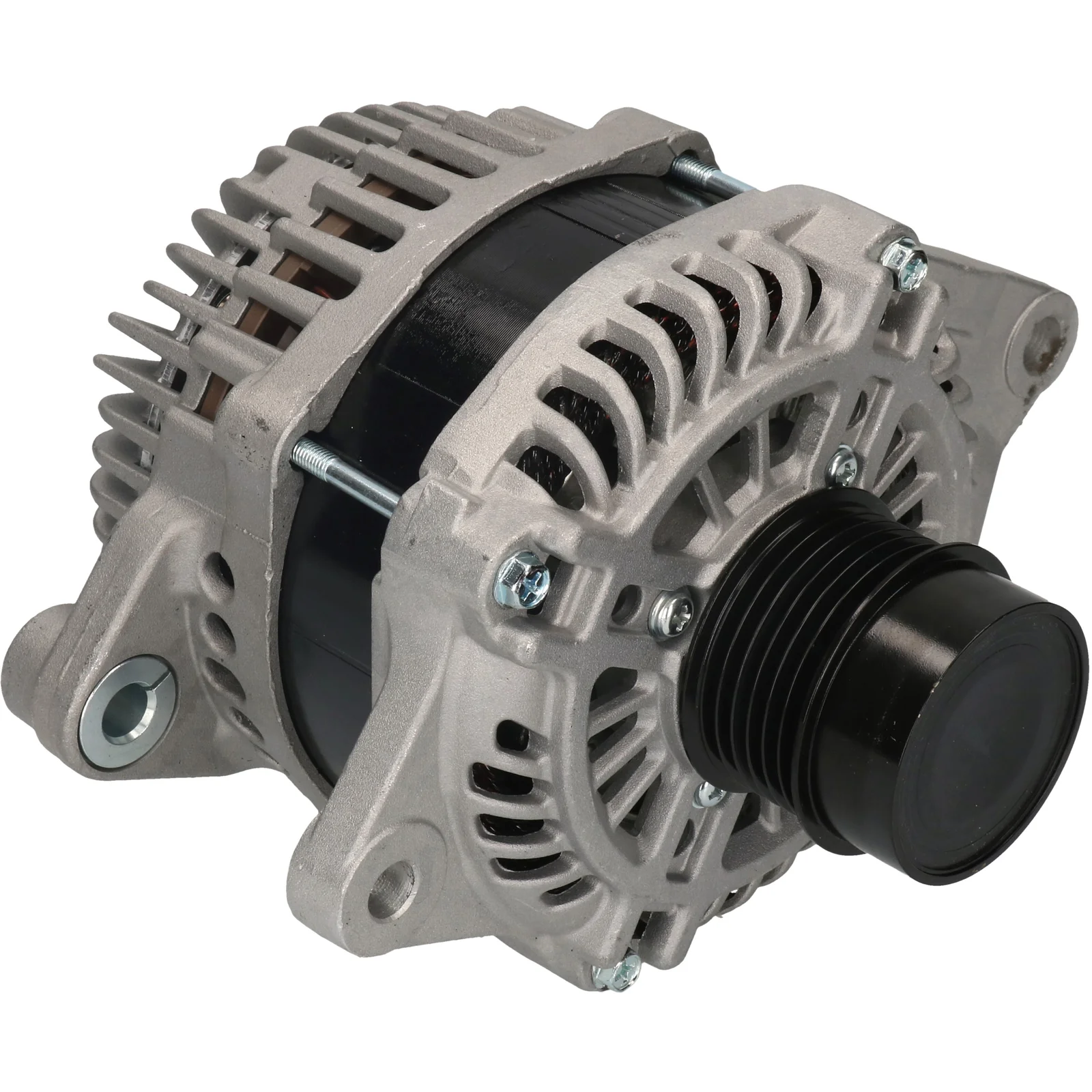

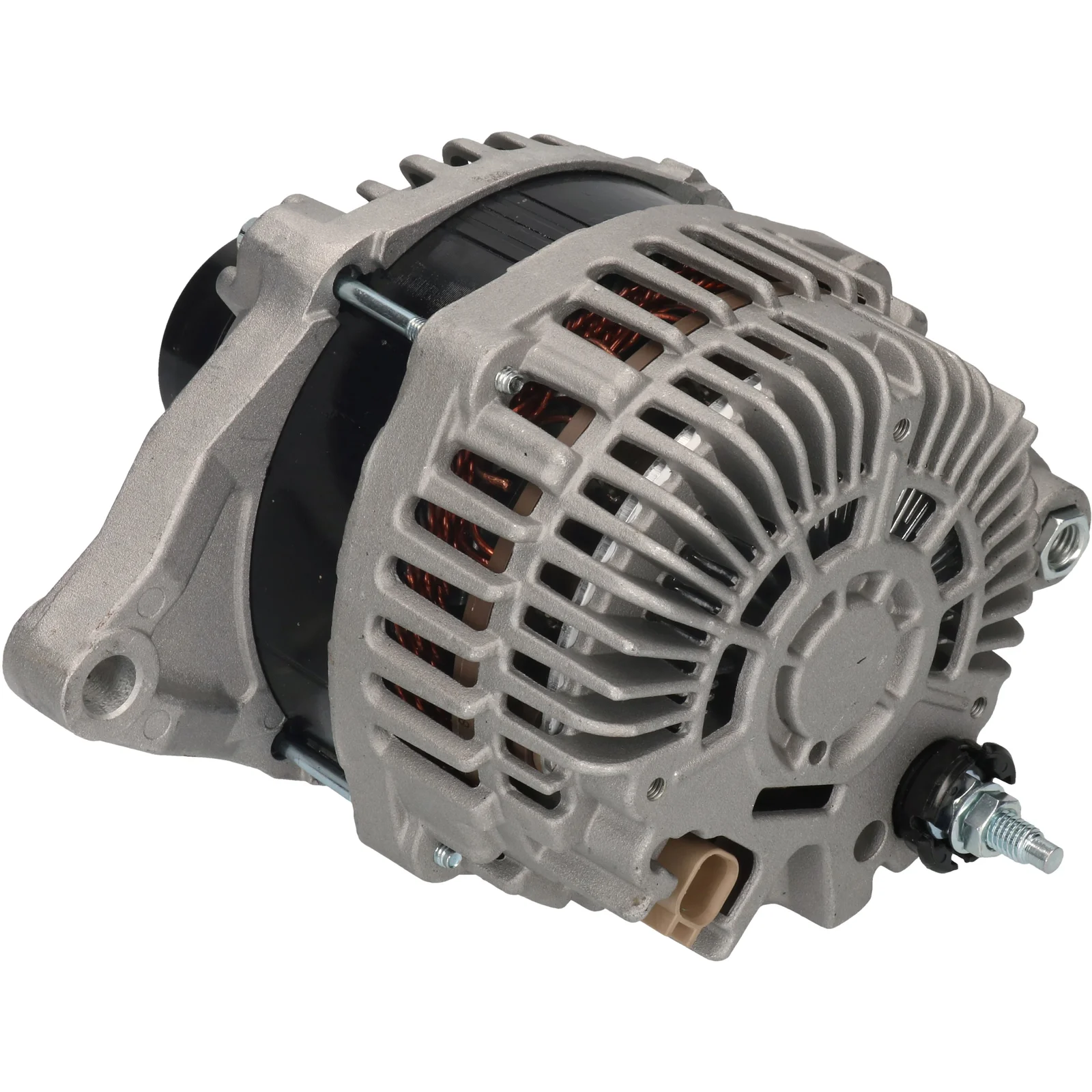

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116037

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 160, Rotation: CW, Mount. bracket dist.: 55.00

Beskrivning

Voltage: 14
Amp: 160
Pulley dist.: 34.20
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: 11.50
Pulley dia.: 53.00
Grooves/pulley: 6
Radius: 82.50
Radius 2: 102.50
B+: M8
Position/B+ in min.: 37
Rotation: CW
Plug no.: PL177
Total length mm: 204.00
Pulley: SP/FW
Regulator: w/o

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 2
Plug no. PL177
Bracket hole 10.50
Position/B+ in min. 37
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 34.20
Radius 82.50
Radius 2 102.50
Regulator w/o
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 204.00 mm
Width/holder arm 13.00
Amp 160

  • OEM
    A002TX0281, A002TX0281ZC, a2tx0281, A2TX0281ZC, F032116037, 04801490AA, 4801490aa

  • Konkurrentreferens
    A5232, LRA03689, 27-6750, 534.038.1602, 835.915.160, 11440N, 11440R, 554200RI, 12061033

  • Normaliserat artikelnummer
    a002tx0281, a002tx0281zc, a2tx0281, a2tx0281zc, a5232, f032116037, lra03689, 11440n, 11440r, 276750, 554200ri, 04801490aa, 4801490aa, 12061033, 835915160, 5340381602

  • Passar modeller
    Dodge Model: Journey Model series: Journey Model type: ECO+ Size of motor: 2.4 Brand of engine: EDG Body: MPV From date: 01-06-2008 Fuel: Bi-Fuel Approved: Yes
    Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: ED3 Body: MPV From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Dodge Model: Journey Model series: Journey Size of motor: 2.4 Brand of engine: EDG Body: MPV From date: 01-09-2008 Fuel: Gasoline Approved: Yes
