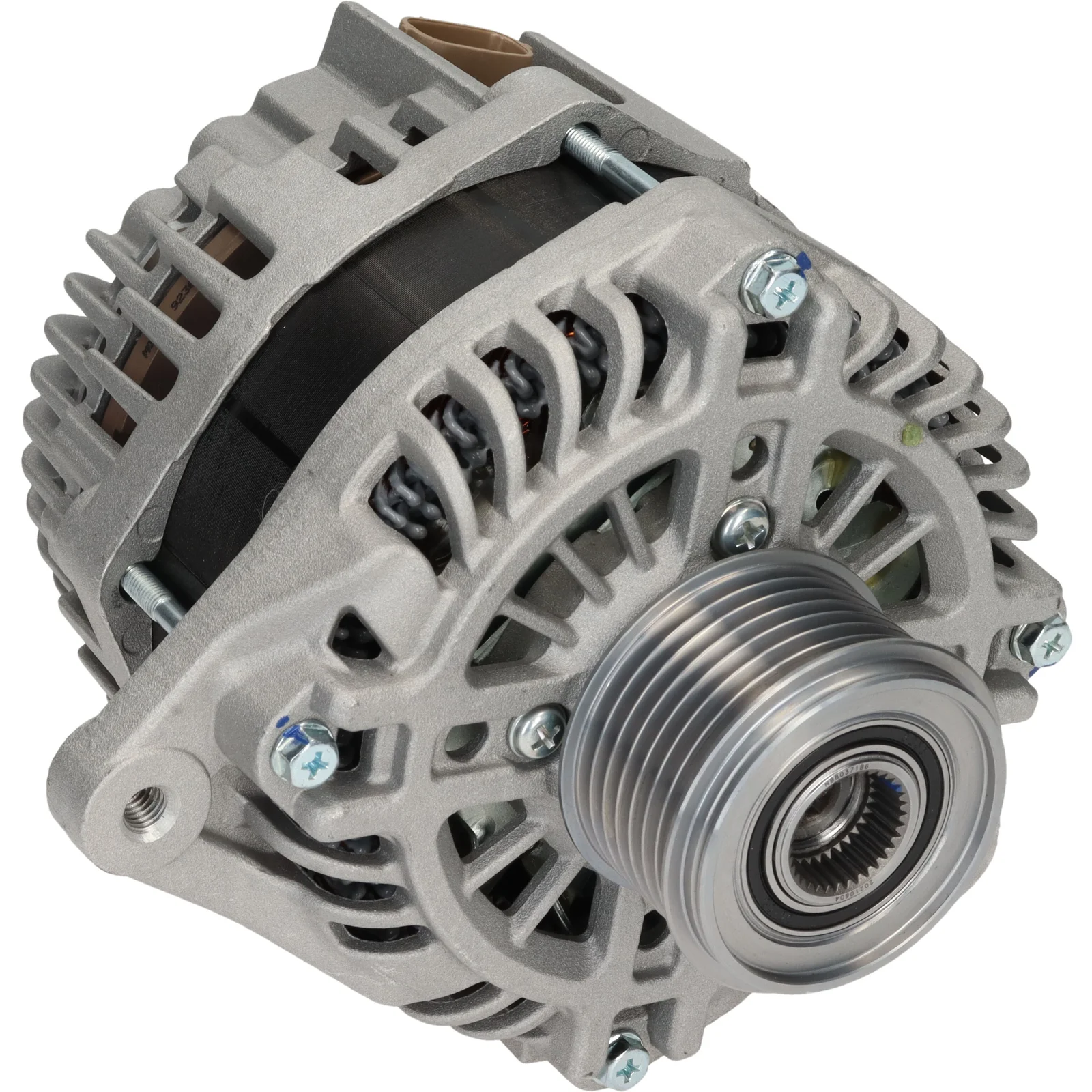

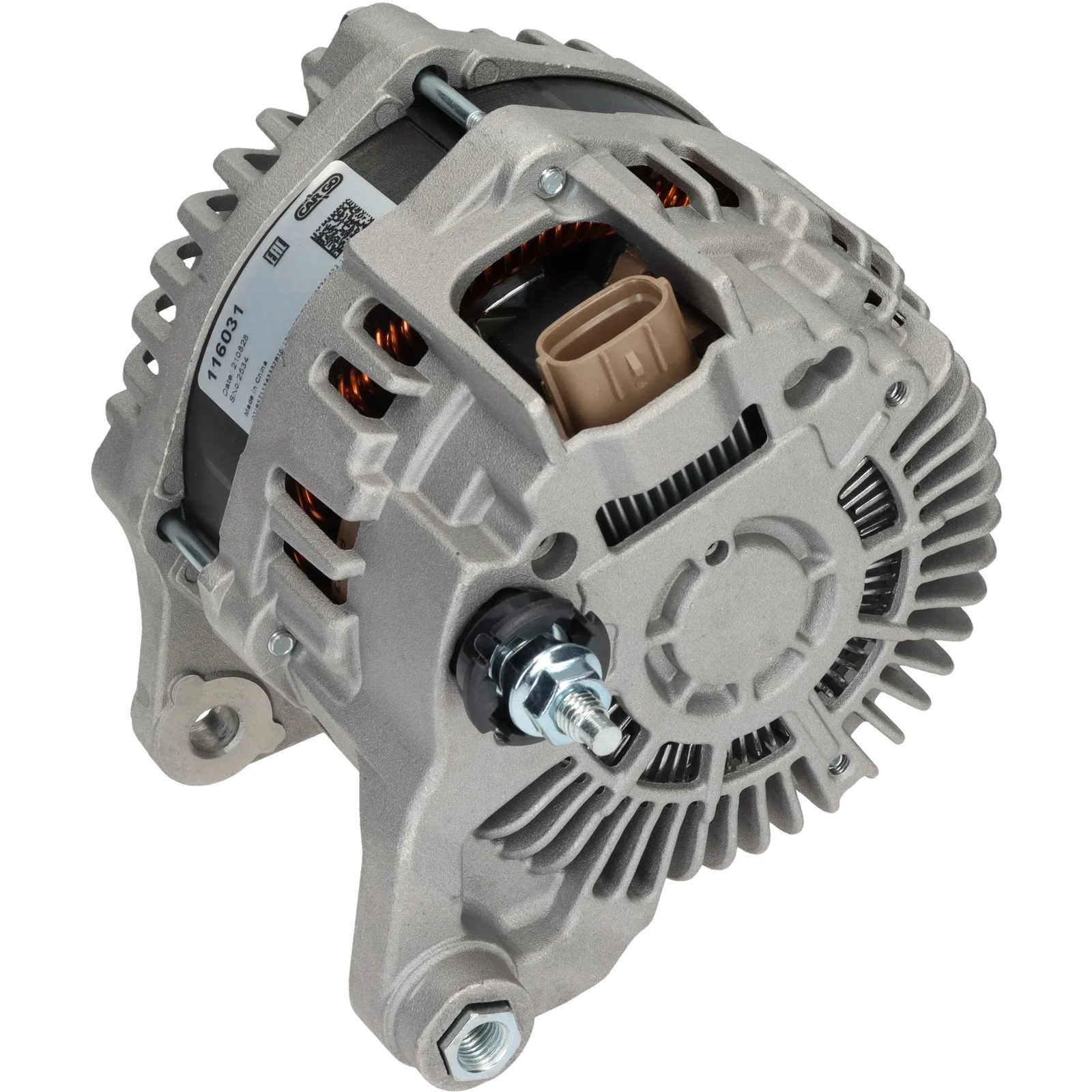

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116031

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 39.50
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL163
Total length mm: 189.00
Terminal type: L-S-C
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL163
Bracket hole 10.50
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 39.50
Radius 85.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-S-C
Voltage 14
Total length 189.00 mm
Width/holder arm 13.00
Amp 150

  • OEM
    A002TX1181, A2TX0781, A2TX1181, F032116031, 23100-1BN1A, 23100-5X21A

  • Konkurrentreferens
    A5146, CAL35320, 165.919.150, 554426RI, 12061226

  • Normaliserat artikelnummer
    a002tx1181, a2tx0781, a2tx1181, a5146, cal35320, f032116031, 231001bn1a, 231005x21a, 554426ri, 12061226, 165919150

  • Passar modeller
    Infiniti Model: EX Model series: EX Model type: 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: V9X Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Infiniti Model: FX Model series: FX Model type: 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: V9X From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Infiniti Model: M Model series: M Type of engine: Diesel Size of motor: 3.0 Brand of engine: V9X Type description: Y51 From date: 01-03-2010 Fuel: Diesel Approved: Yes
    Infiniti Model: Q70 Model series: Q70 Size of motor: 3.0 Brand of engine: V9X Type description: Y51 From date: 01-03-2013 Fuel: Diesel Approved: Yes
    Infiniti Model: QX50 Model series: QX50 Model type: AWD Size of motor: 3.0 Brand of engine: V9X Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Infiniti Model: QX70 Model series: QX70 Model type: AWD Size of motor: 3.0 Brand of engine: V9X Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Nissan Model: Pathfinder Model series: Pathfinder Type of engine: DCi Size of motor: 3.0 Brand of engine: V9X Type description: R51 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 39.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL163
    Total length mm: 189.00
    Terminal type: L-S-C
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 53
    Plug no. PL163
    Bracket hole 10.50
    Position/B+ in min. 40
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 39.50
    Radius 85.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-S-C
    Voltage 14
    Total length 189.00 mm
    Width/holder arm 13.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A002TX1181, A2TX0781, A2TX1181, F032116031, 23100-1BN1A, 23100-5X21A

    • Konkurrentreferens
      A5146, CAL35320, 165.919.150, 554426RI, 12061226

    • Normaliserat artikelnummer
      a002tx1181, a2tx0781, a2tx1181, a5146, cal35320, f032116031, 231001bn1a, 231005x21a, 554426ri, 12061226, 165919150

    • Passar modeller
      Infiniti Model: EX Model series: EX Model type: 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: V9X Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Infiniti Model: FX Model series: FX Model type: 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: V9X From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Infiniti Model: M Model series: M Type of engine: Diesel Size of motor: 3.0 Brand of engine: V9X Type description: Y51 From date: 01-03-2010 Fuel: Diesel Approved: Yes
      Infiniti Model: Q70 Model series: Q70 Size of motor: 3.0 Brand of engine: V9X Type description: Y51 From date: 01-03-2013 Fuel: Diesel Approved: Yes
      Infiniti Model: QX50 Model series: QX50 Model type: AWD Size of motor: 3.0 Brand of engine: V9X Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Infiniti Model: QX70 Model series: QX70 Model type: AWD Size of motor: 3.0 Brand of engine: V9X Body: Hatchback From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Nissan Model: Pathfinder Model series: Pathfinder Type of engine: DCi Size of motor: 3.0 Brand of engine: V9X Type description: R51 From date: 01-08-2010 Fuel: Diesel Approved: Yes
