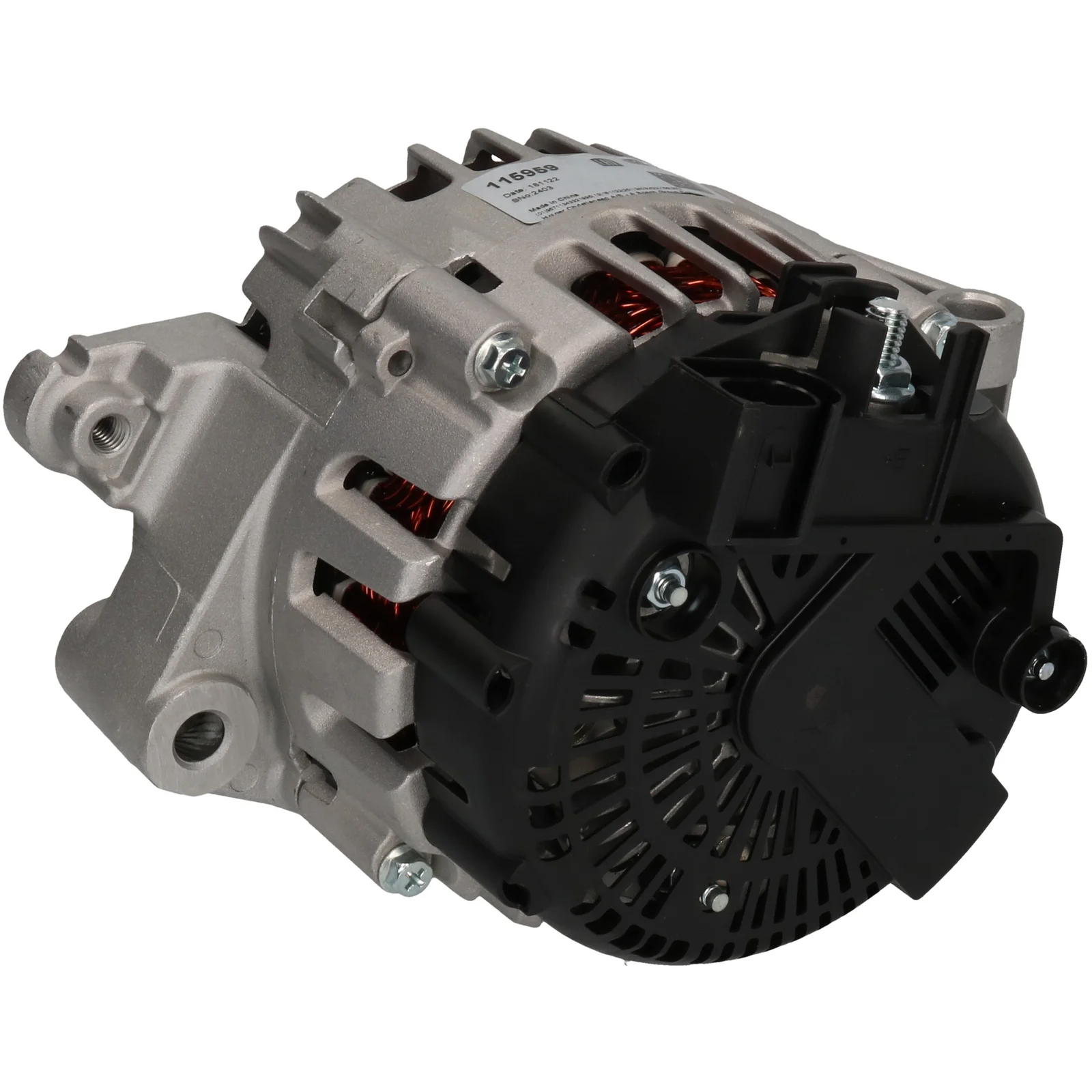

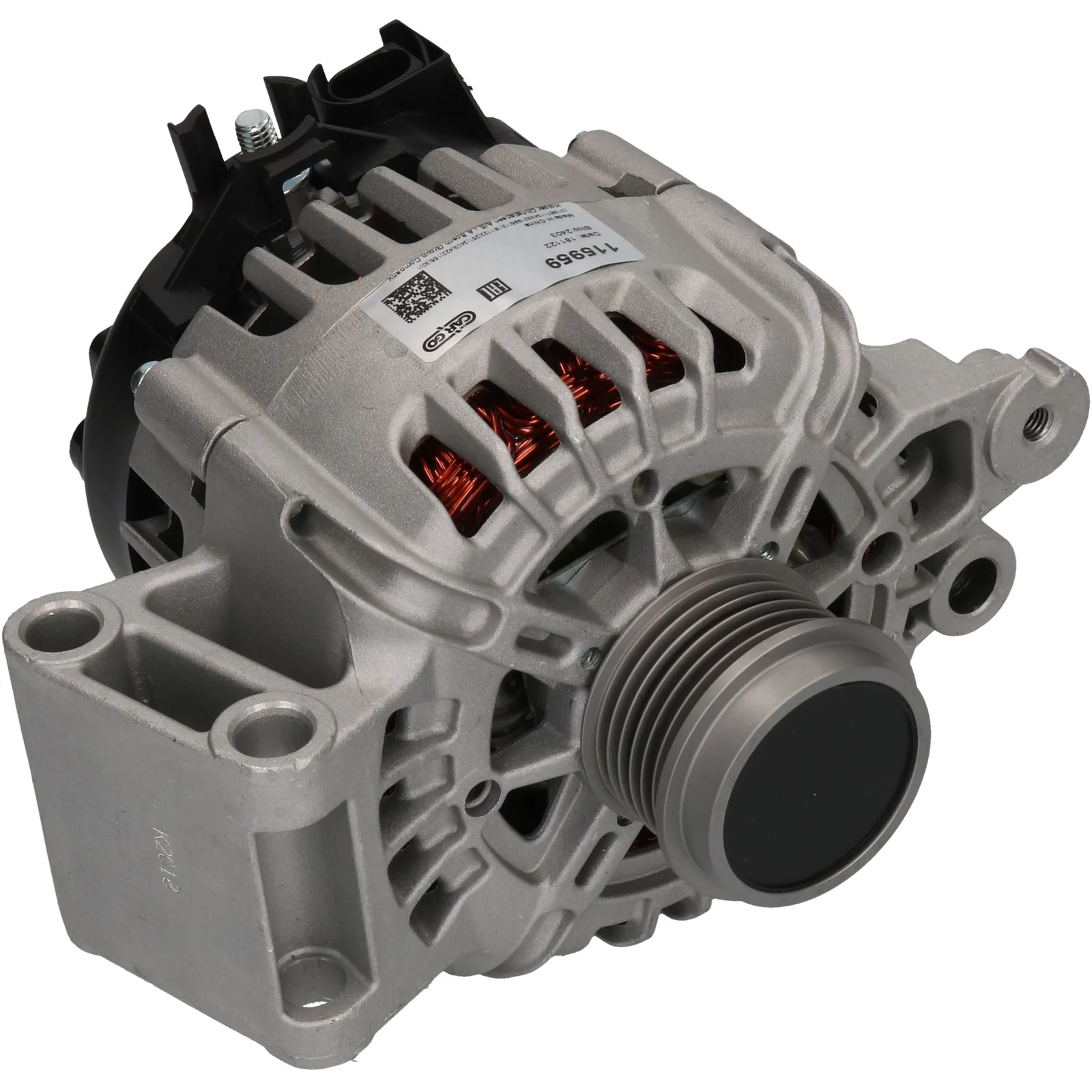

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115959

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 51.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 11.50
Width/holder arm: 71.50
Mount. bracket dist.: 51.00
Bracket hole: 12.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 51.70
Grooves/pulley: 6
Radius: 84.50
Radius 2: 87.00
B+: M8
Position/B+ in min.: 16
Rotation: CW
Plug no.: PL174
Total length mm: 186.50
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 51.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 4
Plug no. PL174
Bracket hole 12.50
Position/B+ in min. 16
Pulley SP/FW
Pulley dia. 51.70
Pulley dist. 11.50
Radius 84.50
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 186.50 mm
Width/holder arm 71.50
Amp 120

  • OEM
    bv6n10300aa, F032115959, tg12c107, 1704925

  • Konkurrentreferens
    CAL15478, DRA1412, LRA03768, 28-6878, 219.321.1202, 595.592.120, 11698N, 210963, 210963A, 439899, 553824RI, 12090627

  • Normaliserat artikelnummer
    bv6n10300aa, cal15478, dra1412, f032115959, lra03768, tg12c107, 11698n, 210963, 210963a, 286878, 439899, 553824ri, 1704925, 12090627, 595592120, 2193211202

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JQDA Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JQDB Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA,JTDB Body: Van From date: 01-12-2010 Fuel: Petrol Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDB Body: MPV From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: ST200 Size of motor: 1.6 Brand of engine: JTJC Type description: CB1, CCN Body: Hatchback From date: 01-04-2016 To date: 01-04-2017 Fuel: Petrol Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JQDB From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: JTDB From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA Body: Estate From date: 01-07-2010 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.6 Brand of engine: YUDA From date: 01-11-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA Body: Estate From date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA Body: Hatchback From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Flexifuel Size of motor: 1.6 Brand of engine: YUDA From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: Ecoboost Size of motor: 1.6 Brand of engine: JTDA,JTDB Body: Van From date: 01-12-2010 Fuel: Petrol Approved: Yes
