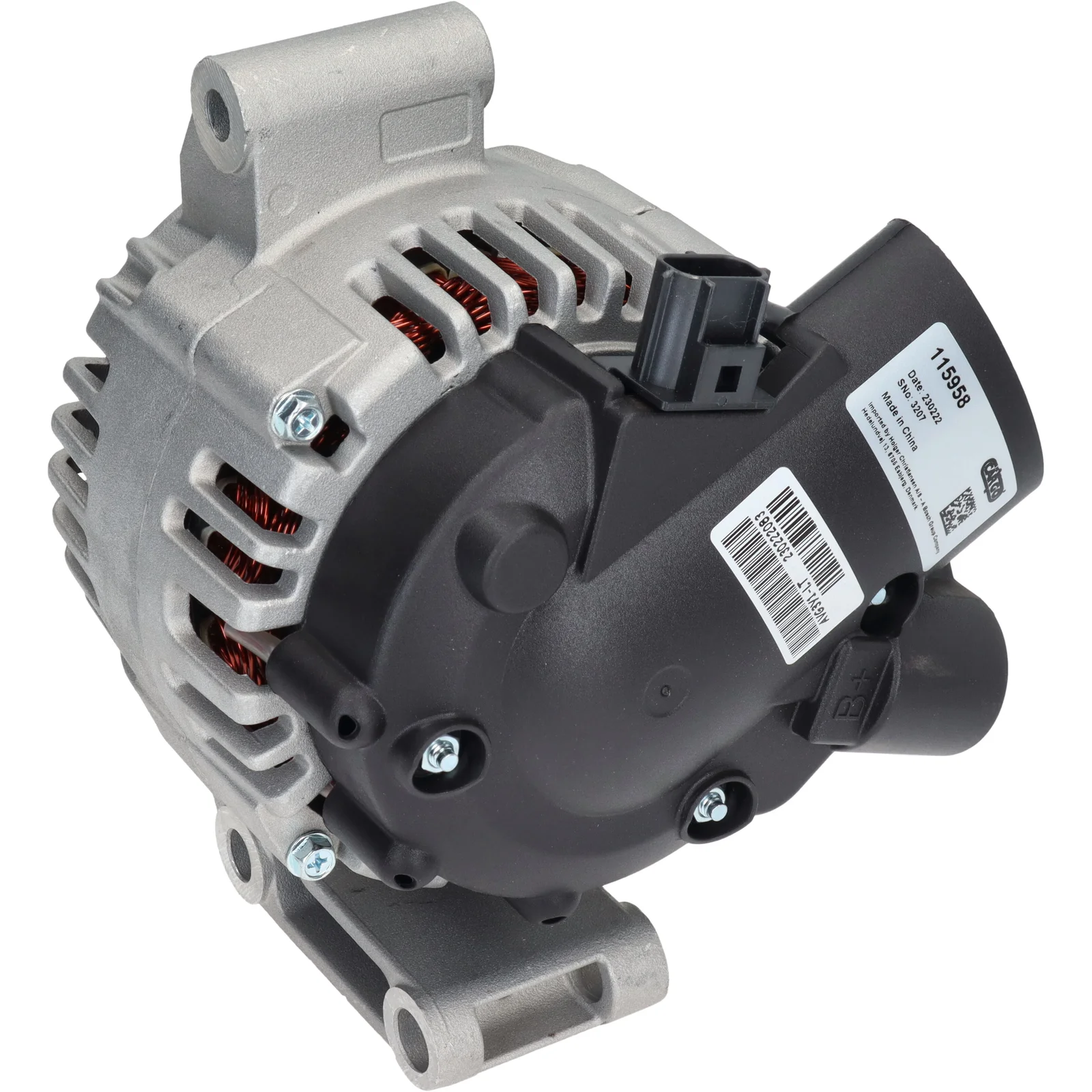

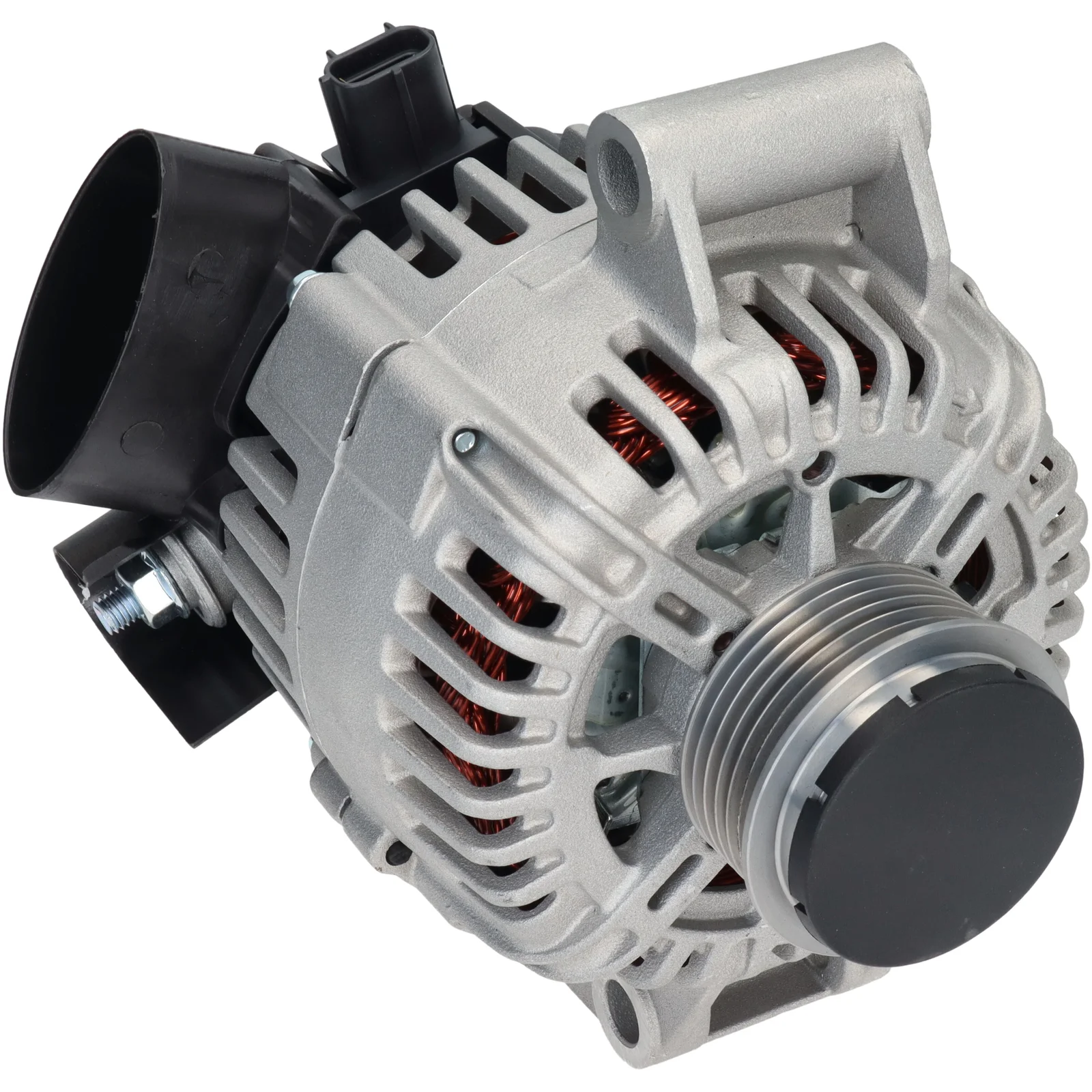

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115958

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 74.00

Beskrivning

Voltage: 14
Amp: 110
Pulley dist.: 40.00
Width/holder arm: 55.00
Mount. bracket dist.: 74.00
Bracket hole: 10.50
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 88.00
Radius 2: 88.00
B+ Length mm: 12.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL57
Total length mm: 182.00
Terminal type: FR-SIG-A
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 10.30
Plug no. PL57
Bracket hole 10.50
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 40.00
Radius 88.00
Radius 2 88.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-SIG-A
Voltage 14
Total length 182.00 mm
Width/holder arm 55.00
Amp 110
B+ Length 12.00 mm

  • OEM
    F032115958, TG12C013, TG12C109, 2s7t10300aa, 2s7t10300ab, 2S7T10300AC, 1151639, 1225784, 2542737, 2542737A

  • Konkurrentreferens
    CAL15307, dra0134, LRA03001, 27-5614, 595.528.110, 595.587.110, 24002R, 210414, 210414A, 437448, 439483, 9090382, 12090241

  • Normaliserat artikelnummer
    cal15307, dra0134, f032115958, lra03001, tg12c013, tg12c109, 2s7t10300aa, 2s7t10300ab, 2s7t10300ac, 24002r, 210414, 210414a, 275614, 437448, 439483, 1151639, 1225784, 2542737, 2542737a, 9090382, 12090241, 595528110, 595587110

  • Passar modeller
    Ford Model: Mondeo Model series: Mondeo Size of motor: 3.0 Brand of engine: MEBA Type description: B4Y From date: 01-04-2002 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Size of motor: 3.0 Brand of engine: MEBA Type description: B5Y Body: Hatchback From date: 01-04-2002 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Size of motor: 3.0 Brand of engine: MEBA Type description: BWY Body: Estate From date: 01-04-2002 To date: 01-03-2007 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: V6 24V Size of motor: 2.5 Brand of engine: LCBD Type description: B4Y From date: 01-10-2000 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: V6 24V Size of motor: 2.5 Brand of engine: LCBD Type description: B5Y Body: Hatchback From date: 01-10-2000 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: V6 24V Size of motor: 2.5 Brand of engine: LCBD Type description: BWY Body: Estate From date: 01-10-2000 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: V6 24V Size of motor: 3.0 Brand of engine: REBA Type description: BWY Body: Estate From date: 01-09-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes Manufacture type: turnier
