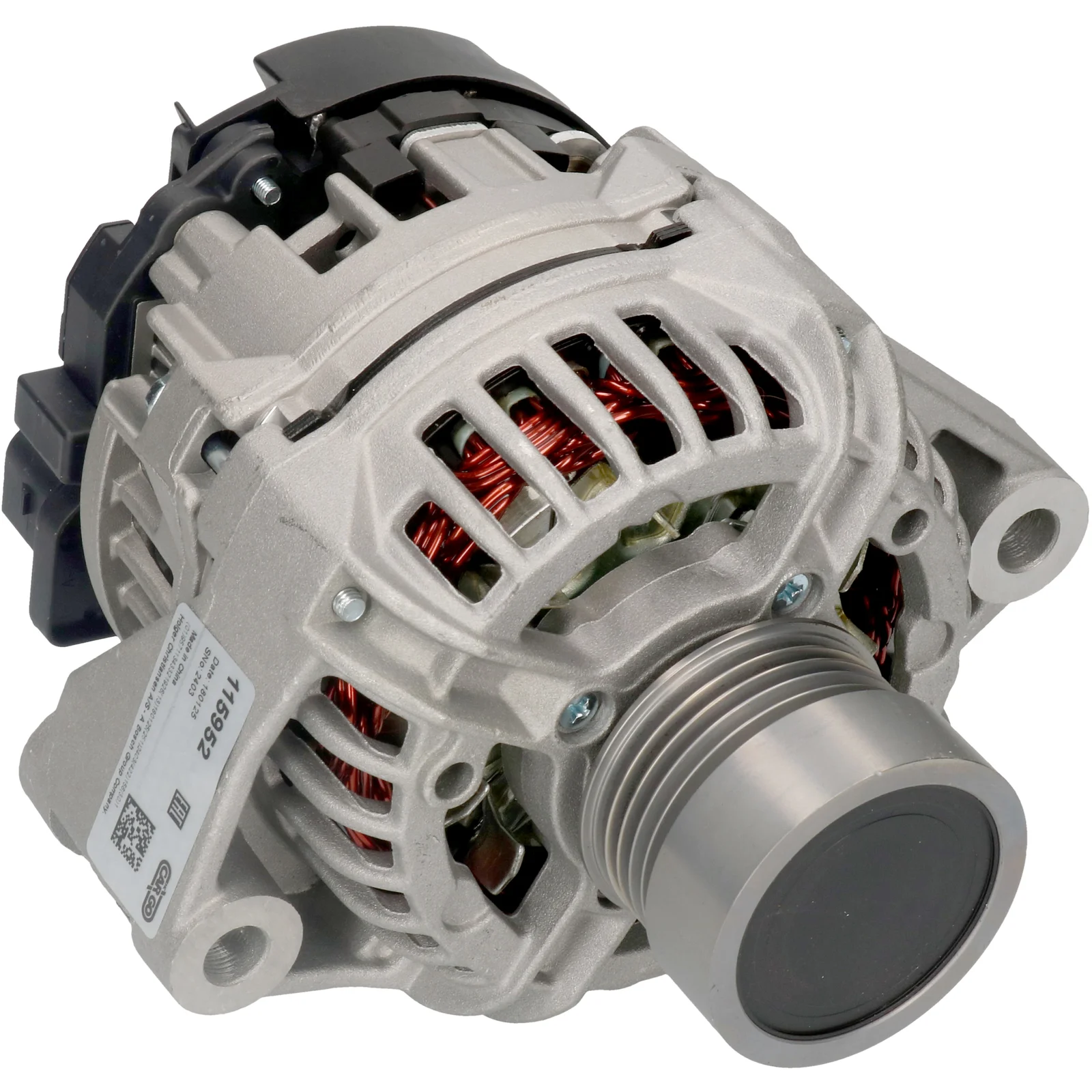

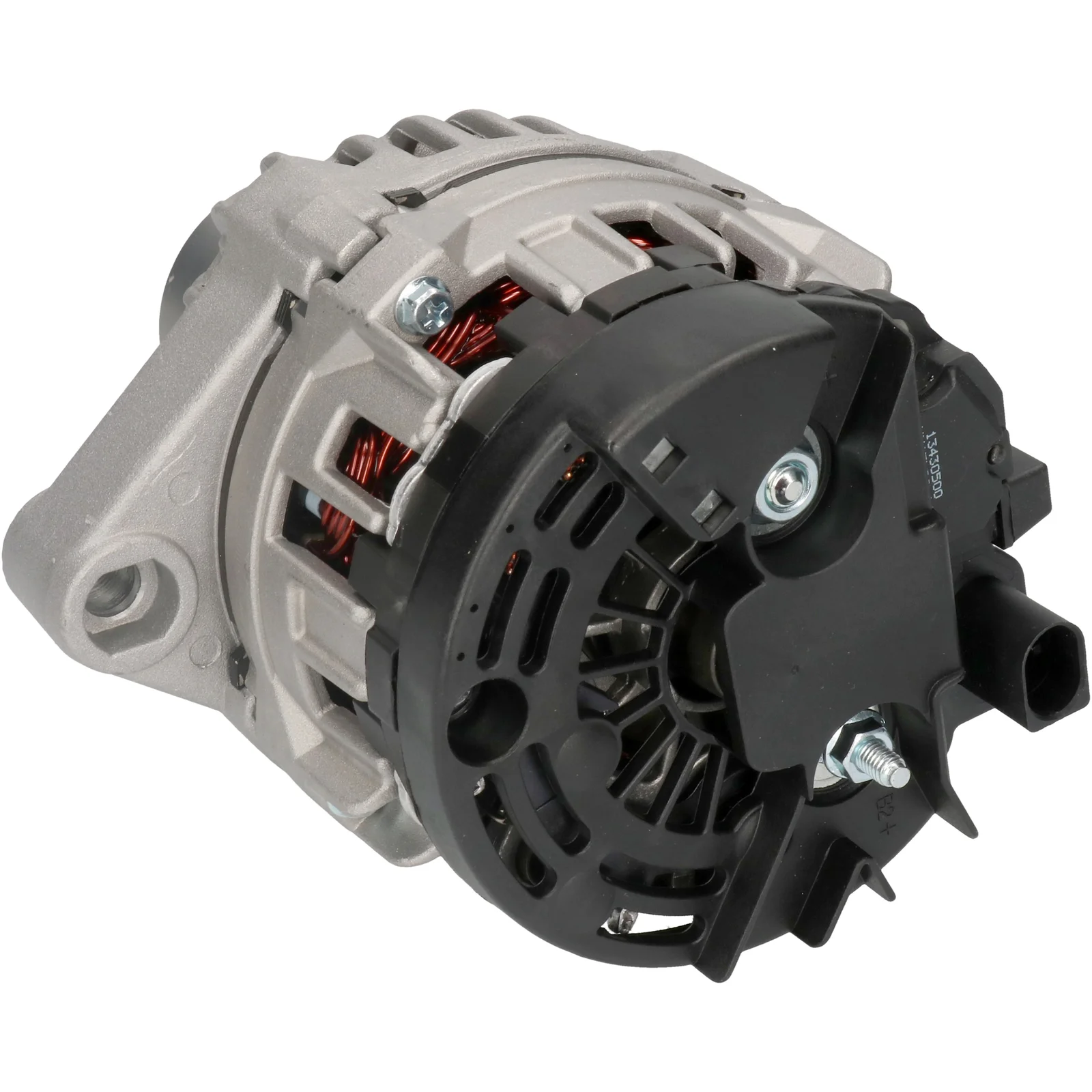

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115952

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 54.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 11.50
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 37
Rotation: CW
Plug no.: PL86
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 4
Plug no. PL86
Bracket hole 10.50
Position/B+ in min. 37
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 90.50
Radius 80.00
Radius 2 80.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 58.00
Amp 90

  • OEM
    A0009062400, A0009062401, F032115952, 0009062400, 0009062401, 0124225064

  • Konkurrentreferens
    A0547S, CAL10510, LRA03688, 28-6749, 525.125.902, 555.938.090, 554241RI, 9090796, 12090528

  • Normaliserat artikelnummer
    a0009062400, a0009062401, a0547s, cal10510, f032115952, lra03688, 286749, 554241ri, 0009062400, 0009062401, 9090796, 12090528, 0124225064, 525125902, 555938090

  • Passar modeller
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: 11.50
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 37
    Rotation: CW
    Plug no.: PL86
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 4
    Plug no. PL86
    Bracket hole 10.50
    Position/B+ in min. 37
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 90.50
    Radius 80.00
    Radius 2 80.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 58.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A0009062400, A0009062401, F032115952, 0009062400, 0009062401, 0124225064

    • Konkurrentreferens
      A0547S, CAL10510, LRA03688, 28-6749, 525.125.902, 555.938.090, 554241RI, 9090796, 12090528

    • Normaliserat artikelnummer
      a0009062400, a0009062401, a0547s, cal10510, f032115952, lra03688, 286749, 554241ri, 0009062400, 0009062401, 9090796, 12090528, 0124225064, 525125902, 555938090

    • Passar modeller
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
