HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115935

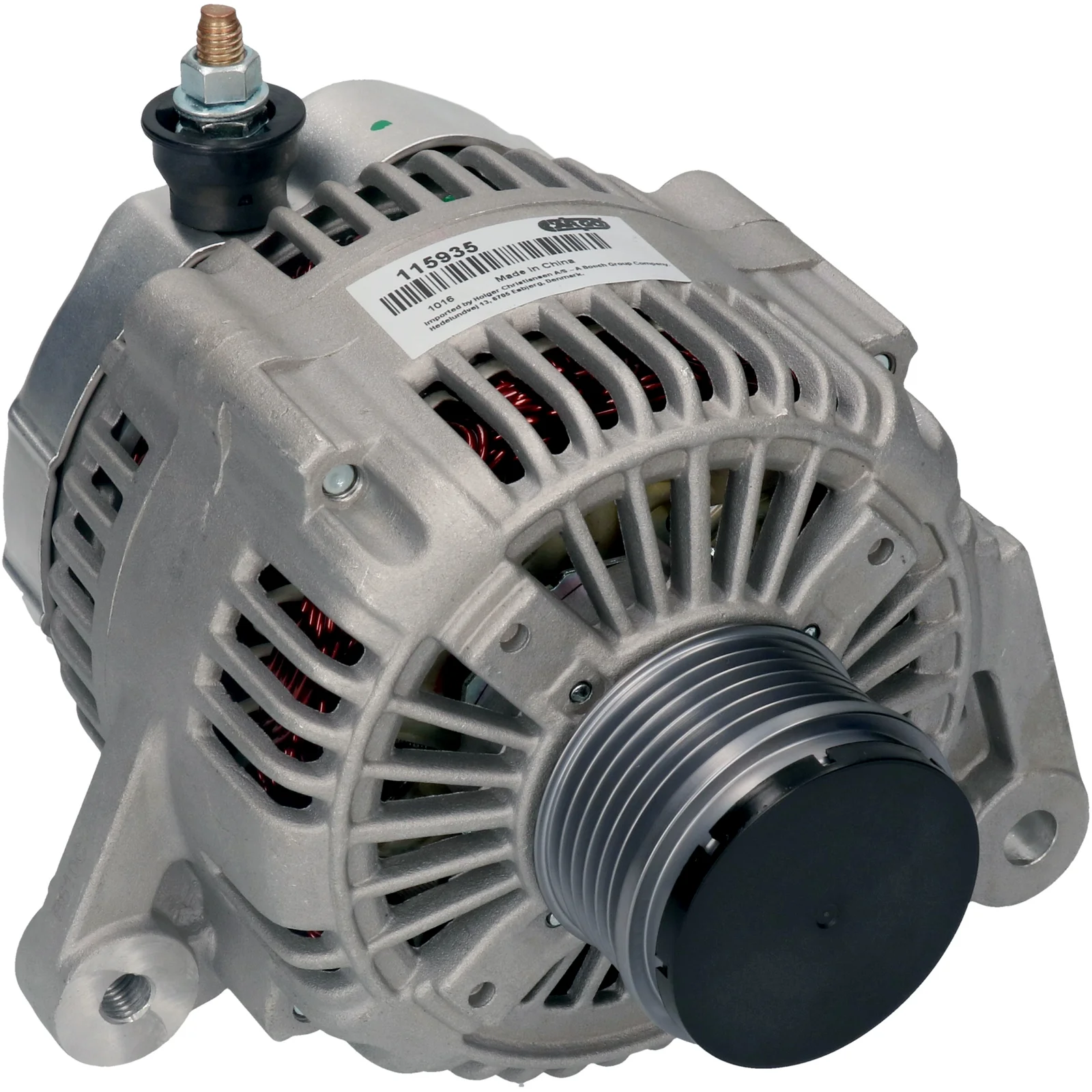

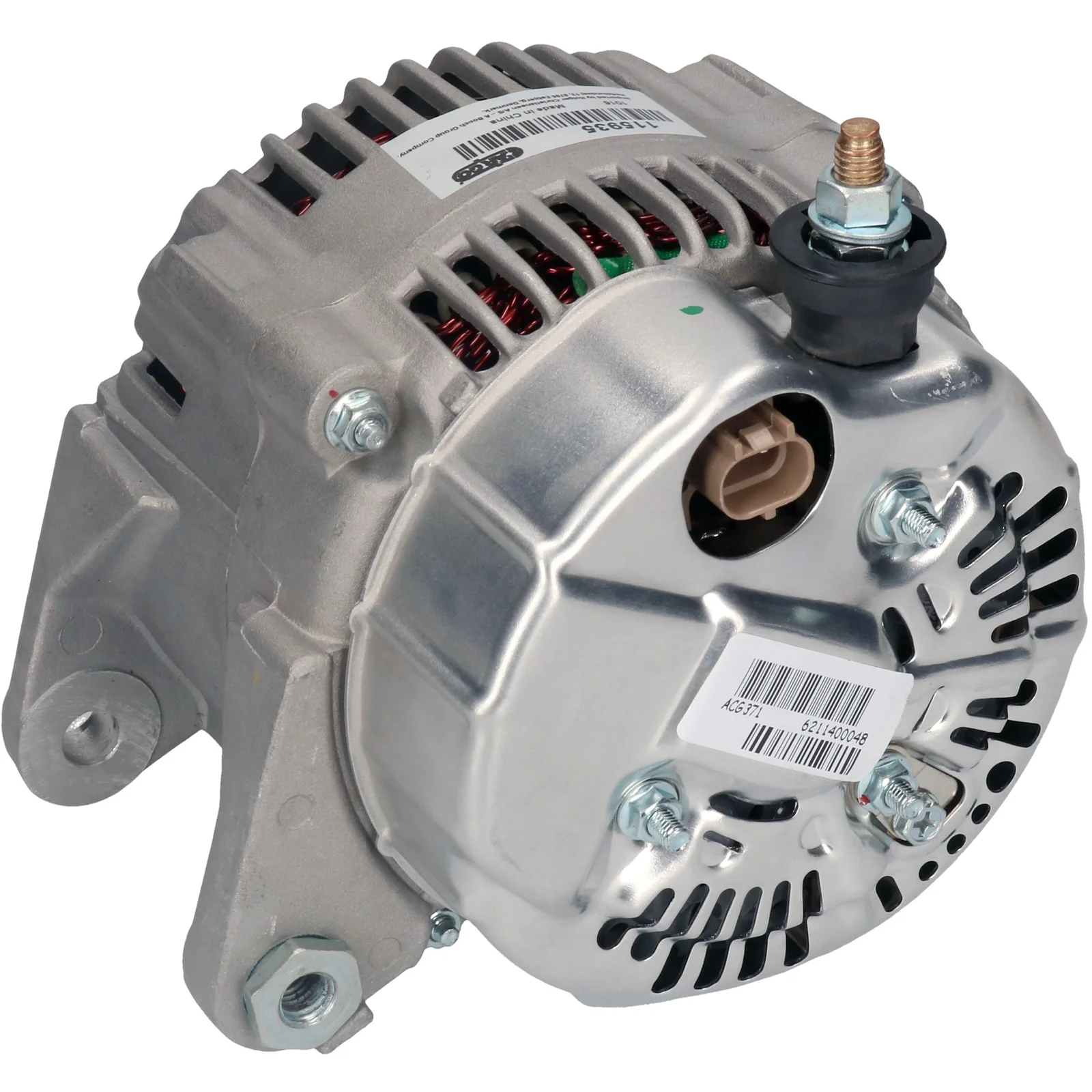

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 67.50

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 27.00
Width/holder arm: 12.00
Mount. bracket dist.: 67.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M10
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL153
Total length mm: 185.00
Pulley: SP/FW
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 67.50
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 50
Plug no. PL153
Bracket hole 11.00
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 27.00
Radius 90.00
Radius 2 90.00
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 185.00 mm
Width/holder arm 12.00
Amp 130

  • OEM
    F032115935, 121000-3850, 121000-3851, 121000-4520, 121000-4521, 121000-4550, 121000-4551, 56044530aa, 56044530ab, 56044530ac, 56044532AA, 56044532AB, 56044532AC, 56044532AD

  • Konkurrentreferens
    A6181, CAL40185, DRA0646, LRA02850, 27-4966, 534.032.1362, 835.548.136, 13961, 13961N, 13961R, 113143, 554229RI

  • Normaliserat artikelnummer
    a6181, cal40185, dra0646, f032115935, lra02850, 13961, 13961n, 13961r, 113143, 274966, 554229ri, 56044530aa, 56044530ab, 56044530ac, 56044532aa, 56044532ab, 56044532ac, 56044532ad, 835548136, 1210003850, 1210003851, 1210004520, 1210004521, 1210004550, 1210004551, 5340321362

  • Passar modeller
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 2.4 Brand of engine: ED1 Type description: KJ From date: 01-10-2001 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.4 Brand of engine: ED1 Type description: KJ From date: 01-09-2001 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.4 Brand of engine: ED1 Body: Convertible From date: 01-11-2002 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 27.00
    Width/holder arm: 12.00
    Mount. bracket dist.: 67.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL153
    Total length mm: 185.00
    Pulley: SP/FW
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 67.50
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 50
    Plug no. PL153
    Bracket hole 11.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 27.00
    Radius 90.00
    Radius 2 90.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 12.00
    Amp 130
  • Fordonsmatchning

    • OEM
      F032115935, 121000-3850, 121000-3851, 121000-4520, 121000-4521, 121000-4550, 121000-4551, 56044530aa, 56044530ab, 56044530ac, 56044532AA, 56044532AB, 56044532AC, 56044532AD

    • Konkurrentreferens
      A6181, CAL40185, DRA0646, LRA02850, 27-4966, 534.032.1362, 835.548.136, 13961, 13961N, 13961R, 113143, 554229RI

    • Normaliserat artikelnummer
      a6181, cal40185, dra0646, f032115935, lra02850, 13961, 13961n, 13961r, 113143, 274966, 554229ri, 56044530aa, 56044530ab, 56044530ac, 56044532aa, 56044532ab, 56044532ac, 56044532ad, 835548136, 1210003850, 1210003851, 1210004520, 1210004521, 1210004550, 1210004551, 5340321362

    • Passar modeller
      Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 2.4 Brand of engine: ED1 Type description: KJ From date: 01-10-2001 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.4 Brand of engine: ED1 Type description: KJ From date: 01-09-2001 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.4 Brand of engine: ED1 Body: Convertible From date: 01-11-2002 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
