Artikelnr: F032115906

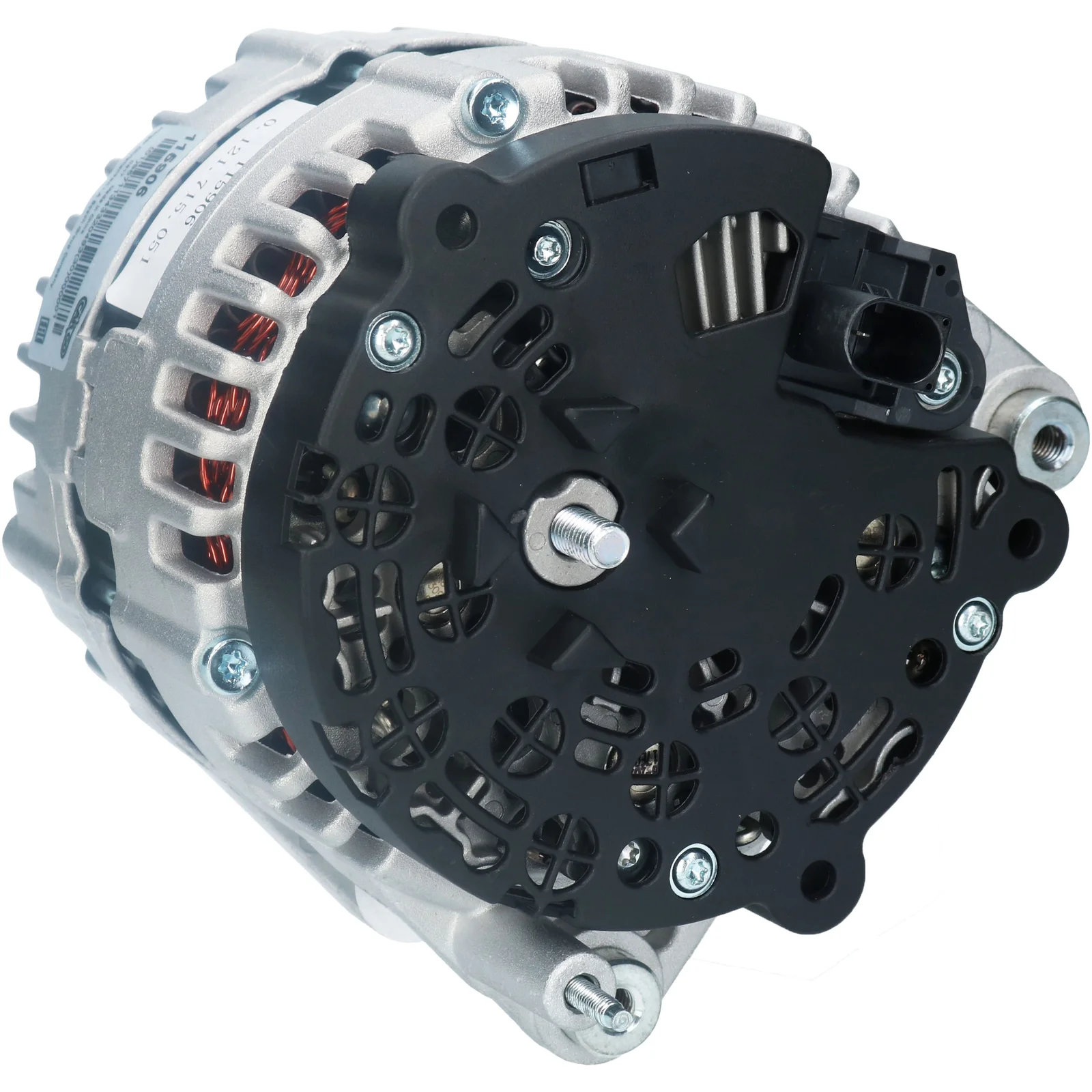

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 30.00
Width/holder arm: 13.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL86
Total length mm: 175.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.50
Position/B+ in min. 3
Pulley SP
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 175.00 mm
Width/holder arm 13.00
Amp 180

  • OEM
    F032115906, FG18S043, 059903016P, 059903016PX, 059903016Q, 059903016QX, 0121715041, 0121715051, 0121715151

  • Konkurrentreferens
    A0299, A3494S, CAL10A14, CAL15485, DRA0372, LRA03216, 28-5828, 205.541.180, 211.363.1802, 20331N, 113056, 443305, 444216, 12090422, 32000015

  • Normaliserat artikelnummer
    a0299, a3494s, cal10a14, cal15485, dra0372, f032115906, fg18s043, lra03216, 20331n, 113056, 285828, 443305, 444216, 12090422, 32000015, 059903016p, 059903016px, 059903016q, 059903016qx, 0121715041, 0121715051, 0121715151, 205541180, 2113631802

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG From date: 01-11-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANB From date: 01-11-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANB Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB,BUN Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 30.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 3
    Rotation: CW
    Plug no.: PL86
    Total length mm: 175.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL86
    Bracket hole 8.50
    Position/B+ in min. 3
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 13.00
    Amp 180
  • Fordonsmatchning

    • OEM
      F032115906, FG18S043, 059903016P, 059903016PX, 059903016Q, 059903016QX, 0121715041, 0121715051, 0121715151

    • Konkurrentreferens
      A0299, A3494S, CAL10A14, CAL15485, DRA0372, LRA03216, 28-5828, 205.541.180, 211.363.1802, 20331N, 113056, 443305, 444216, 12090422, 32000015

    • Normaliserat artikelnummer
      a0299, a3494s, cal10a14, cal15485, dra0372, f032115906, fg18s043, lra03216, 20331n, 113056, 285828, 443305, 444216, 12090422, 32000015, 059903016p, 059903016px, 059903016q, 059903016qx, 0121715041, 0121715051, 0121715151, 205541180, 2113631802

    • Passar modeller
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYA Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4F2 From date: 01-10-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CDYC Type description: 4F5 Body: Estate From date: 01-10-2008 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG From date: 01-11-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANB From date: 01-11-2004 To date: 01-03-2011 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.7 Brand of engine: CANB Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB,BUN Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
